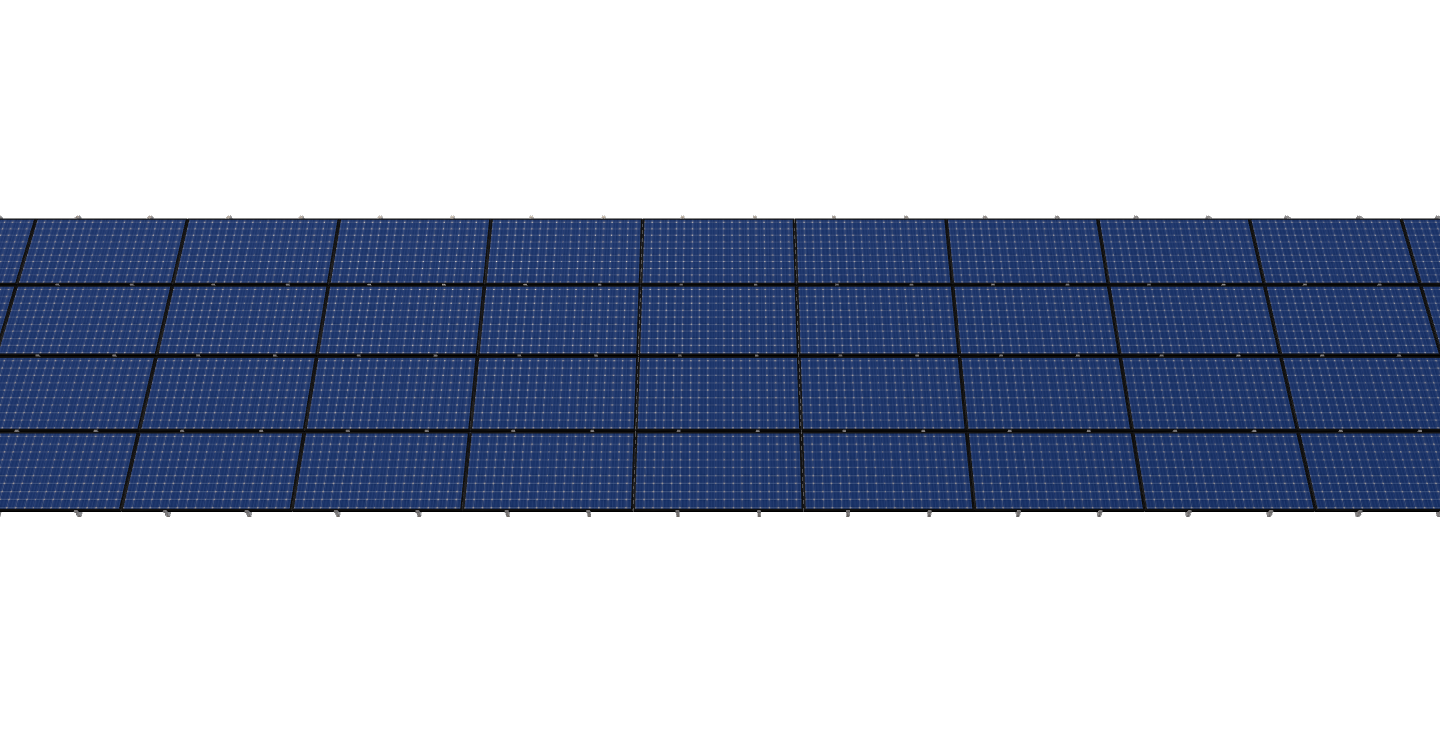

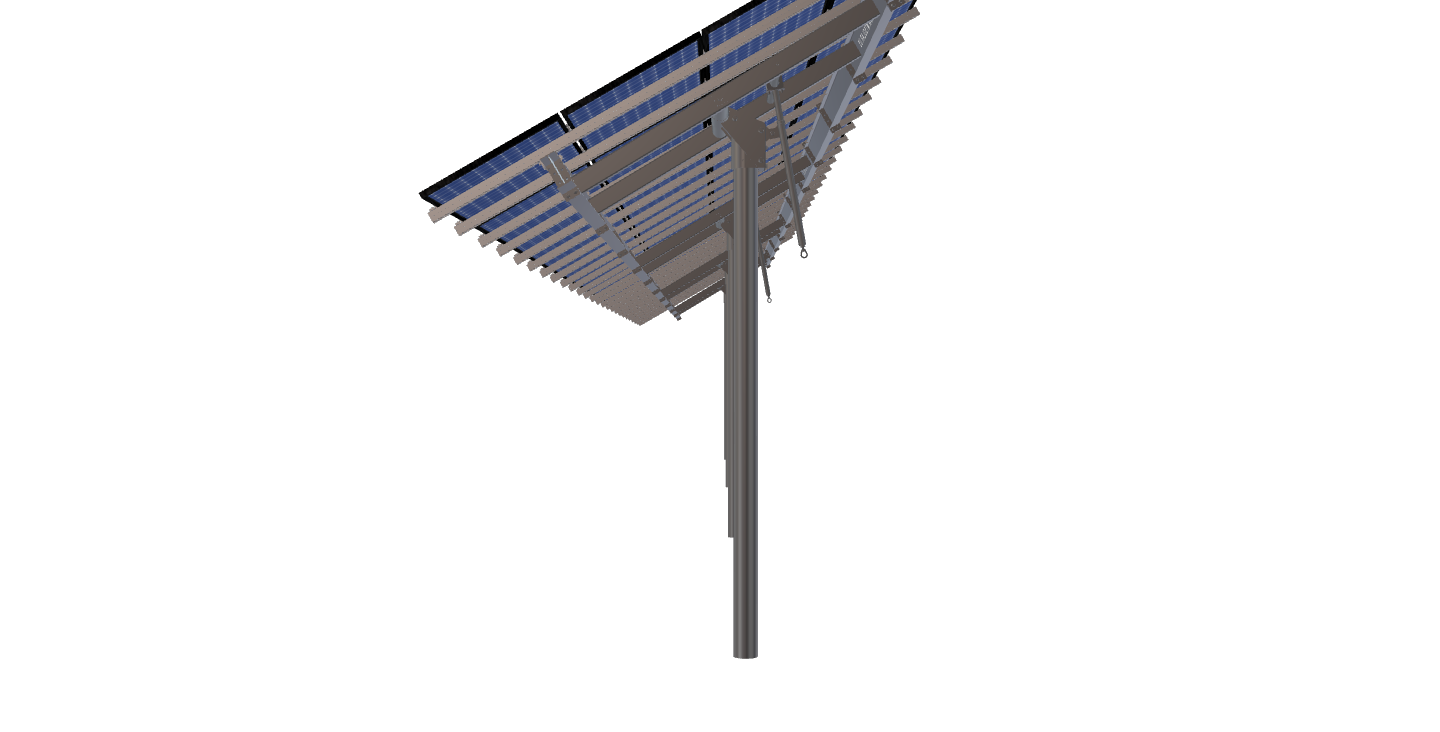

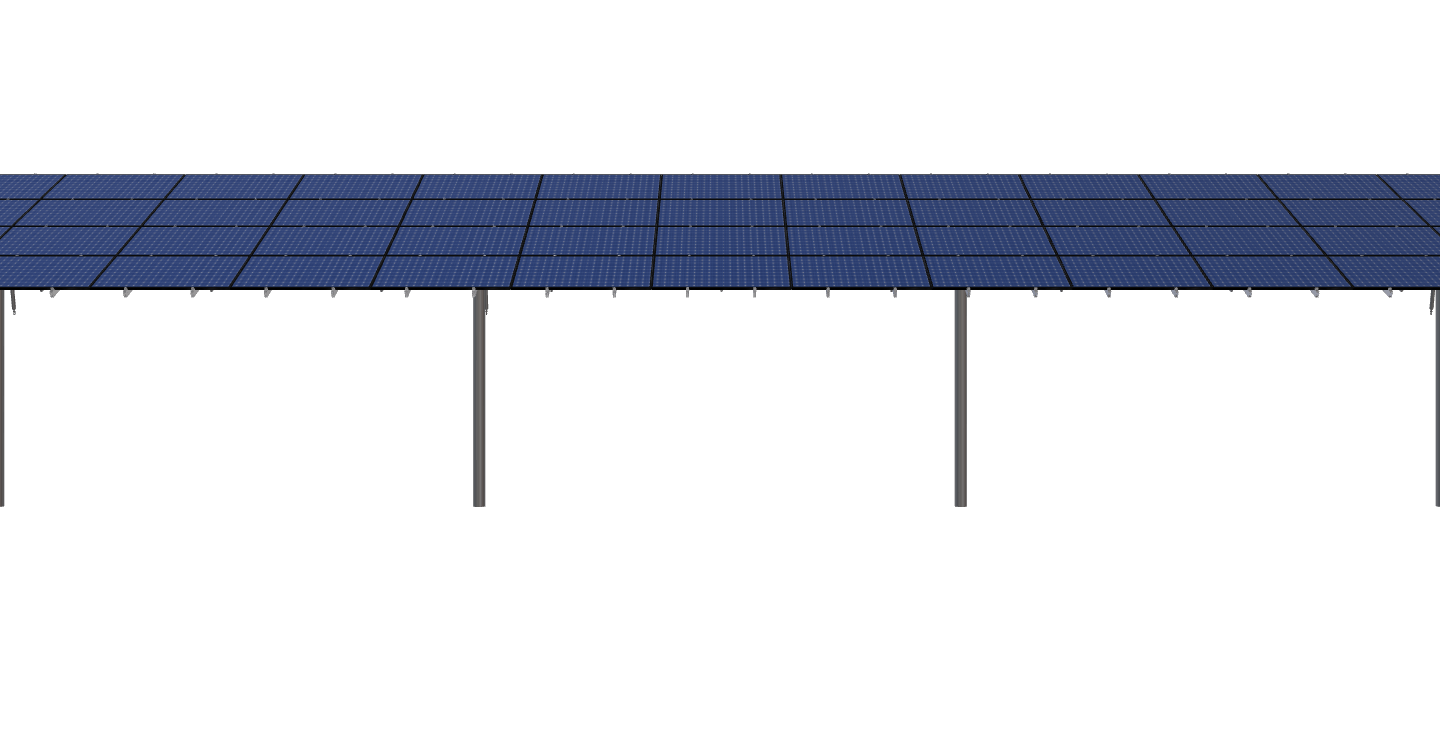

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 38 inches and an array layout of 13 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Plin04-JB-RevA
$21,098.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 38 inches and an array layout of 13 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3701.02 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-10TOP-HD-12-L-4HX13W-B3GB |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.21 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 9.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 924.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1001.00 |
| ARRAY WIDTH | 78.00 |
| ARRAY HEIGHT | 12.83 |
| RAIL LENGTH | 154.00 |
| MODULE LENGTH | 71.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 77.00 |
| GROUND TO TOP | 15.37 |
| PROJECTED PANEL HEIGHT | 6.33 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | PLIN04-JB-REVA |
| SITE ADDRESS | RENOVO, PA, 17764, USA |
| MODULE WIDTH | 38.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 20093.99 |
| TOTAL WEIGHT | 3701.02 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/97aaf272-5c02-4c24-abc4-f489046d677e.pdf |
|
| ID | 1786.00 |
| CAD URL | |
| 3D Solar link |
