This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 42 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
PSRExpansion2
$11,802.62
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 42 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2114.9799999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

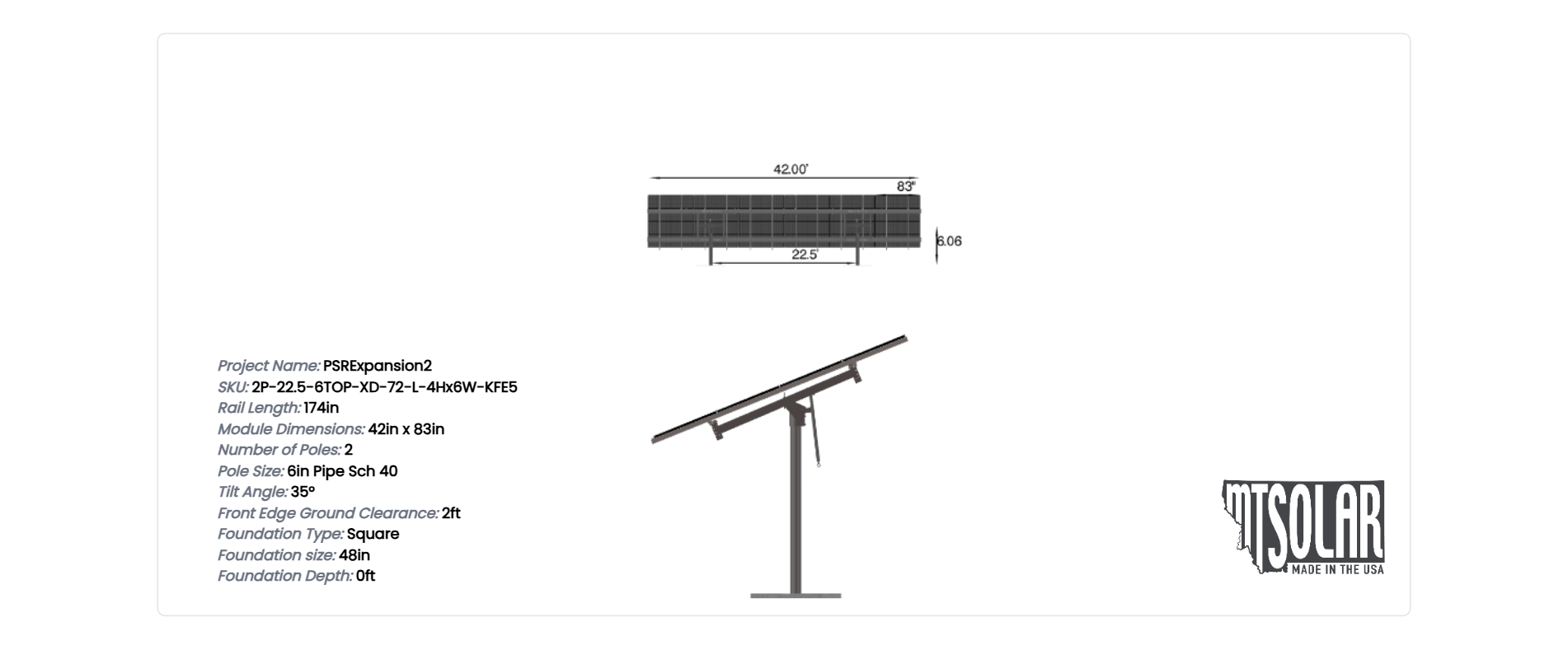

| SKU CODE | 2P-22.5-6TOP-XD-72-L-4HX6W-KFE5 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 6.06 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 2.00 |
| MODULE AREA | 595.00 |
| ARRAY WIDTH | 42.00 |
| ARRAY HEIGHT | 14.17 |
| RAIL LENGTH | 174.00 |
| MODULE LENGTH | 83.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 10.13 |
| PROJECTED PANEL HEIGHT | 8.13 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | PIETER, HUEBNER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4052025359.00 |
| PROJECT ID | PSREXPANSION2 |
| SITE ADDRESS | ATOKA, OK, 74525, USA |
| MODULE INFO | TALESUN, 415 |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11802.62 |
| TOTAL WEIGHT | 2114.98 |
| TOTAL PALLETS | 2.00 |
