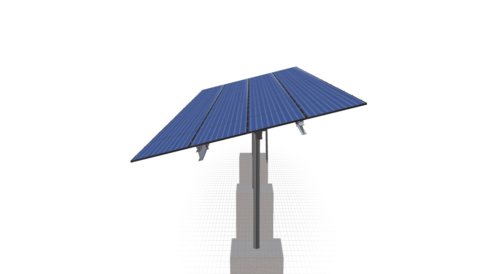

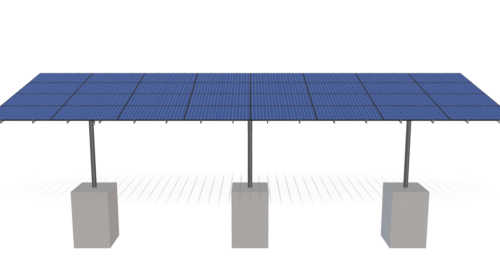

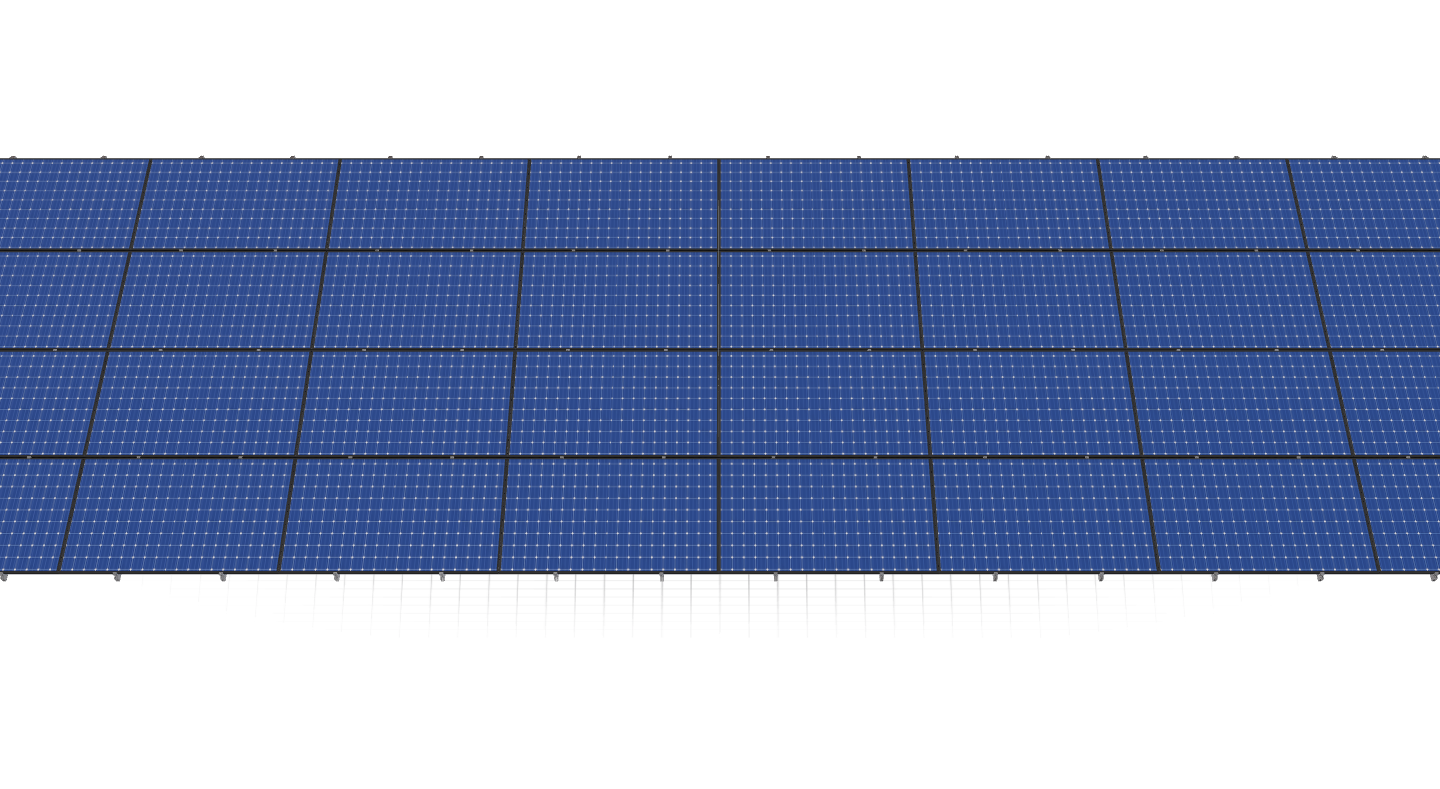

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.5 inches by 51.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
PuertoRicoProject-RevB
$15,833.37
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.5 inches by 51.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2985.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-57-L-4HX8W-II2J |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.09 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 14.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 995.71 |
| ARRAY WIDTH | 57.67 |
| ARRAY HEIGHT | 17.27 |
| RAIL LENGTH | 207.20 |
| MODULE LENGTH | 85.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 13.16 |
| PROJECTED PANEL HEIGHT | 4.14 |
| WIND SPEED OVERRIDE | 140.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | PUERTORICOPROJECT-REVB |
| SITE ADDRESS | 1170, SE, 12TH, TERRACE, MIAMI, FL, 33132, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15833.37 |
| TOTAL WEIGHT | 2985.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c02f6634-5bf6-4eba-aaba-c937b2caafde.pdf |
|
| ID | 677.00 |
| 3D Solar link |
