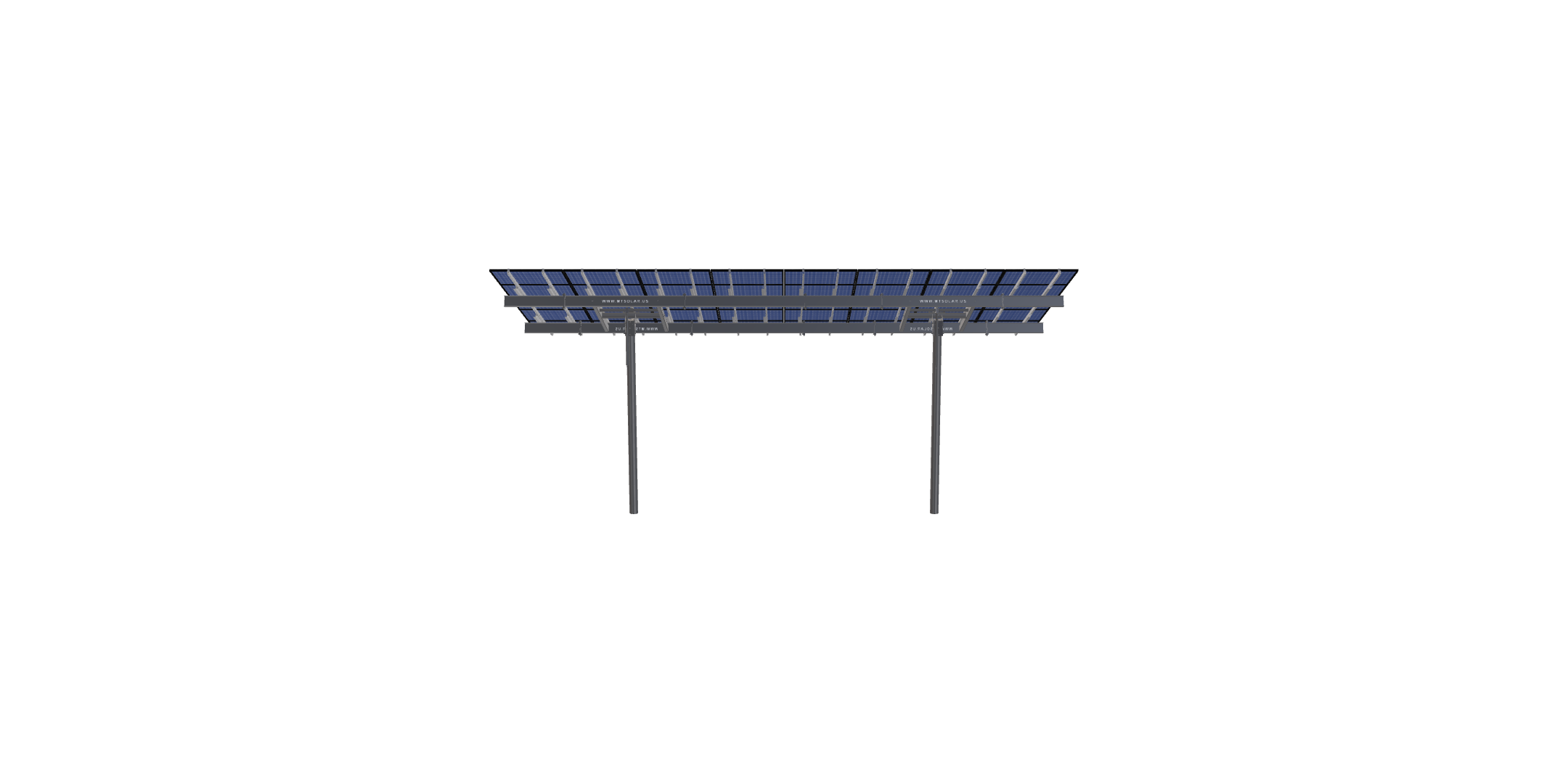

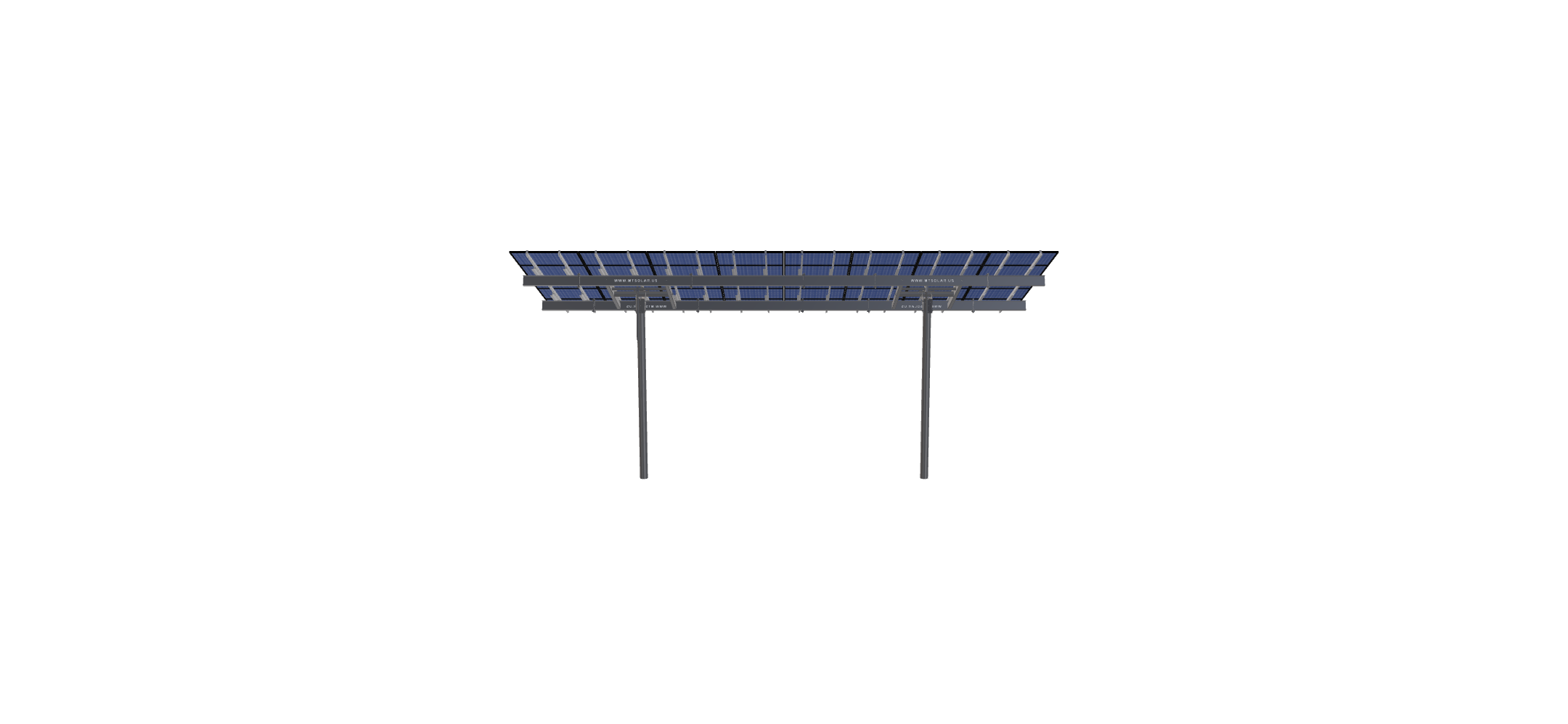

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 52.13 inches by 41.5 inches and an array layout of 8 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

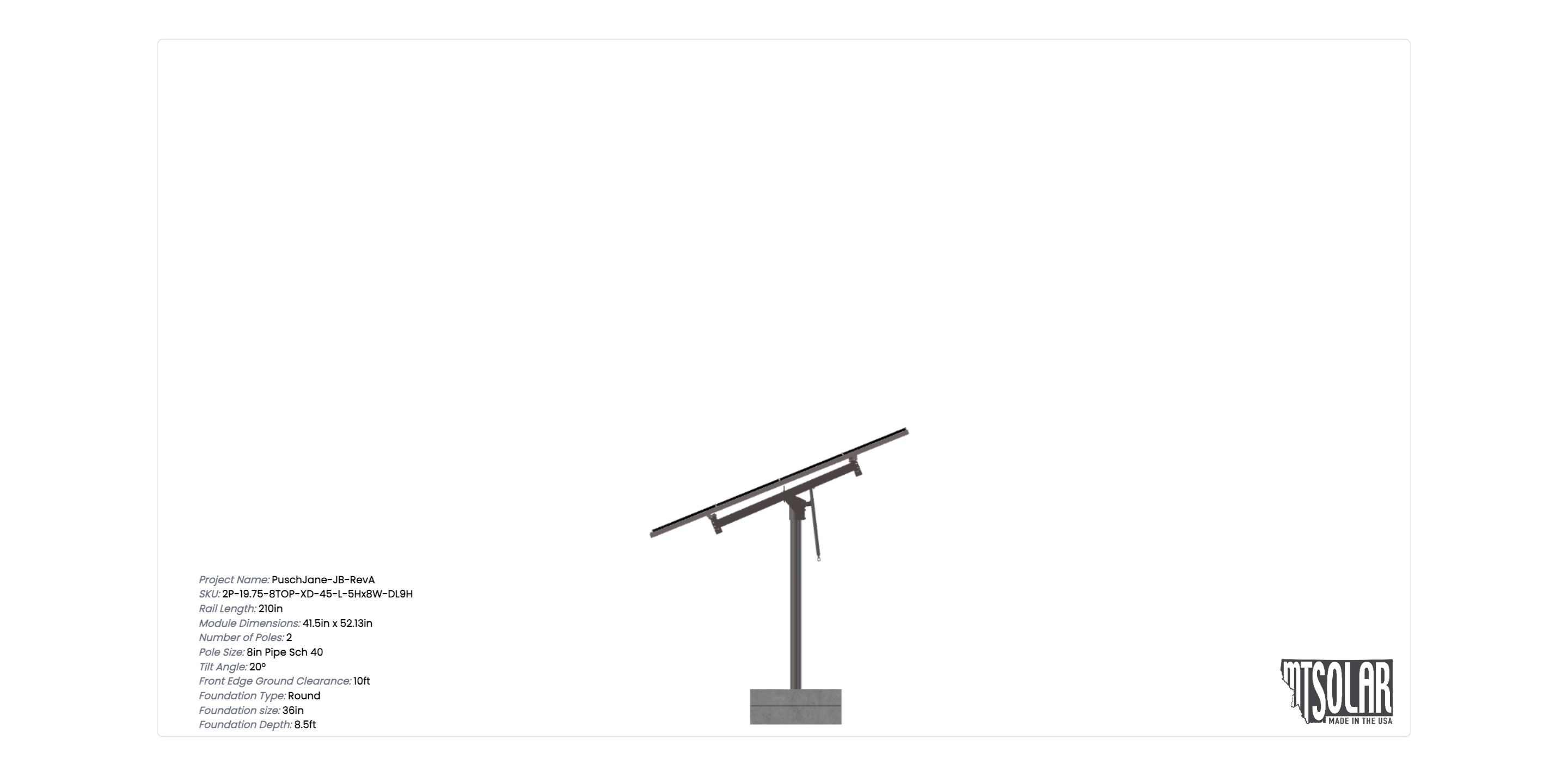

See 3D Model Here
PuschJane-JB-RevA
$13,161.02
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 52.13 inches by 41.5 inches and an array layout of 8 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2522.22 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-XD-45-L-5HX8W-DL9H |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.99 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 619.85 |
| ARRAY WIDTH | 35.42 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 52.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 15.95 |
| PROJECTED PANEL HEIGHT | 5.91 |
| PROJECT ID | PUSCHJANE-JB-REVA |
| SITE ADDRESS | 200, HARVARD, PL, SYRACUSE, NY, 13210, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 12534.30 |
| TOTAL WEIGHT | 2522.22 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/4274e9d2-5e4e-4073-890a-6bb4995e34bf.pdf |
|
| ID | 2382.00 |
| 3D Solar link |
