This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Railyard Mobility Hub RevA- GS
$17,157.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3293.65 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

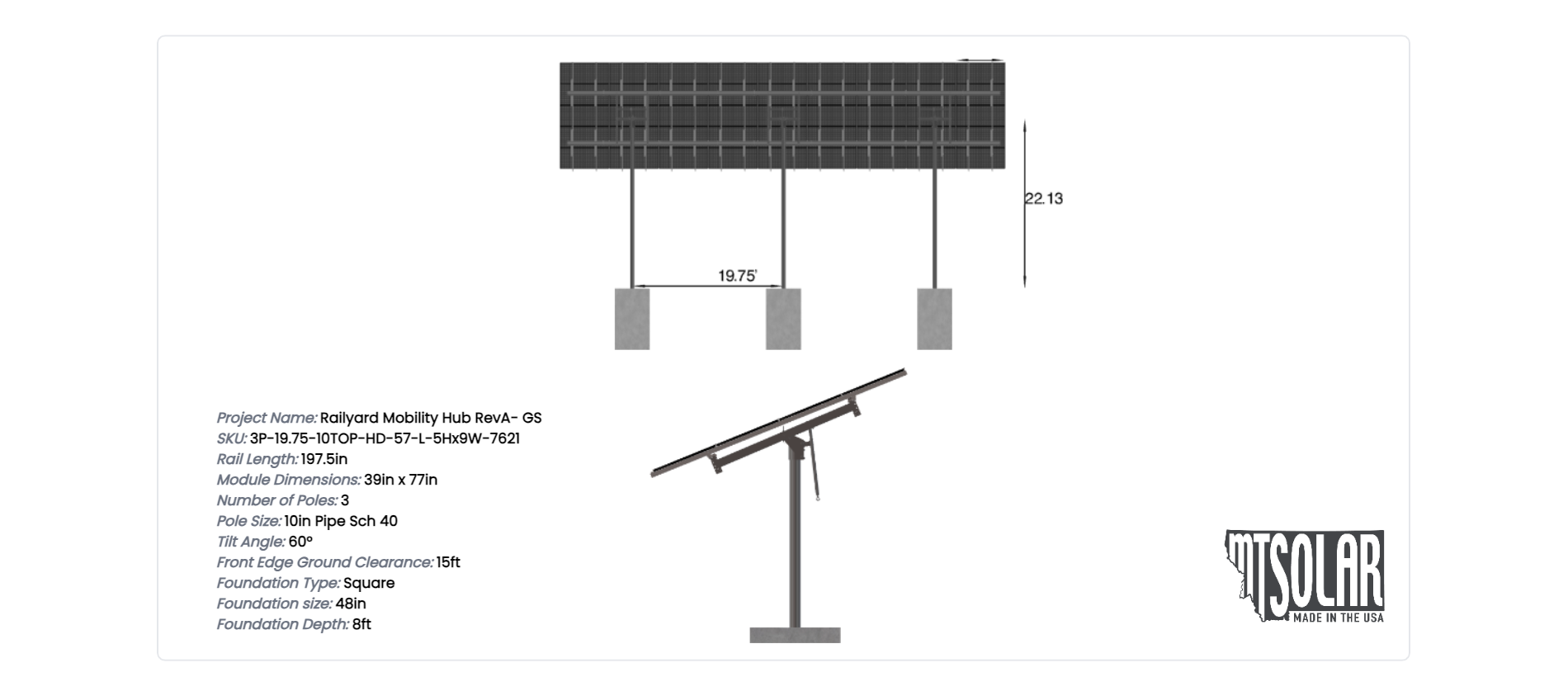

| SKU CODE | 3P-19.75-10TOP-HD-57-L-5HX9W-7621 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 22.13 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 3.00 |
| MODULE AREA | 962.81 |
| ARRAY WIDTH | 58.50 |
| ARRAY HEIGHT | 16.46 |
| RAIL LENGTH | 197.50 |
| MODULE LENGTH | 77.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 29.16 |
| PROJECTED PANEL HEIGHT | 14.07 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 236.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | RAILYARD, MOBILITY, HUB, REVA-, GS |
| SITE ADDRESS | 10930, CHURCH, ST, TRUCKEE, CA, 96161, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16340.21 |
| TOTAL WEIGHT | 3293.65 |
| TOTAL PALLETS | 3.00 |
