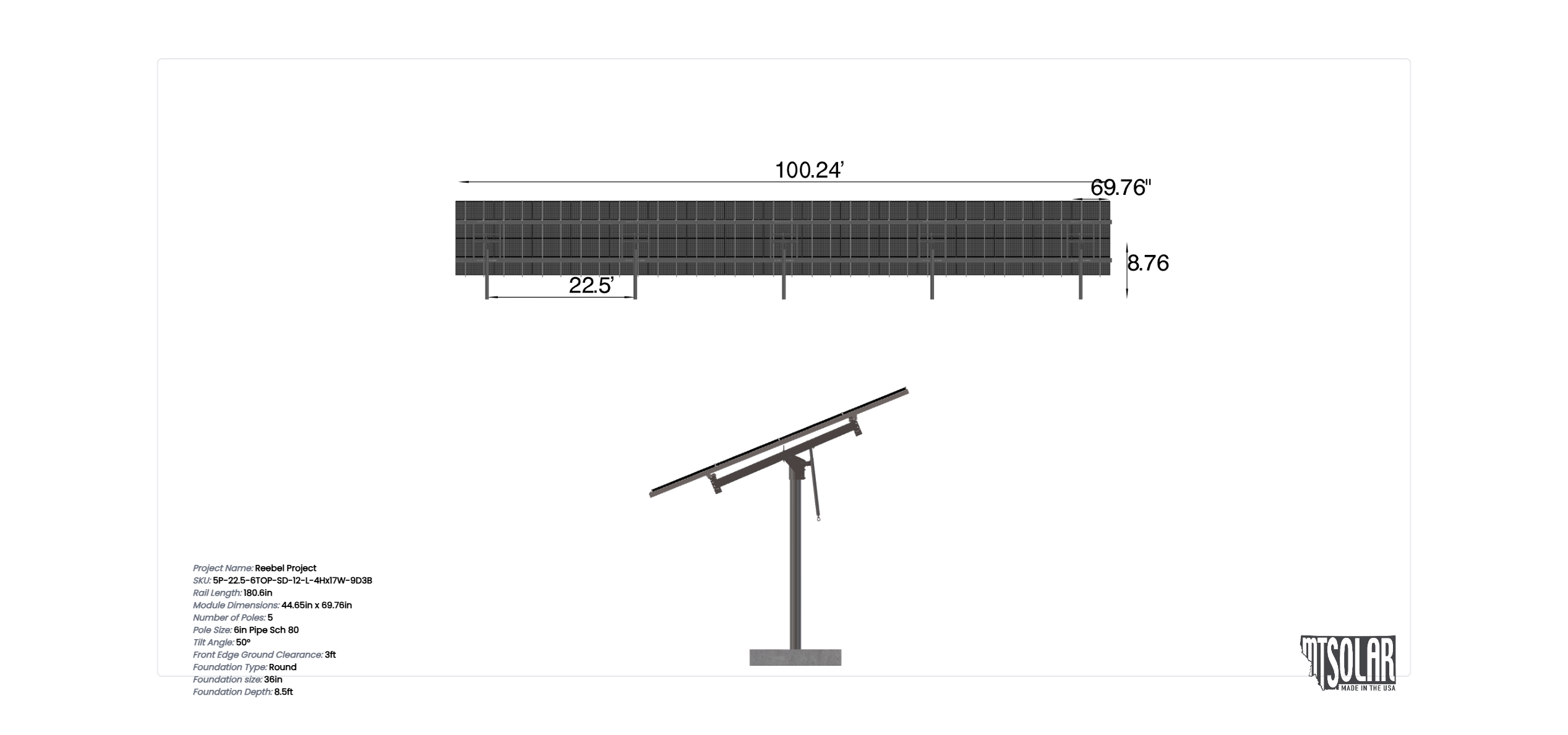

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.76 inches by 44.65 inches and an array layout of 17 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

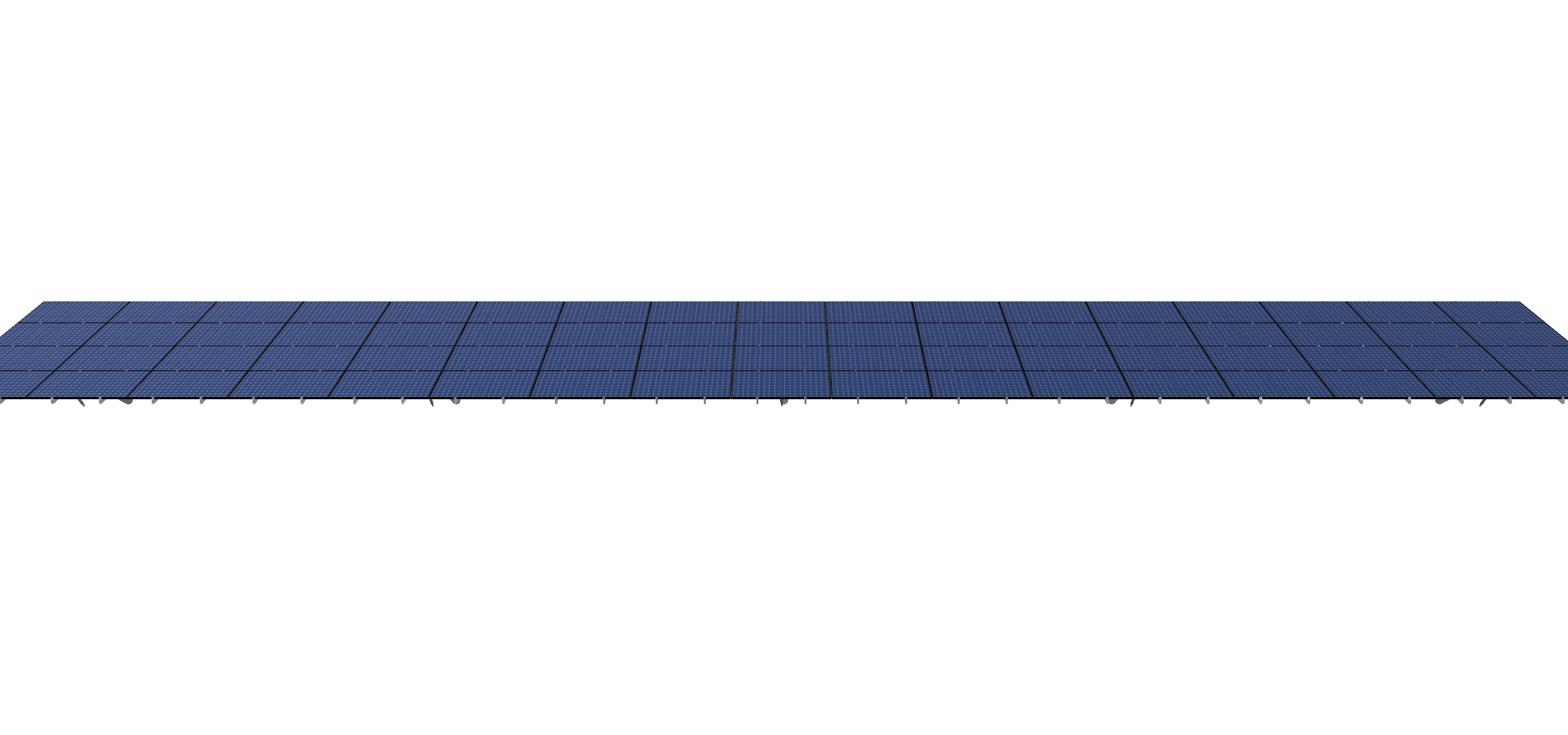

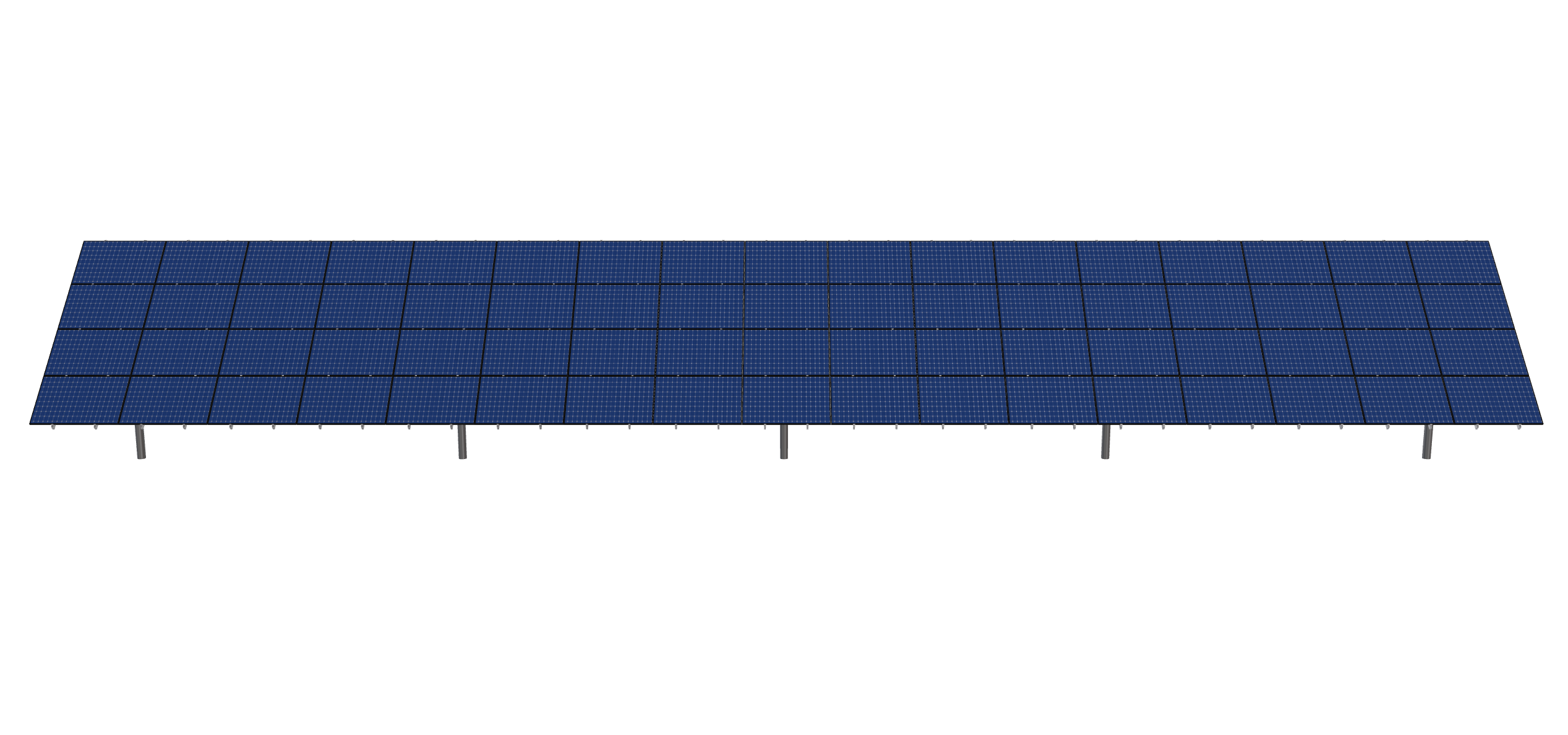

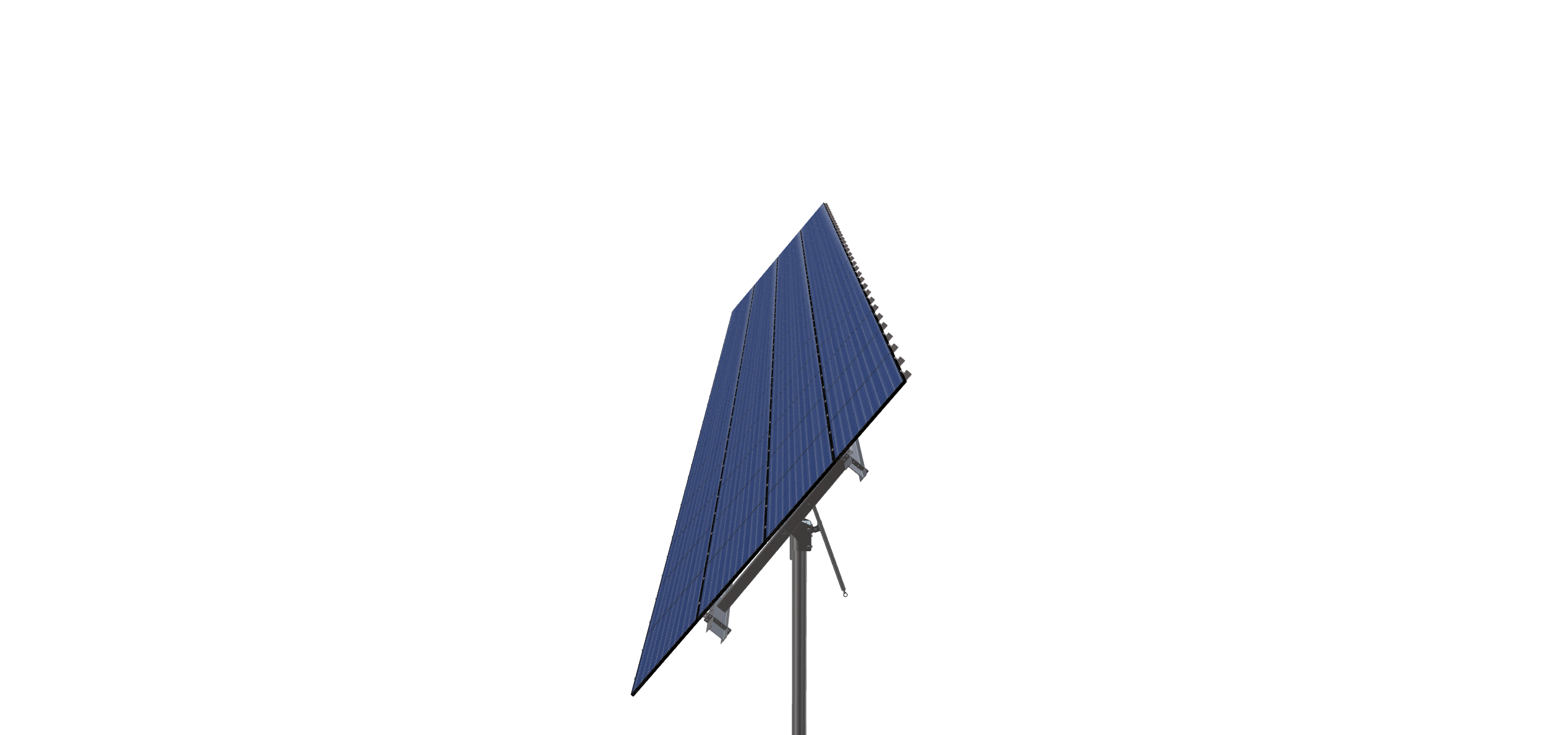

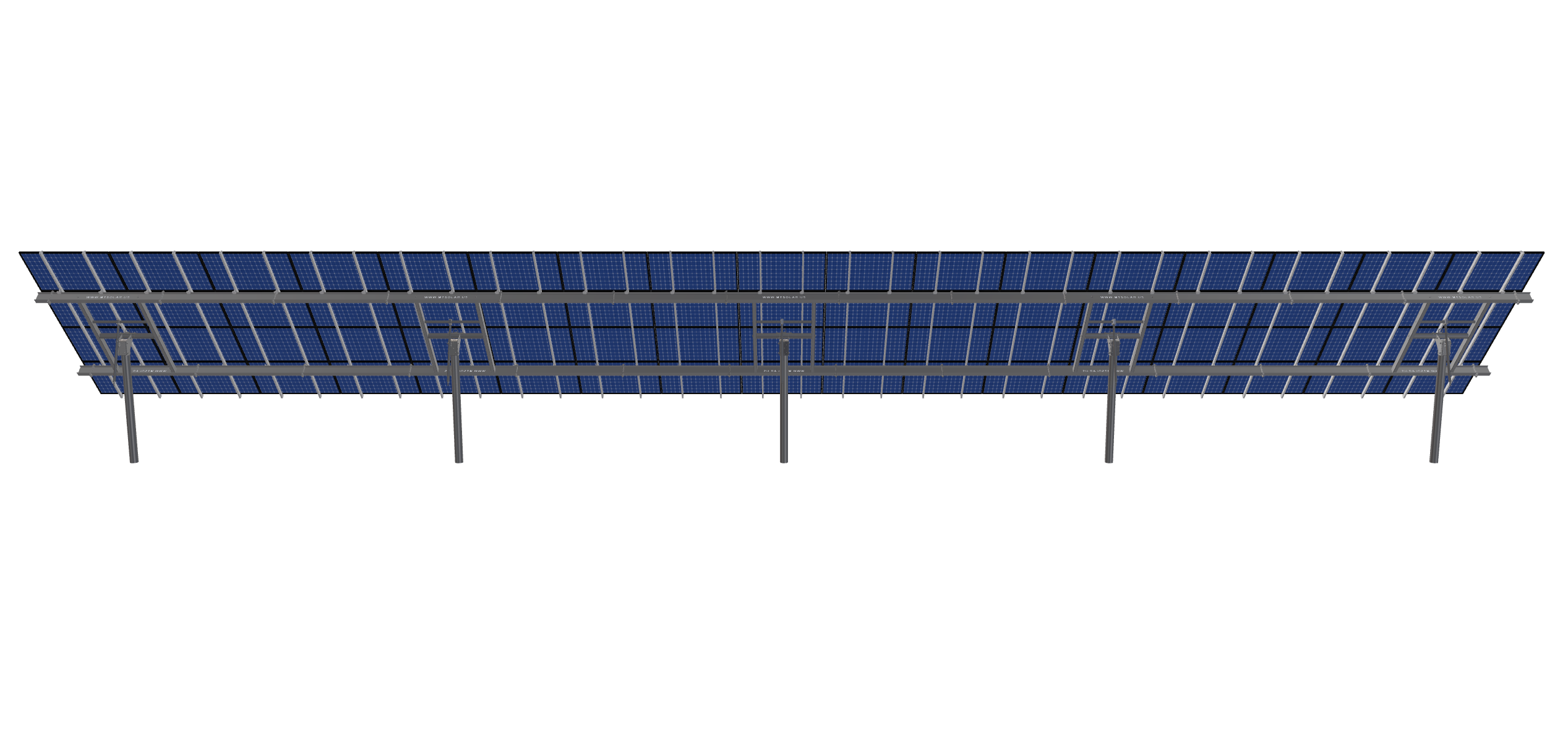

See 3D Model Here
Reebel Project
$23,440.29
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.76 inches by 44.65 inches and an array layout of 17 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4034.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-12-L-4HX17W-9D3B |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.76 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1194.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1508.66 |
| ARRAY WIDTH | 100.24 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 69.76 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 99.50 |
| GROUND TO TOP | 14.53 |
| PROJECTED PANEL HEIGHT | 11.53 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | THE, 513, GROUP |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5135490885.00 |
| PROJECT ID | REEBEL, PROJECT |
| SITE ADDRESS | 4729, DURST, CLAGG, RD, CORTLAND, OH, 44410, USA |
| MODULE INFO | SEG, 405 |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 17.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23440.29 |
| TOTAL WEIGHT | 4034.46 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/dd4454f9-5860-4763-994d-45fc465d0435.pdf |
|
| ID | 11471.00 |
| 3D Solar link |
