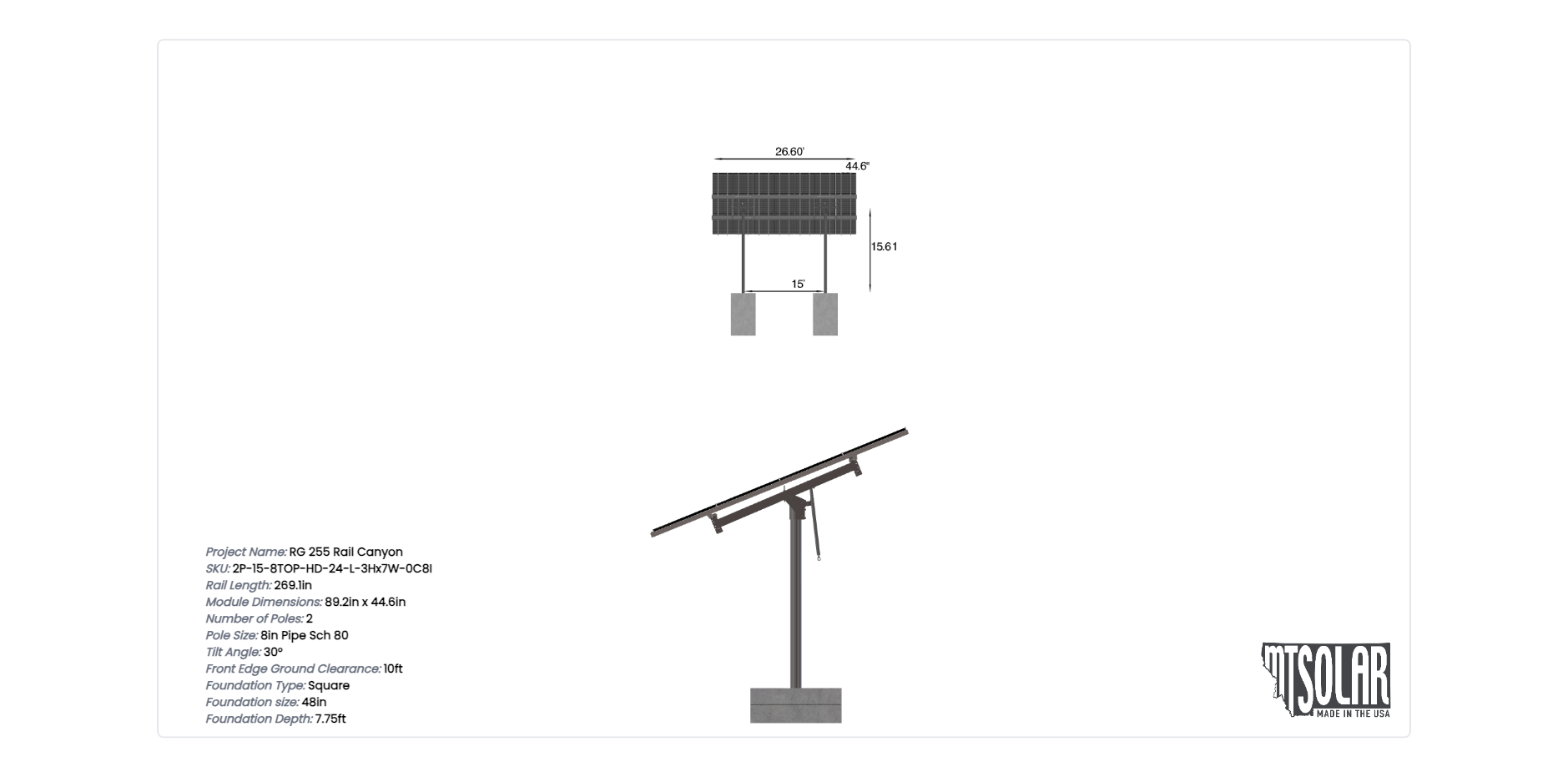

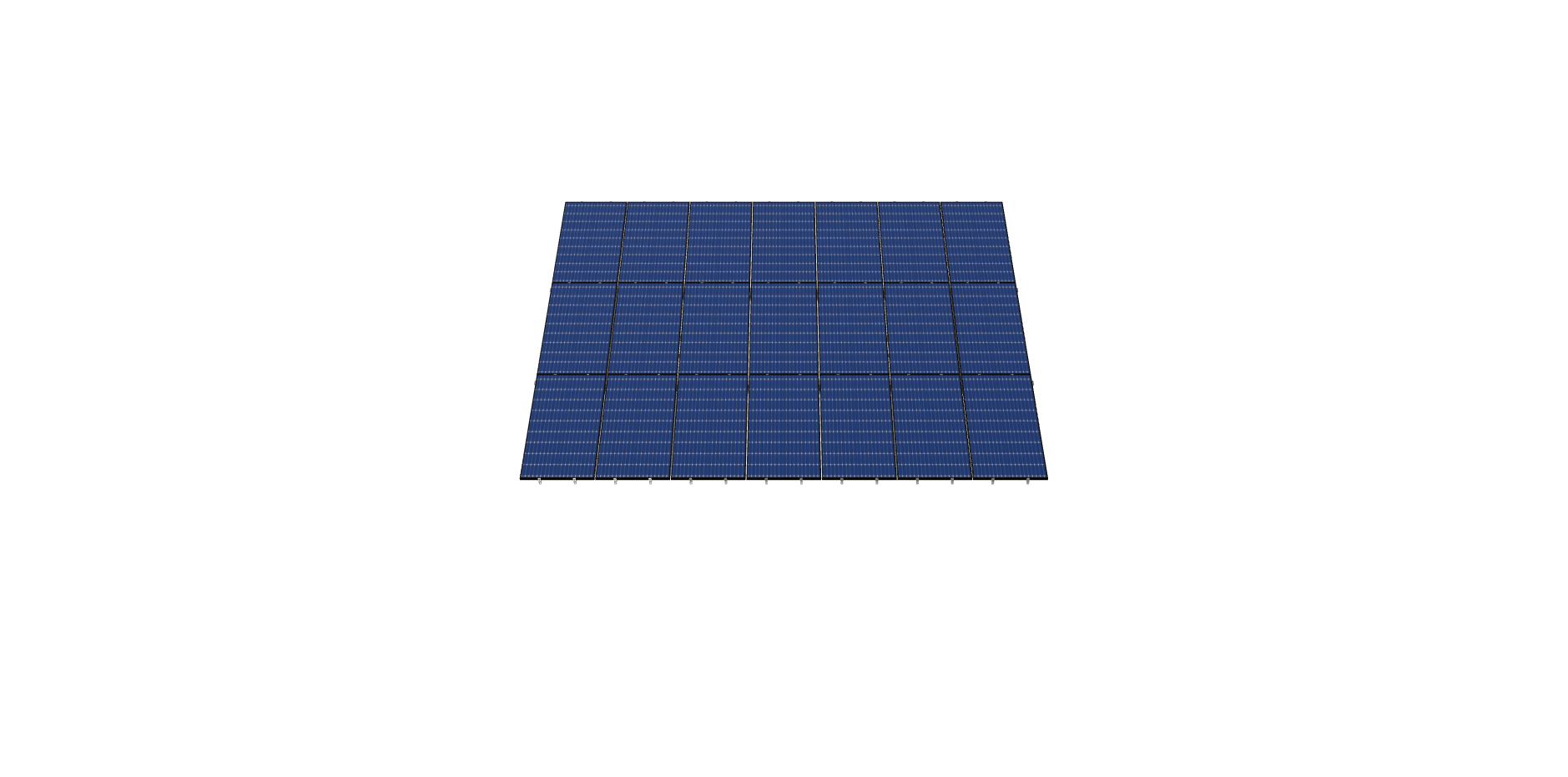

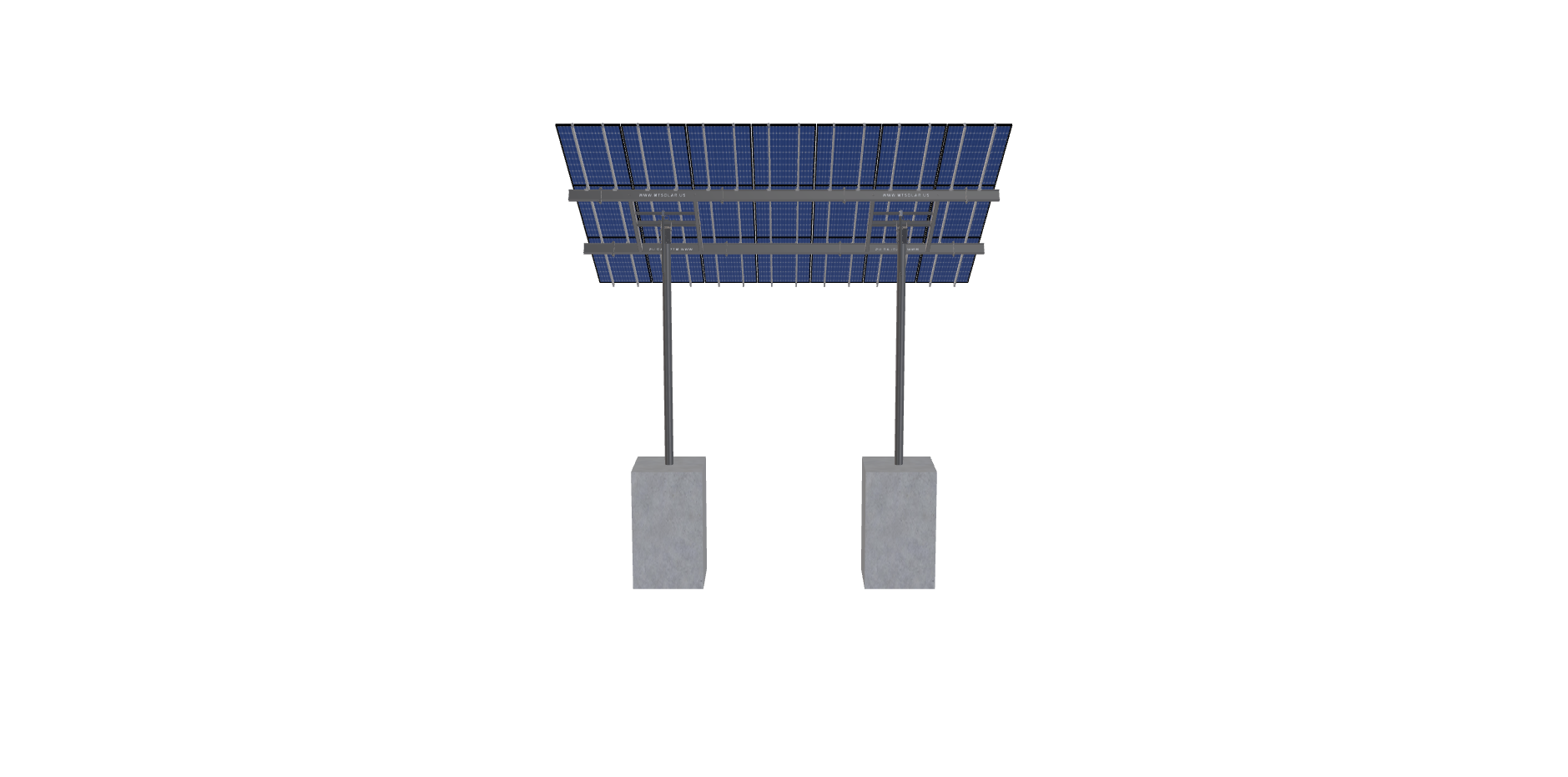

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.6 inches by 89.2 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
RG 255 Rail Canyon
$8,916.36
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.6 inches by 89.2 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1506.5800000000002 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-24-L-3HX7W-0C8I |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 15.61 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 596.50 |
| ARRAY WIDTH | 26.60 |
| ARRAY HEIGHT | 22.43 |
| RAIL LENGTH | 269.10 |
| MODULE LENGTH | 44.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 21.18 |
| PROJECTED PANEL HEIGHT | 11.15 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | RG, 255, RAIL, CANYON |
| SITE ADDRESS | 9GX2+QJ, STONYFORD, CA, 95979, USA |
| MODULE WIDTH | 89.20 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8491.77 |
| TOTAL WEIGHT | 1506.58 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/142913e3-1ef0-4d0f-9e89-f665fc2ec92b.pdf |
|
| ID | 3845.00 |
| 3D Solar link |
