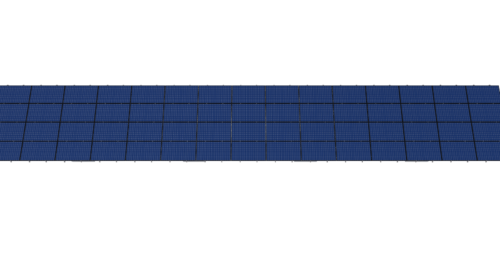

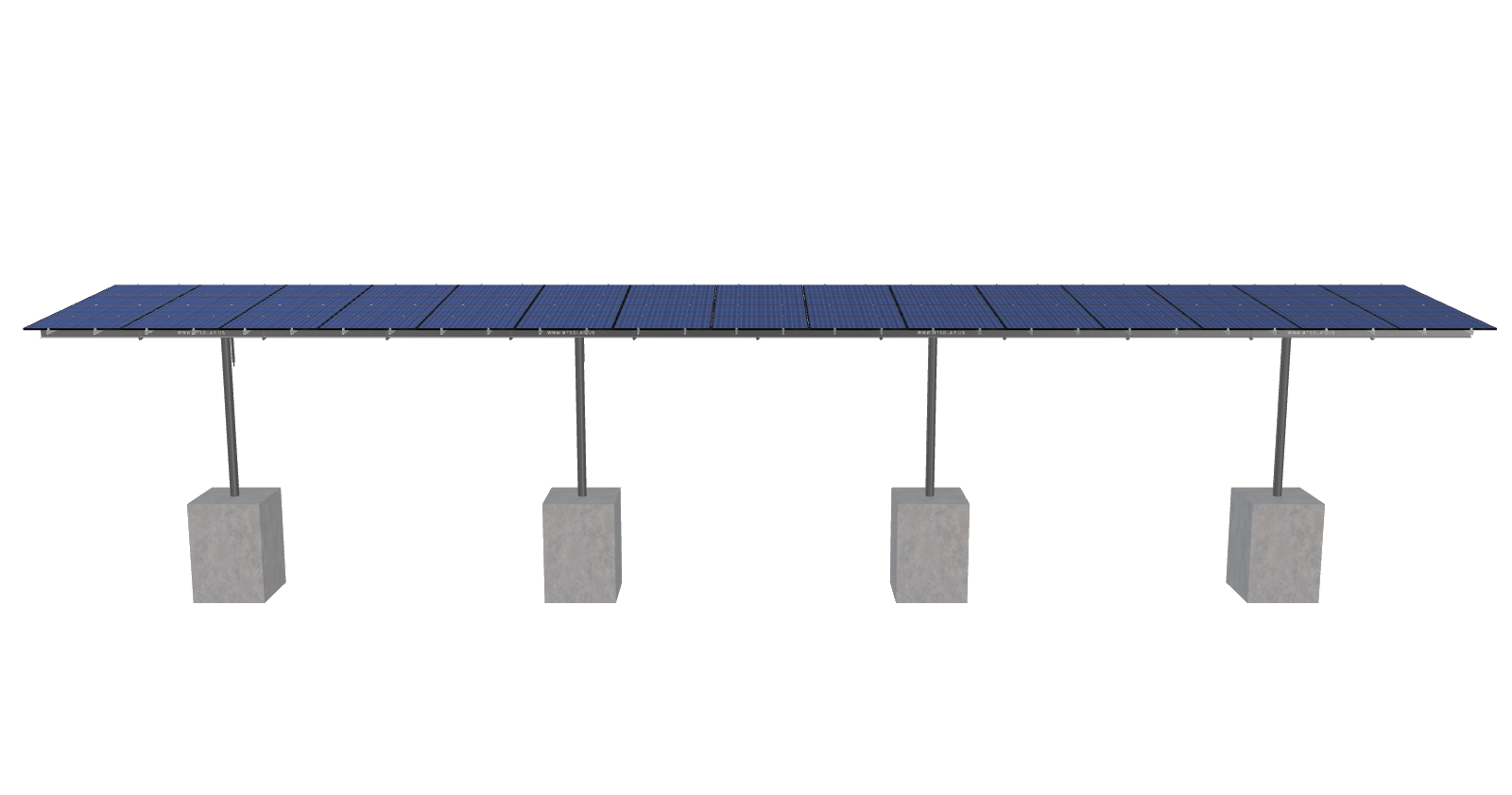

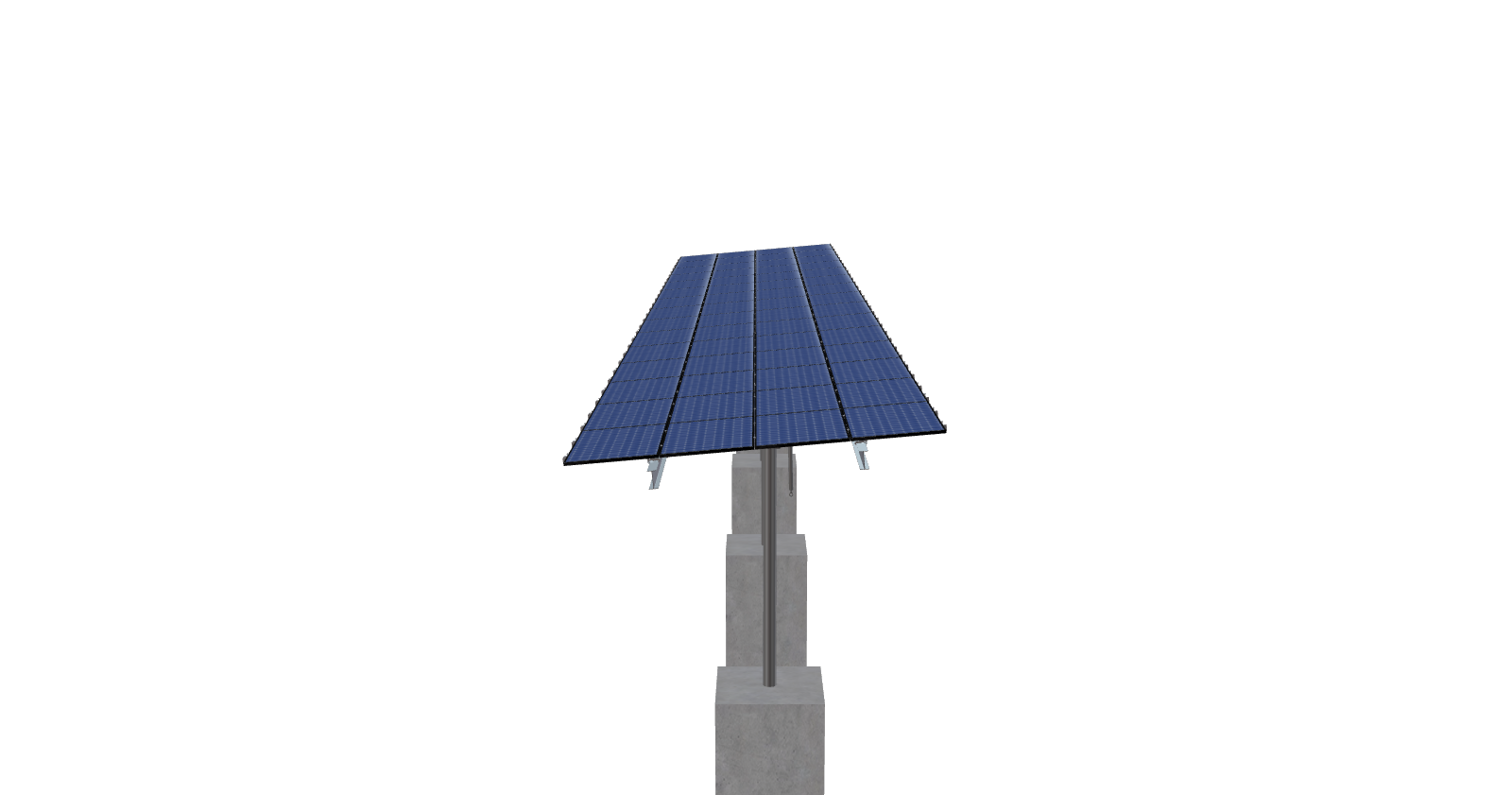

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 15 wide by 4 high.

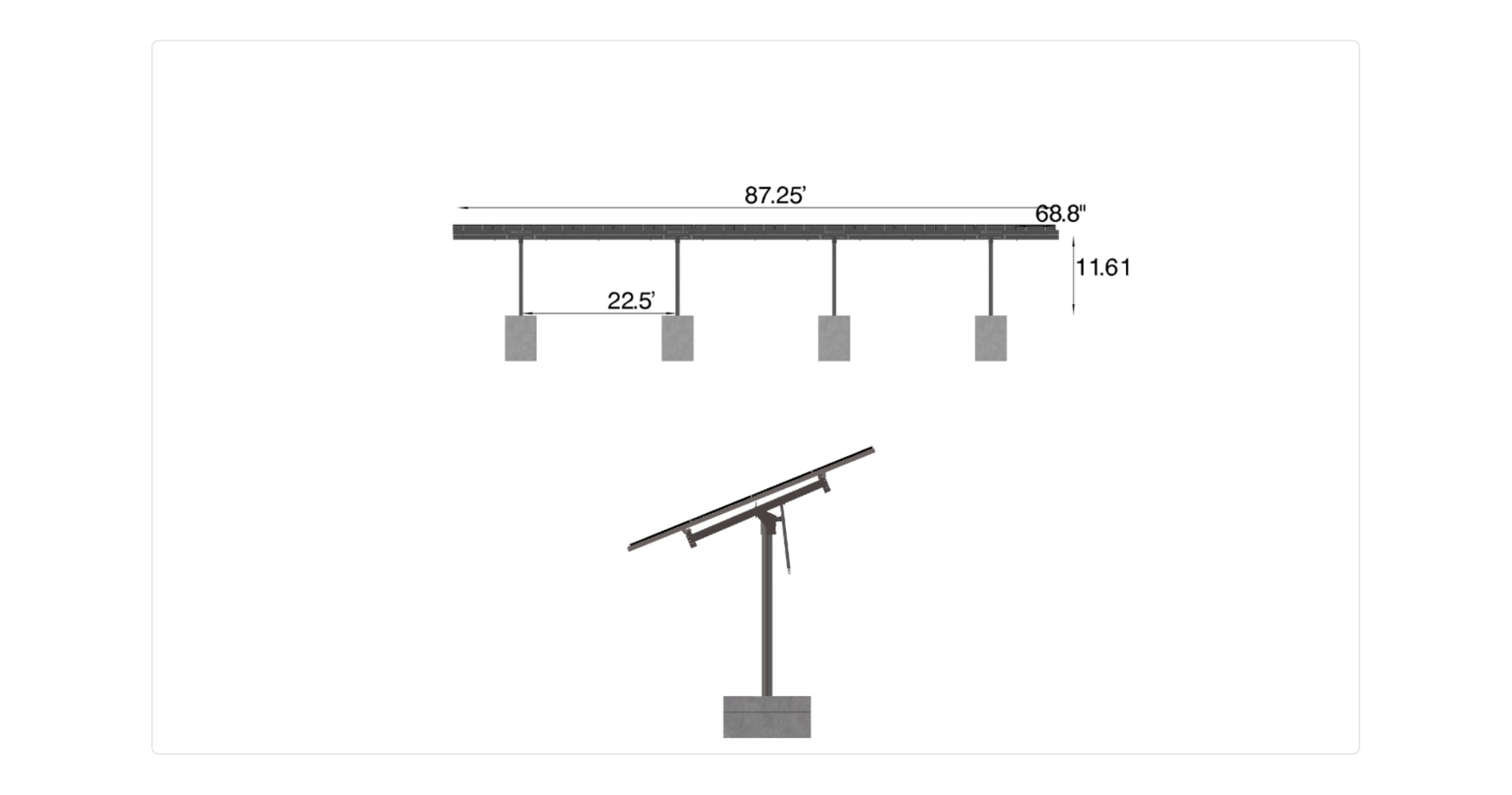

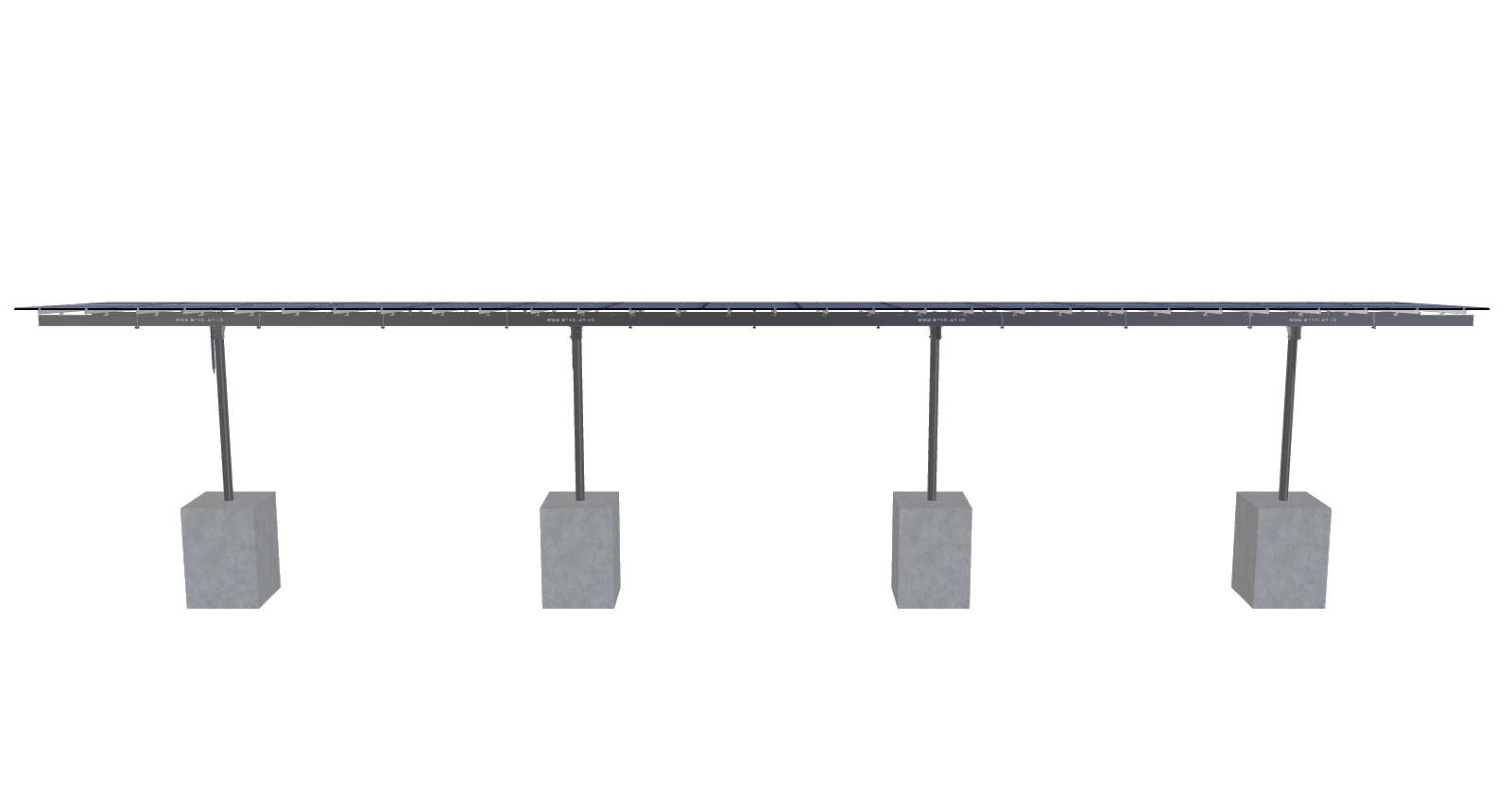

This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
RidgewaySolar 4×15 B CU
$23,590.62
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 15 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4433.3 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-XD-72-L-4HX15W-HA89 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.61 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1044.00 |
| GROUND CLEARANCE | 11.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1221.50 |
| ARRAY WIDTH | 87.25 |
| ARRAY HEIGHT | 14.00 |
| RAIL LENGTH | 168.00 |
| MODULE LENGTH | 68.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 87.00 |
| GROUND TO TOP | 12.21 |
| PROJECTED PANEL HEIGHT | 1.21 |
| PROJECT ID | RIDGEWAYSOLAR, 4X15, B, CU |
| SITE ADDRESS | VICTOR, MT, 59875, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 175.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 23590.62 |
| TOTAL WEIGHT | 4433.30 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/b1bbbb1d-dfe8-4118-8d5a-fd9bd9fde35e.pdf |
|
| ID | 2535.00 |
| 3D Solar link |
