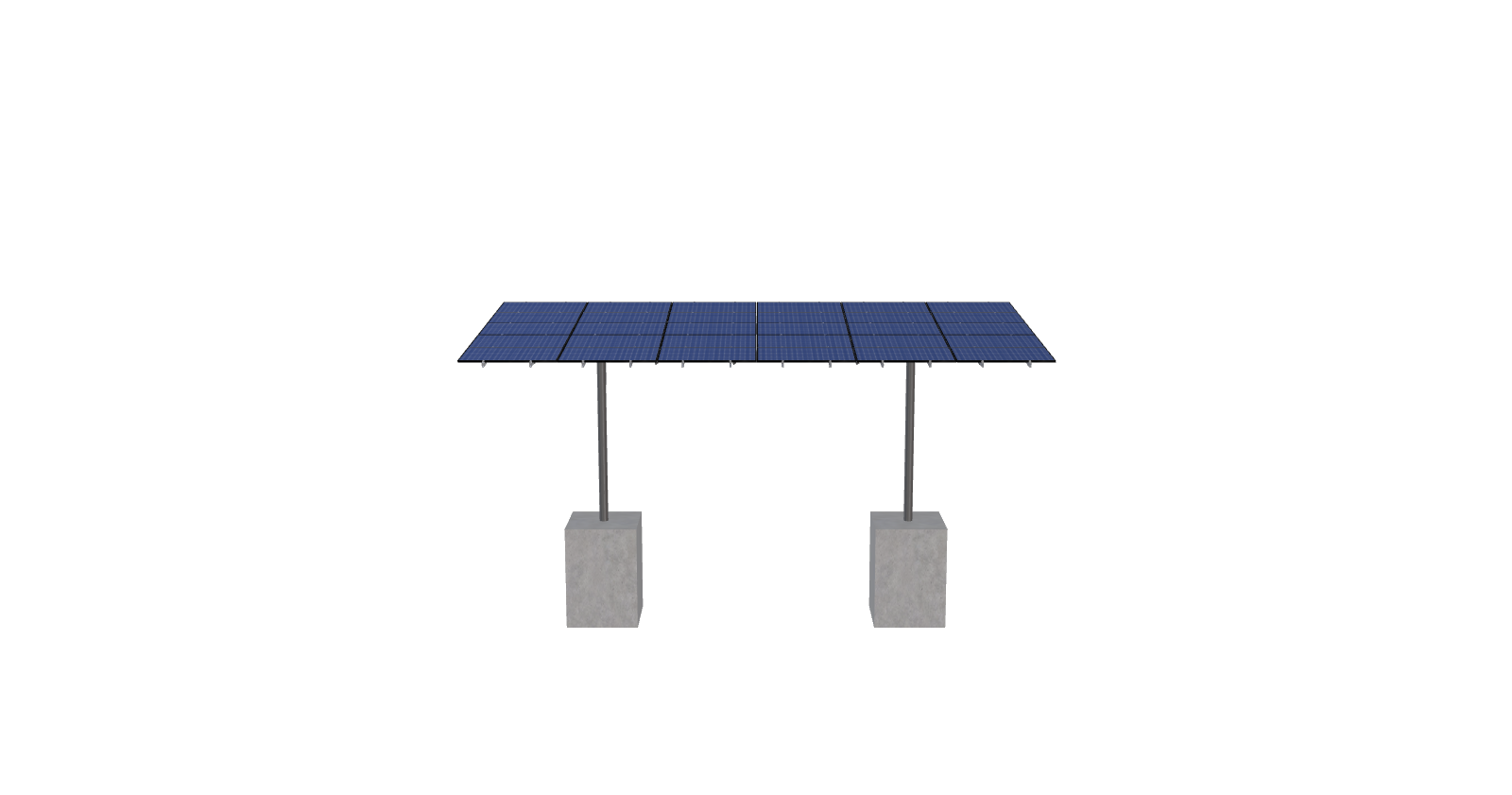

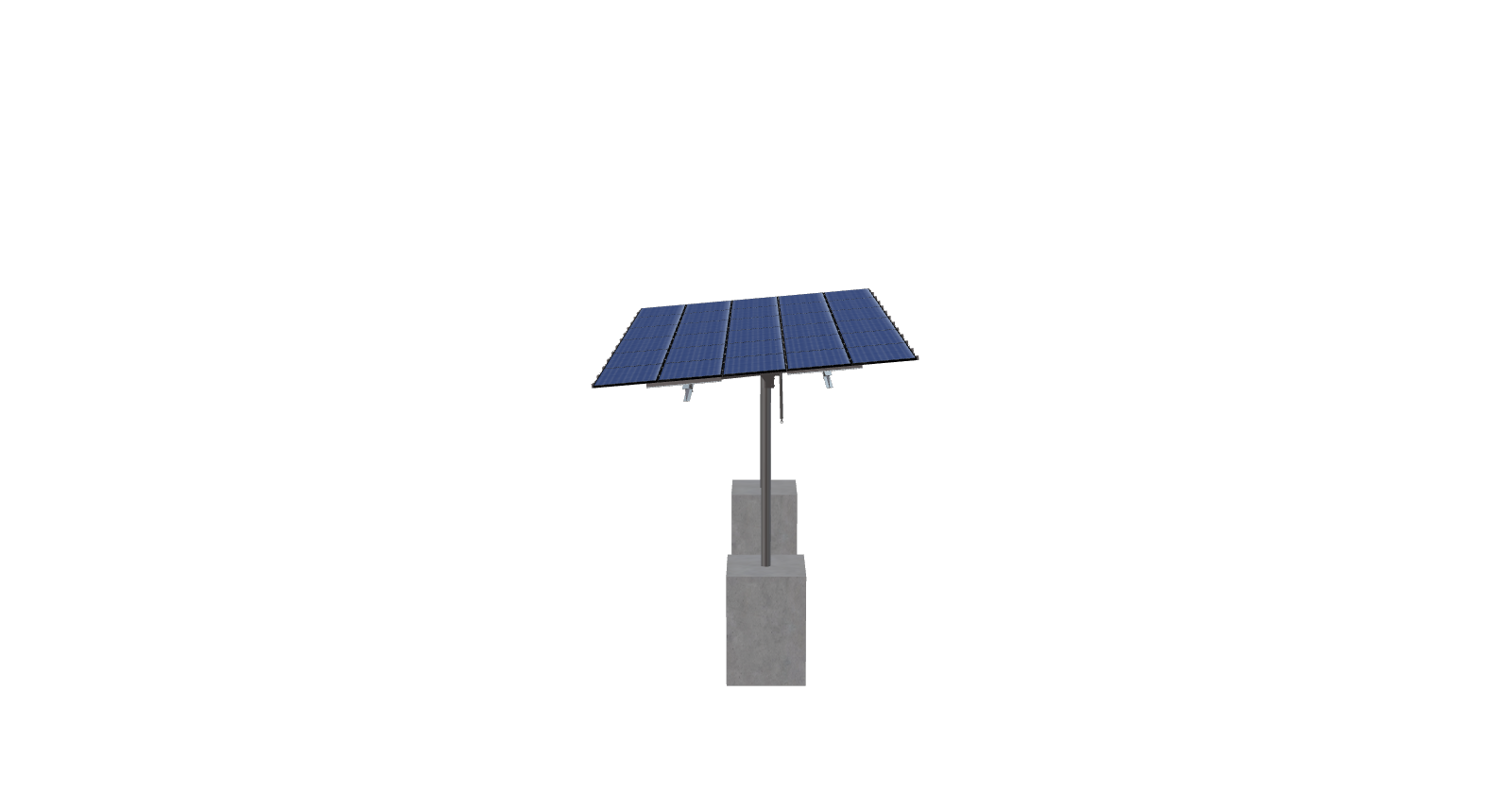

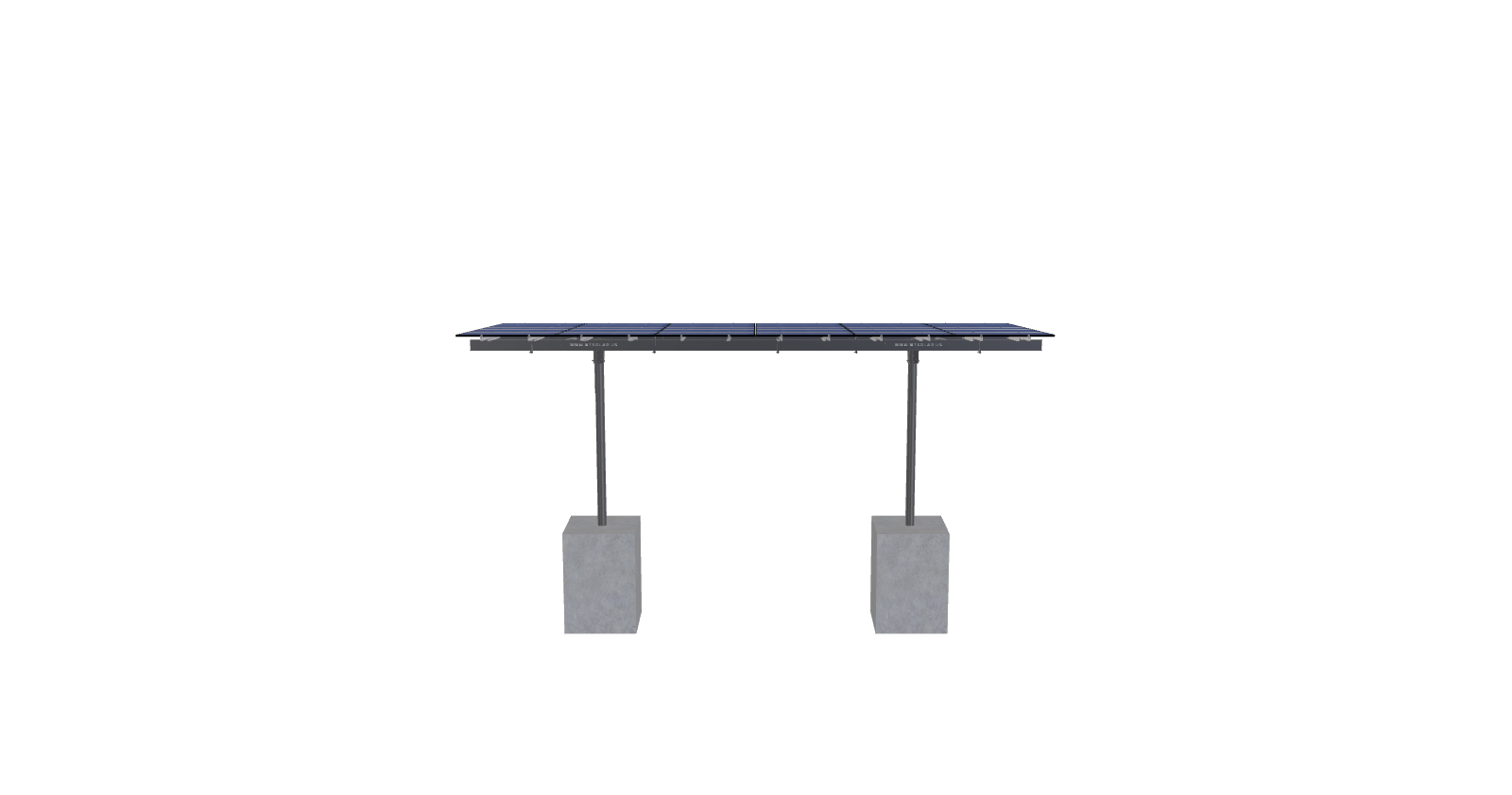

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
RidgewaySolar 5×6
$12,124.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2319.3399999999997 lbs |
|---|---|

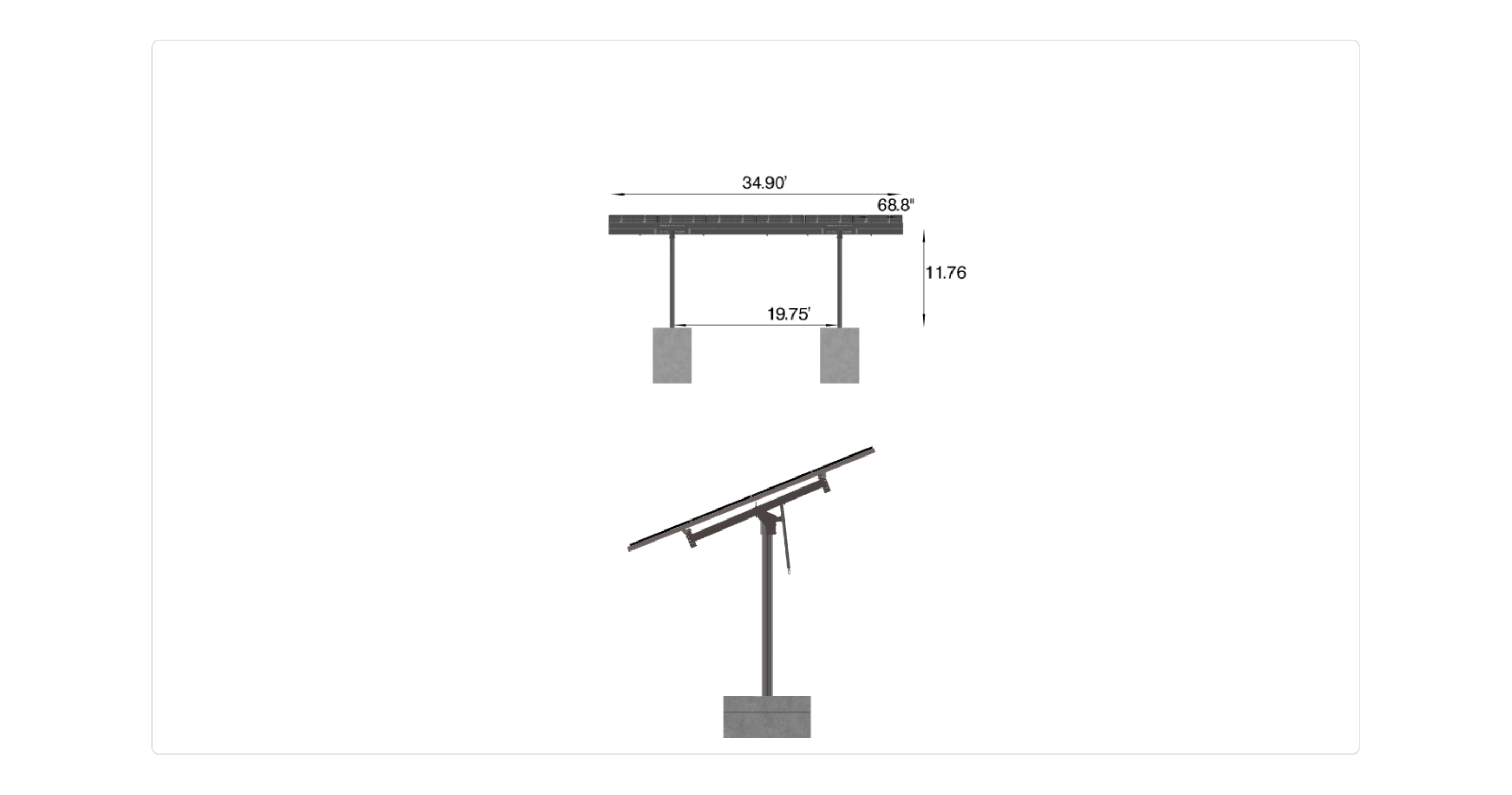

| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-XD-45-L-5HX6W-E976 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 11.00 |
| NO POLES | 2.00 |
| MODULE AREA | 610.75 |
| ARRAY WIDTH | 34.90 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 68.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 12.52 |
| PROJECTED PANEL HEIGHT | 1.51 |
| WIND SPEED OVERRIDE | 175.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | RIDGEWAYSOLAR, 5X6 |
| SITE ADDRESS | VICTOR, MT, 59875, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| ISOLATED FOUNDATION THICKNESS | 18.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 11547.36 |
| TOTAL WEIGHT | 2319.34 |
| TOTAL PALLETS | 2.00 |
