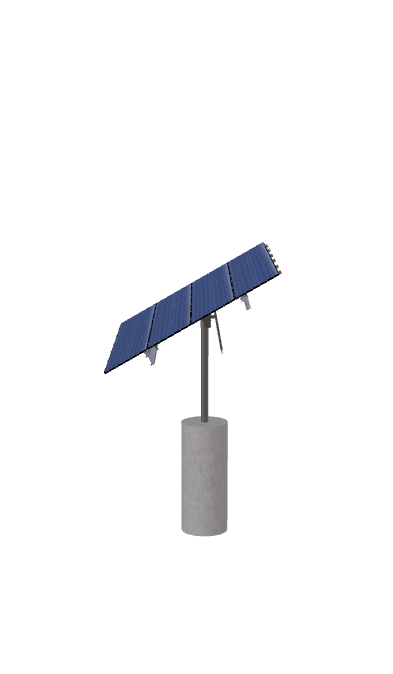

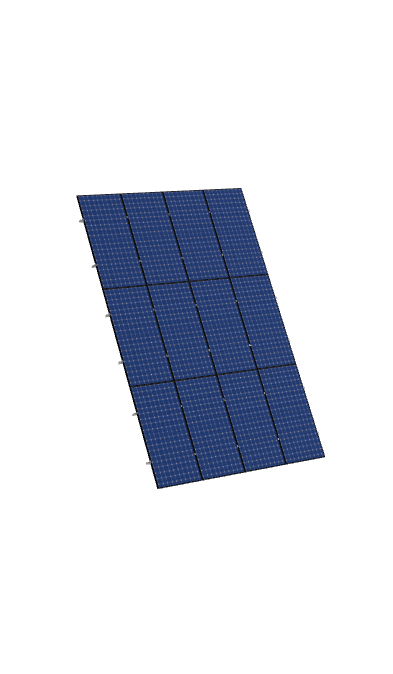

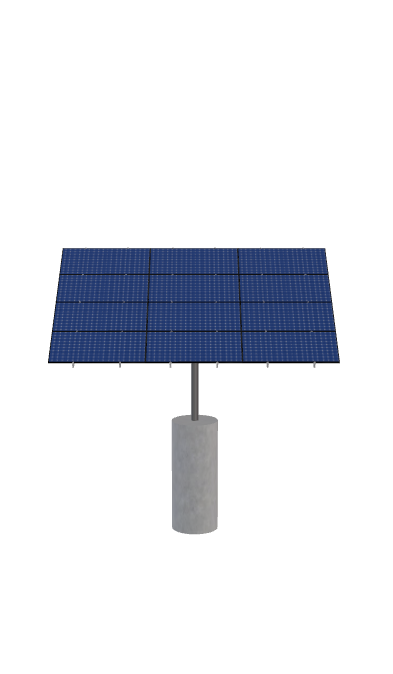

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.1 inches by 41.5 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Robert GM
$4,979.13
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.1 inches by 41.5 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 902.8100000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-72-L-4HX3W-IK68 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.50 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 290.85 |

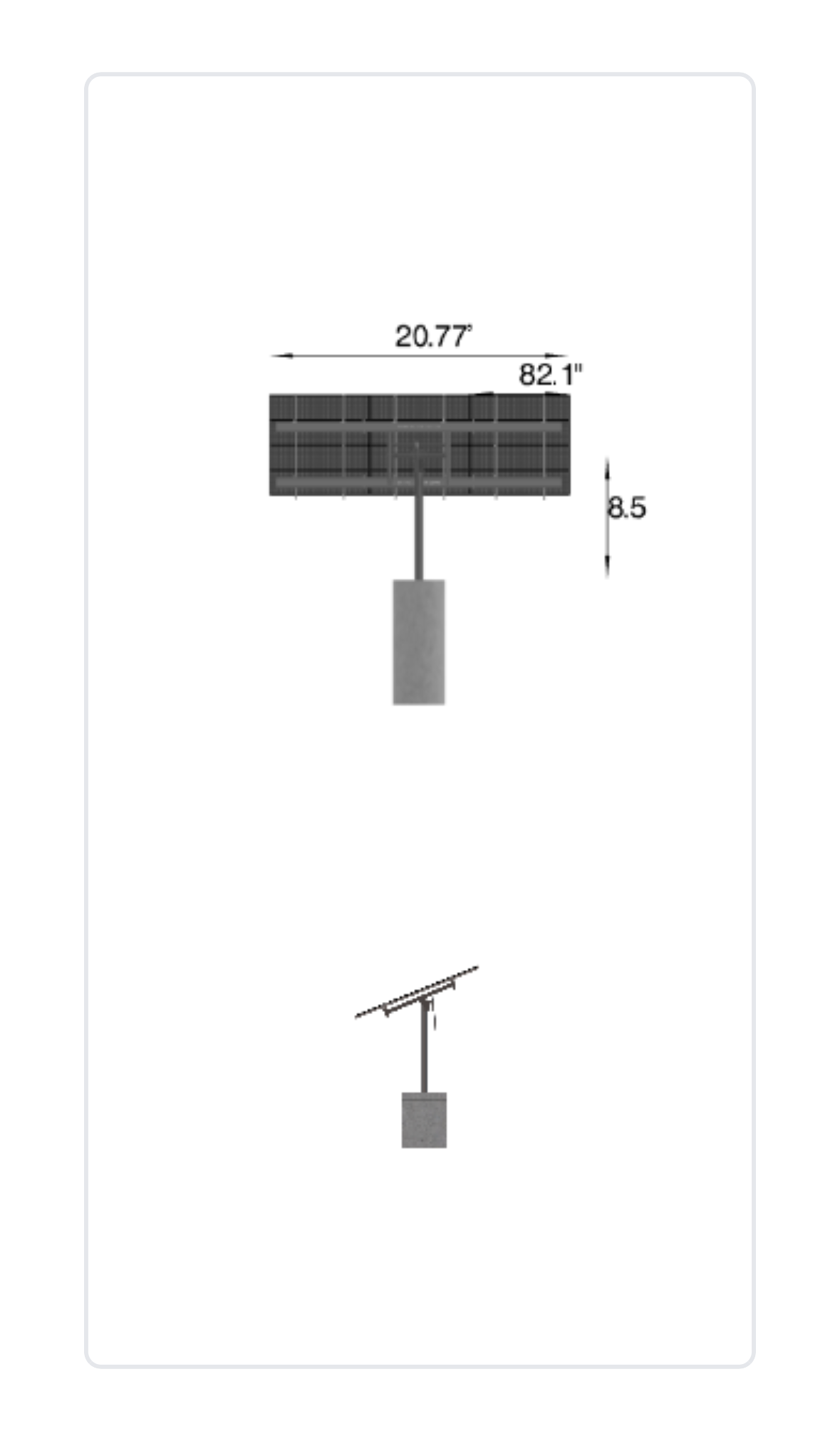

| ARRAY WIDTH | 20.77 |
| ARRAY HEIGHT | 14.00 |
| RAIL LENGTH | 168.00 |
| MODULE LENGTH | 82.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 12.00 |
| PROJECTED PANEL HEIGHT | 7.00 |
| DESIGNER NAME | LEMUEL, CRISPIN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4073831999.00 |
| PROJECT ID | ROBERT, GM |
| SITE ADDRESS | 788, GORDON, GRAGG, LN, LAKEMONT, GA, 30552, USA |
| MODULE INFO | MISSION, 420 |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 10.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4979.13 |
| TOTAL WEIGHT | 902.81 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/40156085-21b4-4609-8159-a6bd296f862b.pdf |
|
| ID | 12876.00 |
| 3D Solar link |
