This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 11 wide by 5 high.

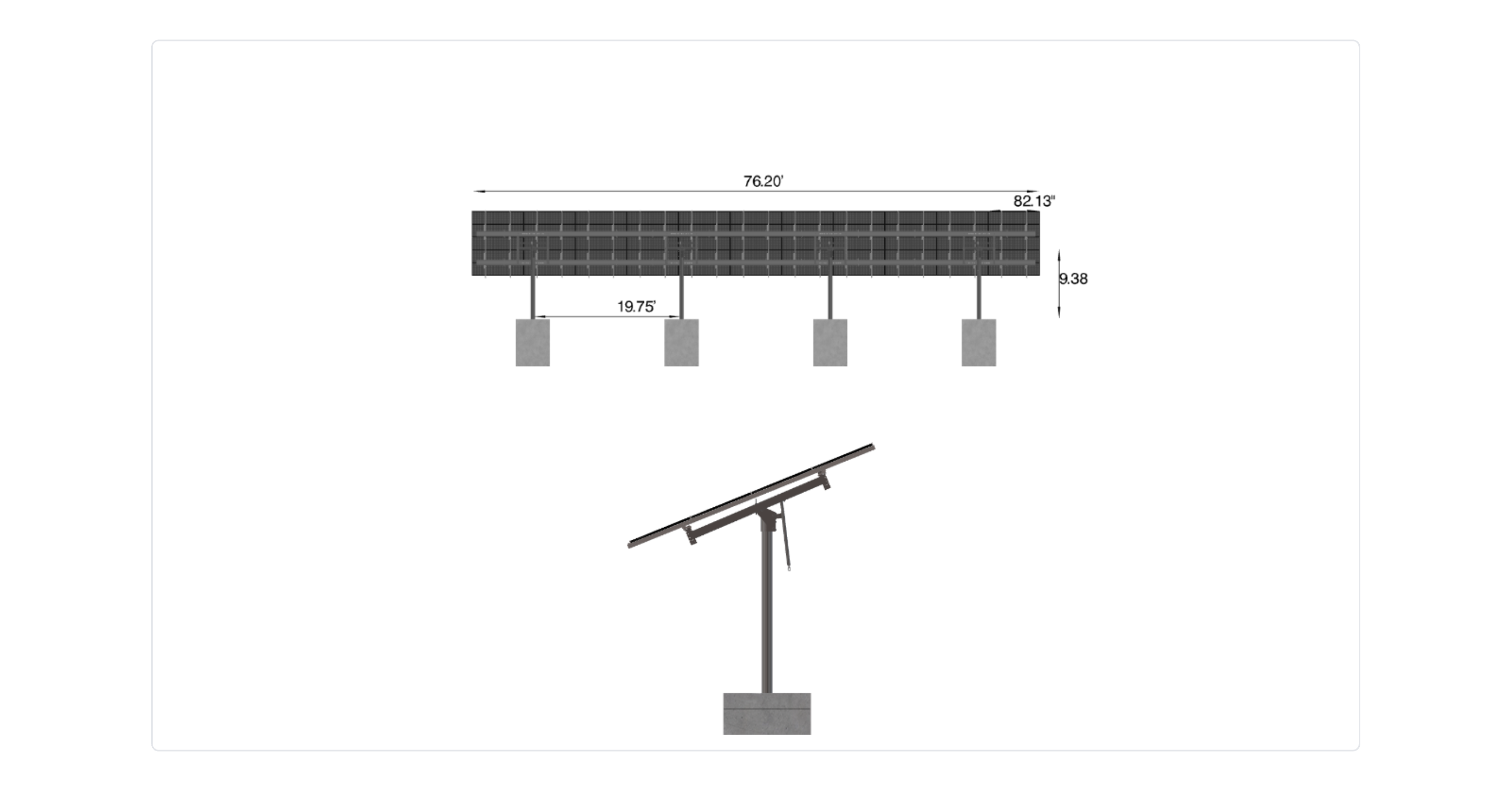

This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

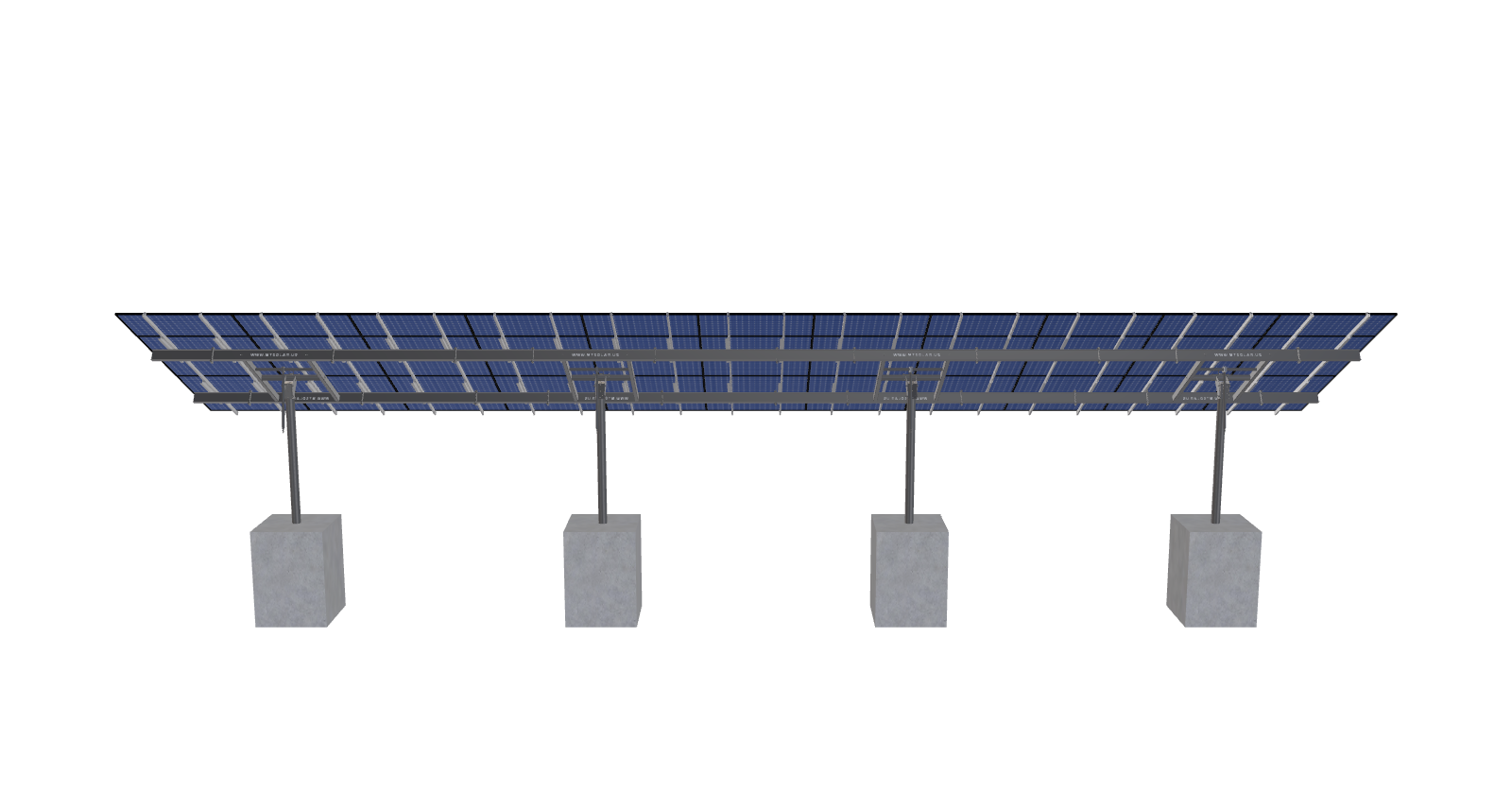

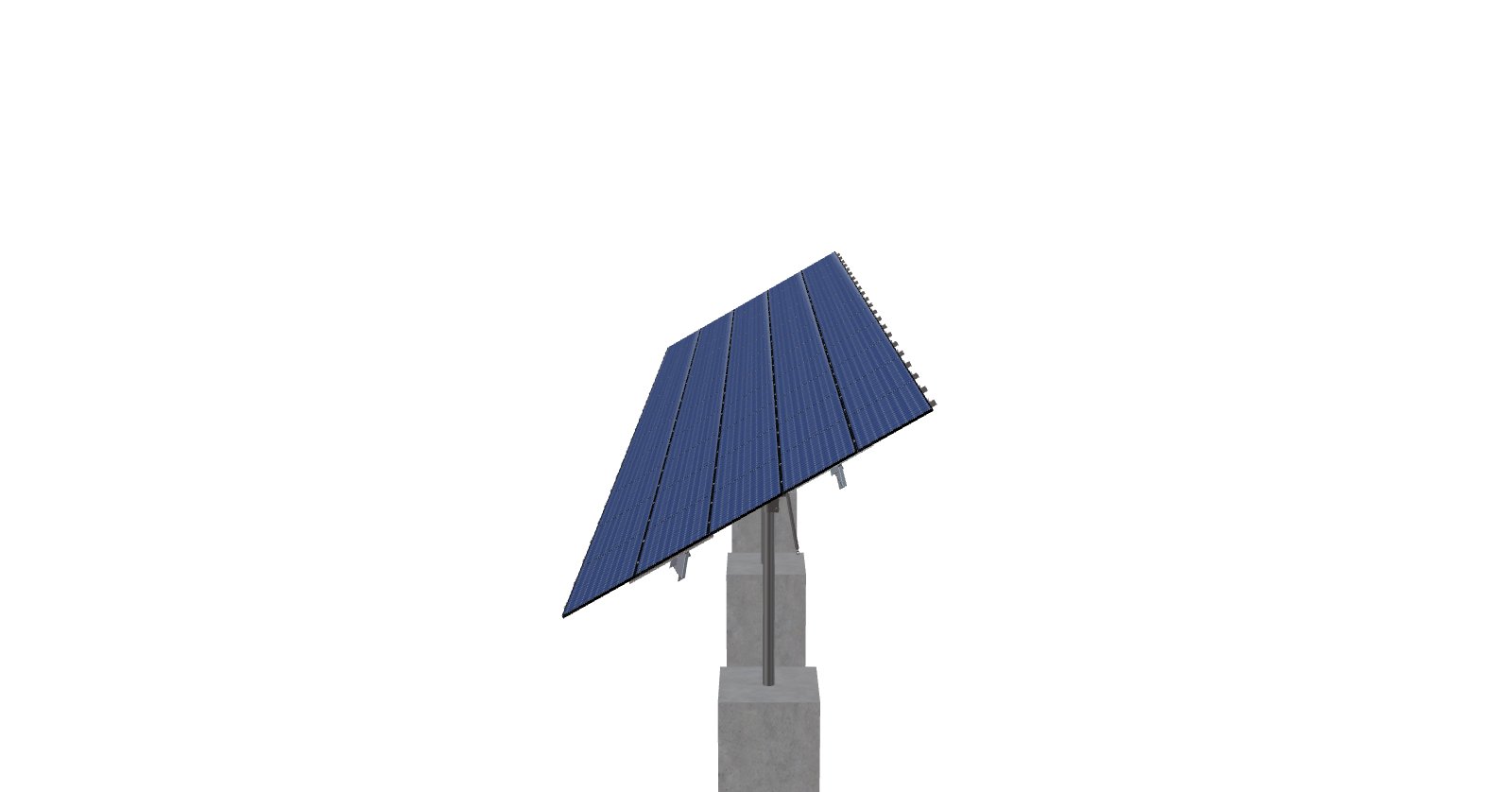

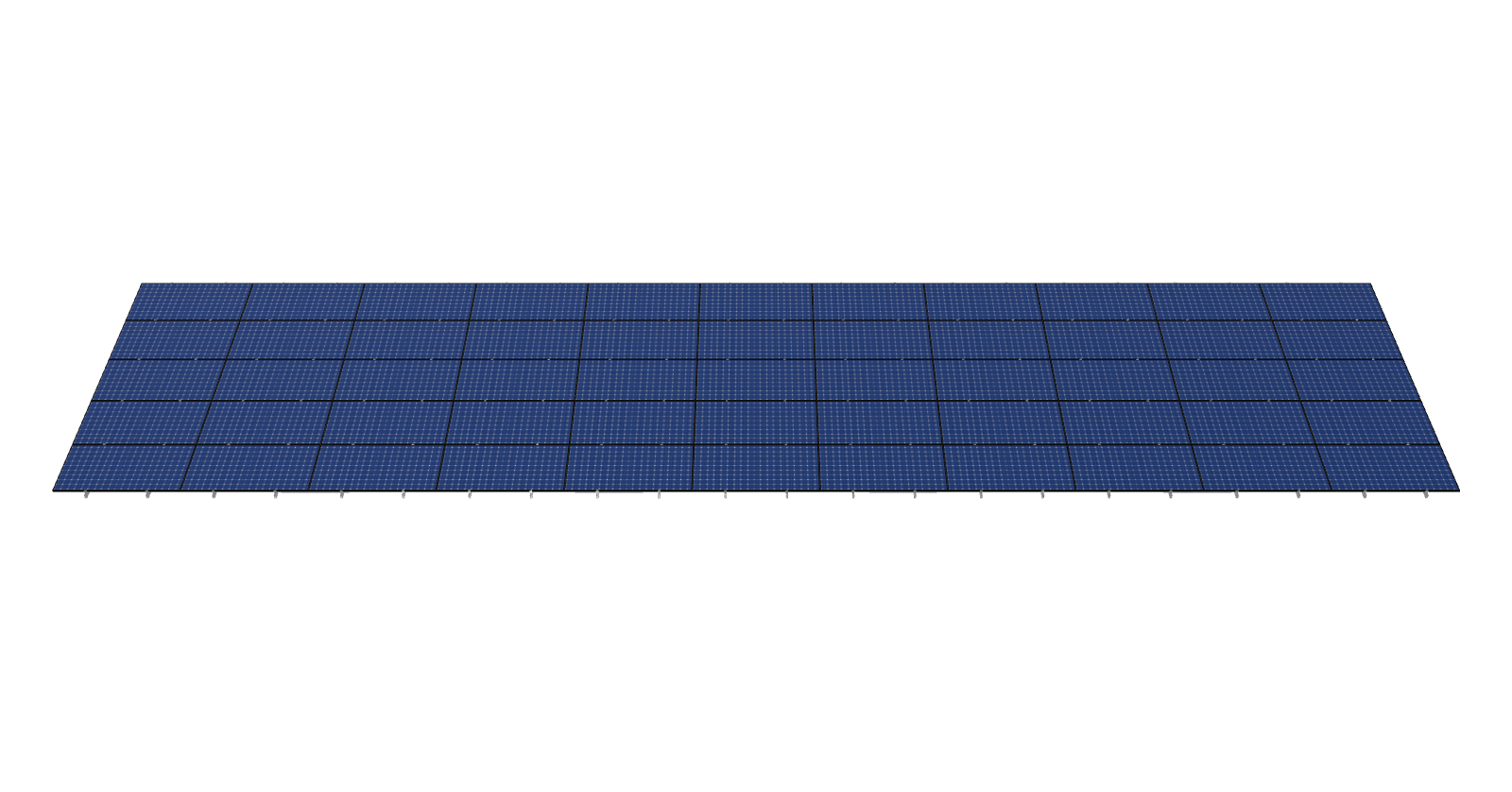

See 3D Model Here
Sand Mountain Large Array-CU
$20,955.29
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 4218.02 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-8TOP-HD-45-L-5HX11W-74ED |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 9.38 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.25 |
TILT ANGLE | 30.00 |
CANTILEVER | 891.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 4.00 |
MODULE AREA | 1333.54 |
ARRAY WIDTH | 76.20 |
ARRAY HEIGHT | 17.50 |
RAIL LENGTH | 210.00 |
MODULE LENGTH | 82.13 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 74.25 |
GROUND TO TOP | 13.70 |
PROJECTED PANEL HEIGHT | 8.65 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | SAND, MOUNTAIN, LARGE, ARRAY-CU |
SITE ADDRESS | 7GXF+48, SALT, WELLS, NV, USA |
MODULE WIDTH | 41.50 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 11.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 20955.29 |
TOTAL WEIGHT | 4218.02 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/0eea3c26-dd15-4e47-b769-4367aaf802c5.pdf |
|
ID | 5666.00 |
3D Solar link |
