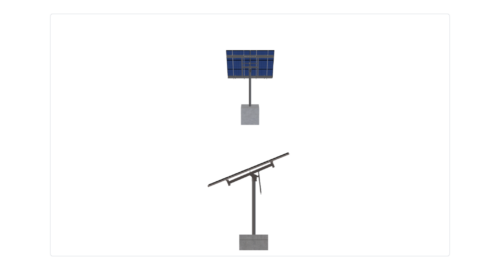

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 41 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Seger Mount 3-RevA-JB
$3,735.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 41 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 672.59 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-HD-24-L-3HX2W-61B8 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 9.97 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 4.25 |
TILT ANGLE | 50.00 |
CANTILEVER | 138.00 |
GROUND CLEARANCE | 6.00 |
NO POLES | 1.00 |
MODULE AREA | 122.77 |
ARRAY WIDTH | 11.83 |
ARRAY HEIGHT | 10.38 |
RAIL LENGTH | 124.50 |
MODULE LENGTH | 70.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 11.50 |
GROUND TO TOP | 13.90 |
PROJECTED PANEL HEIGHT | 7.85 |
WIND SPEED OVERRIDE | 100.00 |
SNOW LOAD OVERRIDE | 120.00 |
DIRECT SNOW LOAD | TRUE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | SEGER, MOUNT, 3-REVA-JB |
SITE ADDRESS | 16104, KASHWITNA, RD, TALKEETNA, AK, 99676, USA |
MODULE WIDTH | 41.00 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 3735.20 |
TOTAL WEIGHT | 672.59 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/e90326e4-5fbb-43e2-a2b4-b43c861b3102.pdf |
|
ID | 4988.00 |
3D Solar link |
