This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 61.4 inches by 31.4 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

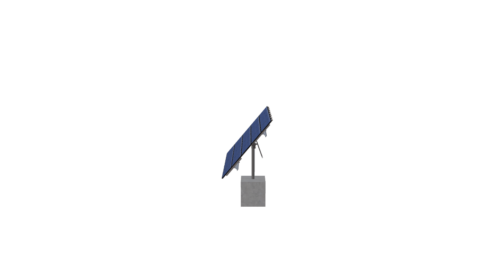

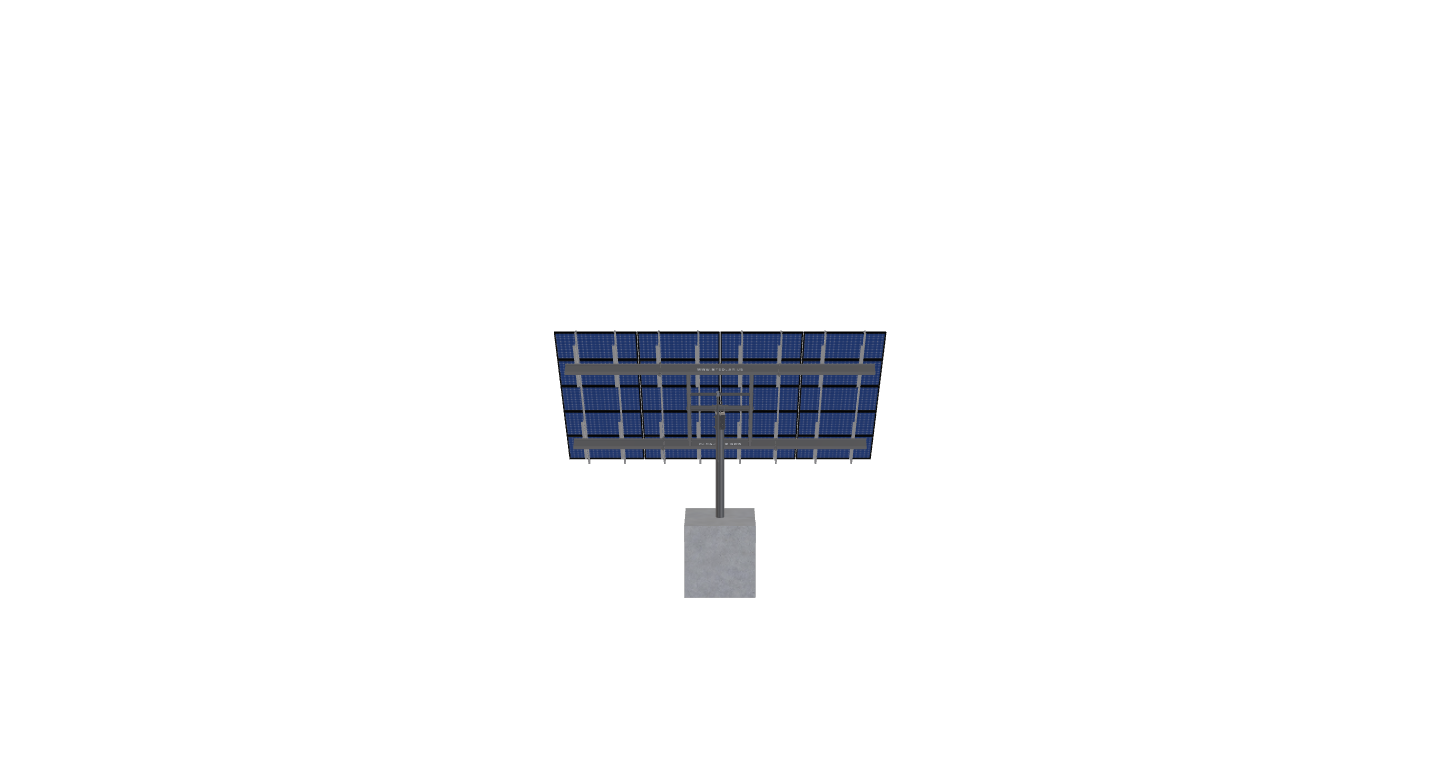

See 3D Model Here
Shabin-JB-RevA
$5,474.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 61.4 inches by 31.4 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1038.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-72-L-5HX4W-KD0L |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.09 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 1.00 |
| MODULE AREA | 276.47 |
| ARRAY WIDTH | 20.80 |
| ARRAY HEIGHT | 13.29 |
| RAIL LENGTH | 159.50 |
| MODULE LENGTH | 61.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 12.10 |
| PROJECTED PANEL HEIGHT | 10.02 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 5.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SHABIN-JB-REVA |
| SITE ADDRESS | 31623, DOTSON, RD, MONROE, WA, 98272, USA |
| MODULE WIDTH | 31.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5213.63 |
| TOTAL WEIGHT | 1038.76 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/55170672-672f-4f83-9f5f-6ea35ef56596.pdf |
|
| ID | 3356.00 |
| 3D Solar link |
