SmithEric-R2

$14,861.16

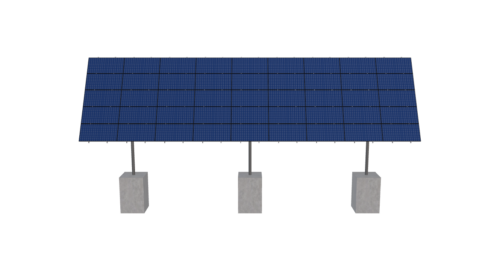

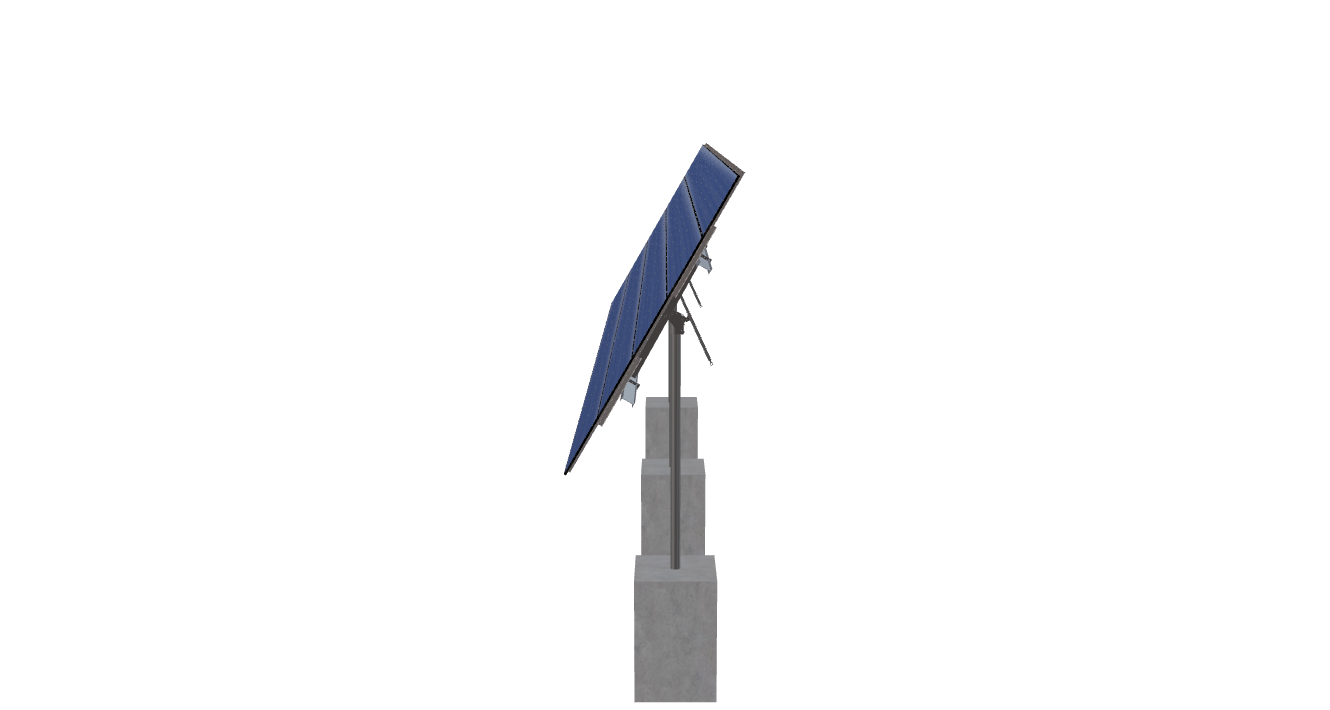

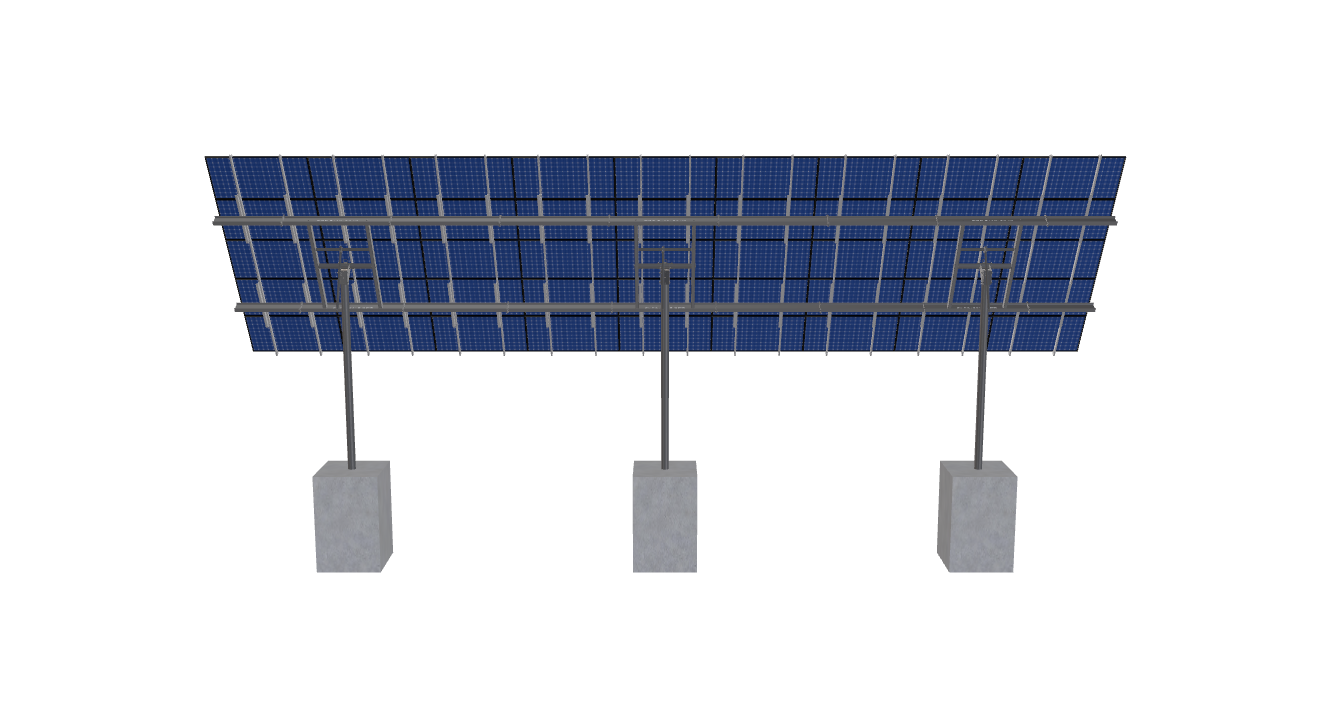

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

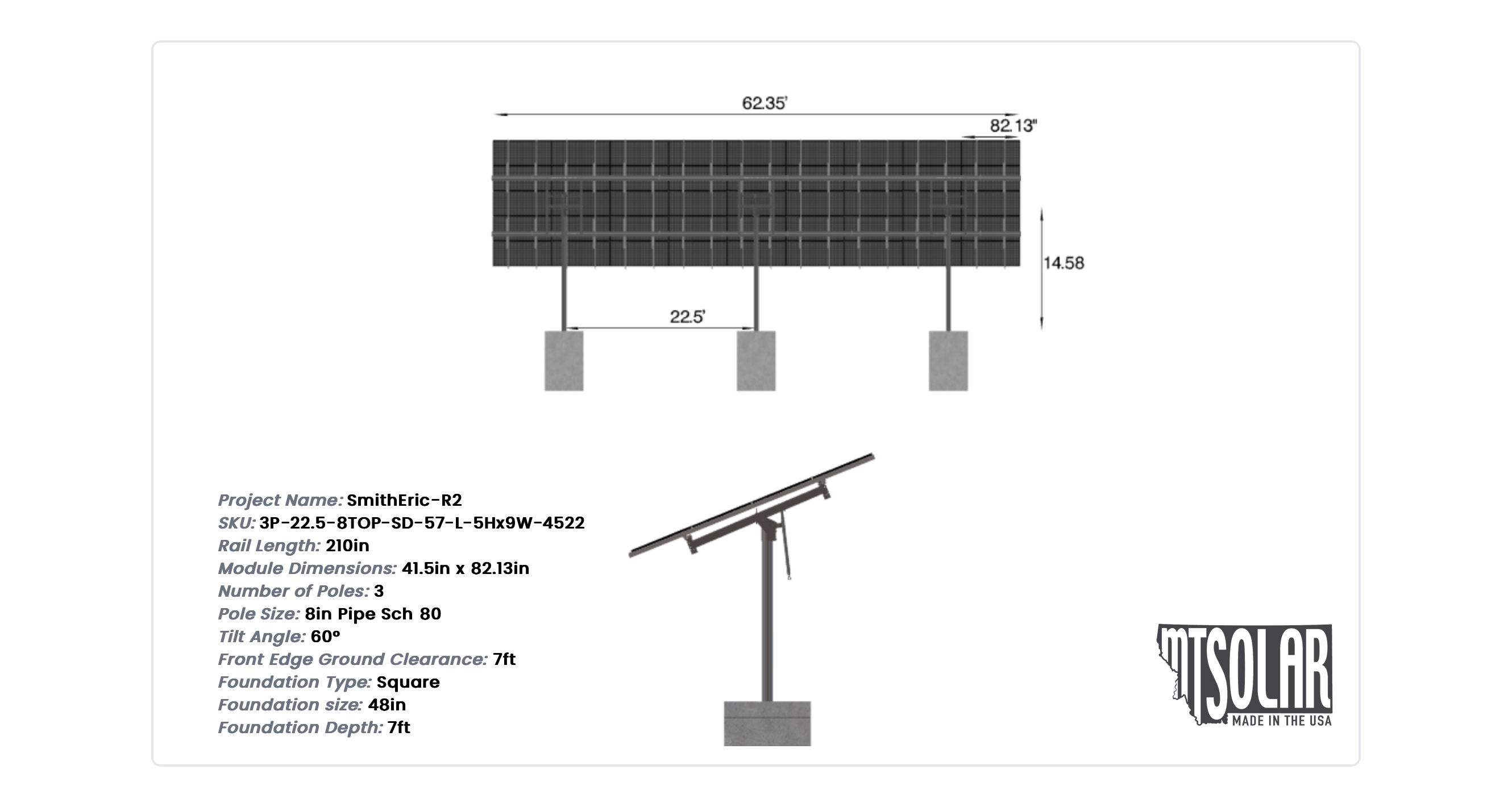

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-8TOP-SD-57-L-5Hx9W-4522 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2967.96 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-SD-57-L-5HX9W-4522

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

14.58

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

60.00

CANTILEVER

744.00

GROUND CLEARANCE

7.00

NO POLES

3.00

MODULE AREA

1091.08

ARRAY WIDTH

62.35

ARRAY HEIGHT

17.50

RAIL LENGTH

210.00

MODULE LENGTH

82.13

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

22.07

PROJECTED PANEL HEIGHT

14.98

PROJECT ID

SMITHERIC-R2

SITE ADDRESS

1522, NF-230, COCOLALLA, ID, 83813, USA

MODULE WIDTH

41.50

NUMBER ROWS

5.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SANDY, GRAVEL

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

85.00

SNOW LOAD OVERRIDE

0.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

14861.16

TOTAL WEIGHT

2967.96

TOTAL PALLETS

3.00
