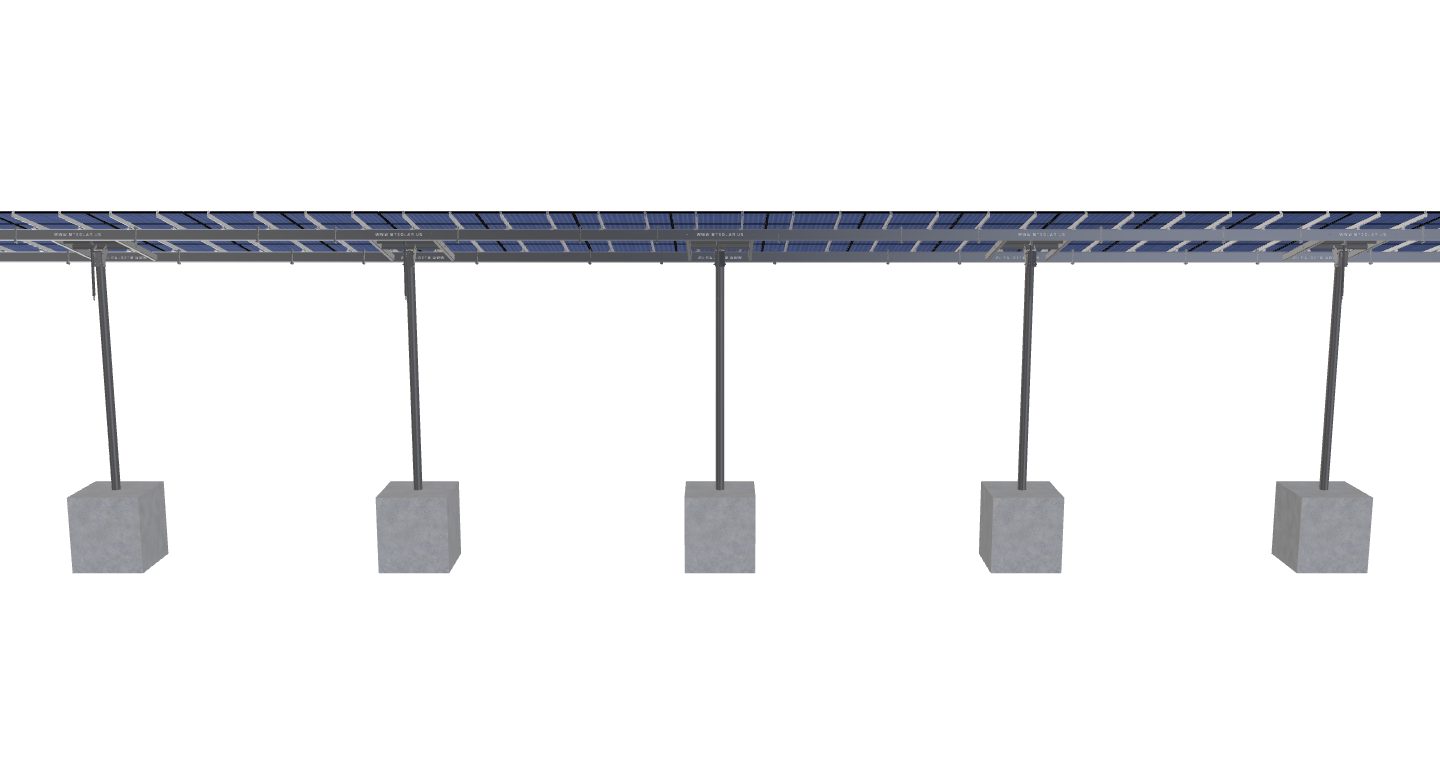

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.53 inches by 41.34 inches and an array layout of 17 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

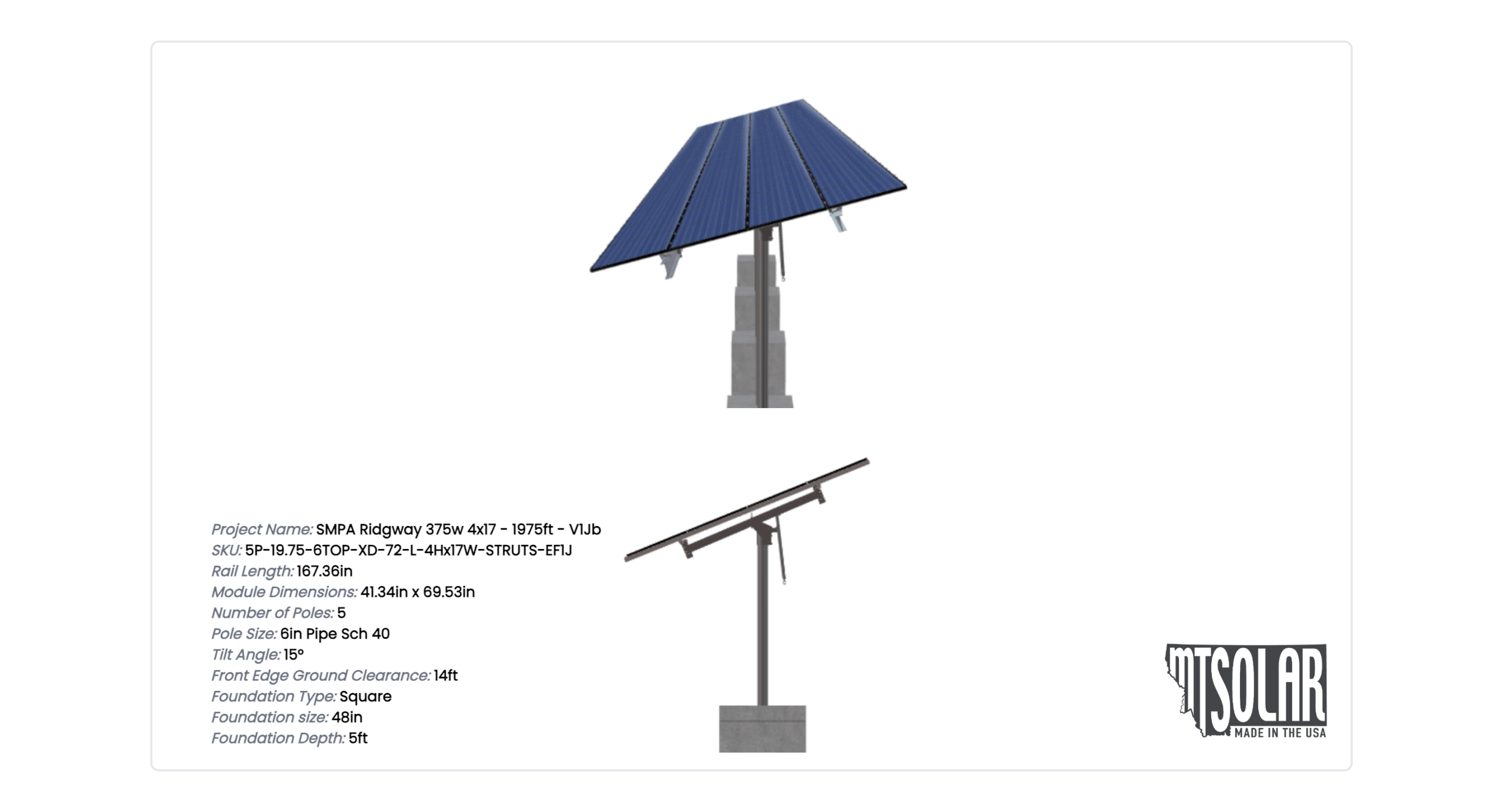

See 3D Model Here
SMPA Ridgway 375w 4×17 – 1975ft – V1Jb
$29,466.80
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.53 inches by 41.34 inches and an array layout of 17 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5163.89 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-XD-72-L-4HX17W-STRUTS-EF1J |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.80 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 1182.01 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1393.52 |
| ARRAY WIDTH | 99.92 |
| ARRAY HEIGHT | 13.95 |
| RAIL LENGTH | 167.36 |
| MODULE LENGTH | 69.53 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 98.50 |
| GROUND TO TOP | 17.61 |
| PROJECTED PANEL HEIGHT | 3.61 |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 52.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | SMPA, RIDGWAY, 375W, 4X17, -, 1975FT, -, V1JB |
| SITE ADDRESS | 720, N, RAILROAD, ST, RIDGWAY, CO, 81432, USA |
| MODULE WIDTH | 41.34 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 17.00 |
| POLE SPACING OVERRIDE | 19.75 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 28063.62 |
| TOTAL WEIGHT | 5163.89 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/7a28734e-fb85-40fd-9cc2-51b17bf4233b.pdf |
|
| ID | 10129.00 |
| 3D Solar link |
