This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66 inches by 40 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

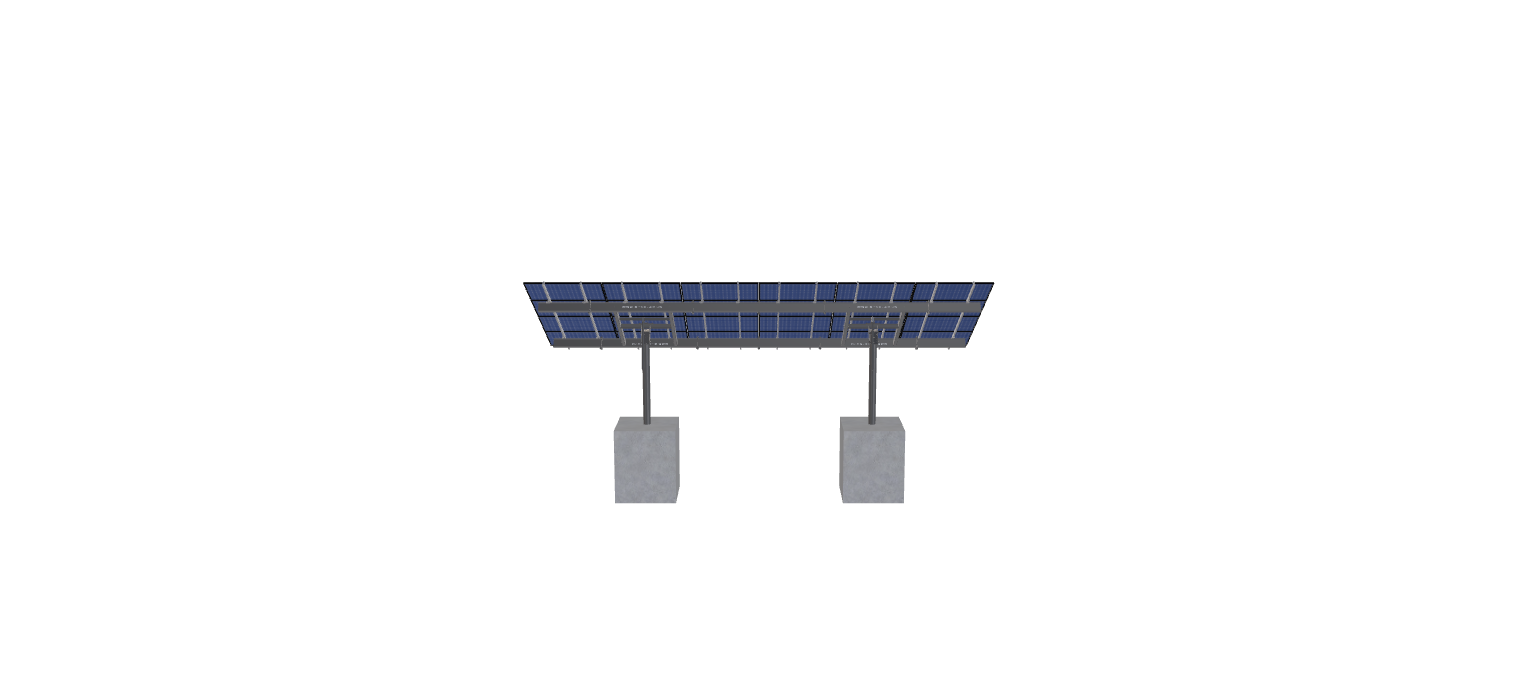

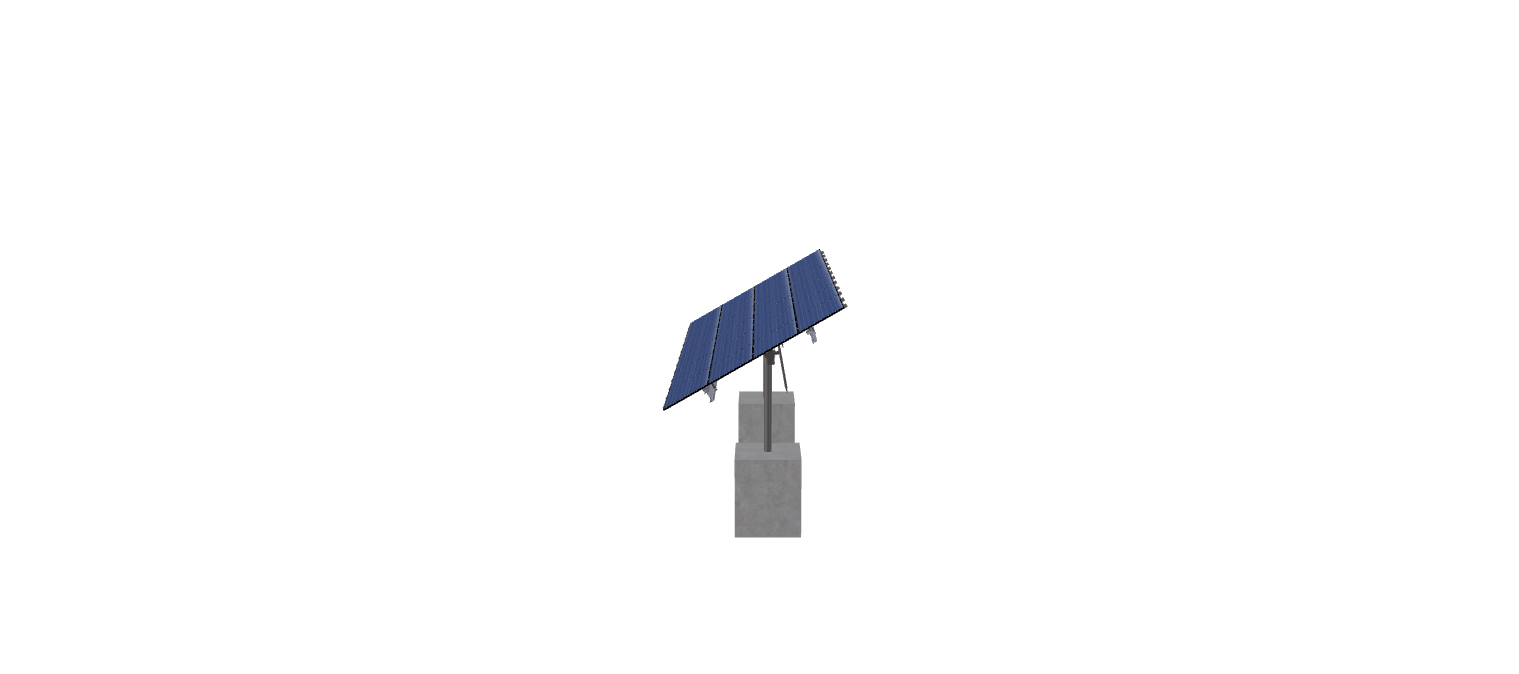

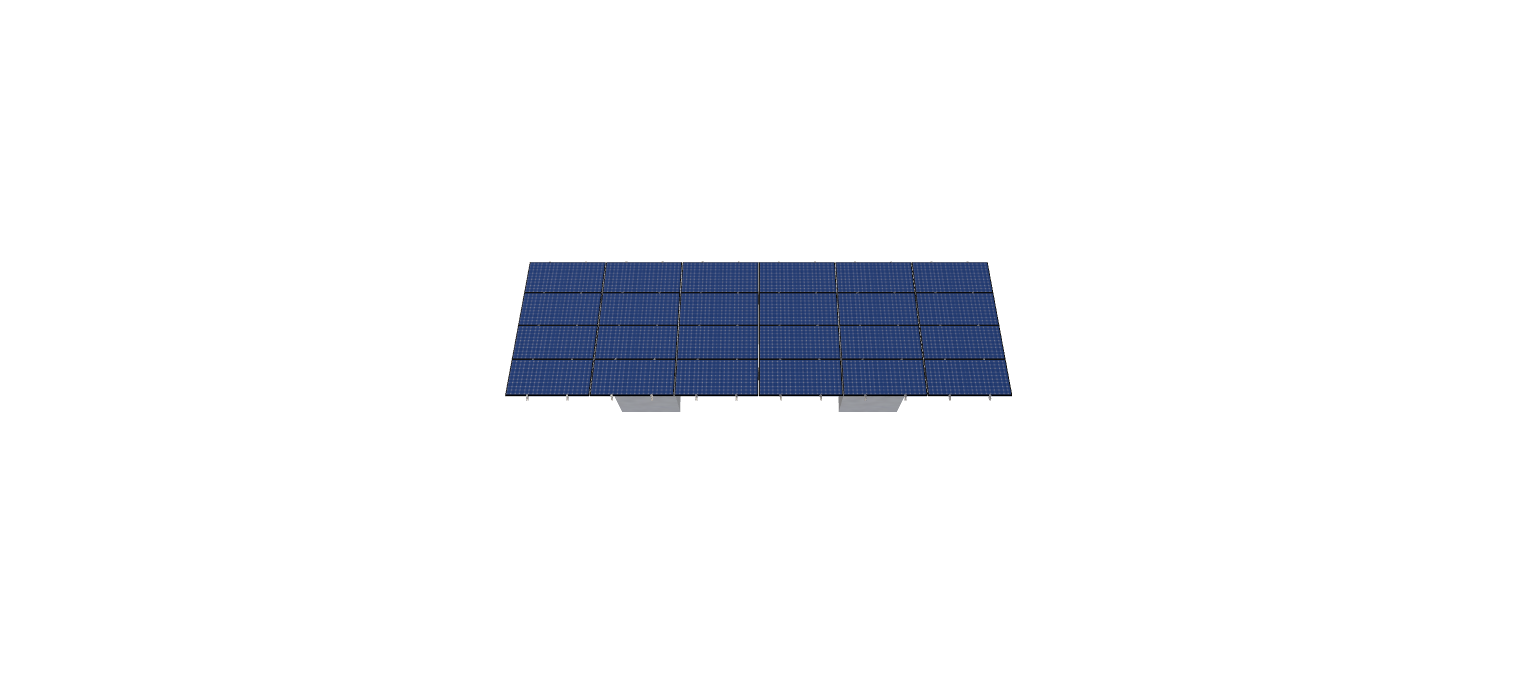

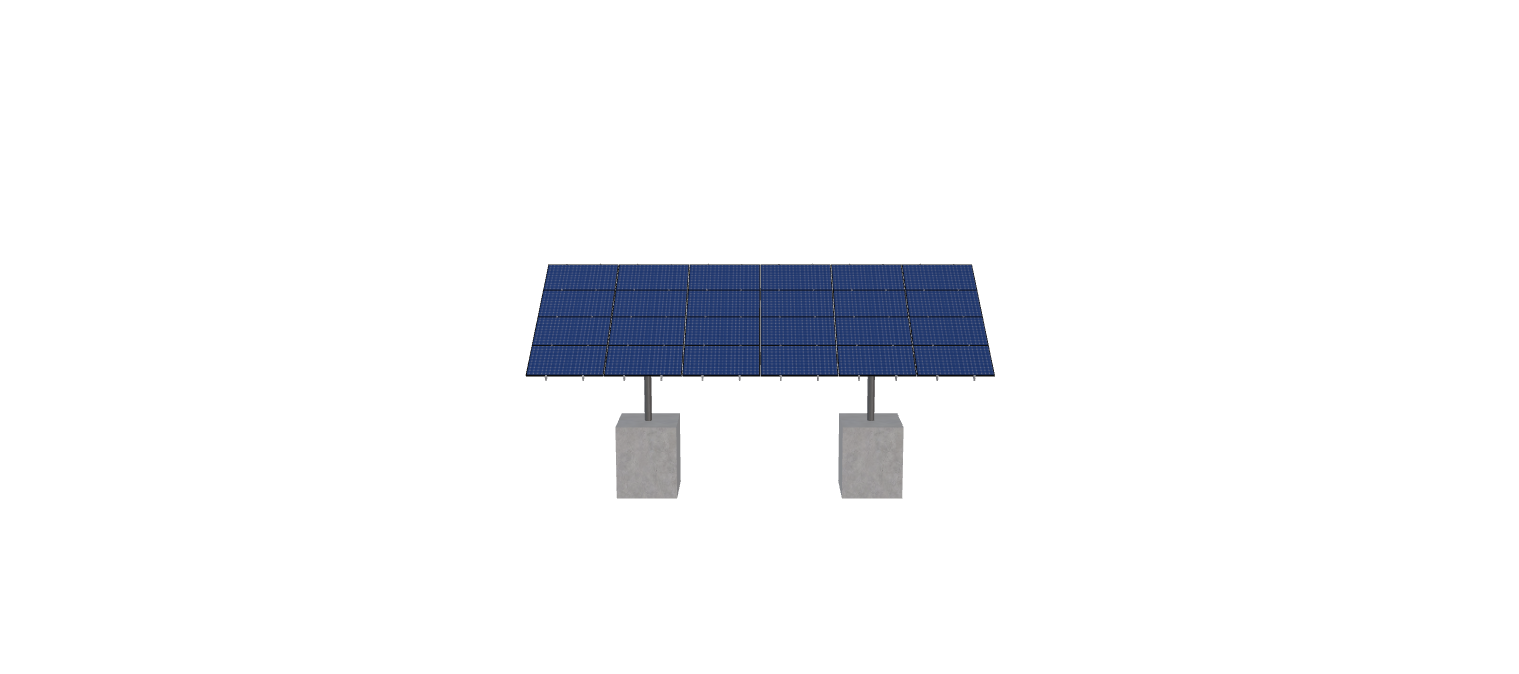

See 3D Model Here
Solar Mounting RevA- GS
$9,454.00
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66 inches by 40 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1627.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-HD-45-L-4HX6W-0FG0 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 7.38 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 452.25 |
| ARRAY WIDTH | 33.50 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 66.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 10.71 |
| PROJECTED PANEL HEIGHT | 6.67 |
| WIND SPEED OVERRIDE | 96.00 |
| SNOW LOAD OVERRIDE | 58.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SOLAR, MOUNTING, REVA-, GS |
| SITE ADDRESS | 3411, S, RITCHEY, RD, MEDICAL, LAKE, WA, 99022, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9003.81 |
| TOTAL WEIGHT | 1627.54 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/3b5ac5f8-5143-4afb-8e2c-cb82b58e958f.pdf |
|
| ID | 2349.00 |
| 3D Solar link |
