This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.5 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

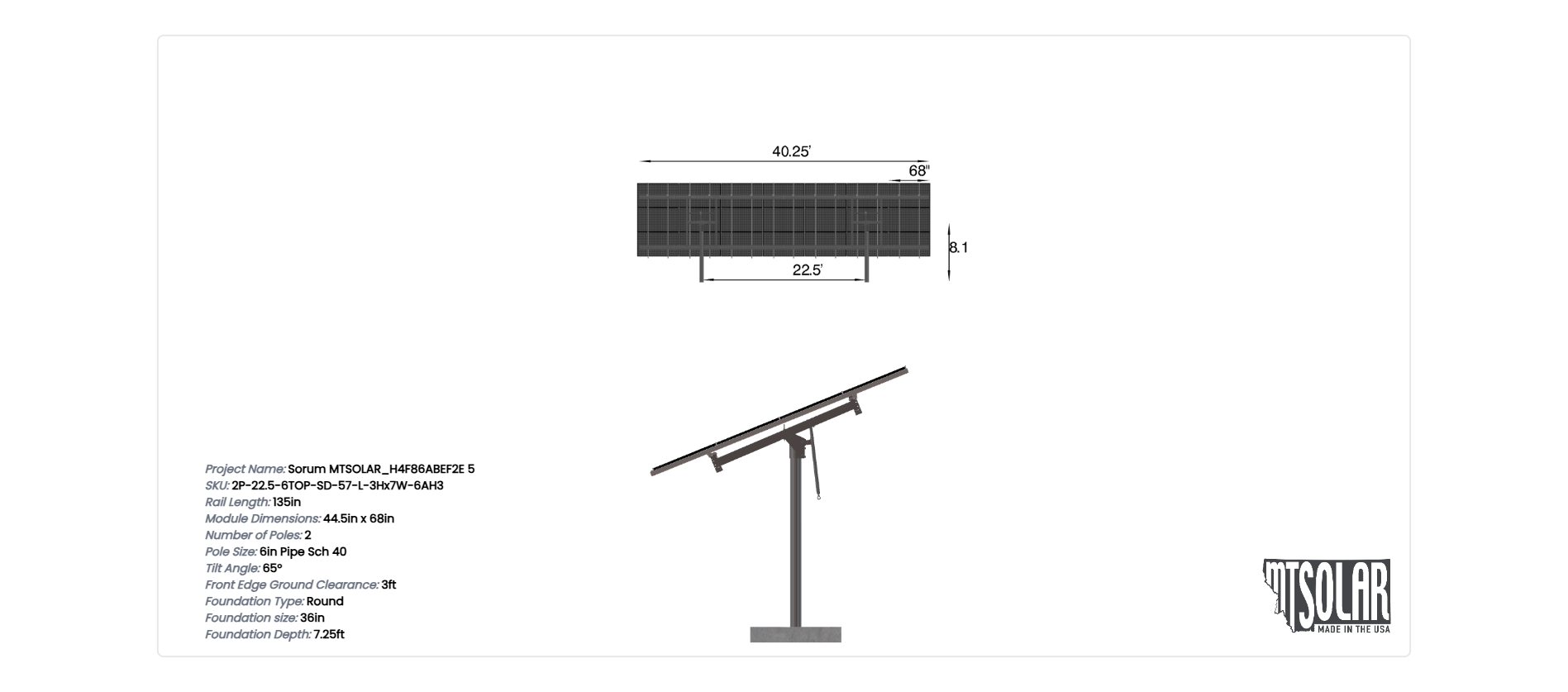

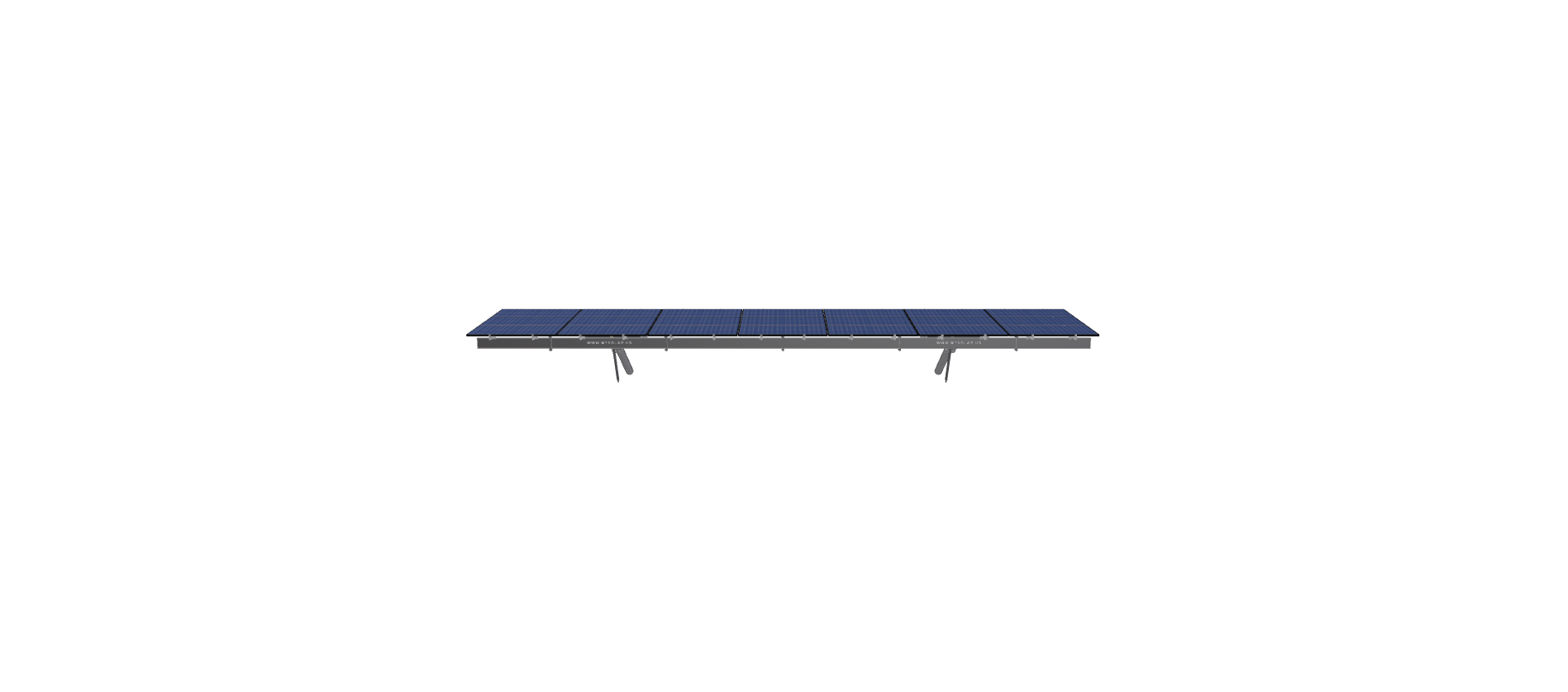

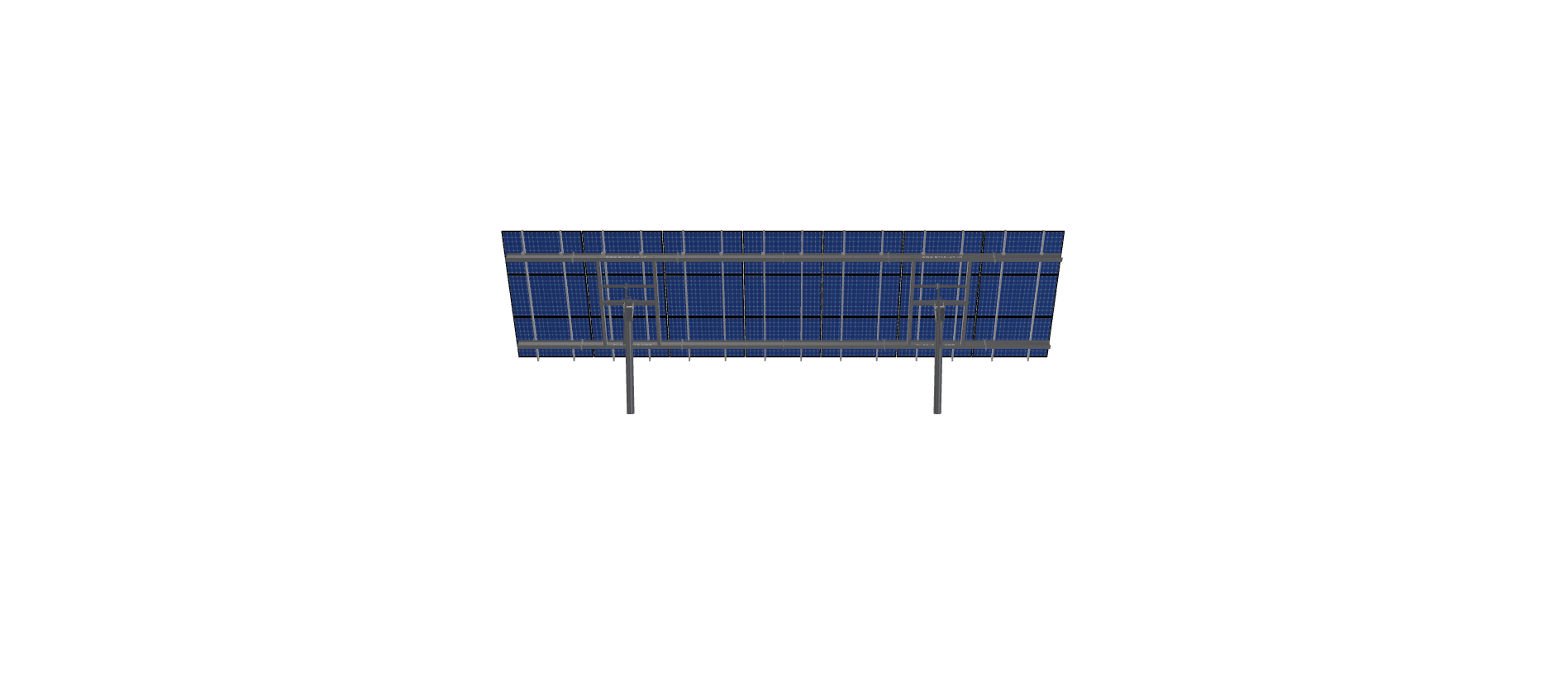

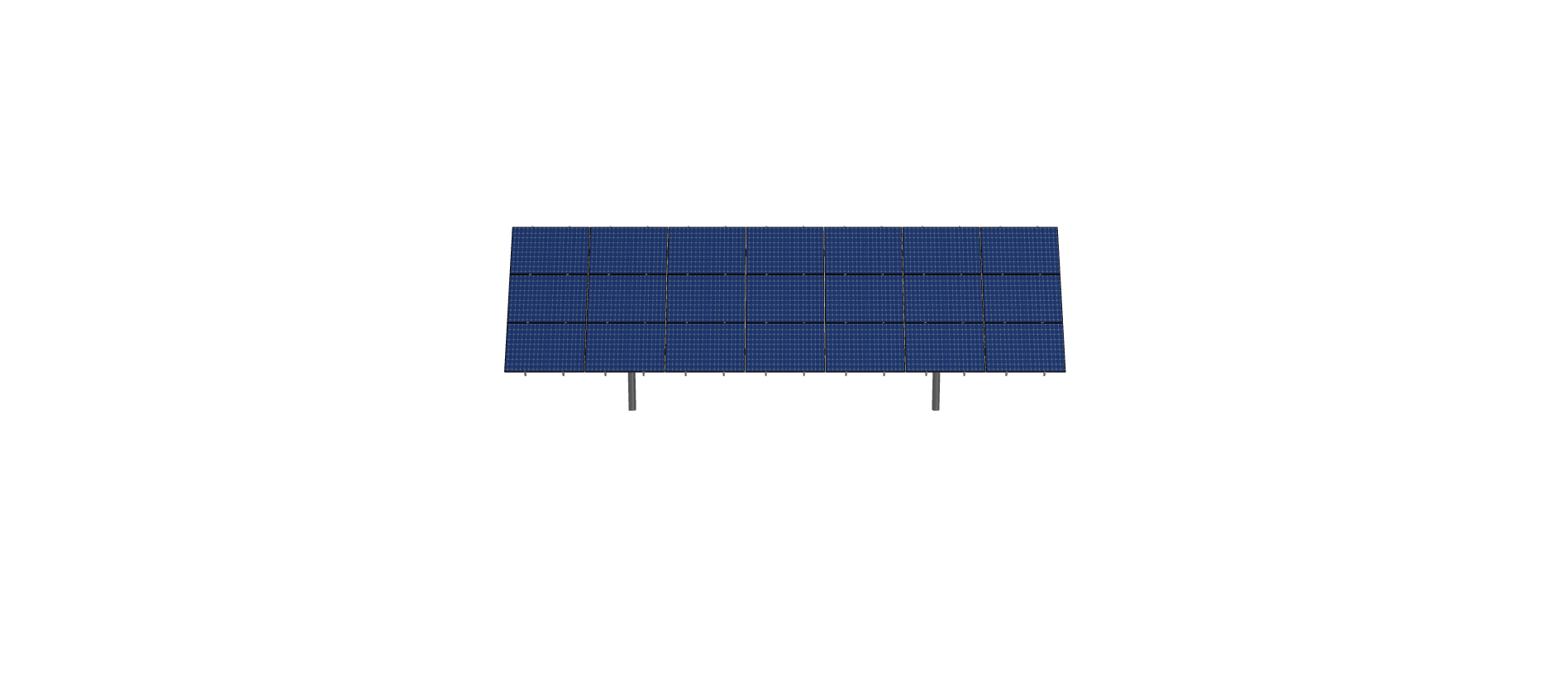

See 3D Model Here
Sorum MTSOLAR_H4F86ABEF2E 5
$8,797.95
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.5 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1508.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-57-L-3HX7W-6AH3 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.10 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 452.81 |
| ARRAY WIDTH | 40.25 |
| ARRAY HEIGHT | 11.25 |
| RAIL LENGTH | 135.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 13.20 |
| PROJECTED PANEL HEIGHT | 10.20 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | RANDY, FALLER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 715-628-0250 |
| PROJECT ID | SORUM, MTSOLAR, H4F86ABEF2E, 5 |
| SITE ADDRESS | US-8, RHINELANDER, WI, USA |
| MODULE INFO | MISSION, SOLAR, MSE410H0B |
| MODULE WIDTH | 44.50 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8797.95 |
| TOTAL WEIGHT | 1508.44 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/5b03c872-f4de-4642-a0ea-5c125257d278.pdf |
|
| ID | 11345.00 |
| 3D Solar link |
