This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94 inches by 51 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

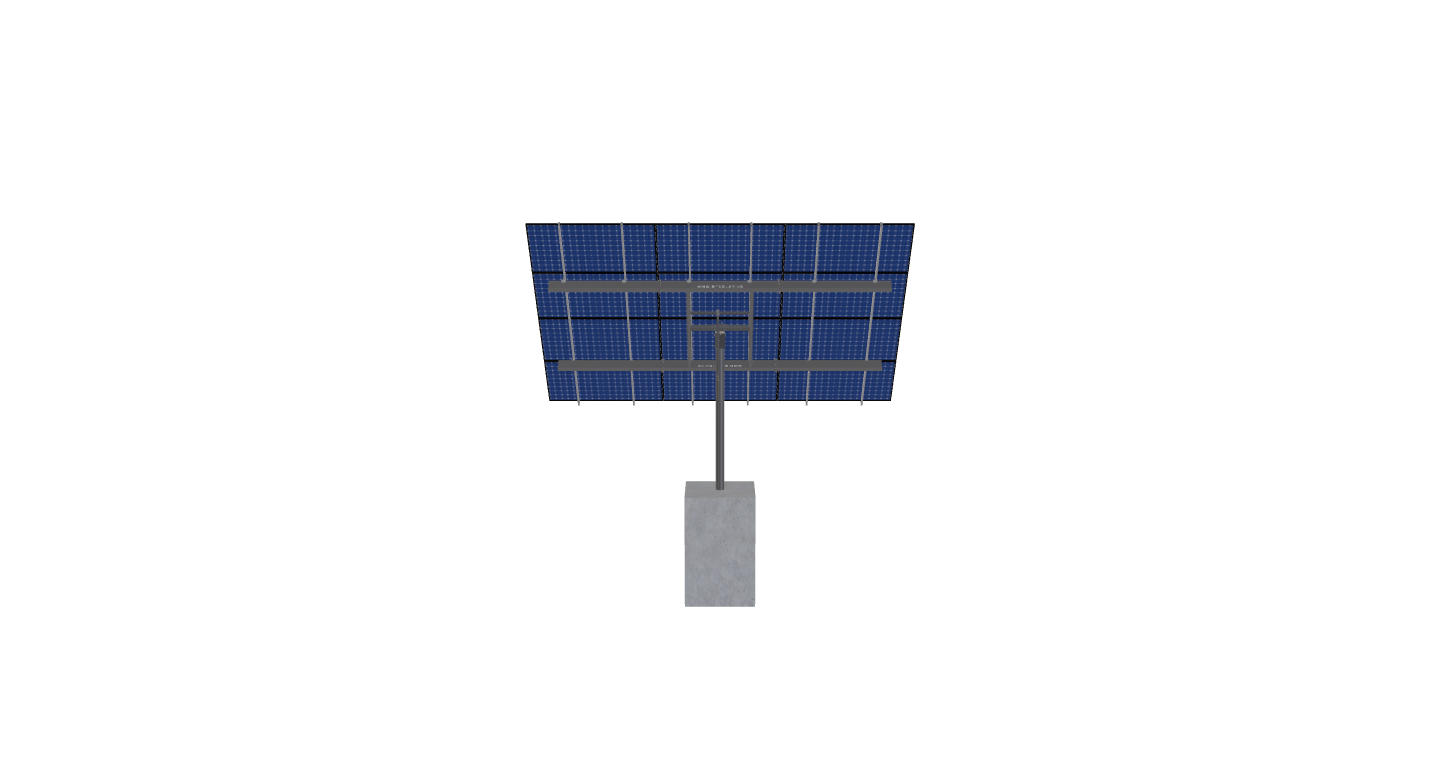

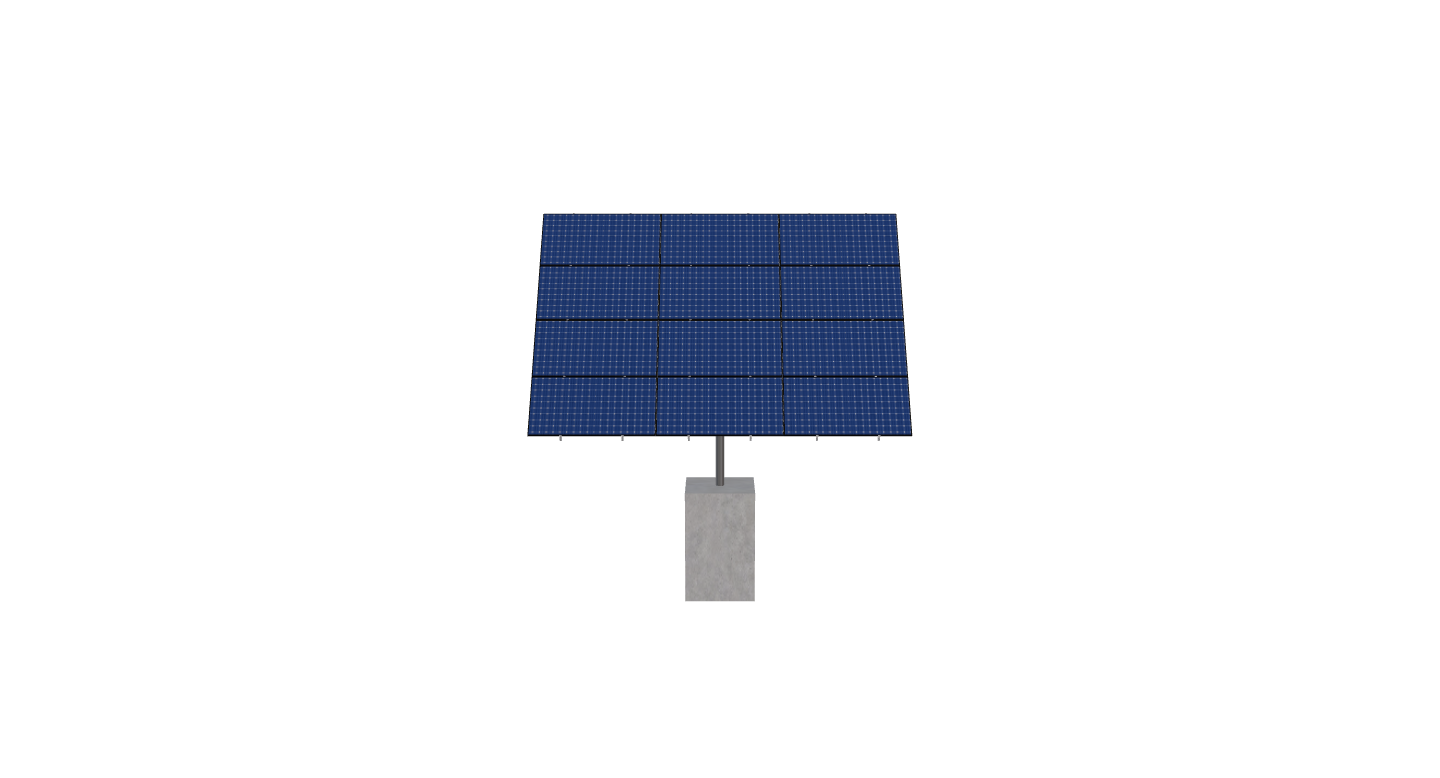

See 3D Model Here
South Pack Solar – Riley – 4×3 – 710w – NF – Rails – V1Jb
$5,207.54
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94 inches by 51 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

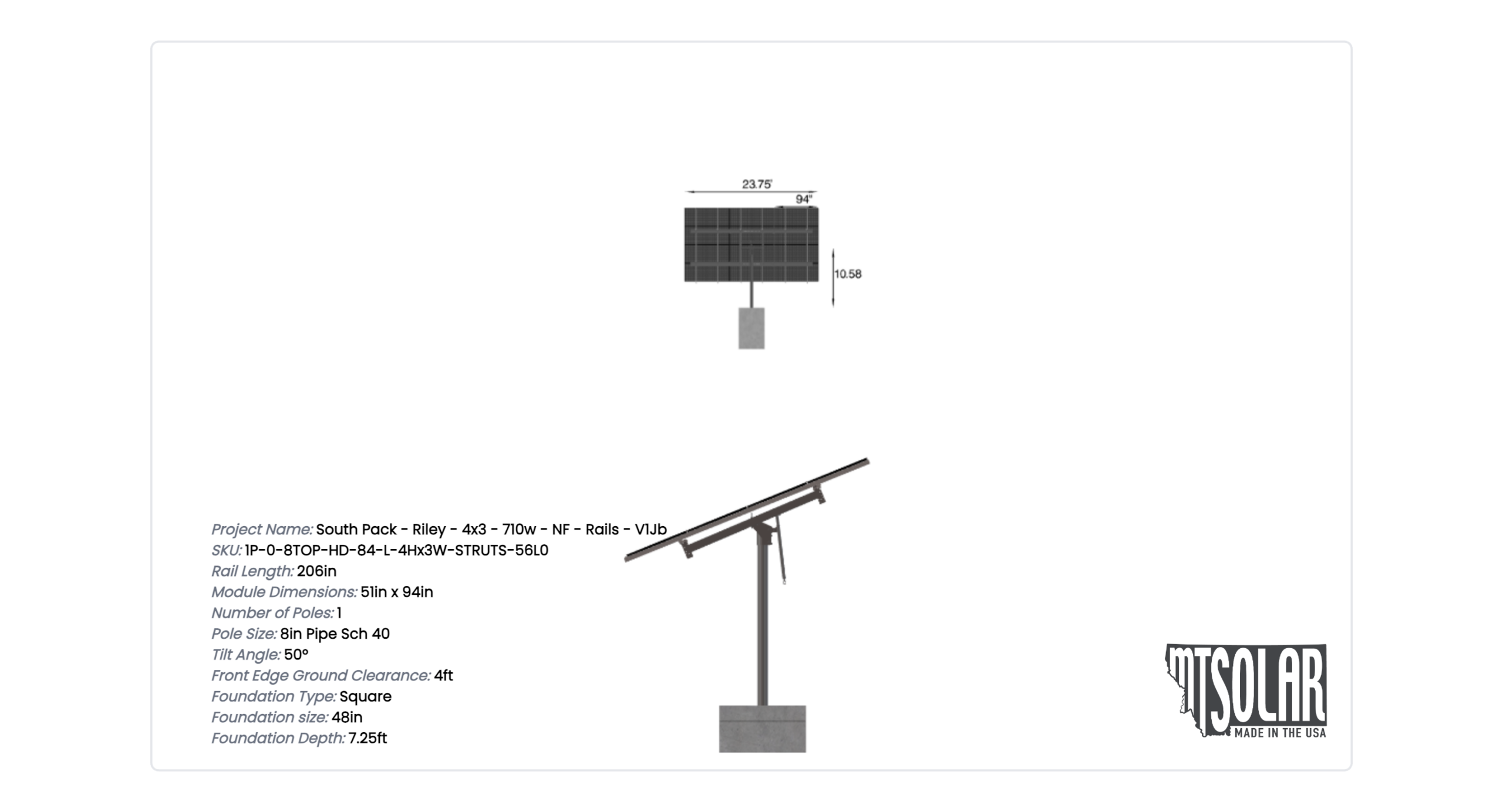

Additional information
| Weight | 928.4699999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-84-L-4HX3W-STRUTS-56L0 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.58 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 407.71 |
| ARRAY WIDTH | 23.75 |
| ARRAY HEIGHT | 17.17 |
| RAIL LENGTH | 206.00 |
| MODULE LENGTH | 94.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 17.15 |
| PROJECTED PANEL HEIGHT | 13.15 |
| PROJECT ID | SOUTH, PACK, -, RILEY, -, 4X3, -, 710W, -, NF, -, RAILS, -, V1JB |
| SITE ADDRESS | 37, ARUNDEL, RD, PETERBOROUGH, NH, 03458, USA |
| MODULE WIDTH | 51.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 84.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 4959.56 |
| TOTAL WEIGHT | 928.47 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/d1a493c7-2e2f-462a-ae0c-4b6c21e52a31.pdf |
|
| ID | 9993.00 |
| 3D Solar link |
