steiner 3 pole

$15,209.77

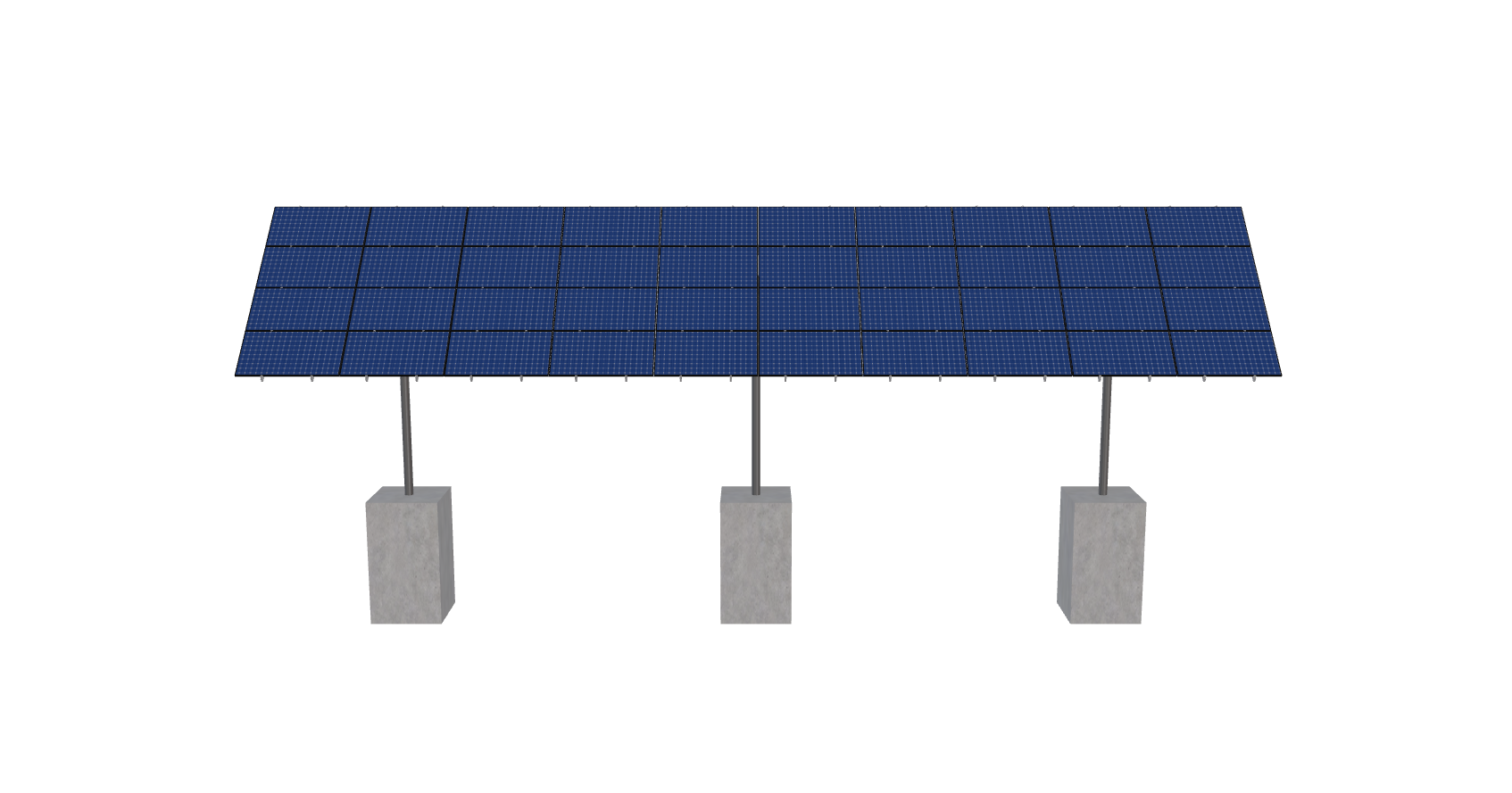

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-8TOP-HD-57-L-4Hx10W-STRUTS-CBK4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2817.85 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-HD-57-L-4HX10W-STRUTS-CBK4

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

12.95

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.00

TILT ANGLE

45.00

CANTILEVER

744.00

GROUND CLEARANCE

8.00

NO POLES

3.00

MODULE AREA

887.60

ARRAY WIDTH

63.40

ARRAY HEIGHT

14.00

RAIL LENGTH

168.00

MODULE LENGTH

75.08

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

17.84

PROJECTED PANEL HEIGHT

9.78

PROJECT ID

STEINER, 3, POLE

SITE ADDRESS

390, RUSSELL, RD, BERRYVILLE, VA, 22611, USA

MODULE WIDTH

41.50

NUMBER ROWS

4.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

111.00

SNOW LOAD OVERRIDE

10.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

15209.77

TOTAL WEIGHT

2817.85

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/ca2a8133-862a-4798-9013-a92da98a3e75.pdf

ID

6466.00
