This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.83 inches by 44.61 inches and an array layout of 16 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

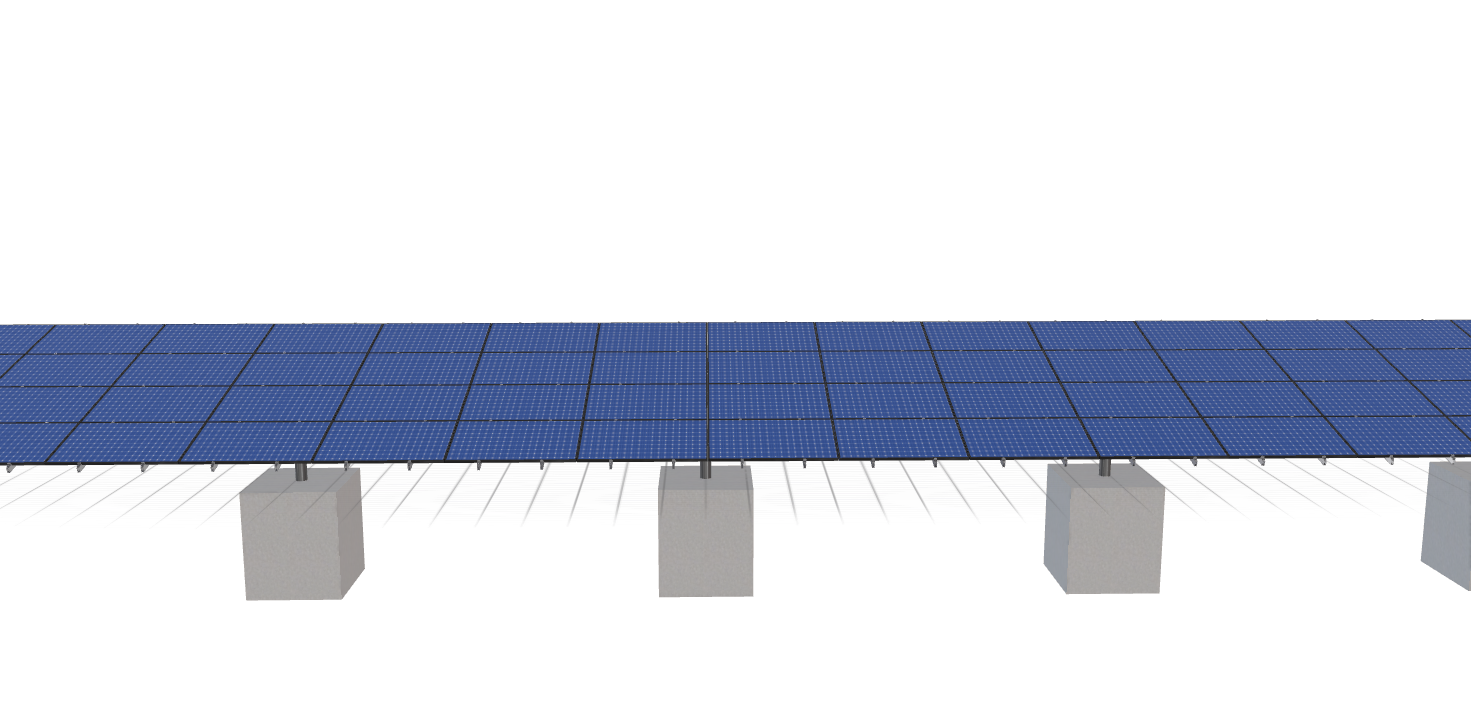

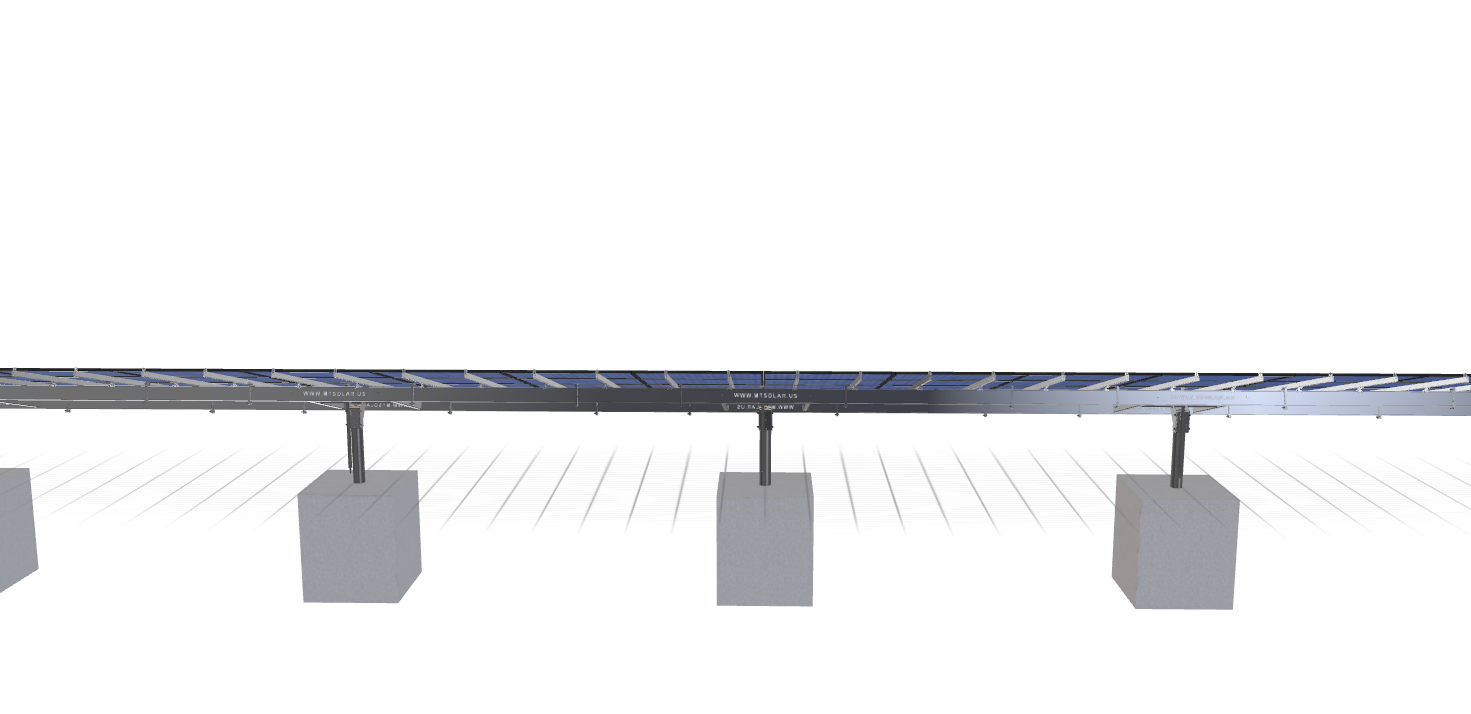

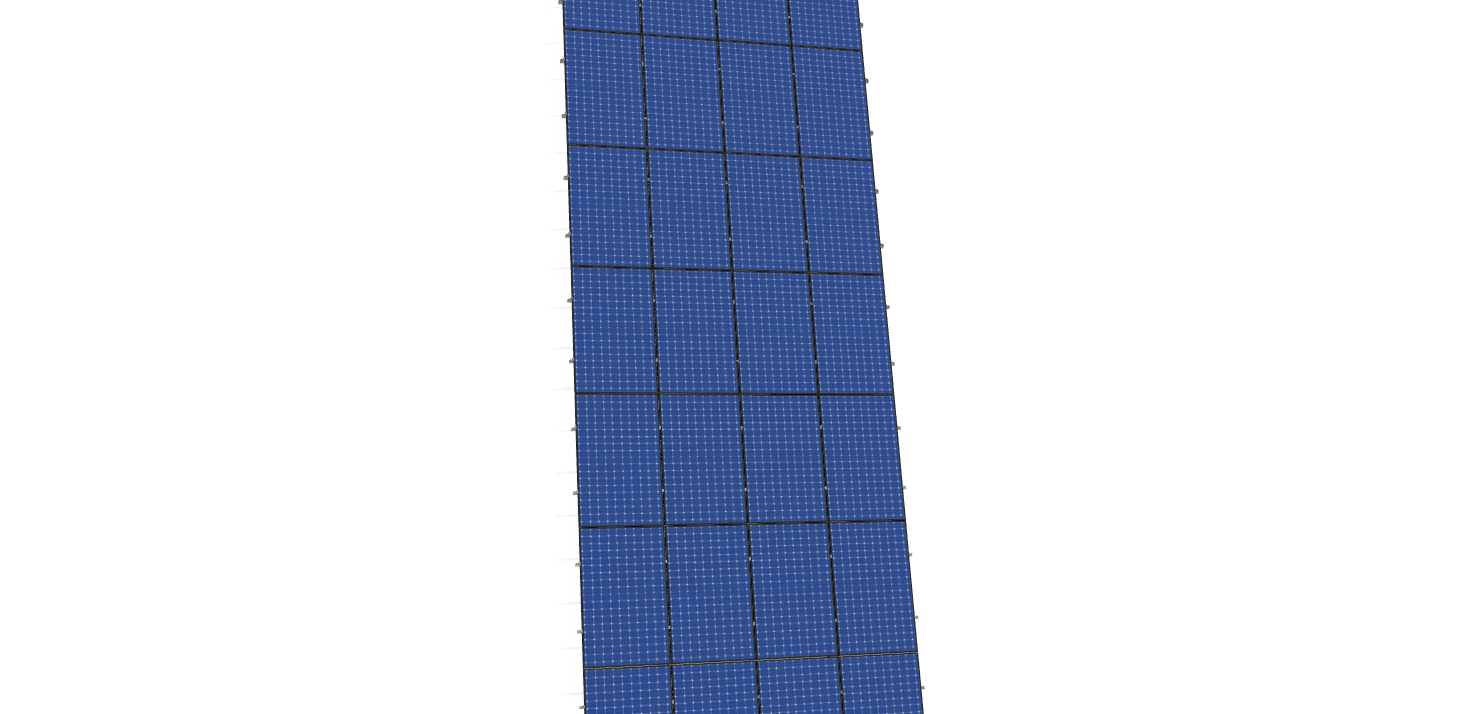

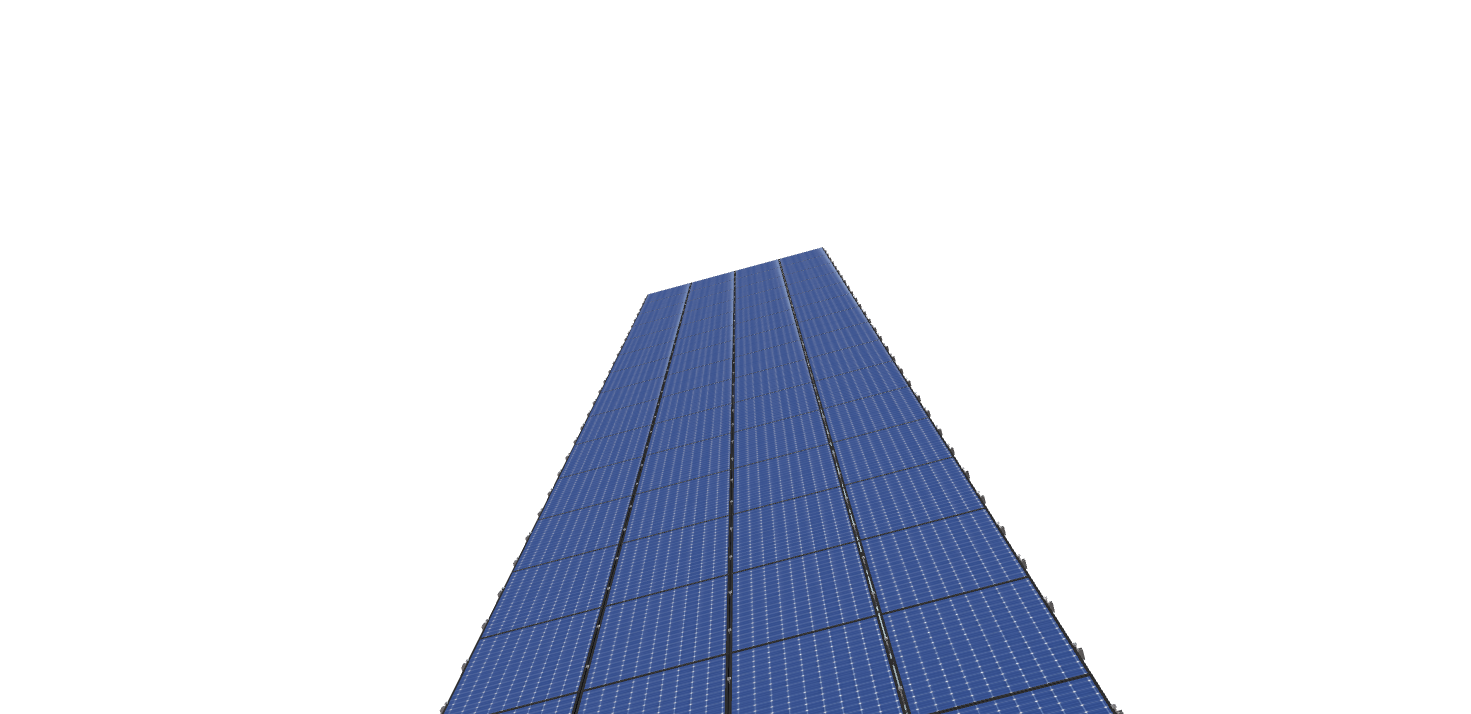

See 3D Model Here
Sunil Trehan – 25.6kW South of Driveway
$25,466.46
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.83 inches by 44.61 inches and an array layout of 16 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4359.23 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-24-L-4HX16W-IE4C |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 3.95 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1379.97 |
| ARRAY WIDTH | 91.77 |
| ARRAY HEIGHT | 15.04 |
| RAIL LENGTH | 180.44 |
| MODULE LENGTH | 67.83 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 5.87 |
| PROJECTED PANEL HEIGHT | 3.85 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SUNIL, TREHAN, -, 25.6KW, SOUTH, OF, DRIVEWAY |
| SITE ADDRESS | 112, BRAEBURN, RD, BARRINGTON, IL, 60010, USA |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24253.77 |
| TOTAL WEIGHT | 4359.23 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/c772124e-c18b-46b5-ae2c-bc55bac467c3.pdf |
|
| ID | 924.00 |
| 3D Solar link |
