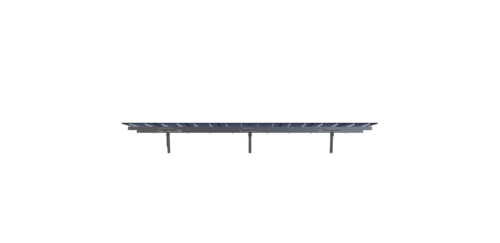

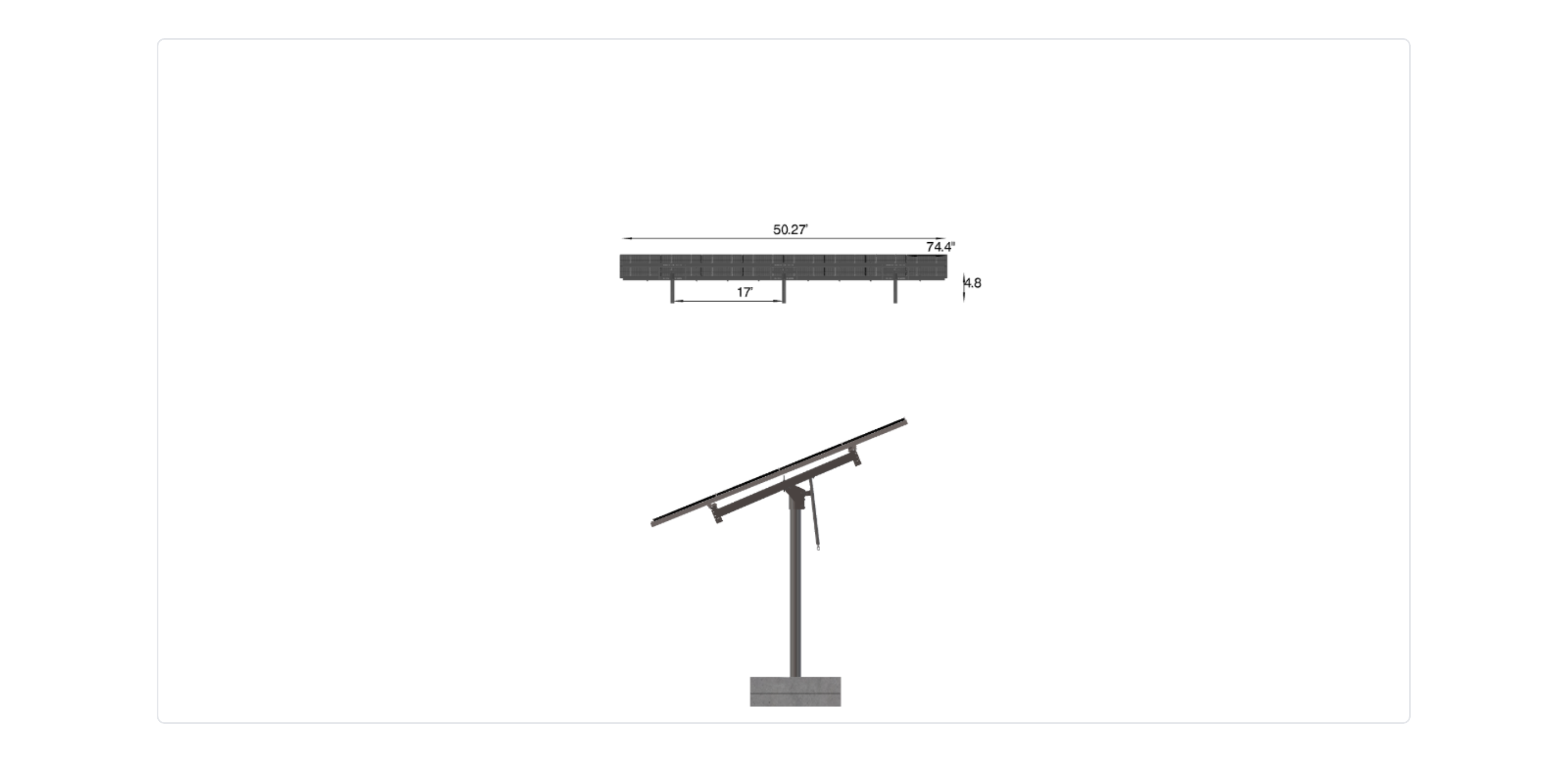

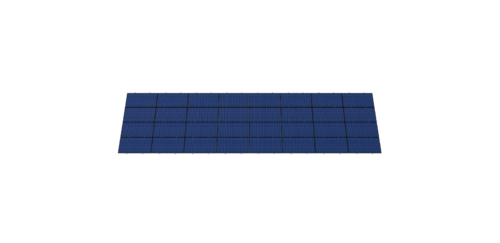

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.4 inches by 41.2 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Sunlux 1061 Segovia Cir Isolated footing
$11,765.46
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.4 inches by 41.2 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2073.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-45-L-4HX8W-H9I4 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 4.80 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 53.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 3.00 |
| MODULE AREA | 698.71 |
| ARRAY WIDTH | 50.27 |
| ARRAY HEIGHT | 13.90 |
| RAIL LENGTH | 166.80 |
| MODULE LENGTH | 74.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 6.58 |
| PROJECTED PANEL HEIGHT | 3.55 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SUNLUX, 1061, SEGOVIA, CIR, ISOLATED, FOOTING |
| SITE ADDRESS | 1030, AQUINO, CIR, CORONA, CA, 92879, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ISOLATED |
| FOUNDATION SIZE | 50.00 |
| ISOLATED FOUNDATION THICKNESS | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 11765.46 |
| TOTAL WEIGHT | 2073.76 |
| TOTAL PALLETS | 3.00 |
