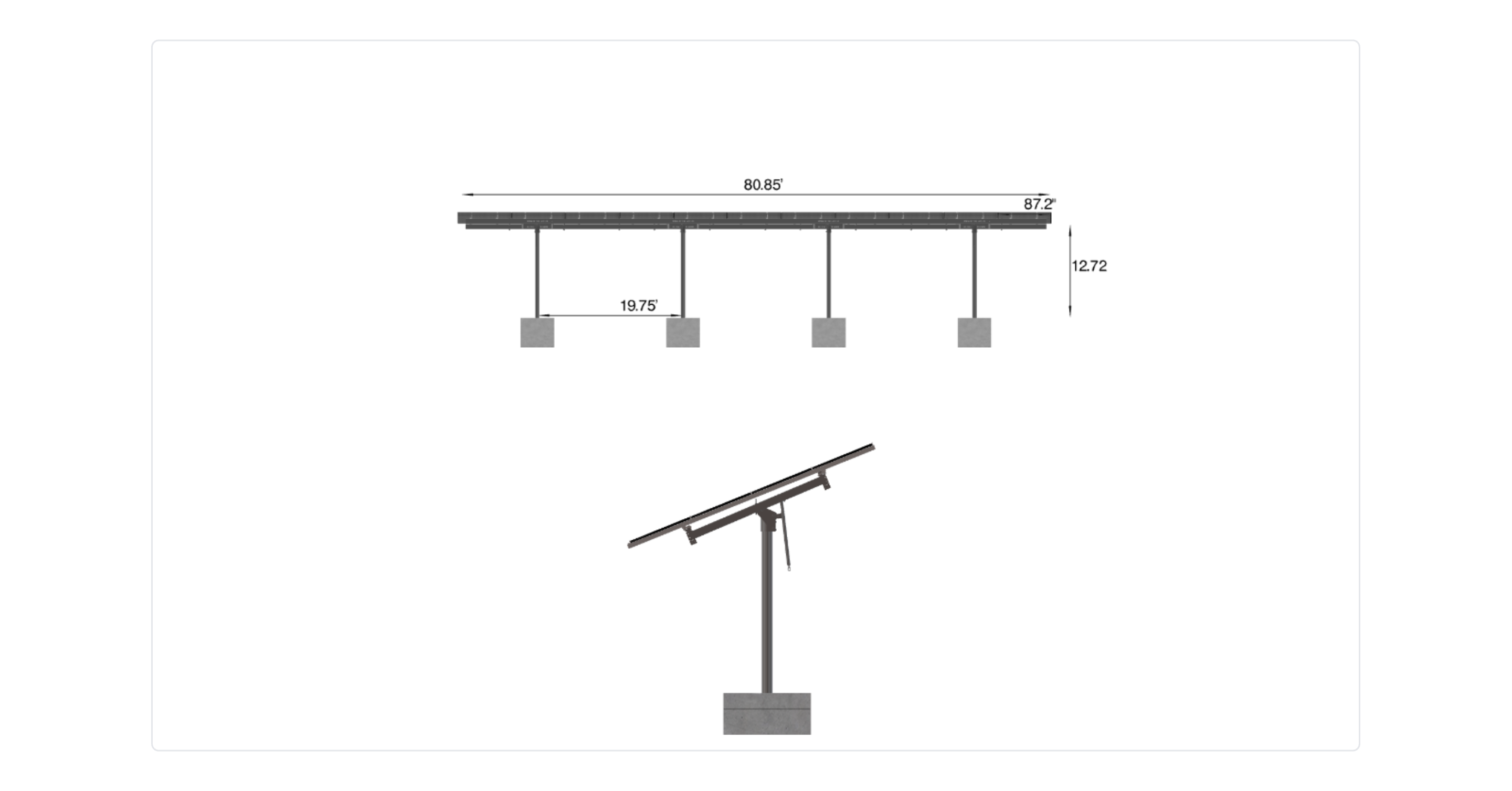

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 39.4 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Surgery Center – v2
$18,777.25
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 39.4 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3733.34 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-72-L-5HX11W-4F3B |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.72 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 4.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1344.13 |
| ARRAY WIDTH | 80.85 |
| ARRAY HEIGHT | 16.63 |
| RAIL LENGTH | 199.50 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 13.44 |
| PROJECTED PANEL HEIGHT | 1.43 |
| PROJECT ID | SURGERY, CENTER, -, V2 |
| SITE ADDRESS | 10408, INDUSTRIAL, CIR, REDLANDS, CA, 92374, USA |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 6.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 18777.25 |
| TOTAL WEIGHT | 3733.34 |
| TOTAL PALLETS | 4.00 |
