This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Swan – V1Jb
$5,572.80
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1005.3299999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

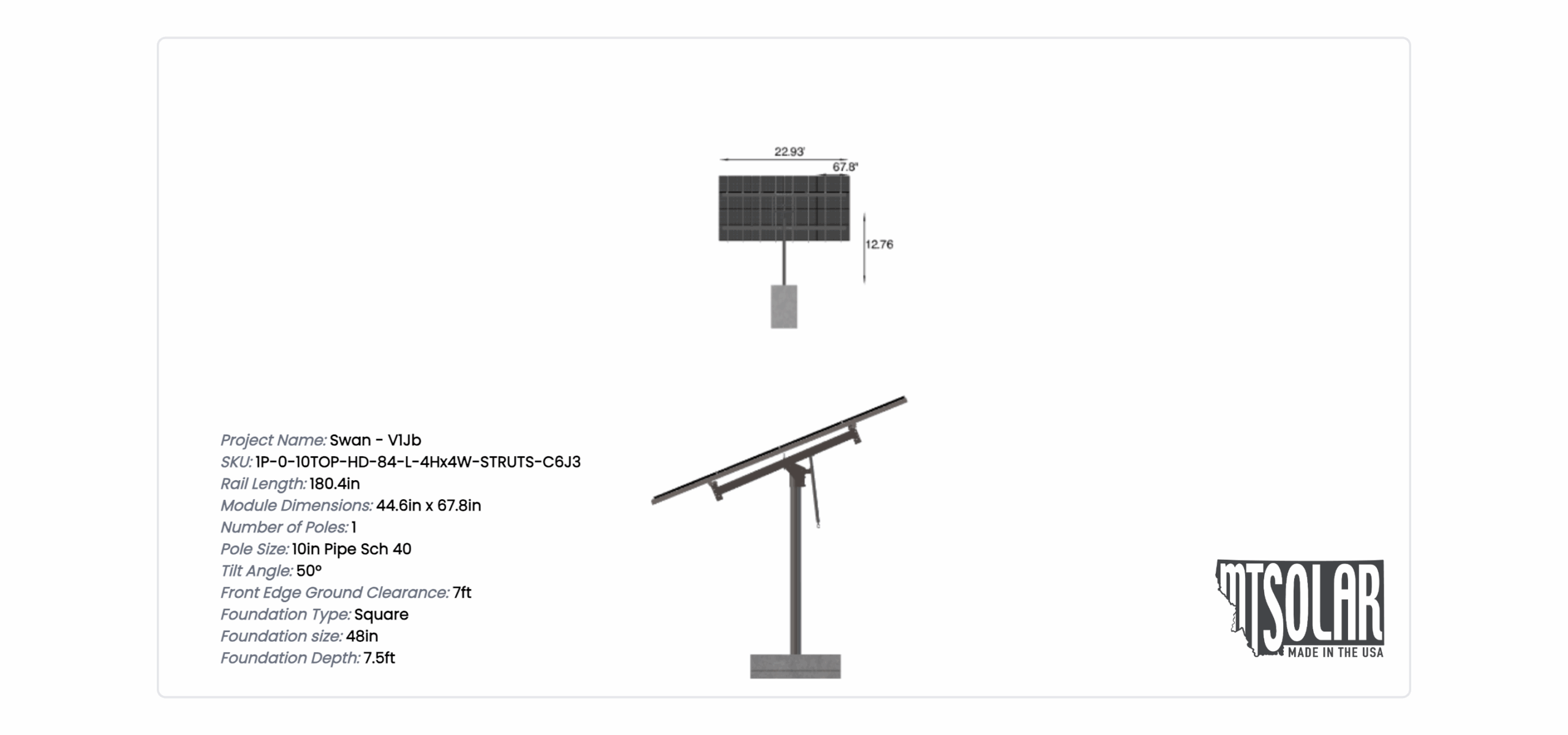

| SKU CODE | 1P-0-10TOP-HD-84-L-4HX4W-STRUTS-C6J3 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.76 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 1.00 |
| MODULE AREA | 344.76 |
| ARRAY WIDTH | 22.93 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 18.52 |
| PROJECTED PANEL HEIGHT | 11.52 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 7.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | ALLEN, RILING |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9707597655.00 |
| PROJECT ID | SWAN, -, V1JB |
| SITE ADDRESS | 4385, CO, RD, 207, DURANGO, CO, 81301, USA |
| MODULE INFO | SILFAB, 430 |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5572.80 |
| TOTAL WEIGHT | 1005.33 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/a0315c31-8510-4ea9-be8a-34312902744c.pdf |
|
| ID | 13231.00 |
| 3D Solar link |
