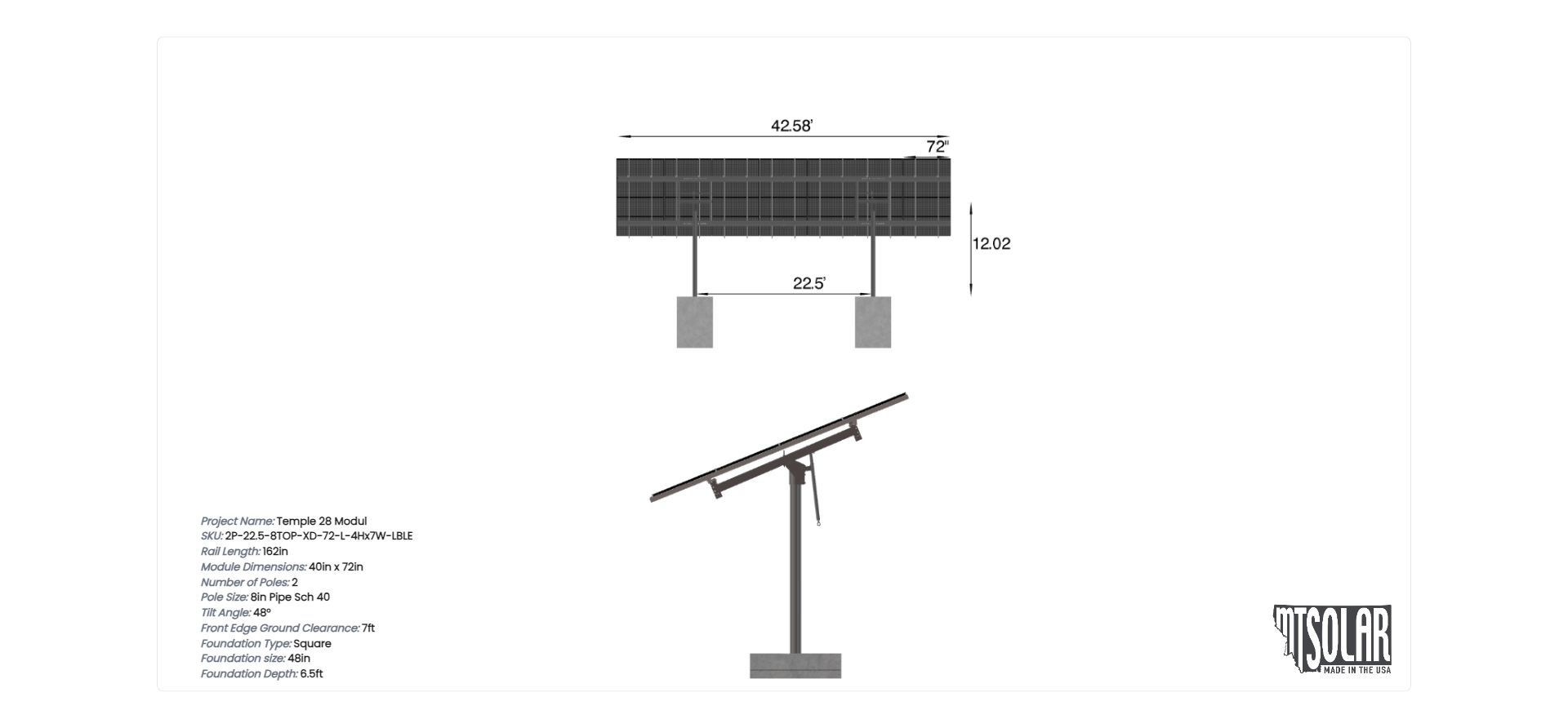

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Temple 28 Modul
$11,429.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2145.24 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-XD-72-L-4HX7W-LBLE |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.02 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 48.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 574.88 |
| ARRAY WIDTH | 42.58 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 72.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 16.97 |
| PROJECTED PANEL HEIGHT | 9.91 |
| PROJECT ID | TEMPLE, 28, MODUL |
| SITE ADDRESS | 6950, TEEPEE, RIDGE, RD, BOZEMAN, MT, 59715, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 87.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 11429.99 |
| TOTAL WEIGHT | 2145.24 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/82799c04-bbb3-4945-93db-1c8b1ff2f299.pdf |
|
| ID | 2059.00 |
| 3D Solar link |
