This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 4in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

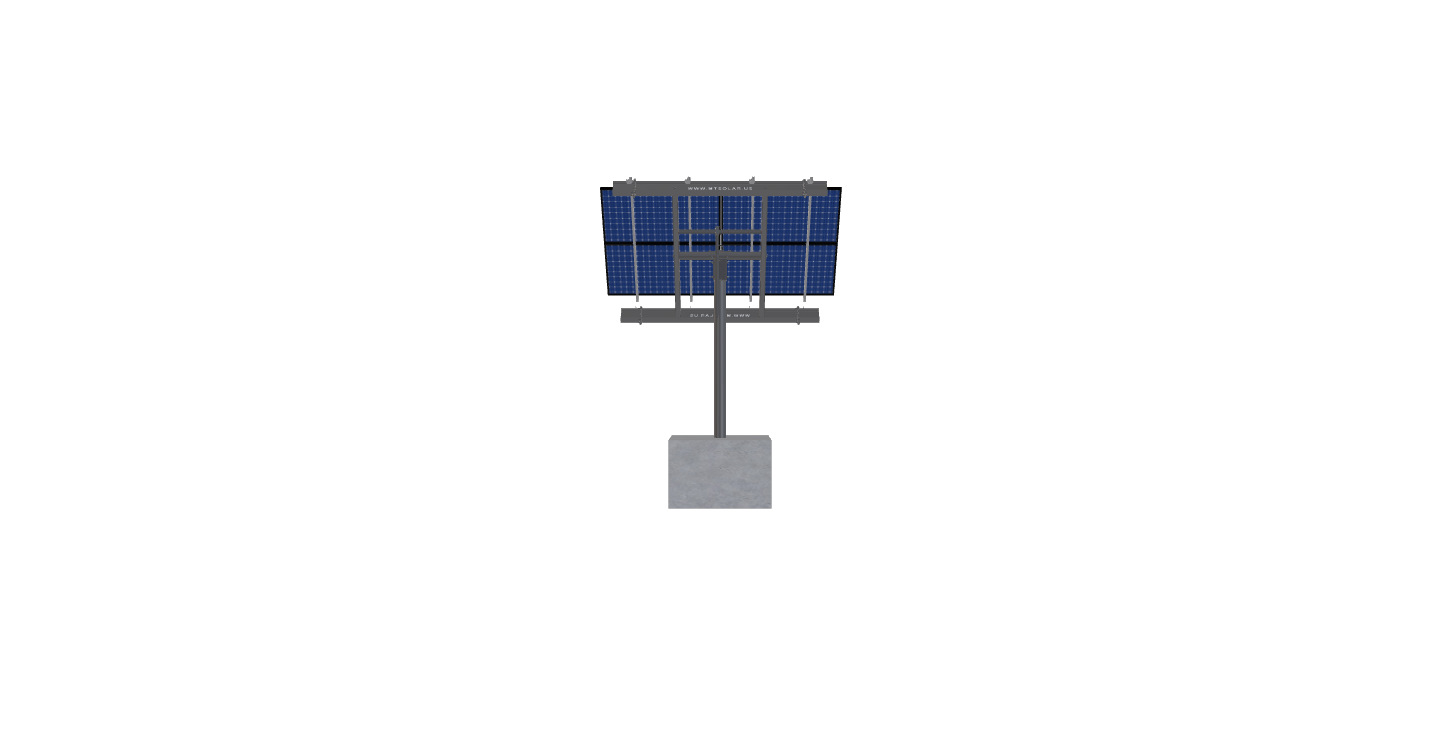

See 3D Model Here
TiffanyMartelli-RevA
$2,924.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 4in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 493.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-2HX2W-9D43 |
| DUTY SIZE | SD |
| POLE SIZE | 4IN, PIPE, SCH, 40 |
| PRODUCT TYPE | CYBER |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.37 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 72.42 |
| ARRAY WIDTH | 11.00 |
| ARRAY HEIGHT | 6.58 |
| RAIL LENGTH | 79.00 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 10.71 |
| PROJECTED PANEL HEIGHT | 4.68 |
| PROJECT ID | TIFFANYMARTELLI-REVA |
| SITE ADDRESS | 907, KINKEHEE, TRAIL, HARTSEL, CO, 80449, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 2.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 2924.49 |
| TOTAL WEIGHT | 493.92 |
| TOTAL PALLETS | 1.00 |
