This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

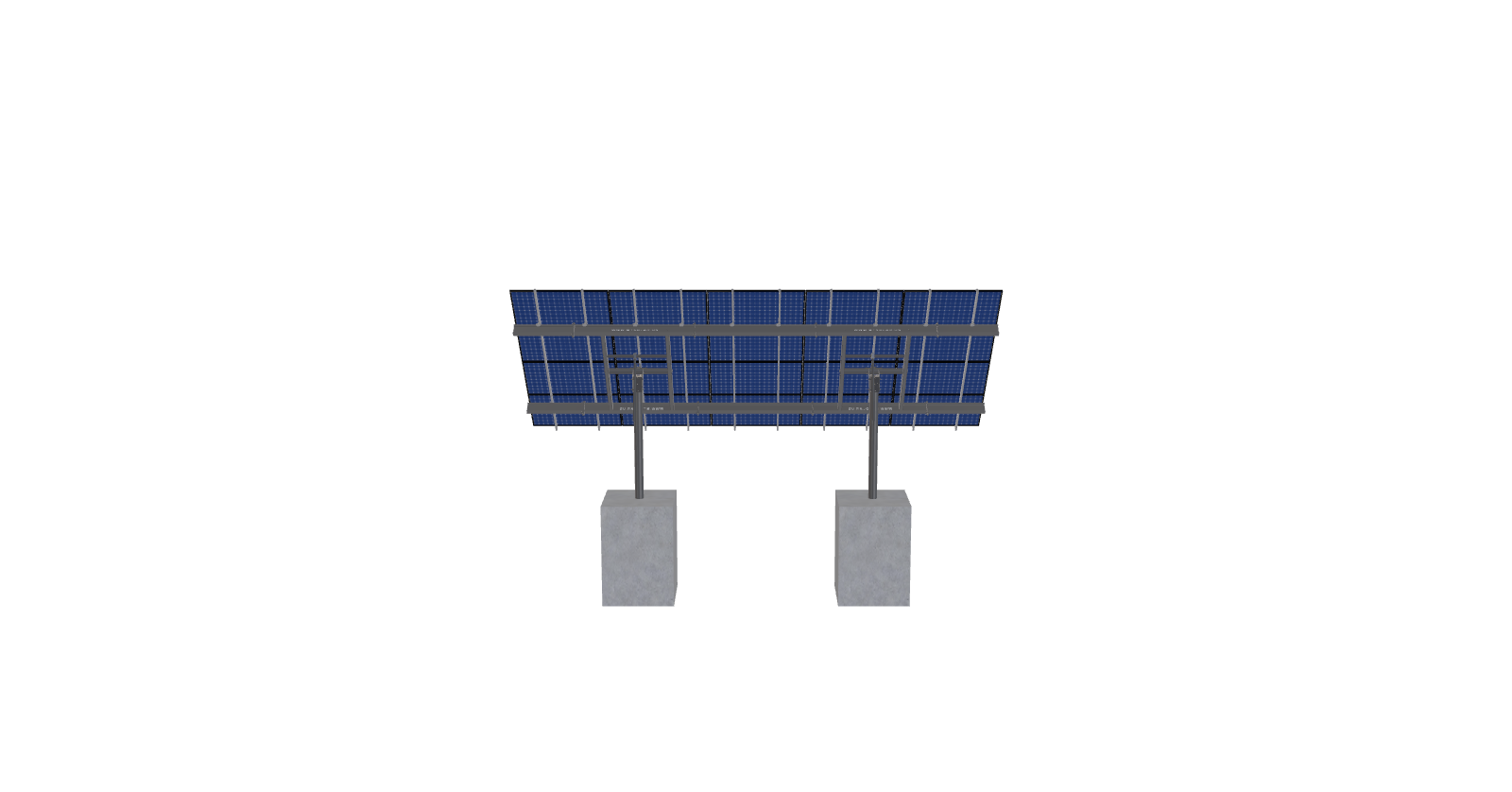

See 3D Model Here
Tony Halstead-v3-cu
$8,369.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1523.2 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-15-6TOP-HD-45-L-4HX5W-7BBF |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 15.00 |
POLE HEIGHT | 8.17 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.50 |
TILT ANGLE | 50.00 |
CANTILEVER | 360.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 2.00 |
MODULE AREA | 408.94 |
ARRAY WIDTH | 30.29 |
ARRAY HEIGHT | 13.50 |
RAIL LENGTH | 162.00 |
MODULE LENGTH | 71.70 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 30.00 |
GROUND TO TOP | 13.28 |
PROJECTED PANEL HEIGHT | 10.21 |
PROJECT ID | TONY, HALSTEAD-V3-CU |
SITE ADDRESS | 1249, STAGECOACH, BLVD, EVERGREEN, CO, 80439, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 5.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | HD |
POLE OVERRIDE | AUTO |
SOIL TYPE | CLAY |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
WIND SPEED OVERRIDE | 130.00 |
SNOW LOAD OVERRIDE | 86.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 8369.55 |
TOTAL WEIGHT | 1523.20 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/31d50962-55c1-4934-bb63-8f5d0bfa3efd.pdf |
|
ID | 6298.00 |
3D Solar link |
