TOP-35-CU

$11,330.82

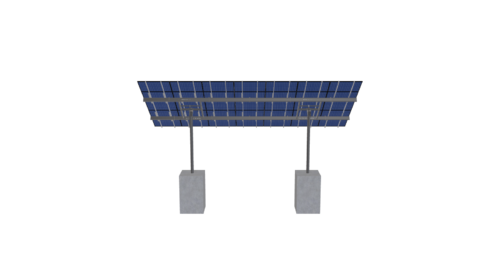

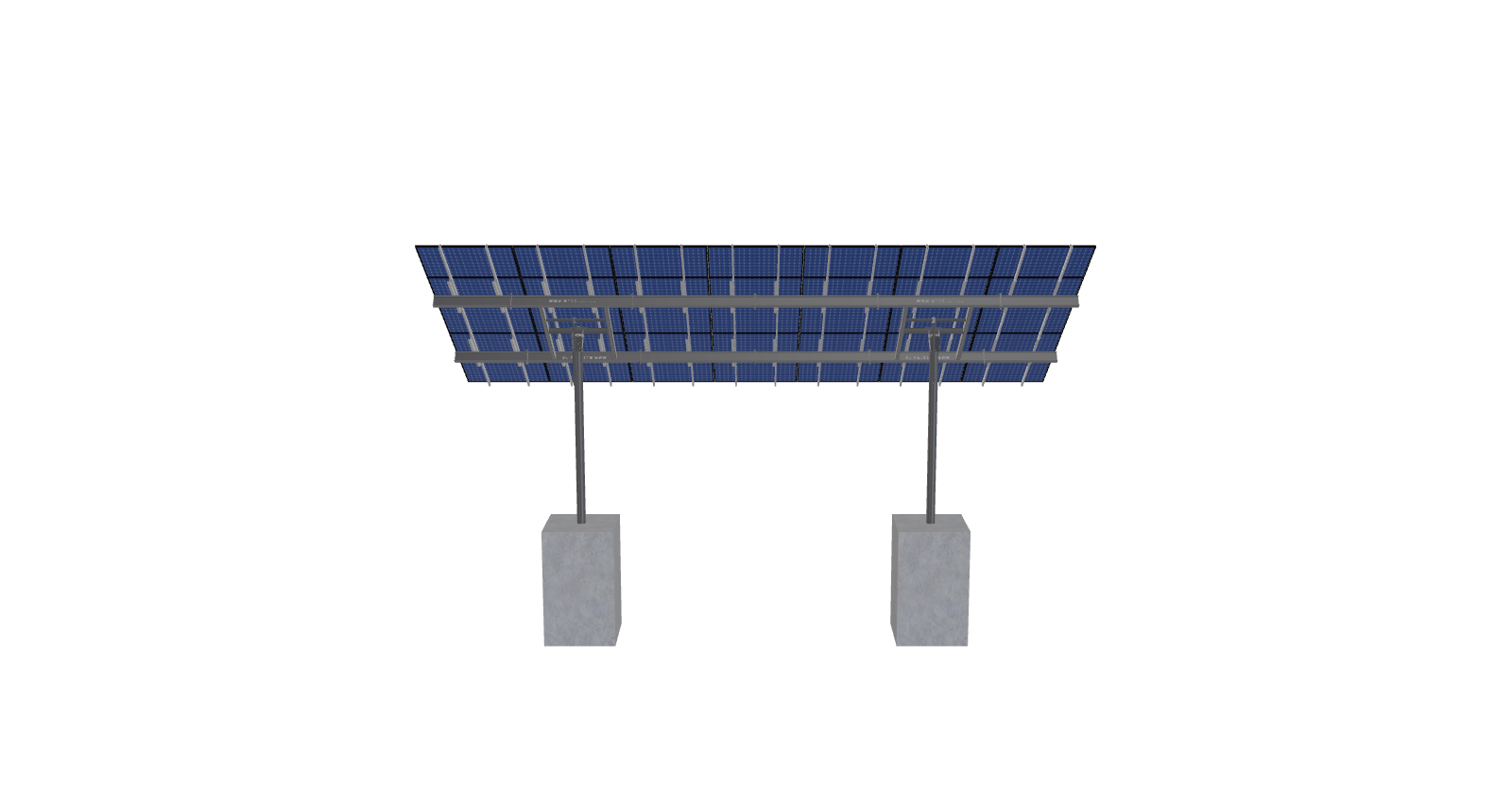

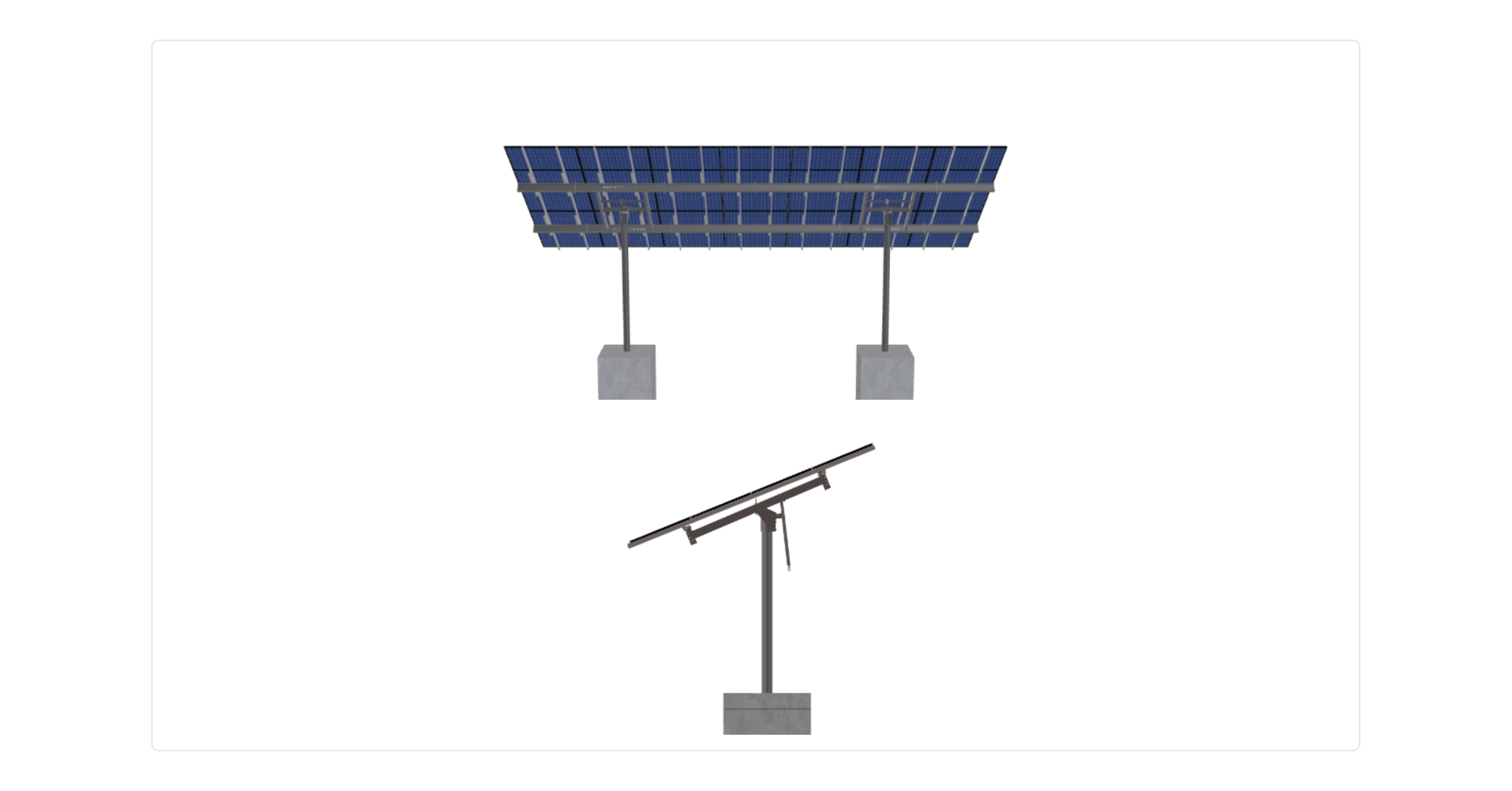

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-8TOP-HD-57-L-5Hx7W-5JDF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2294.26 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-HD-57-L-5HX7W-5JDF

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

12.39

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

35.00

CANTILEVER

474.00

GROUND CLEARANCE

7.00

NO POLES

2.00

MODULE AREA

754.17

ARRAY WIDTH

40.13

ARRAY HEIGHT

18.79

RAIL LENGTH

225.50

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

17.72

PROJECTED PANEL HEIGHT

10.66

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

TOP-35-CU

SITE ADDRESS

CARMEL, VALLEY, CA, 93924, USA

MODULE WIDTH

44.60

NUMBER ROWS

5.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

11330.82

TOTAL WEIGHT

2294.26

TOTAL PALLETS

2.00
