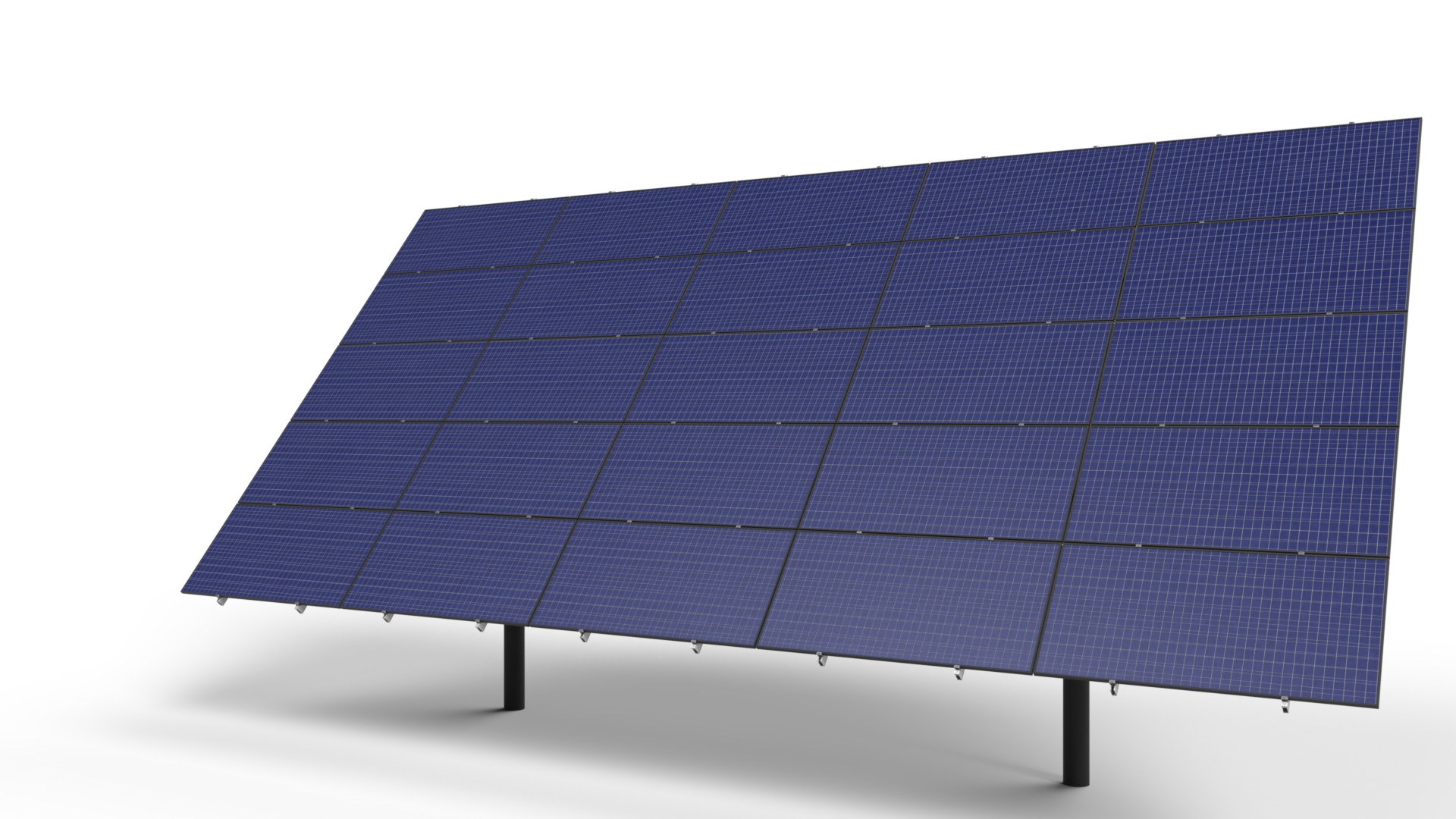

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

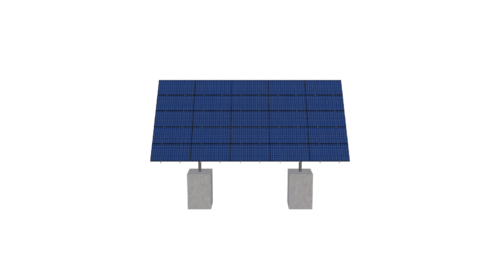

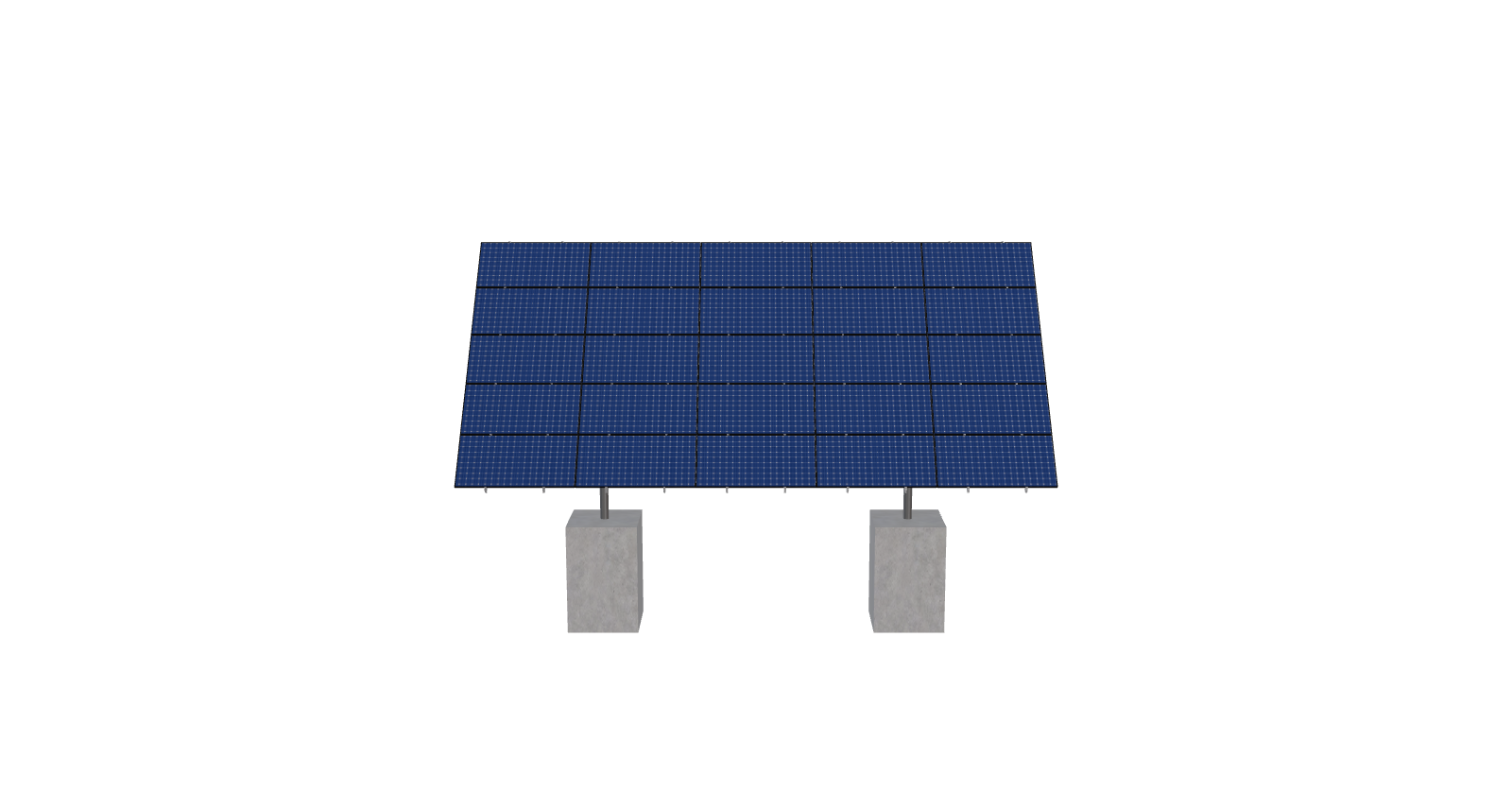

See 3D Model Here
TOP25-87X44-115|40
$9,973.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1996.4 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-19.75-8TOP-HD-45-L-5HX5W-DCEA |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 10.10 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.00 |
TILT ANGLE | 50.00 |
CANTILEVER | 417.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 2.00 |
MODULE AREA | 679.86 |
ARRAY WIDTH | 36.67 |
ARRAY HEIGHT | 18.54 |
RAIL LENGTH | 222.50 |
MODULE LENGTH | 87.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 34.75 |
GROUND TO TOP | 17.12 |
PROJECTED PANEL HEIGHT | 14.04 |
PROJECT ID | TOP25-87X44-115, 40 |
SITE ADDRESS | 54179, HERAK, RD, CHARLO, MT, 59824, USA |
MODULE WIDTH | 44.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 5.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 115.00 |
SNOW LOAD OVERRIDE | 40.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 9973.23 |
TOTAL WEIGHT | 1996.40 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/9bdaf799-b507-4f76-8593-735021ba8ca6.pdf |
|
ID | 5592.00 |
3D Solar link | |
MODULE NUMBER | 25 |
MODULE SIZE | 87×44 |
WIND SNOW LOAD | 115 mph, 40 psf |
