This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.53 inches by 42.76 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 4in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

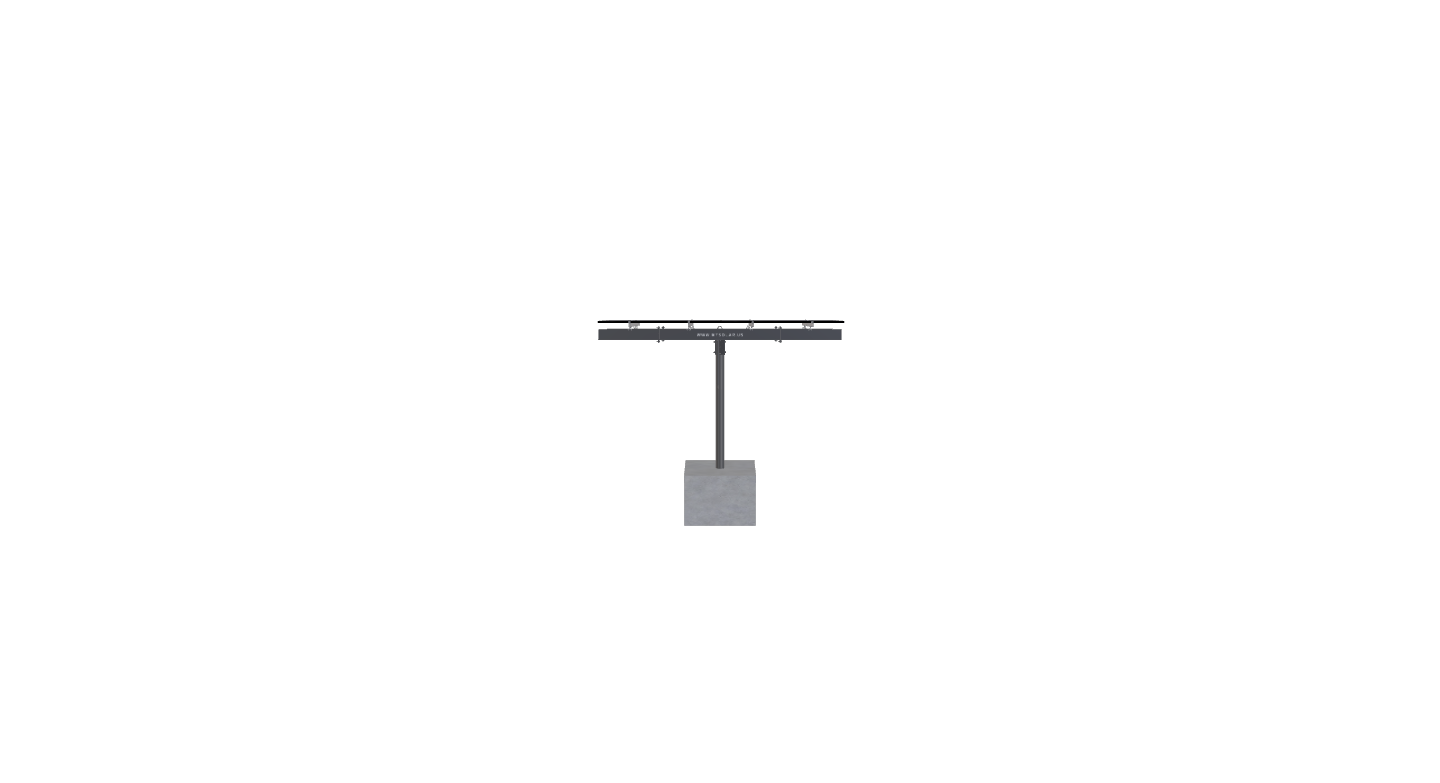

See 3D Model Here
TowerPowerNigeria-JB-RevA
$3,446.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.53 inches by 42.76 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 4in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 611.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-3HX2W-4LEH |
| DUTY SIZE | SD |
| POLE SIZE | 4IN, PIPE, SCH, 40 |
| PRODUCT TYPE | CYBER |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.66 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 3.25 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 1.00 |
| MODULE AREA | 163.18 |
| ARRAY WIDTH | 15.09 |
| ARRAY HEIGHT | 10.81 |
| RAIL LENGTH | 129.78 |
| MODULE LENGTH | 89.53 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 9.31 |
| PROJECTED PANEL HEIGHT | 1.30 |
| PROJECT ID | TOWERPOWERNIGERIA-JB-REVA |
| SITE ADDRESS | 1267, W, 9TH, ST, CLEVELAND, OH, 44113, USA |
| MODULE WIDTH | 42.76 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3446.86 |
| TOTAL WEIGHT | 611.84 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/a6fc4801-ae5d-4a7e-a68c-7a972e9af0d9.pdf |
|
| ID | 3310.00 |
| 3D Solar link |
