This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.11 inches by 44.6 inches and an array layout of 13 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

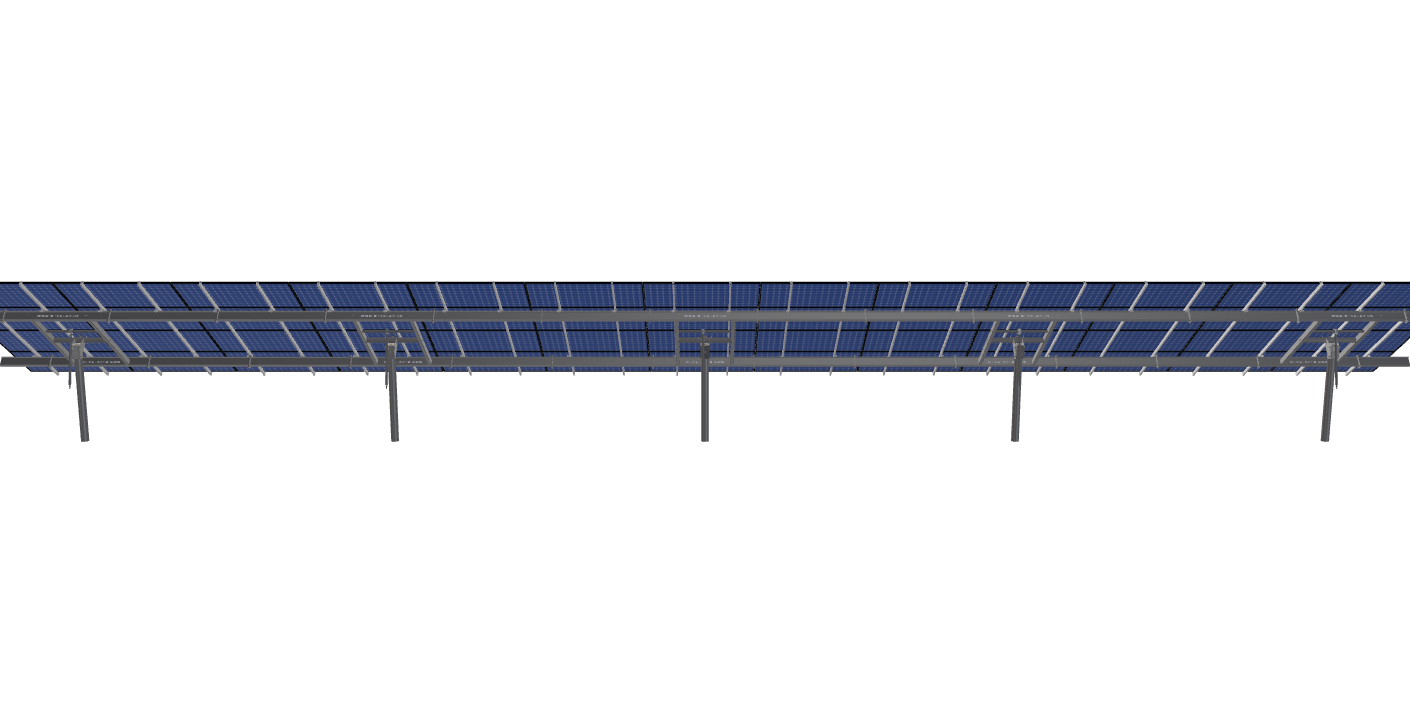

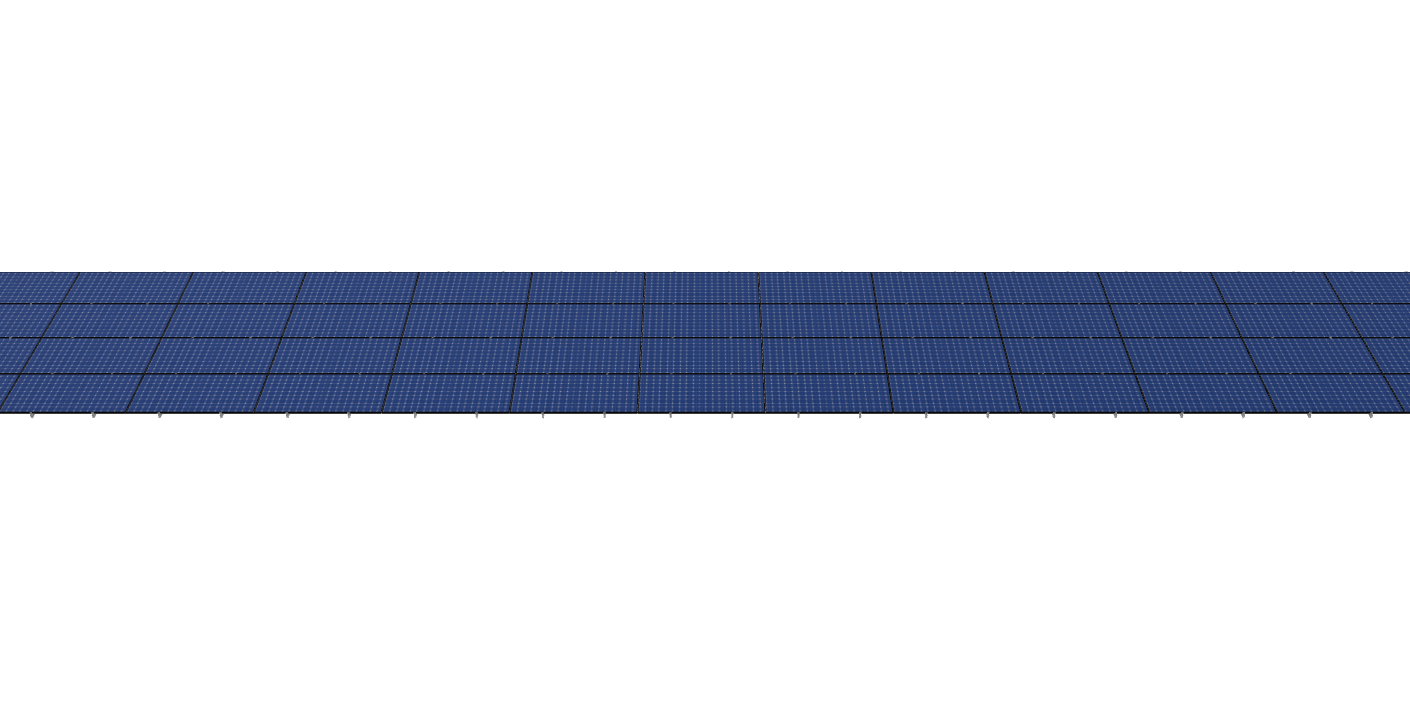

See 3D Model Here
TravelandRV_56
$28,766.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.11 inches by 44.6 inches and an array layout of 13 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5246.01 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-XD-45-L-4HX13W-8GJ3 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1565.26 |
| ARRAY WIDTH | 104.12 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 95.11 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 11.57 |
| PROJECTED PANEL HEIGHT | 8.53 |
| PROJECT ID | TRAVELANDRV, 56 |
| SITE ADDRESS | LOGAN, UT, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 55.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 27396.39 |
| TOTAL WEIGHT | 5246.01 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/9603d5ca-b44b-49f3-830f-ed8150927aca.pdf |
|
| ID | 4286.00 |
| 3D Solar link |
