This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 41 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

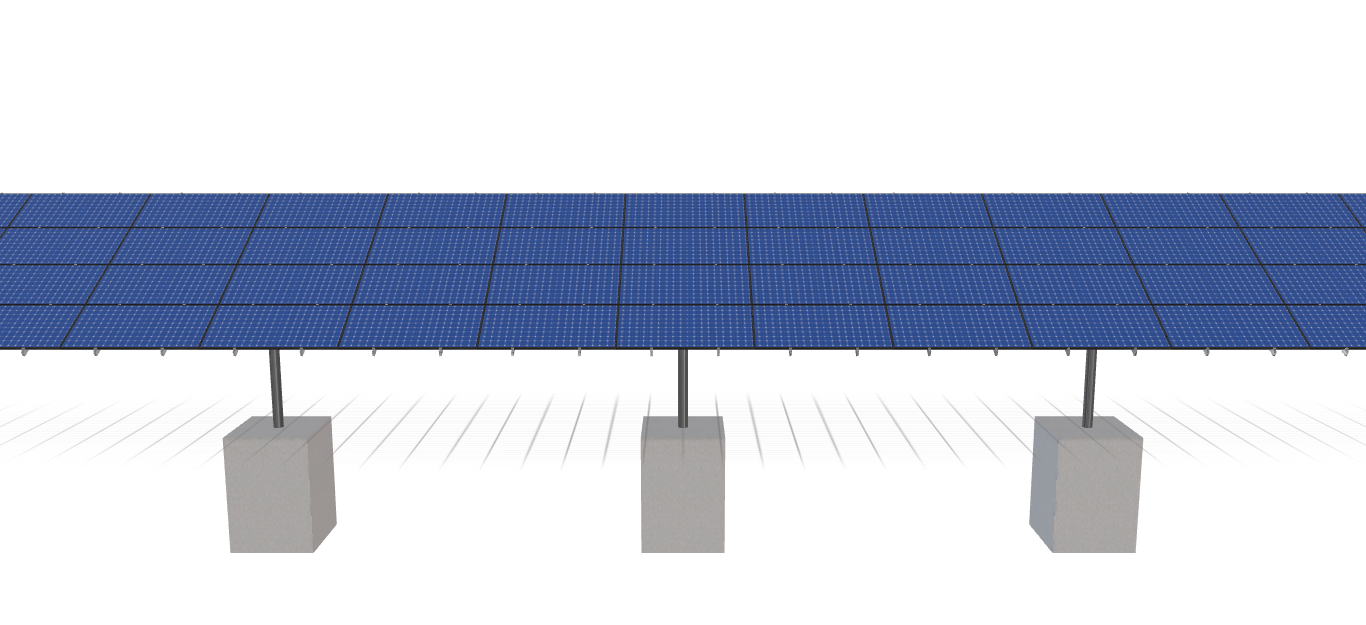

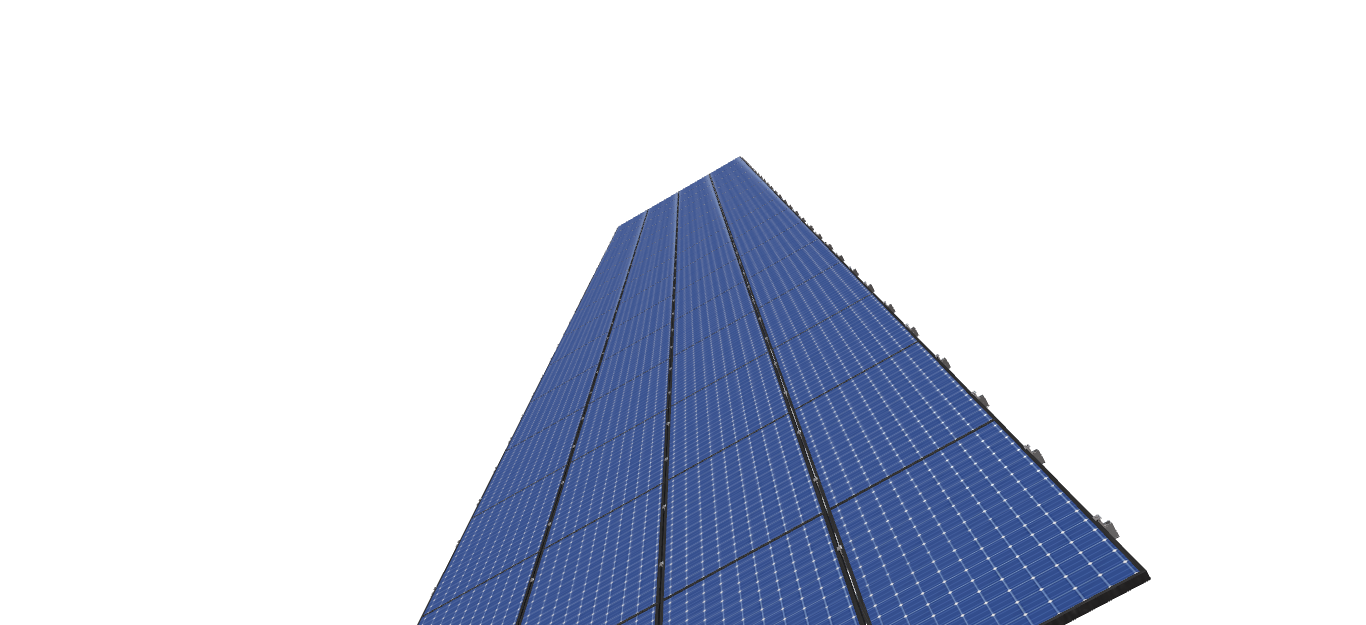

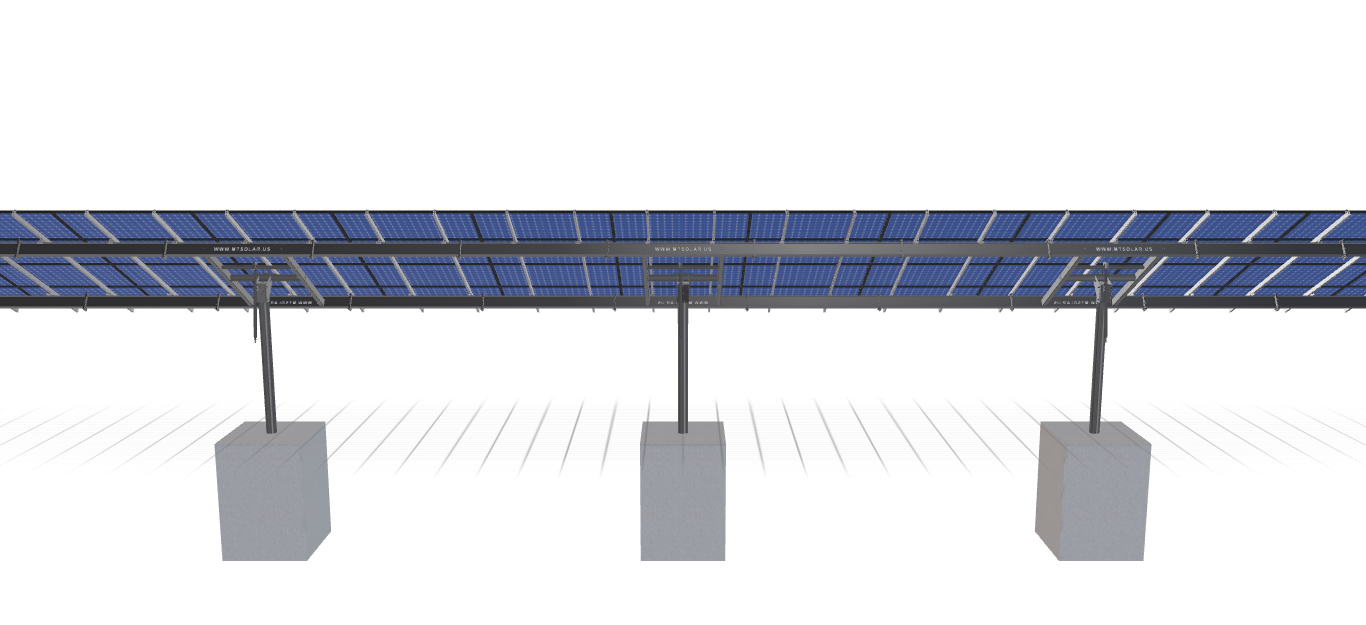

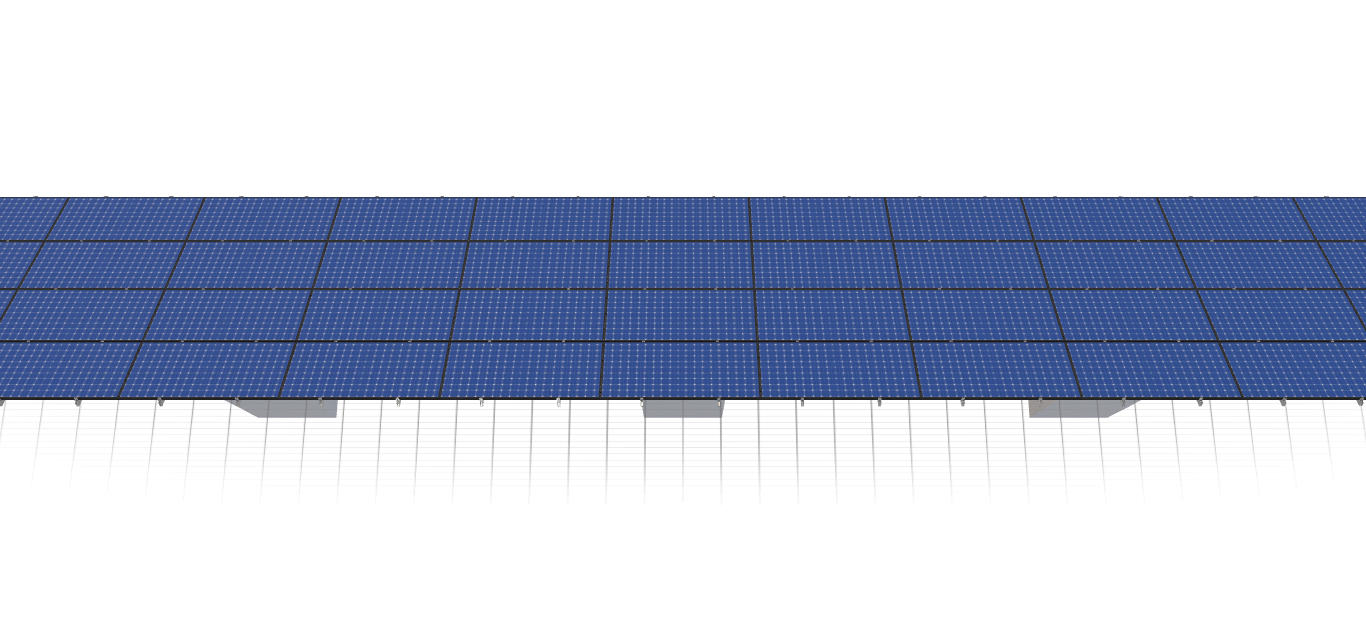

See 3D Model Here
Trenton IGA – 15
$24,790.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 41 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4616.93 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-HD-24-L-4HX15W-K03H |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.46 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 1218.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1435.21 |
| ARRAY WIDTH | 103.75 |
| ARRAY HEIGHT | 13.83 |
| RAIL LENGTH | 166.00 |
| MODULE LENGTH | 82.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 101.50 |
| GROUND TO TOP | 11.87 |
| PROJECTED PANEL HEIGHT | 6.83 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | TRENTON, IGA, -, 15 |
| SITE ADDRESS | 313, W, STATE, ST, TRENTON, OH, 45067, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24790.50 |
| TOTAL WEIGHT | 4616.93 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/272ad445-2ae8-477c-b67f-70ffe2ccf12b.pdf |
|
| ID | 790.00 |
| 3D Solar link |
