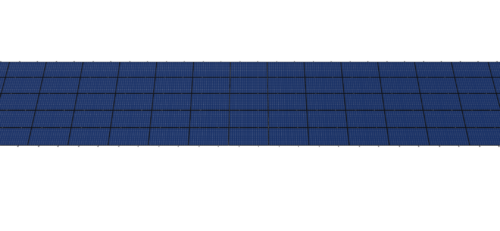

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.25 inches and an array layout of 15 wide by 5 high.

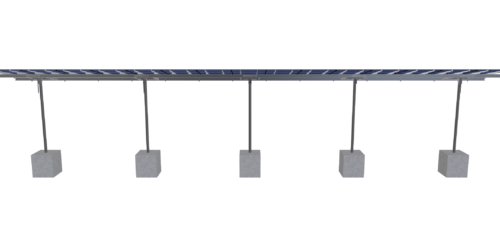

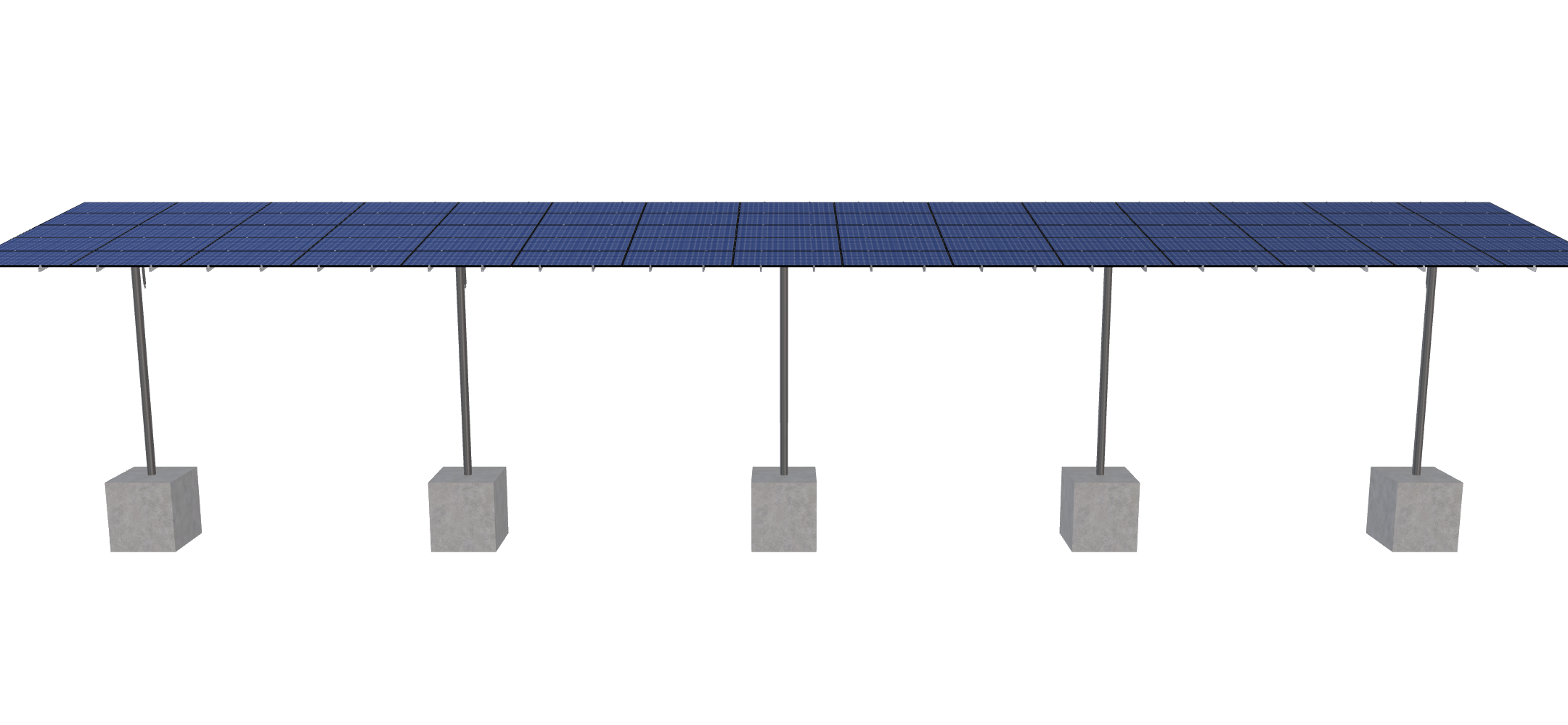

This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
USDCampusPhase1-K
$24,593.47
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.25 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

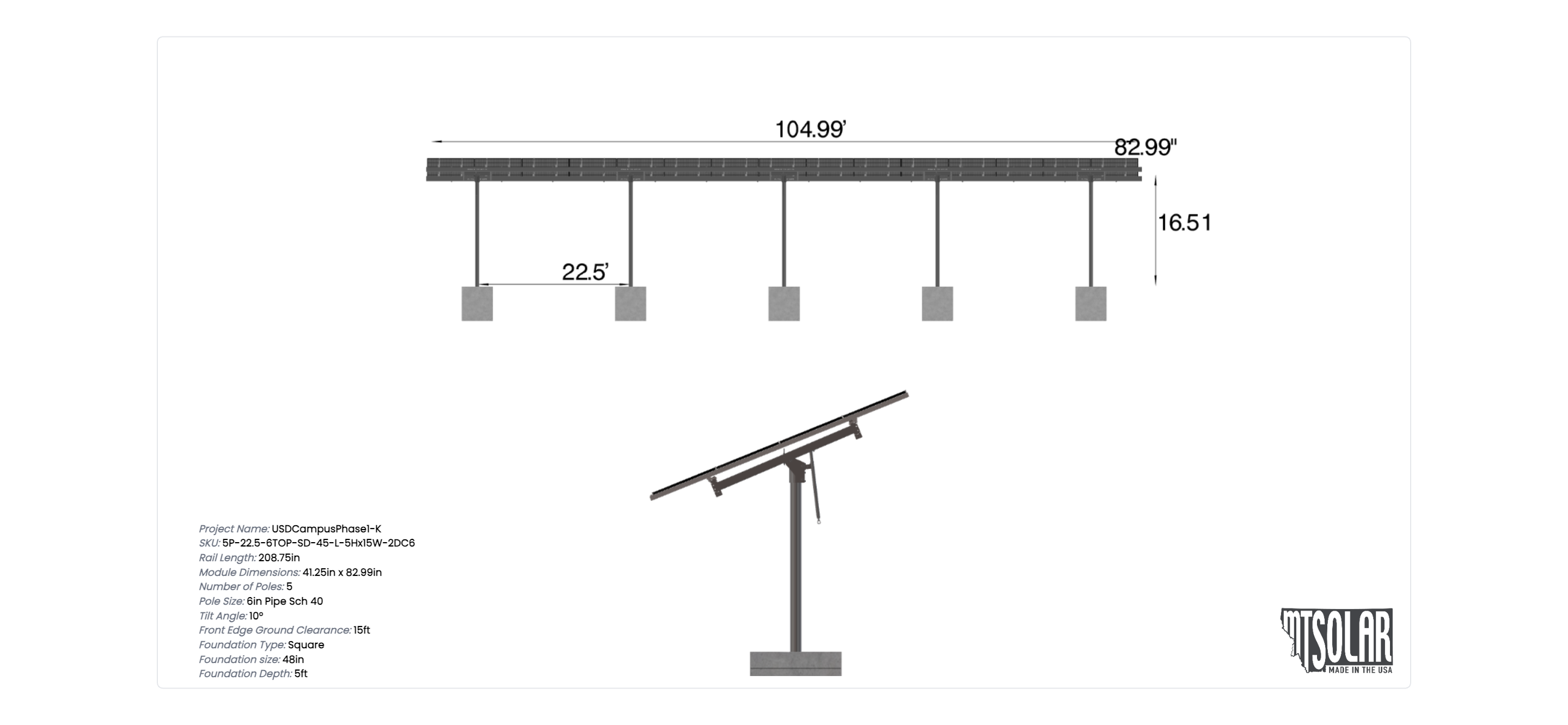

| Weight | 4917.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-45-L-5HX15W-2DC6 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 16.51 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1826.35 |
| ARRAY WIDTH | 104.99 |
| ARRAY HEIGHT | 17.40 |
| RAIL LENGTH | 208.75 |
| MODULE LENGTH | 82.99 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 18.00 |
| PROJECTED PANEL HEIGHT | 2.98 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | USDCAMPUSPHASE1-K |
| SITE ADDRESS | 5072, BENSON, RD, UNION, CITY, CA, 94587, USA |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 24593.47 |
| TOTAL WEIGHT | 4917.60 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/6bc12081-838d-4cb9-beab-095c973be187.pdf |
|
| ID | 2289.00 |
| 3D Solar link |
