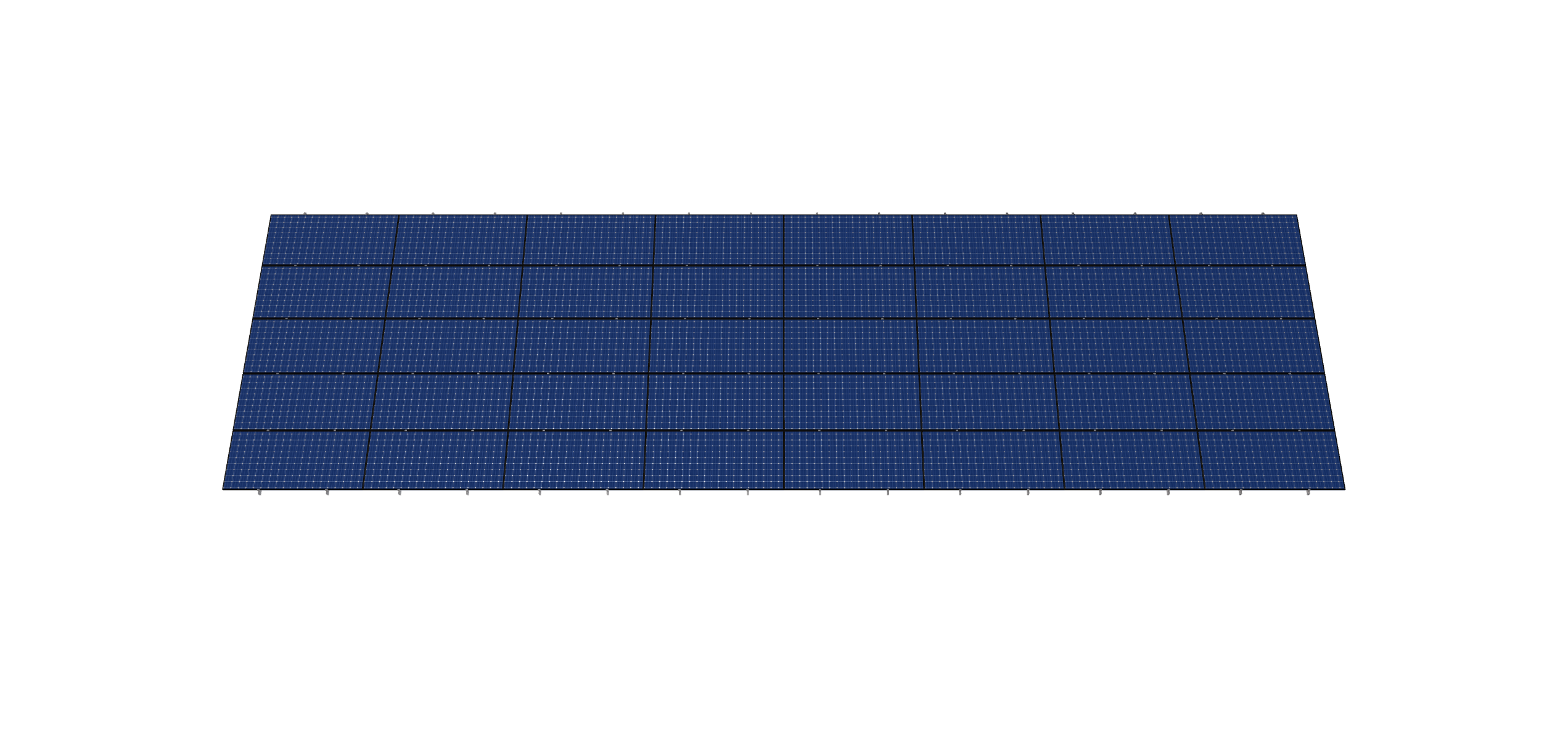

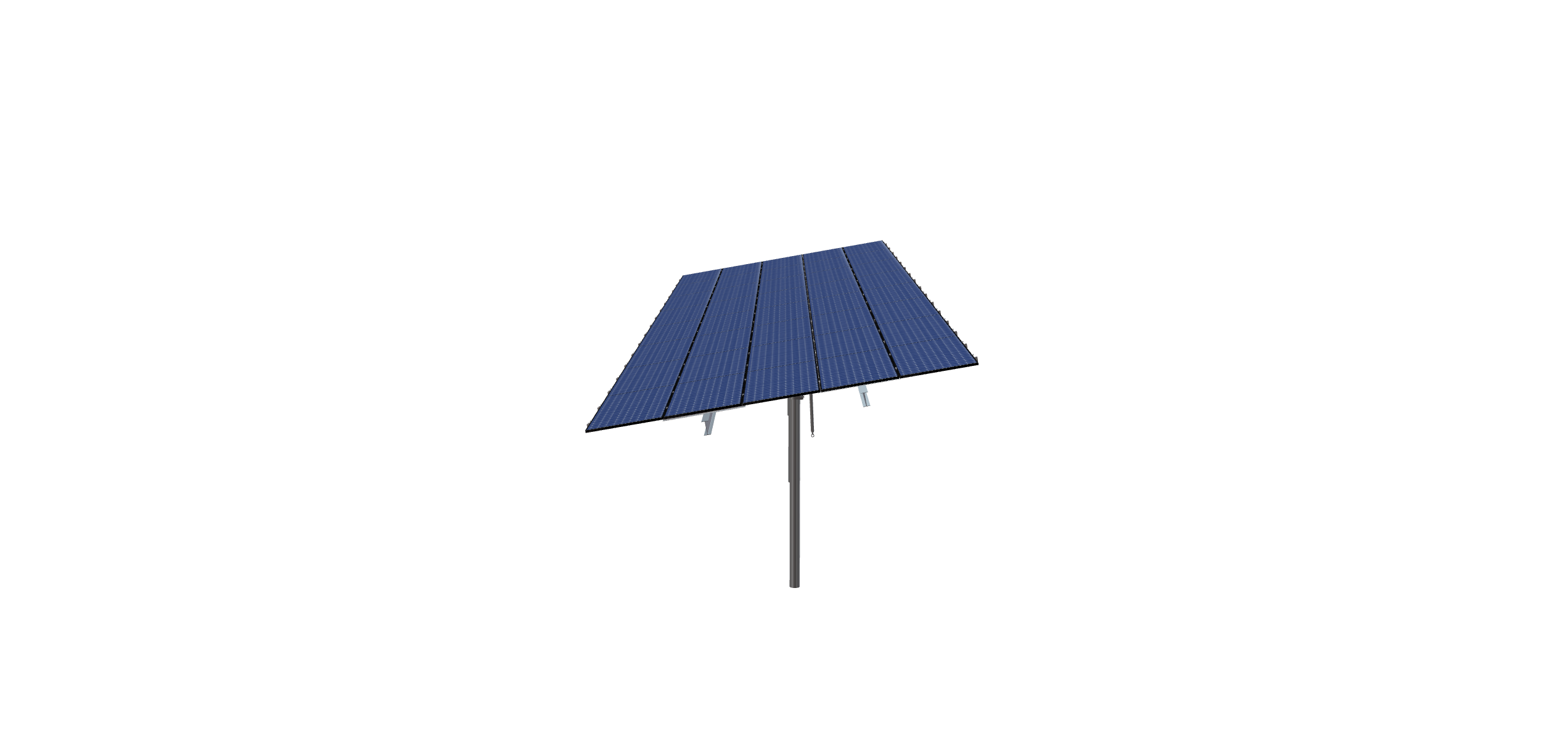

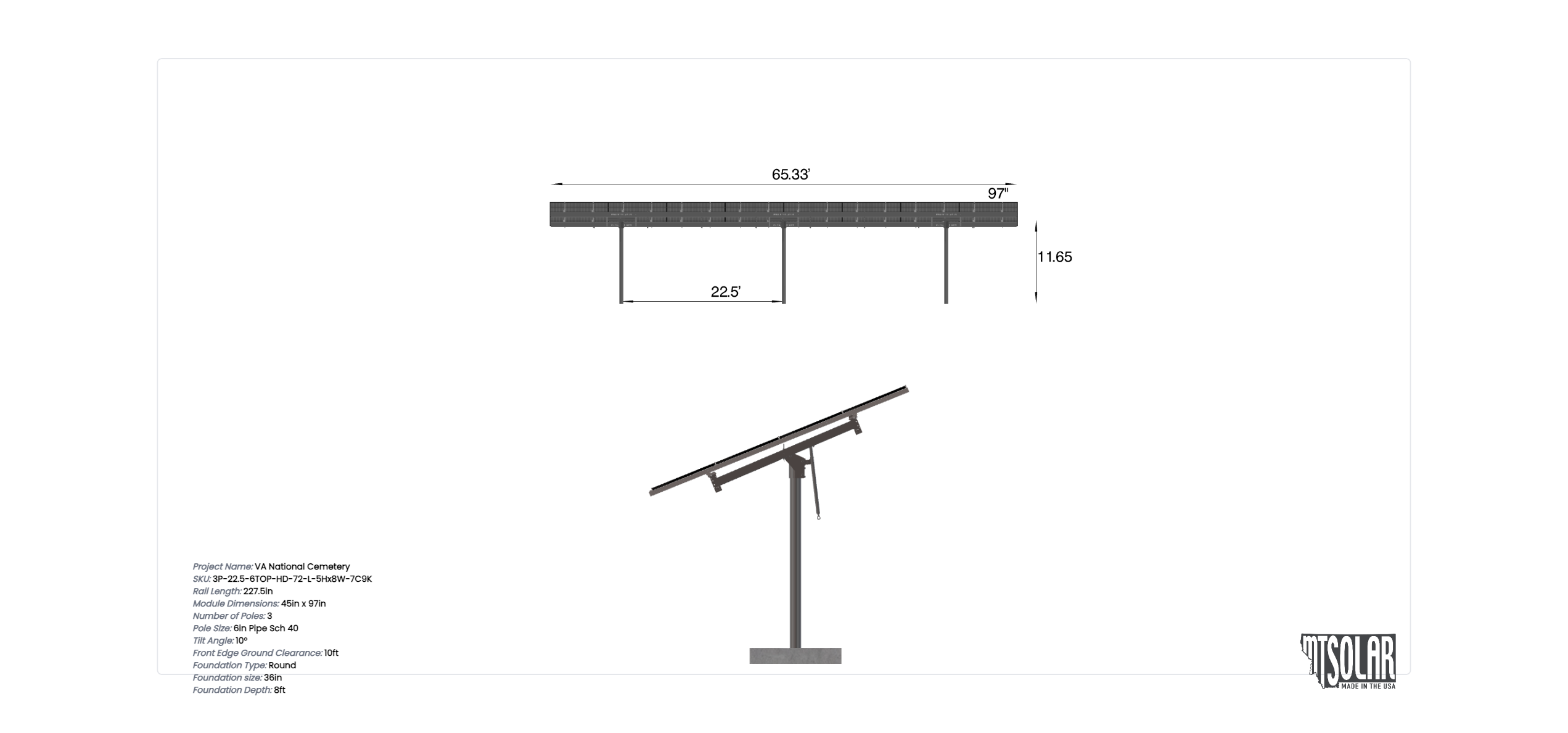

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 97 inches by 45 inches and an array layout of 8 wide by 5 high.

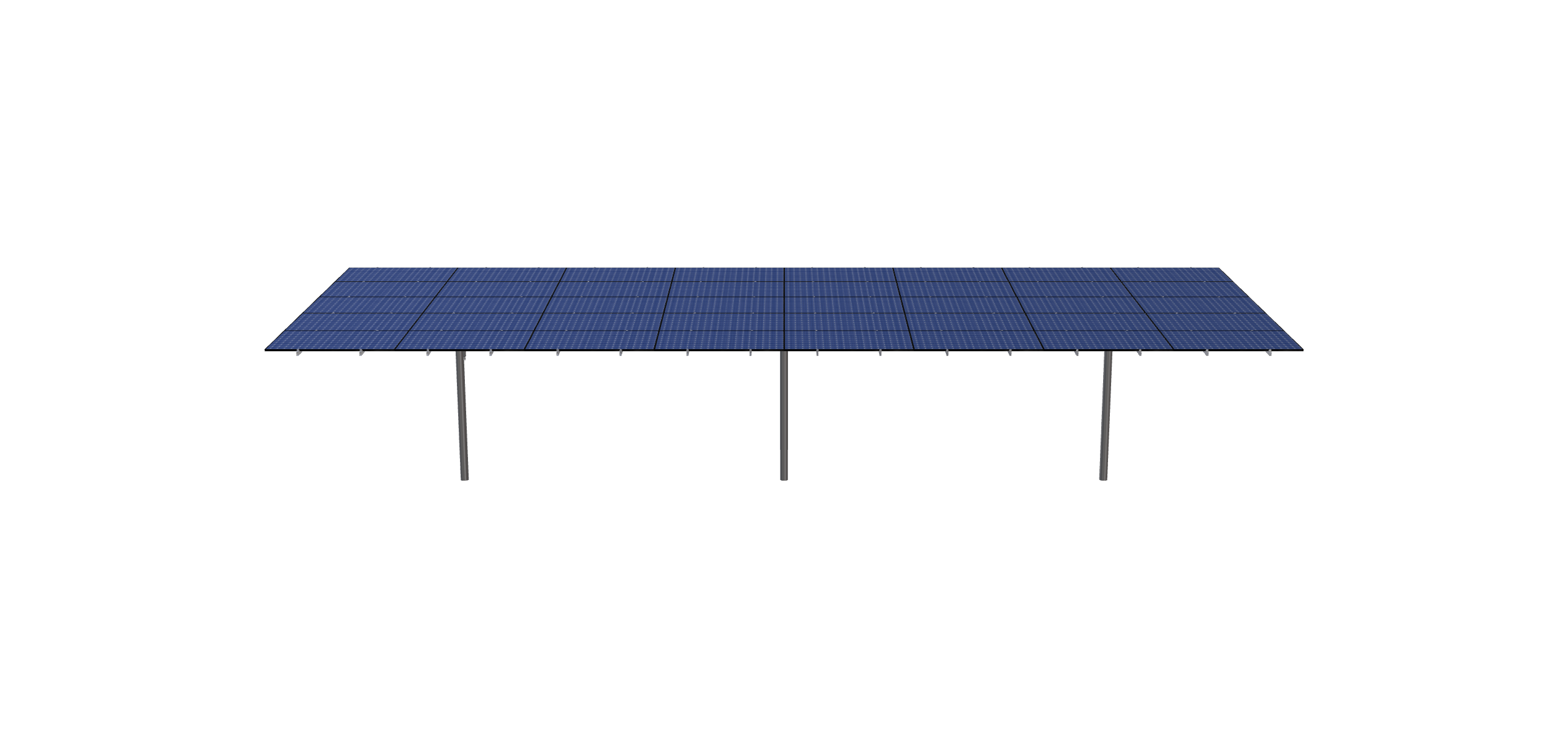

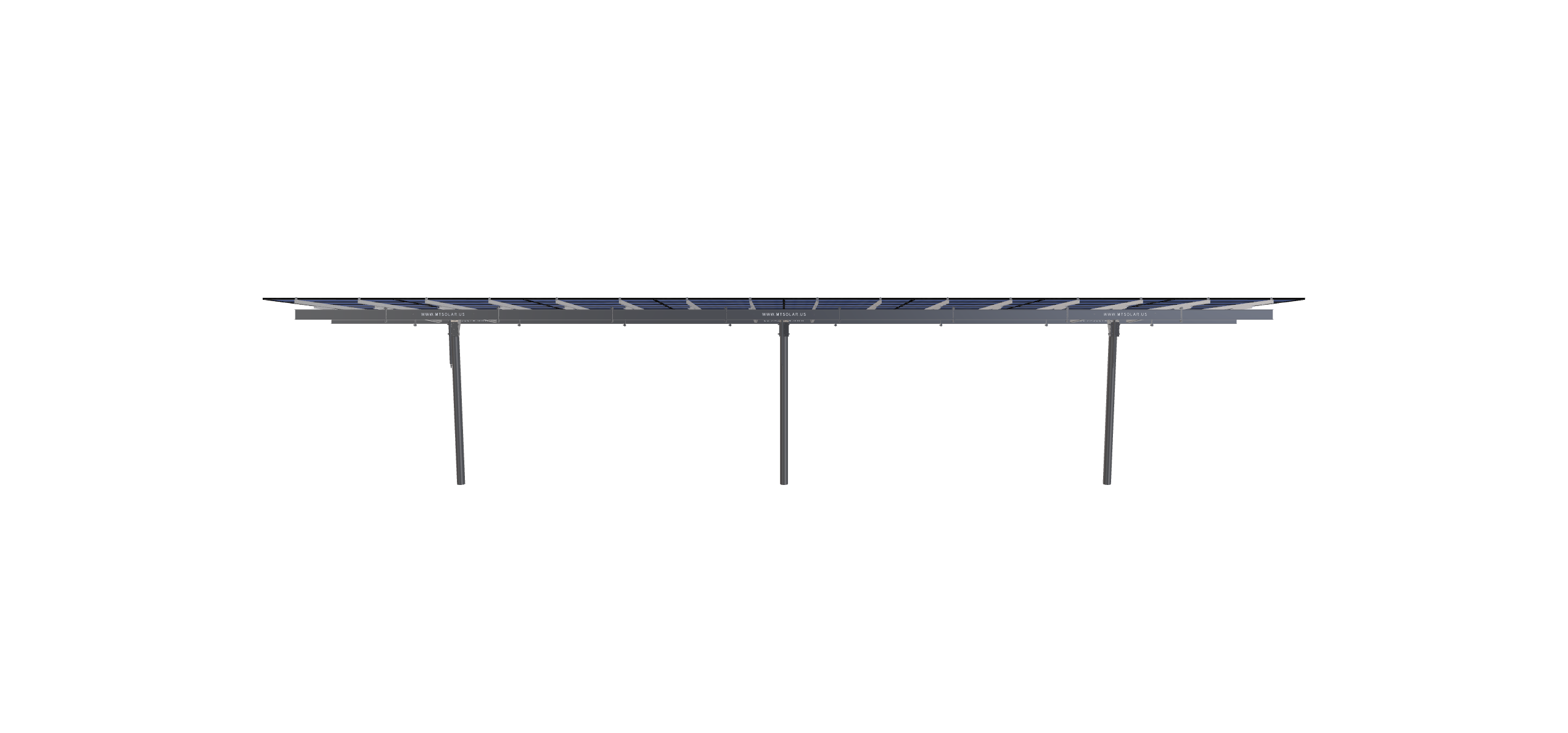

This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
VA National Cemetery
$16,823.51
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 97 inches by 45 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3262.13 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-72-L-5HX8W-7C9K |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.65 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 774.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1238.61 |
| ARRAY WIDTH | 65.33 |
| ARRAY HEIGHT | 18.96 |
| RAIL LENGTH | 227.50 |
| MODULE LENGTH | 97.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 64.50 |
| GROUND TO TOP | 13.29 |
| PROJECTED PANEL HEIGHT | 3.29 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | YAVORI, LUENIG |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | VA, NATIONAL, CEMETERY |
| SITE ADDRESS | ALBUQUERQUE, NM, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16022.39 |
| TOTAL WEIGHT | 3262.13 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/776b7a57-7c3f-49f8-a6b1-17865919e2e9.pdf |
|
| ID | 8504.00 |
| 3D Solar link |
