This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 48 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Veit home
$10,641.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 48 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1917.8400000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

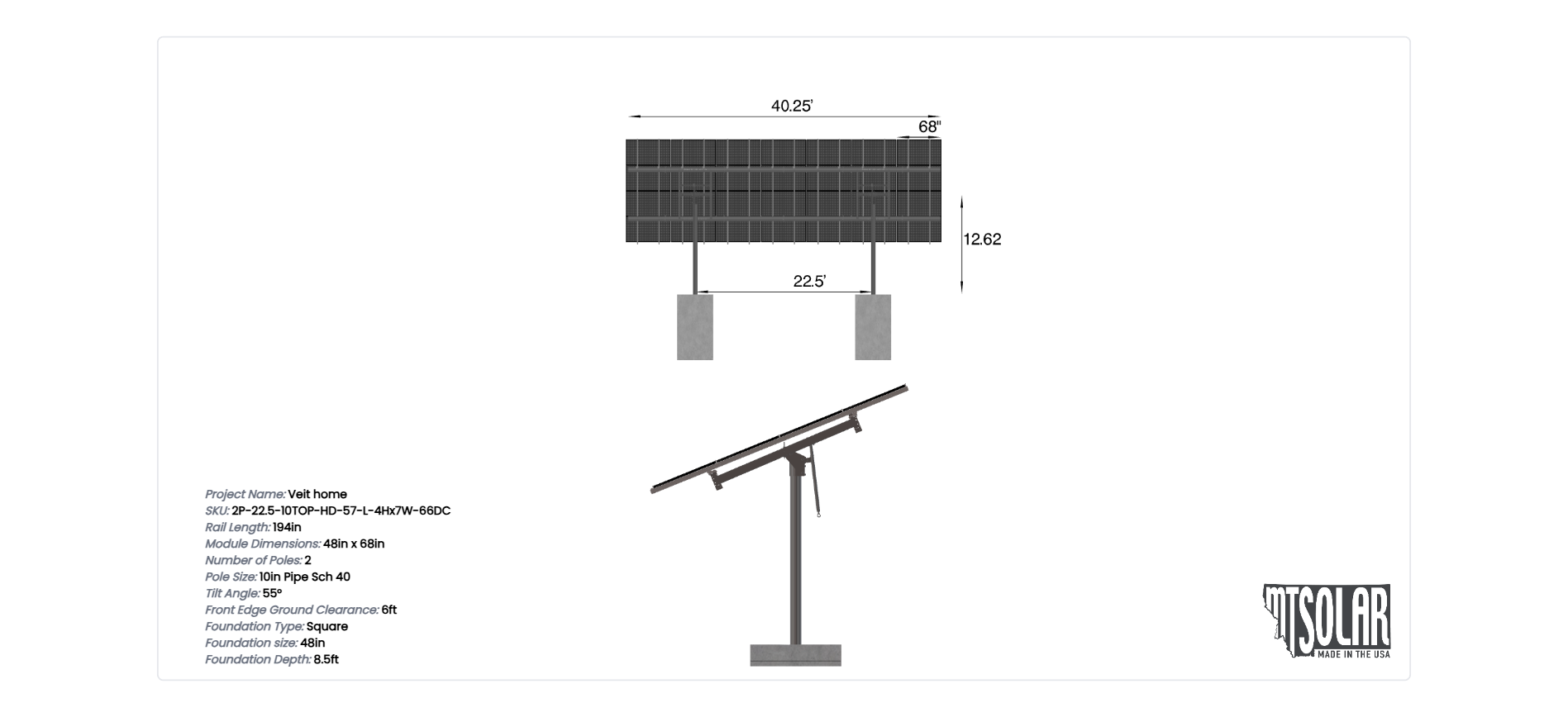

| SKU CODE | 2P-22.5-10TOP-HD-57-L-4HX7W-66DC |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.62 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 650.71 |
| ARRAY WIDTH | 40.25 |
| ARRAY HEIGHT | 16.17 |
| RAIL LENGTH | 194.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 19.24 |
| PROJECTED PANEL HEIGHT | 13.24 |
| DESIGNER NAME | VEIT, HOME |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | VEIT, HOME |
| SITE ADDRESS | GULCH, BROOK, STEWARTSTOWN, NH, 03576, USA |
| MODULE INFO | |
| MODULE WIDTH | 48.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 65.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 10641.31 |
| TOTAL WEIGHT | 1917.84 |
| TOTAL PALLETS | 2.00 |
