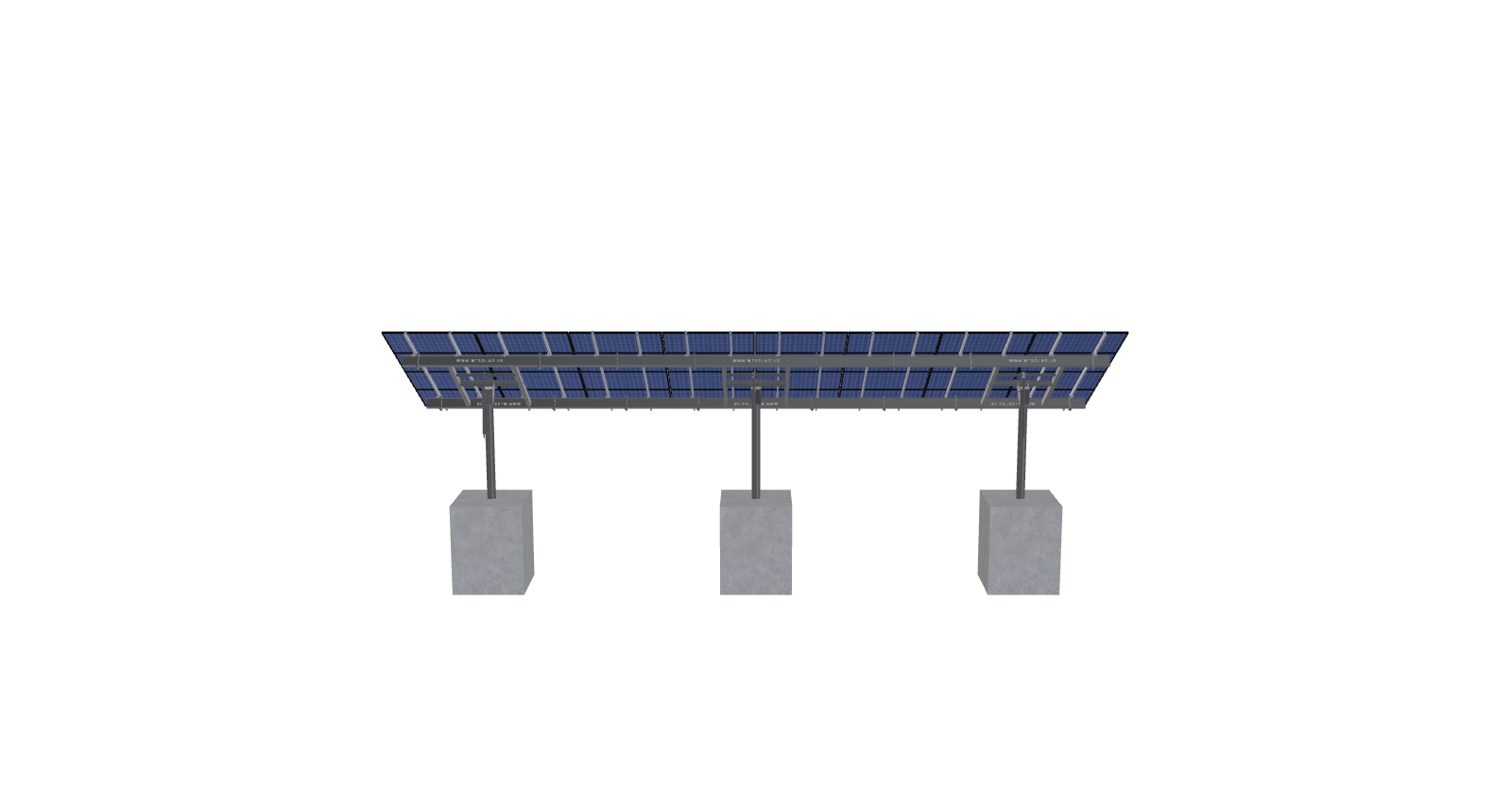

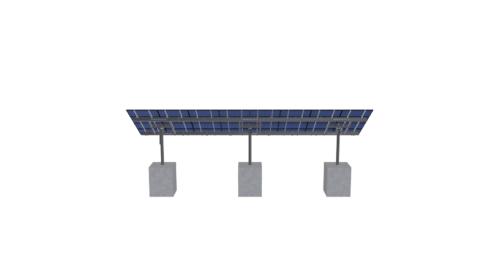

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.92 inches by 40 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W-12015-SHAWN YORK-CU1000
$13,561.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.92 inches by 40 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2328.5299999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-HD-12-L-4HX8W-2615 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 7.38 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 611.28 |
| ARRAY WIDTH | 45.28 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 66.92 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 10.71 |
| PROJECTED PANEL HEIGHT | 6.67 |
| PROJECT ID | W-12015-SHAWN, YORK-CU1000 |
| SITE ADDRESS | 1030, AQUINO, CIR, CORONA, CA, 92879, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12916.05 |
| TOTAL WEIGHT | 2328.53 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/a9e7afe3-95d3-4a37-af5e-ae47eb08ceca.pdf |
|
| ID | 5825.00 |
| 3D Solar link |
