This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

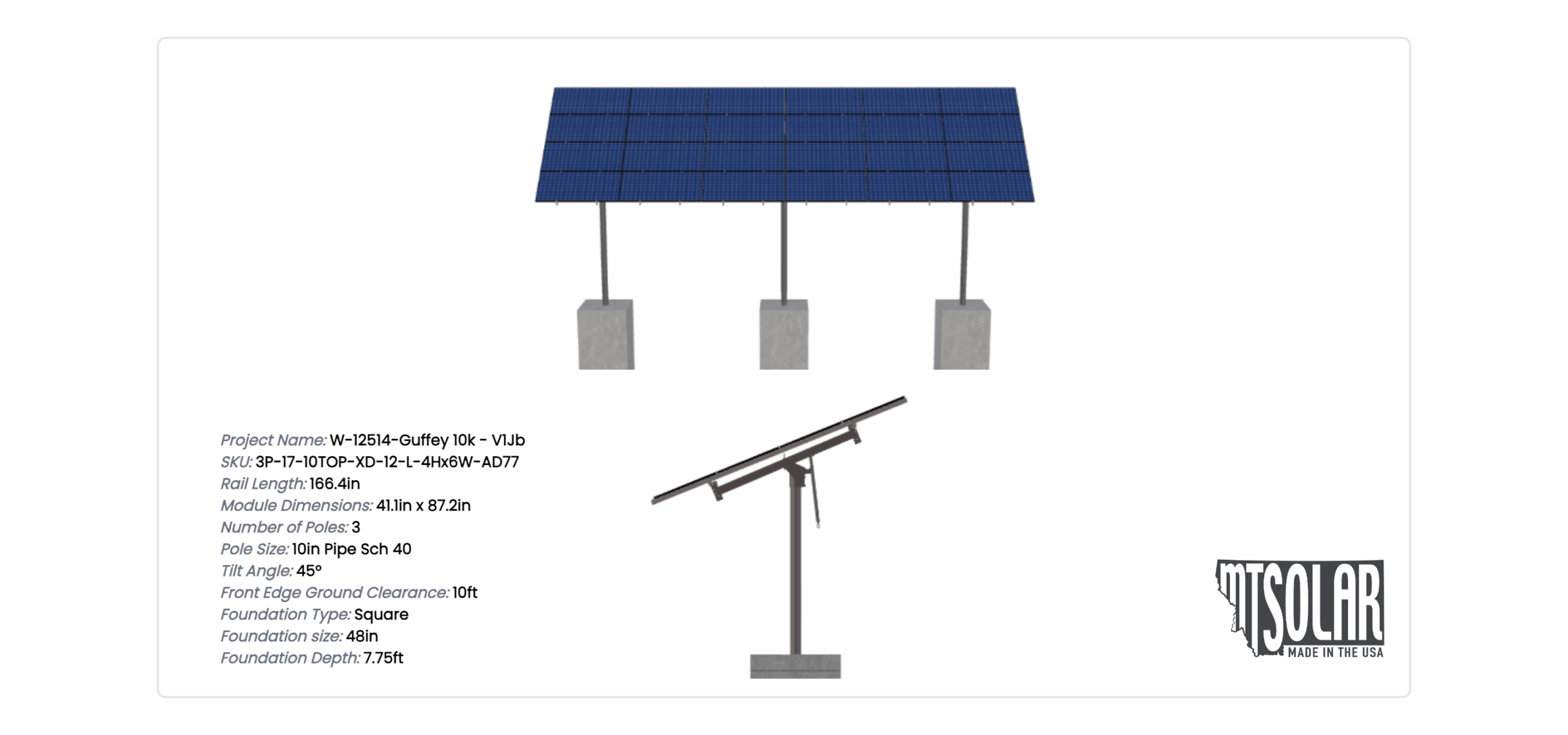

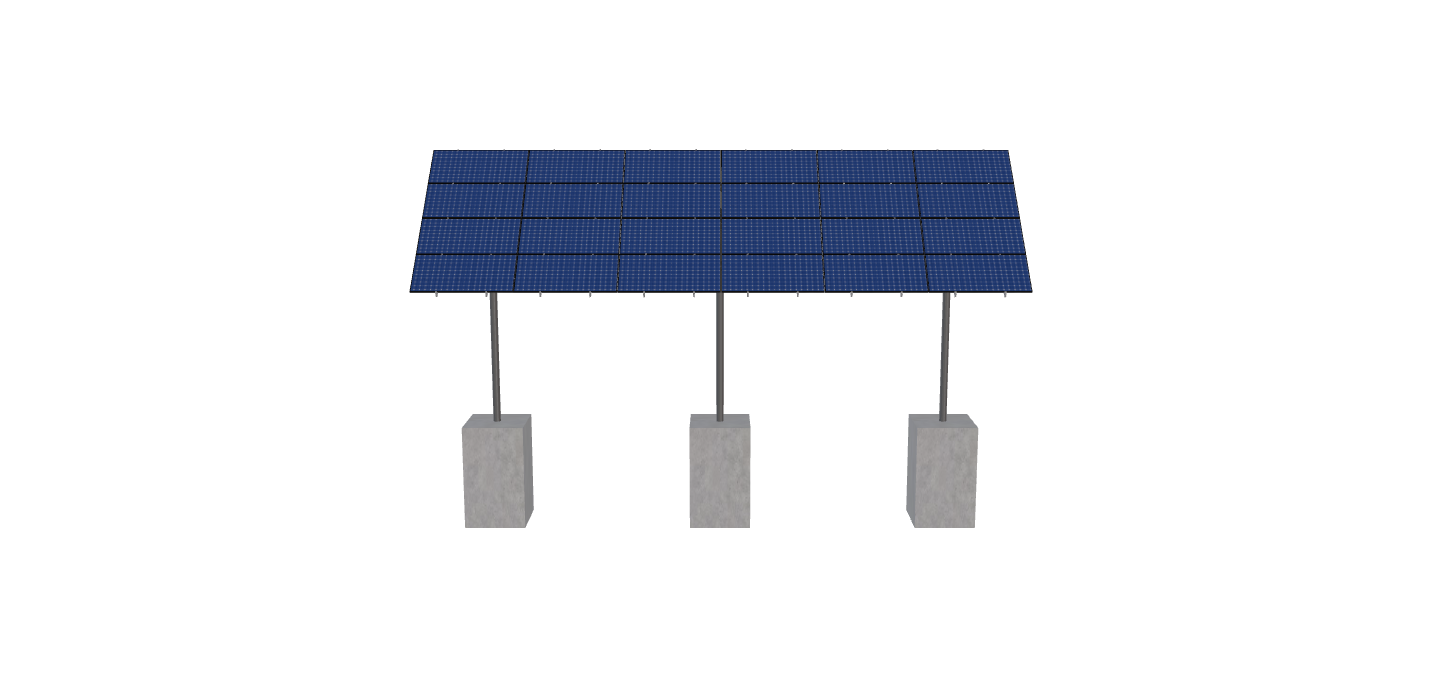

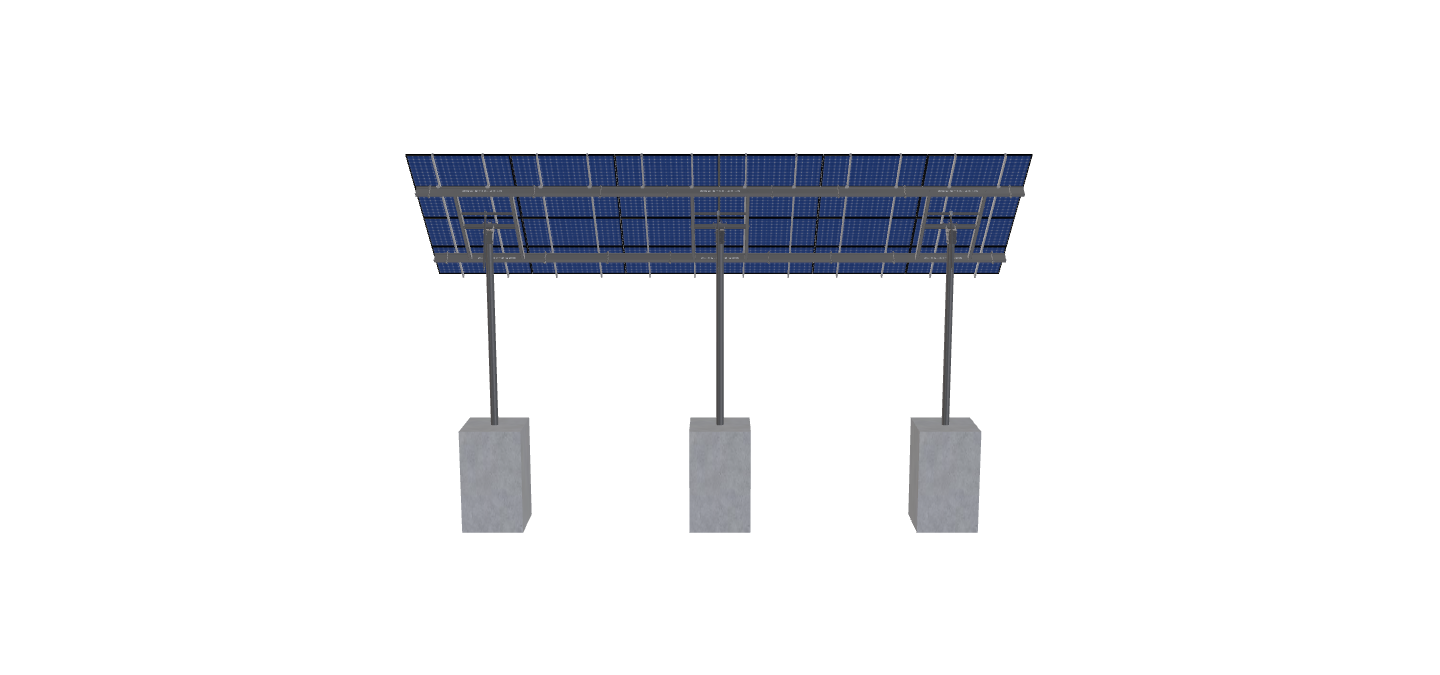

See 3D Model Here
W-12514-Guffey 10k – V1Jb
$14,882.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2681.13 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-XD-12-L-4HX6W-AD77 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 14.90 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 611.52 |
| ARRAY WIDTH | 44.10 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 19.81 |
| PROJECTED PANEL HEIGHT | 9.81 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 68.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | W-12514-GUFFEY, 10K, -, V1JB |
| SITE ADDRESS | PF77+G3, GUFFEY, CO, 80820, USA |
| MODULE INFO | |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14882.22 |
| TOTAL WEIGHT | 2681.13 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c5829d40-fb55-49d9-8262-a2bb4a33d0a9.pdf |
|
| ID | 13201.00 |
| 3D Solar link |
