This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

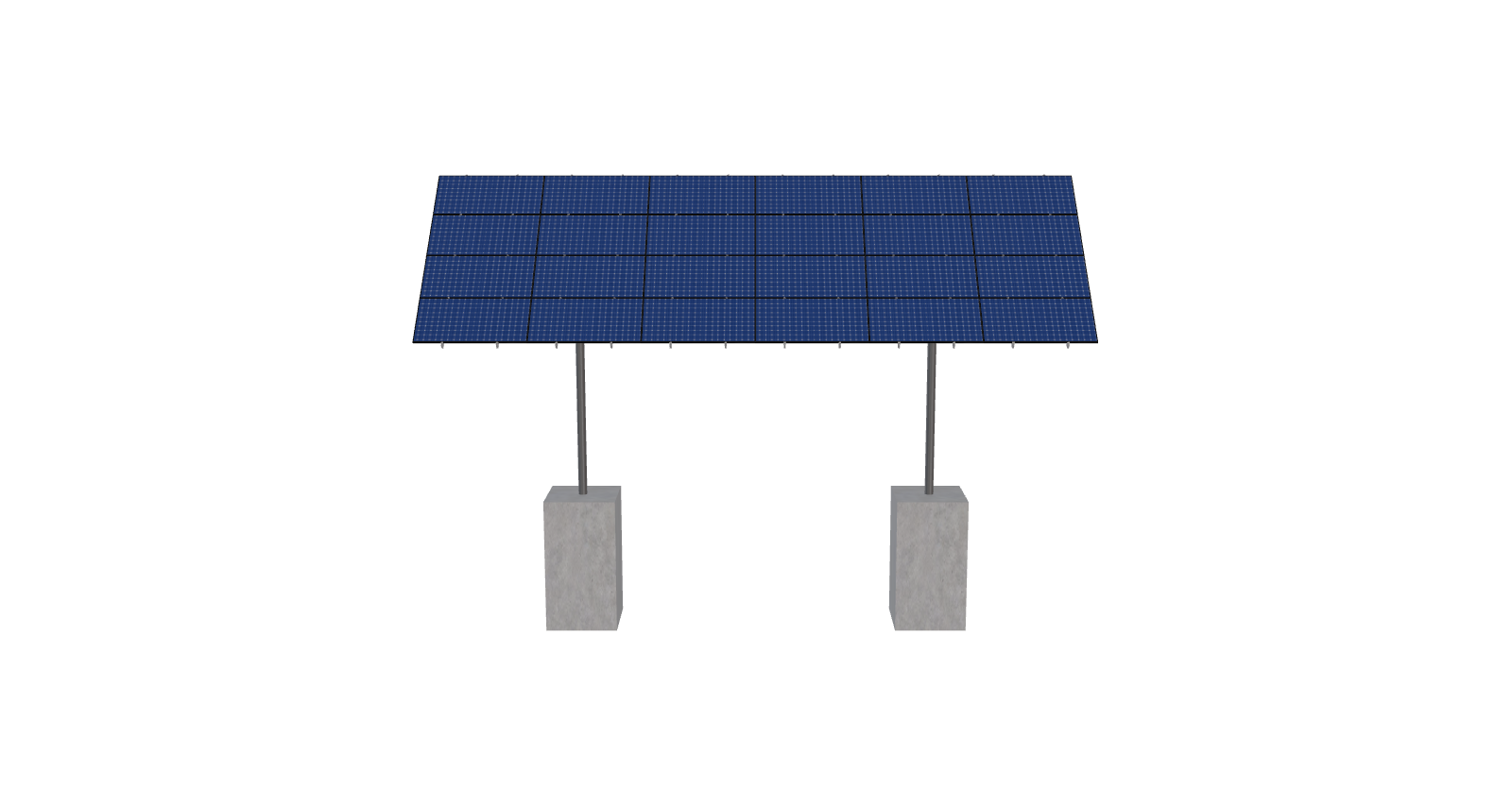

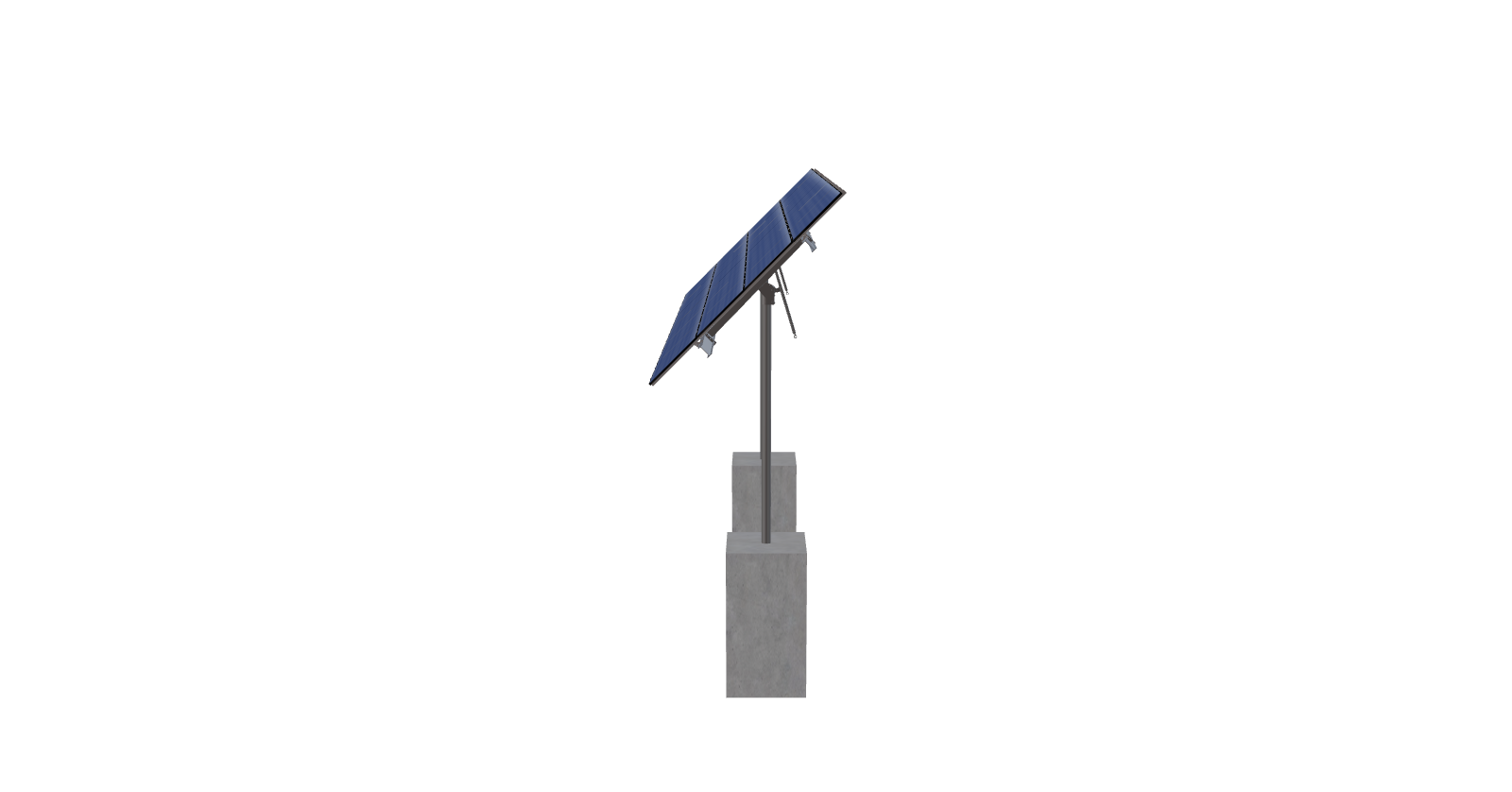

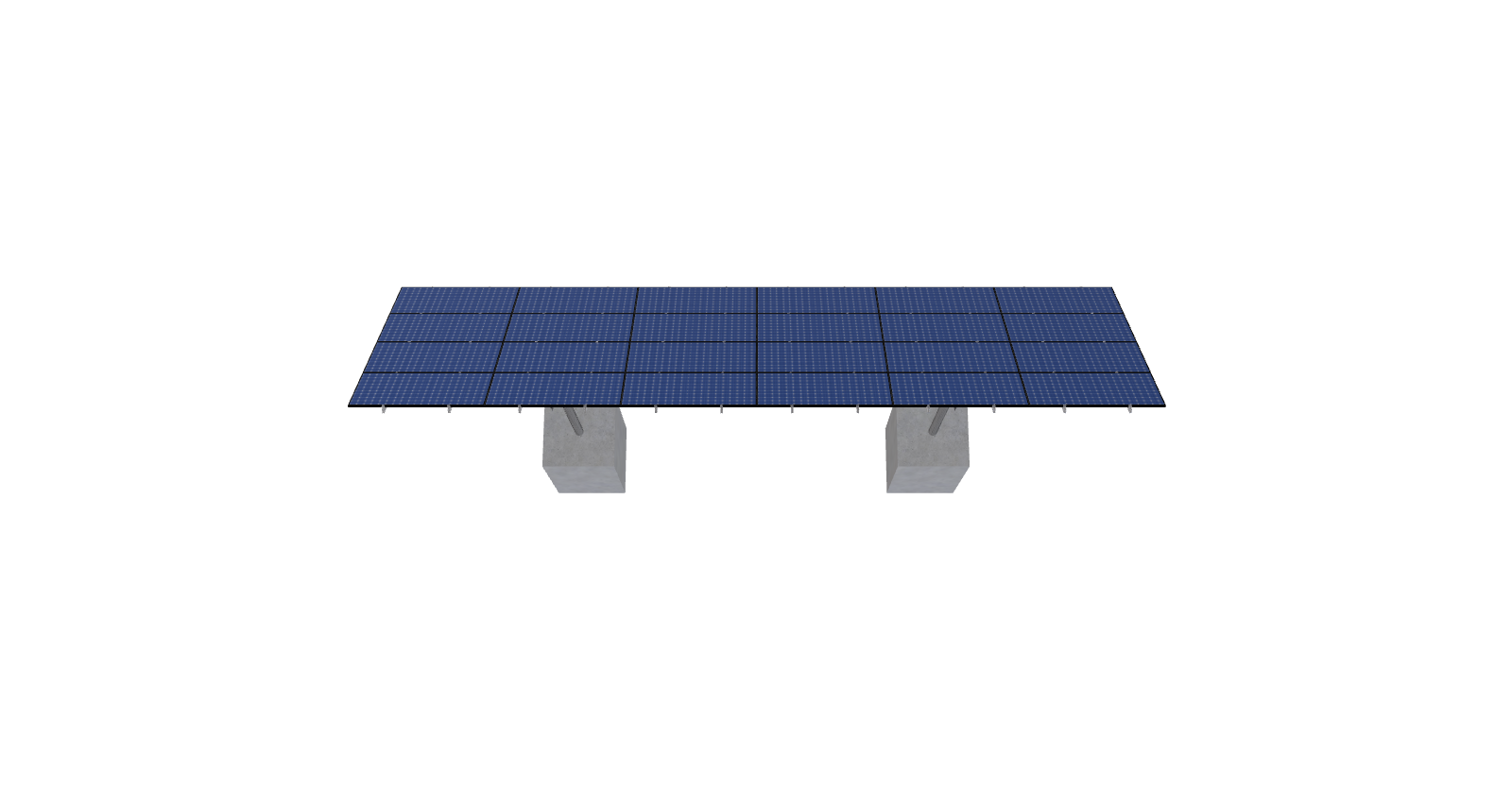

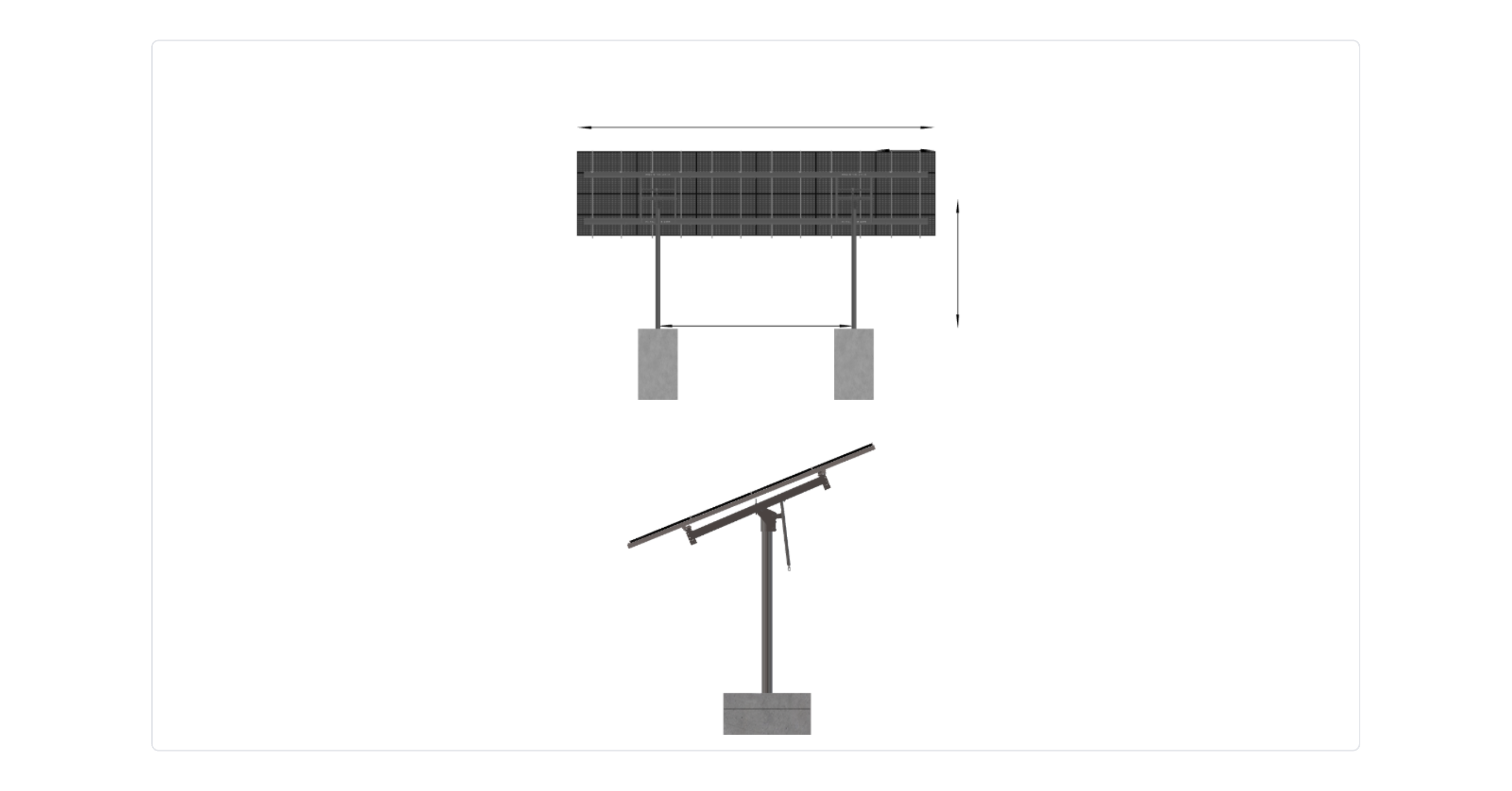

See 3D Model Here
W-12514-Guffey 10k-v2 cu
$11,043.76
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2078.02 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-10TOP-XD-57-L-4HX6W-JK11 |
DUTY SIZE | XD |
POLE SIZE | 10IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 14.95 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 8.50 |
TILT ANGLE | 45.00 |
CANTILEVER | 474.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 2.00 |
MODULE AREA | 581.91 |
ARRAY WIDTH | 41.56 |
ARRAY HEIGHT | 14.00 |
RAIL LENGTH | 168.00 |
MODULE LENGTH | 82.13 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 39.50 |
GROUND TO TOP | 19.84 |
PROJECTED PANEL HEIGHT | 9.78 |
DESIGNER NAME | |
DESIGNER EMAIL | |
DESIGNER PHONE | |
PROJECT ID | W-12514-GUFFEY, 10K-V2, CU |
SITE ADDRESS | PF77+G3, GUFFEY, CO, 80820, USA |
MODULE WIDTH | 41.50 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | II |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | XD |
POLE OVERRIDE | 10, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 110.00 |
SNOW LOAD OVERRIDE | 68.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 11043.76 |
TOTAL WEIGHT | 2078.02 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/bb5b58ff-a618-4899-8661-f11f21b07c52.pdf |
|
ID | 7736.00 |
3D Solar link |
