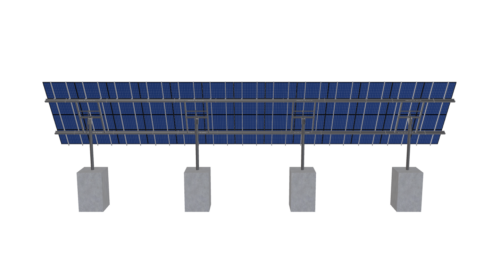

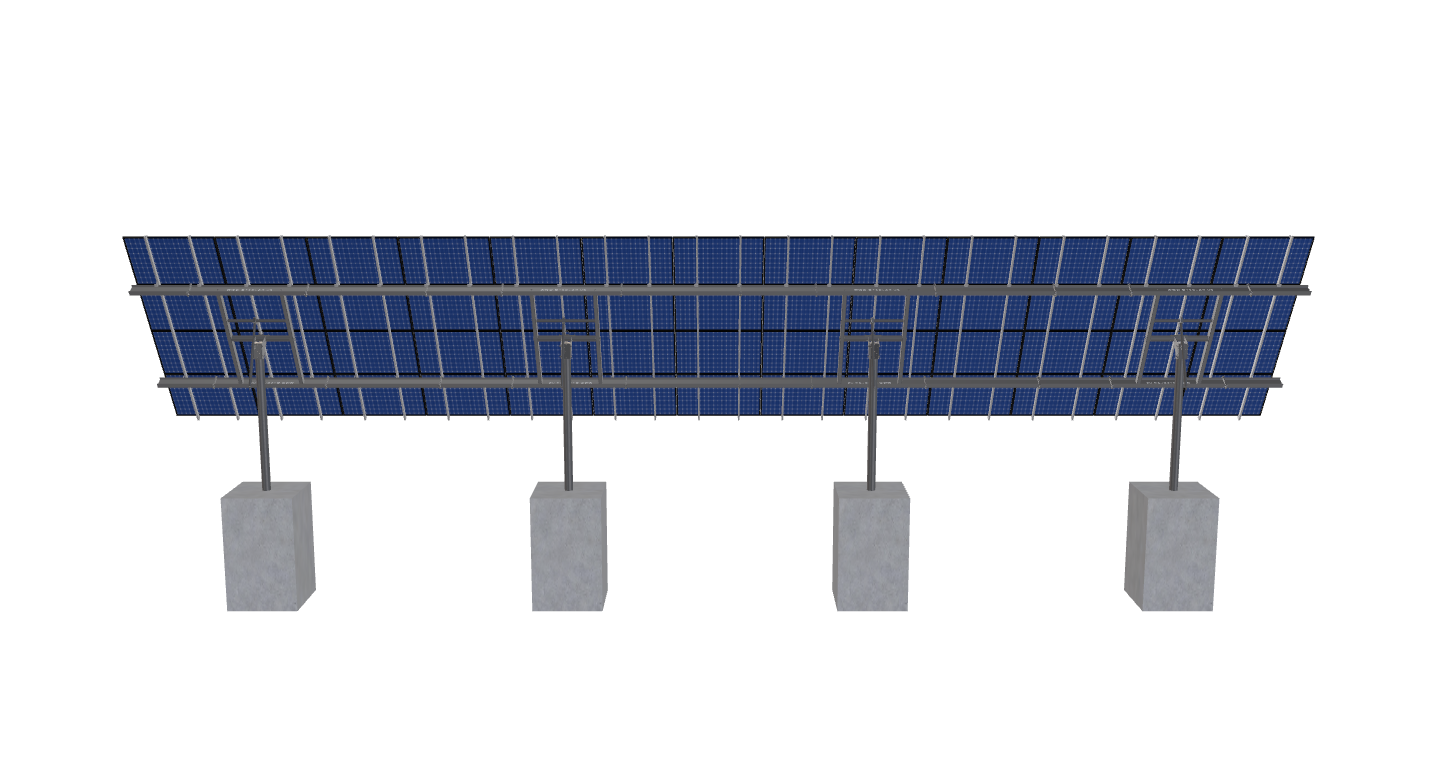

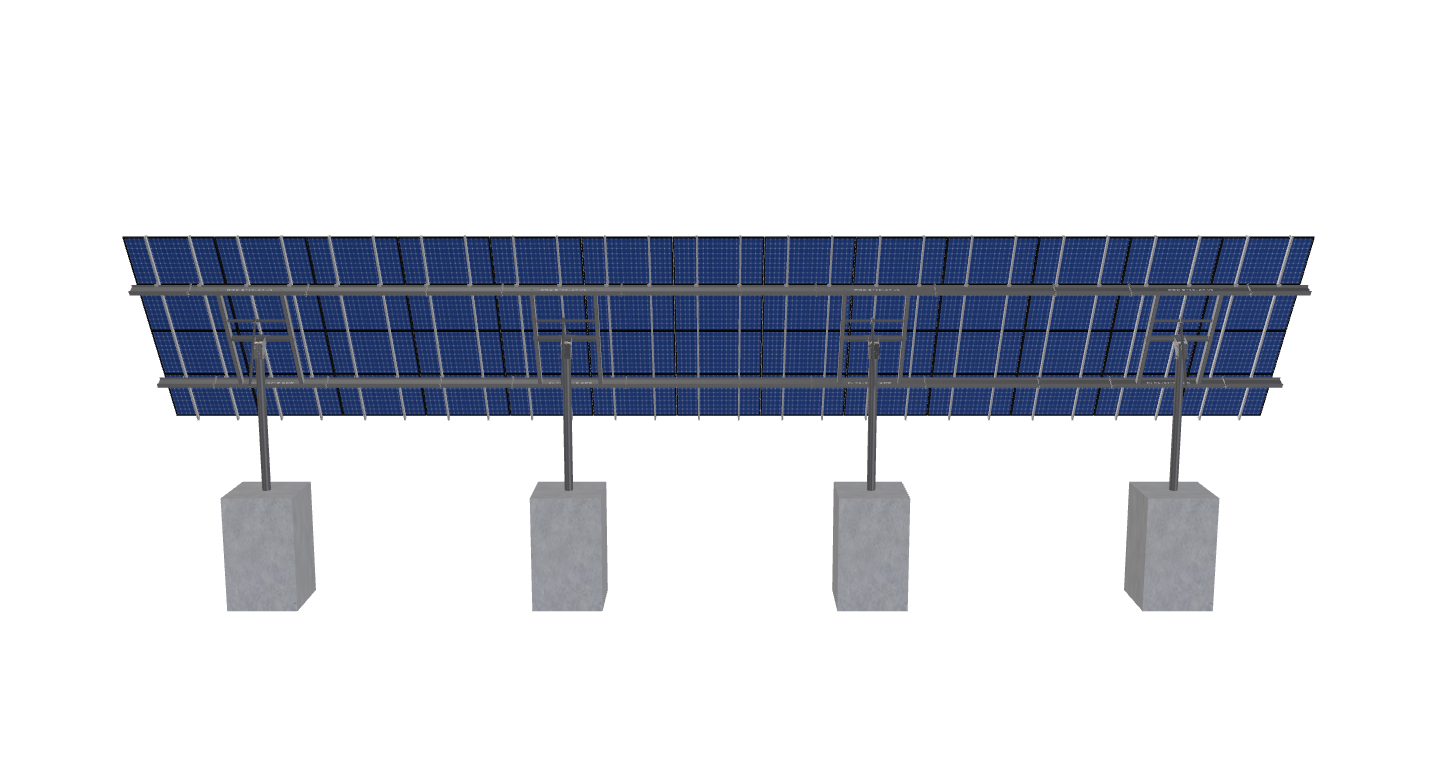

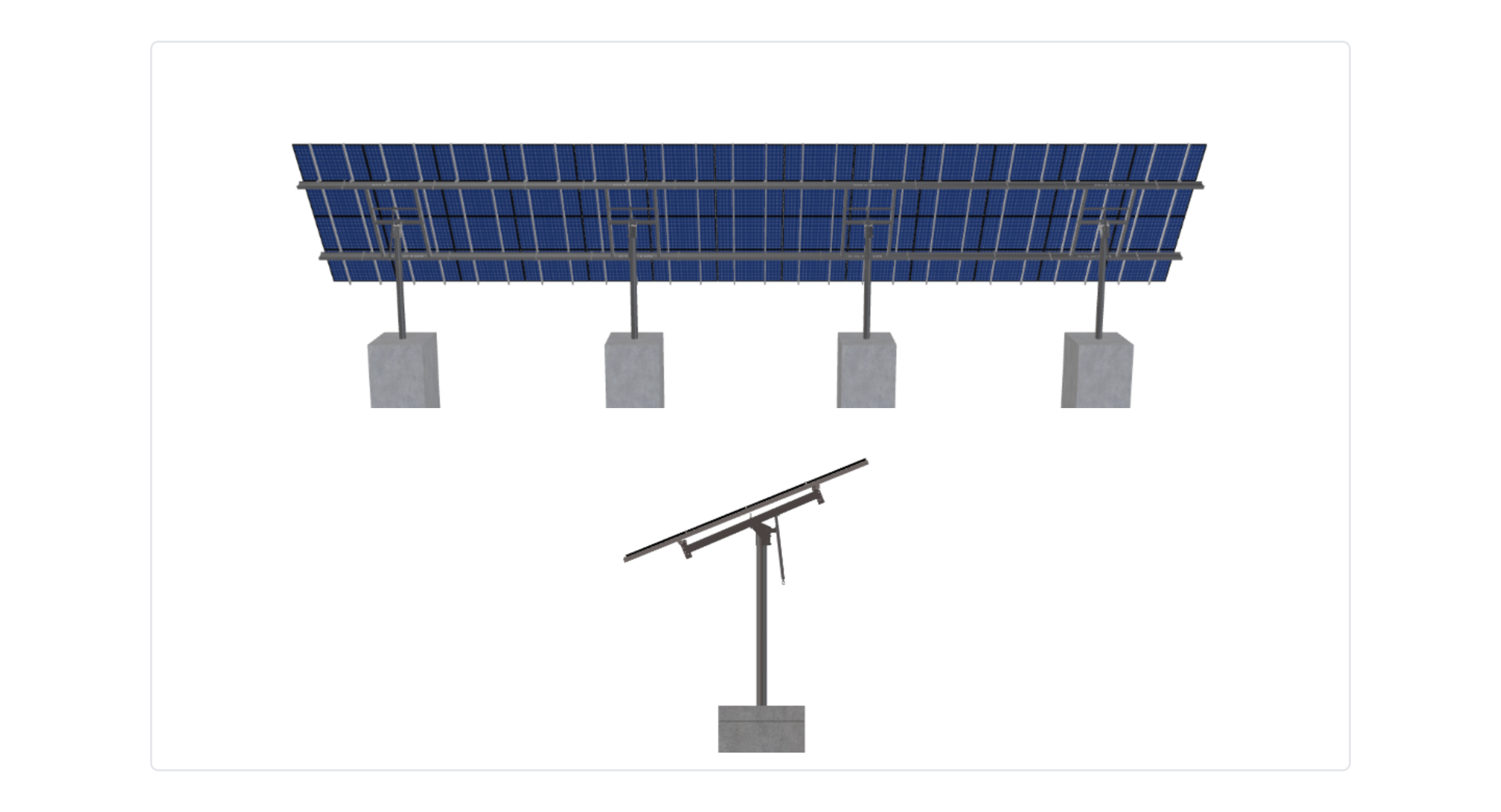

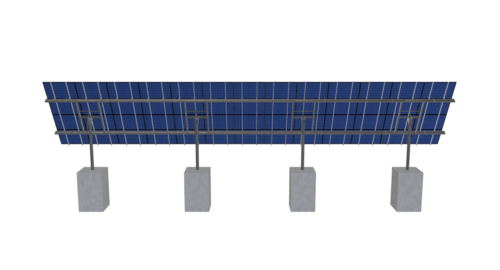

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 13 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W-5165 Expansion – V1Jb
$19,563.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 13 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3586.0400000000004 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-8TOP-HD-45-L-4HX13W-JAHK |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 9.91 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.50 |
TILT ANGLE | 60.00 |
CANTILEVER | 891.00 |
GROUND CLEARANCE | 3.40 |
NO POLES | 4.00 |
MODULE AREA | 1120.48 |
ARRAY WIDTH | 74.53 |
ARRAY HEIGHT | 15.03 |
RAIL LENGTH | 180.40 |
MODULE LENGTH | 67.80 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 74.25 |
GROUND TO TOP | 16.35 |
PROJECTED PANEL HEIGHT | 12.87 |
WIND SPEED OVERRIDE | 120.00 |
SNOW LOAD OVERRIDE | 60.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | W-5165, EXPANSION, -, V1JB |
SITE ADDRESS | COUNTY, RD, CALAIS, VT, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 13.00 |
POLE SPACING OVERRIDE | 19.75 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 19563.77 |
TOTAL WEIGHT | 3586.04 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/987481d9-8862-40ca-a244-de15aa7cfc74.pdf |
|
ID | 6705.00 |
3D Solar link |
