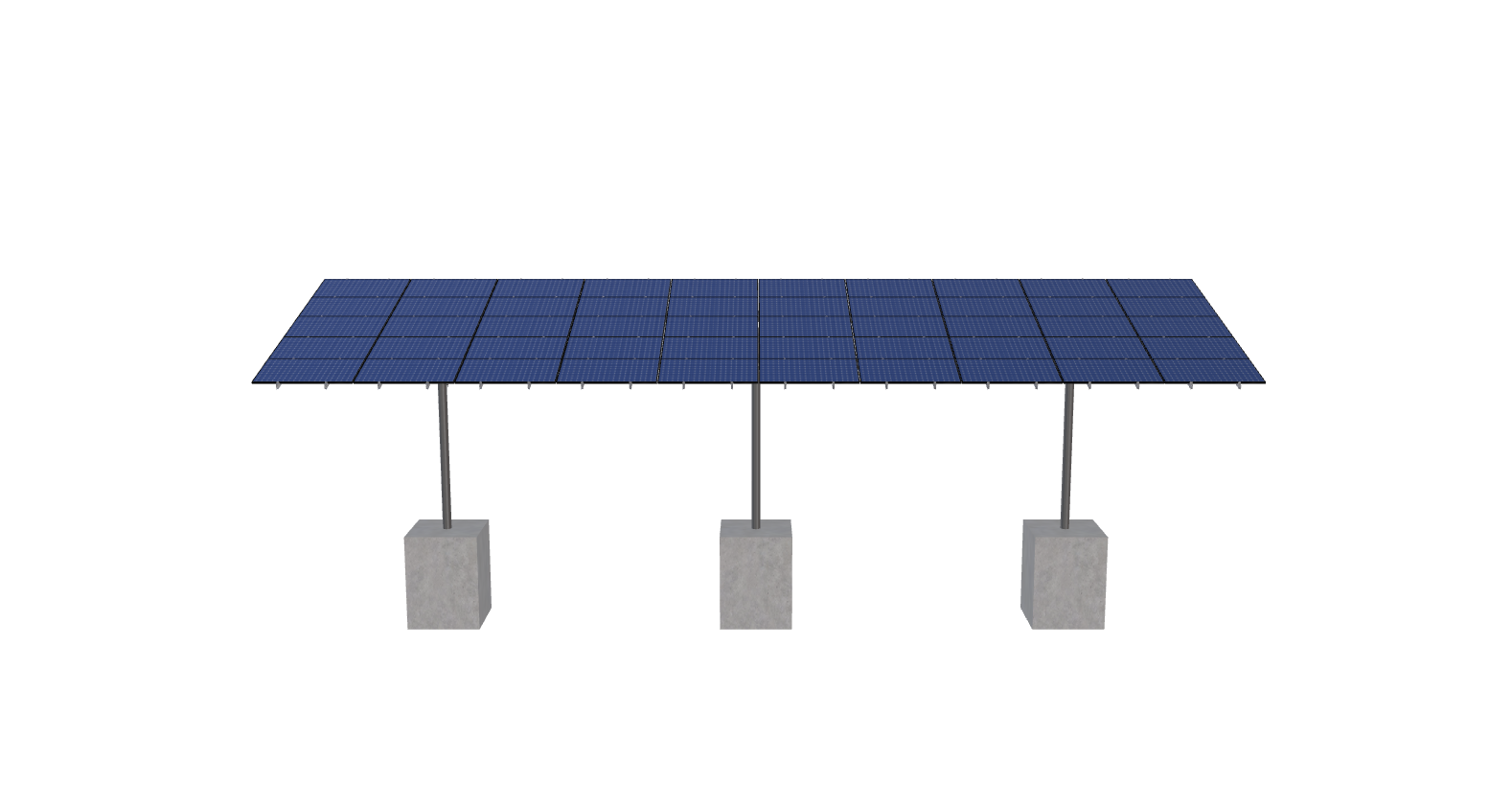

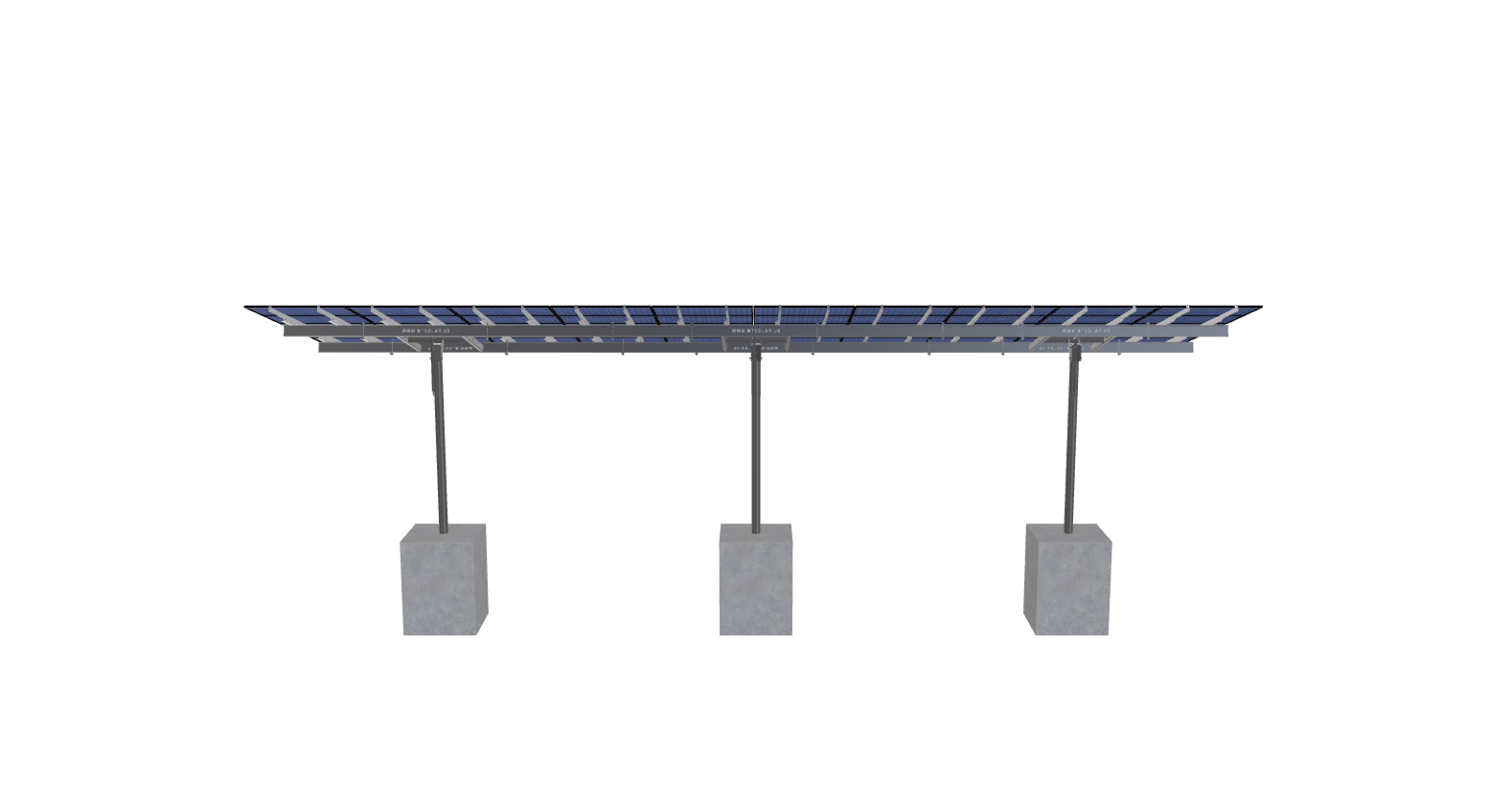

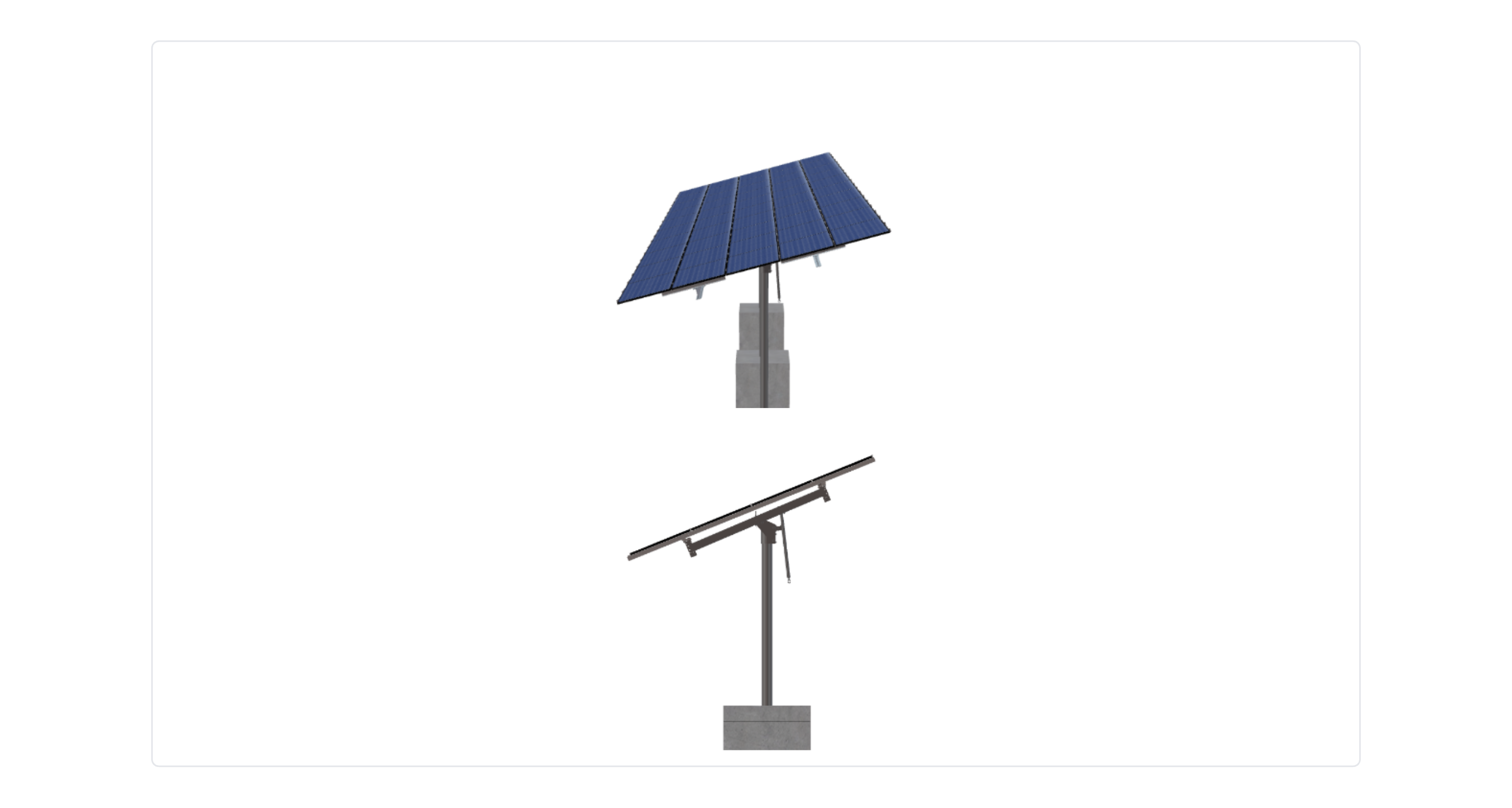

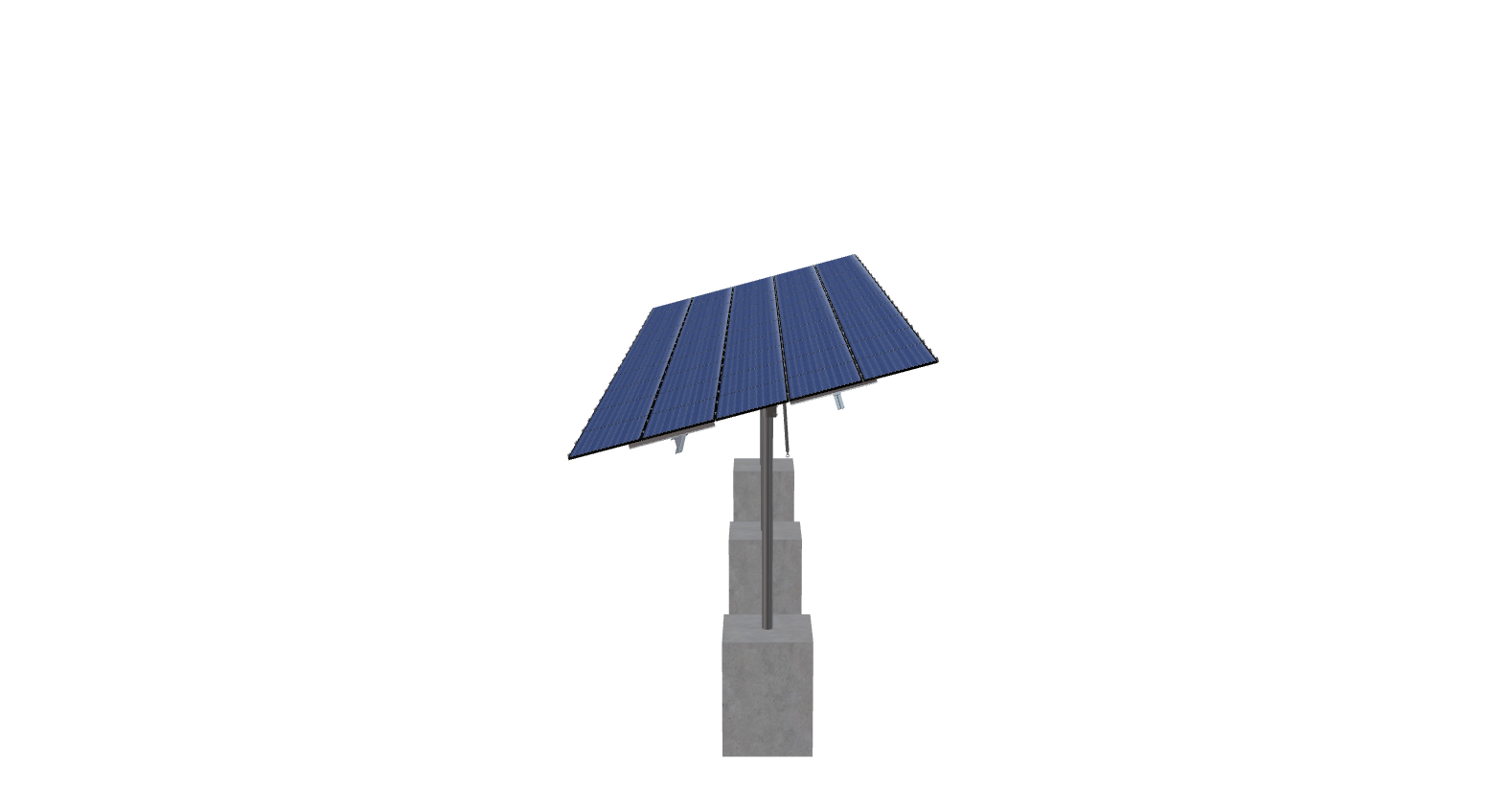

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W12185 – REVISION CU1
$18,062.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3657.25 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-19.75-6TOP-XD-57-L-5HX10W-46J3 |
DUTY SIZE | XD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 12.23 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 6.00 |
TILT ANGLE | 15.00 |
CANTILEVER | 678.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 3.00 |
MODULE AREA | 1008.12 |
ARRAY WIDTH | 58.44 |
ARRAY HEIGHT | 17.25 |
RAIL LENGTH | 207.00 |
MODULE LENGTH | 69.13 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 56.50 |
GROUND TO TOP | 14.44 |
PROJECTED PANEL HEIGHT | 4.41 |
PROJECT ID | W12185, -, REVISION, CU1 |
SITE ADDRESS | 2845, N, SANDERS, ST, HELENA, MT, 59601, USA |
MODULE WIDTH | 40.90 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 106.00 |
SNOW LOAD OVERRIDE | 30.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 18062.55 |
TOTAL WEIGHT | 3657.25 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/1fdcb3a6-4806-4ecb-9ab5-0d422a65537a.pdf |
|
ID | 4116.00 |
3D Solar link |
