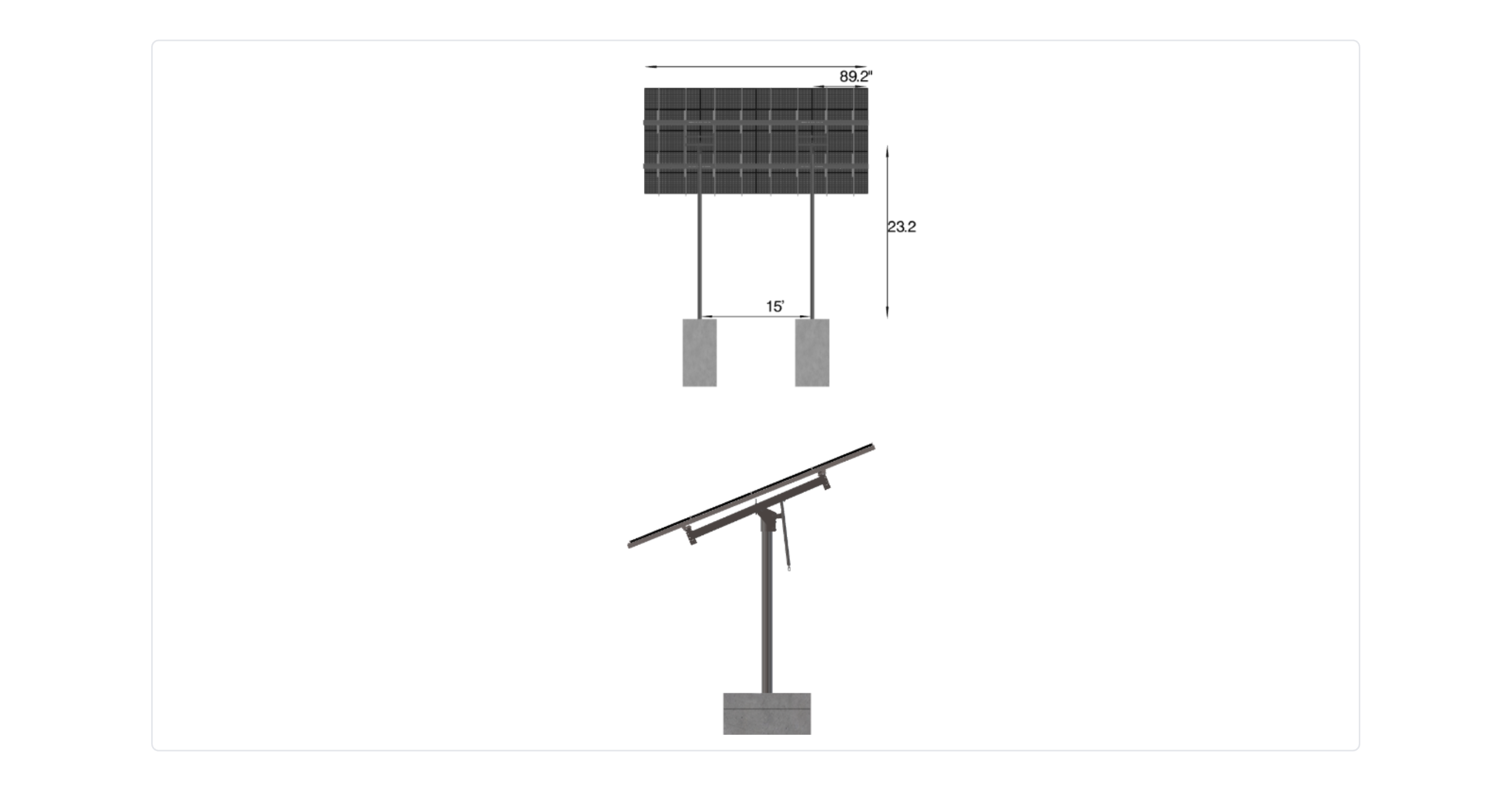

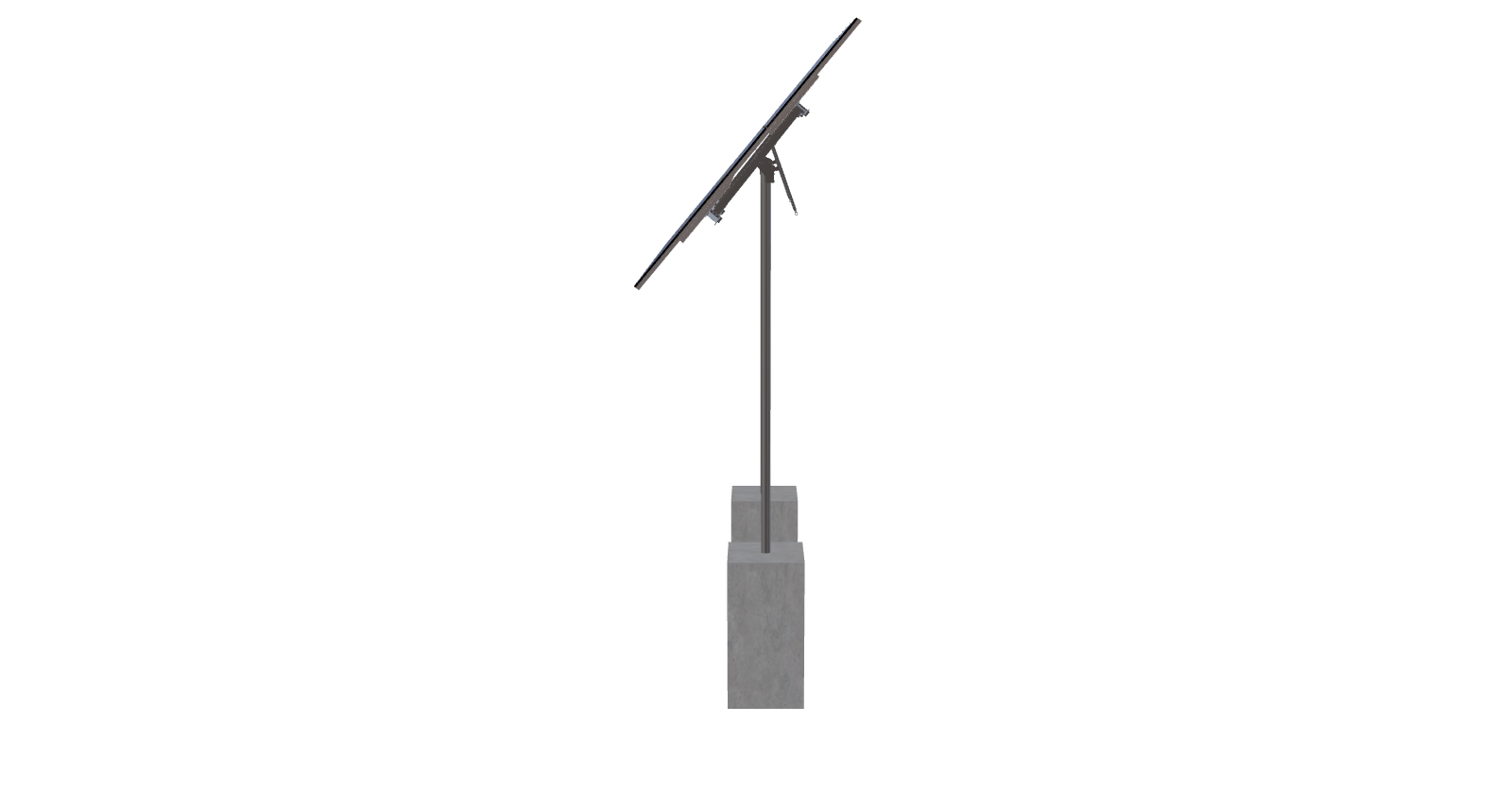

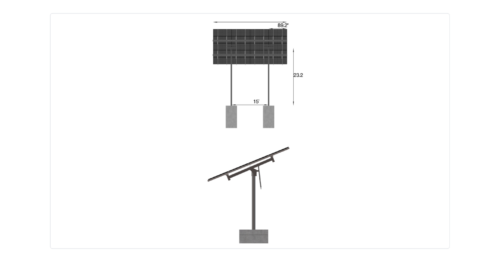

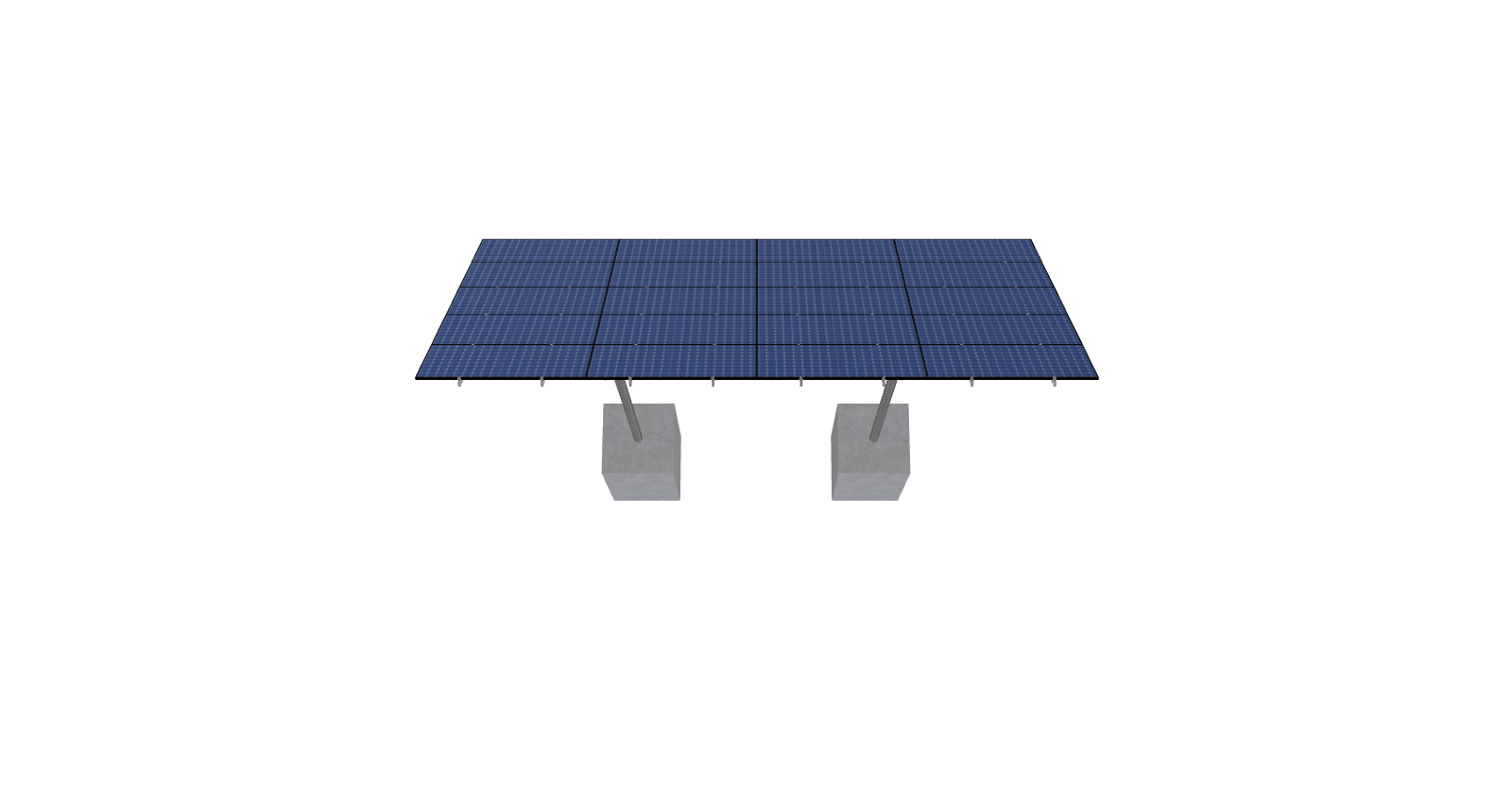

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W12473-Boxpower-4cu
$9,091.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1802.8600000000001 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-15-10TOP-HD-45-L-5HX4W-963K |
DUTY SIZE | HD |
POLE SIZE | 10IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 15.00 |
POLE HEIGHT | 23.20 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 9.00 |
TILT ANGLE | 50.00 |
CANTILEVER | 360.00 |
GROUND CLEARANCE | 16.00 |
NO POLES | 2.00 |
MODULE AREA | 565.00 |
ARRAY WIDTH | 30.07 |
ARRAY HEIGHT | 18.79 |
RAIL LENGTH | 225.50 |
MODULE LENGTH | 89.20 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 30.00 |
GROUND TO TOP | 30.32 |
PROJECTED PANEL HEIGHT | 14.24 |
WIND SPEED OVERRIDE | 101.00 |
SNOW LOAD OVERRIDE | 75.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | W12473-BOXPOWER-4CU |
SITE ADDRESS | QG99+43, CONCOW, CA, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | III |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 9091.39 |
TOTAL WEIGHT | 1802.86 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/666e82a2-fc5f-4cc4-83b4-9bc741d12656.pdf |
|
ID | 7123.00 |
3D Solar link |
