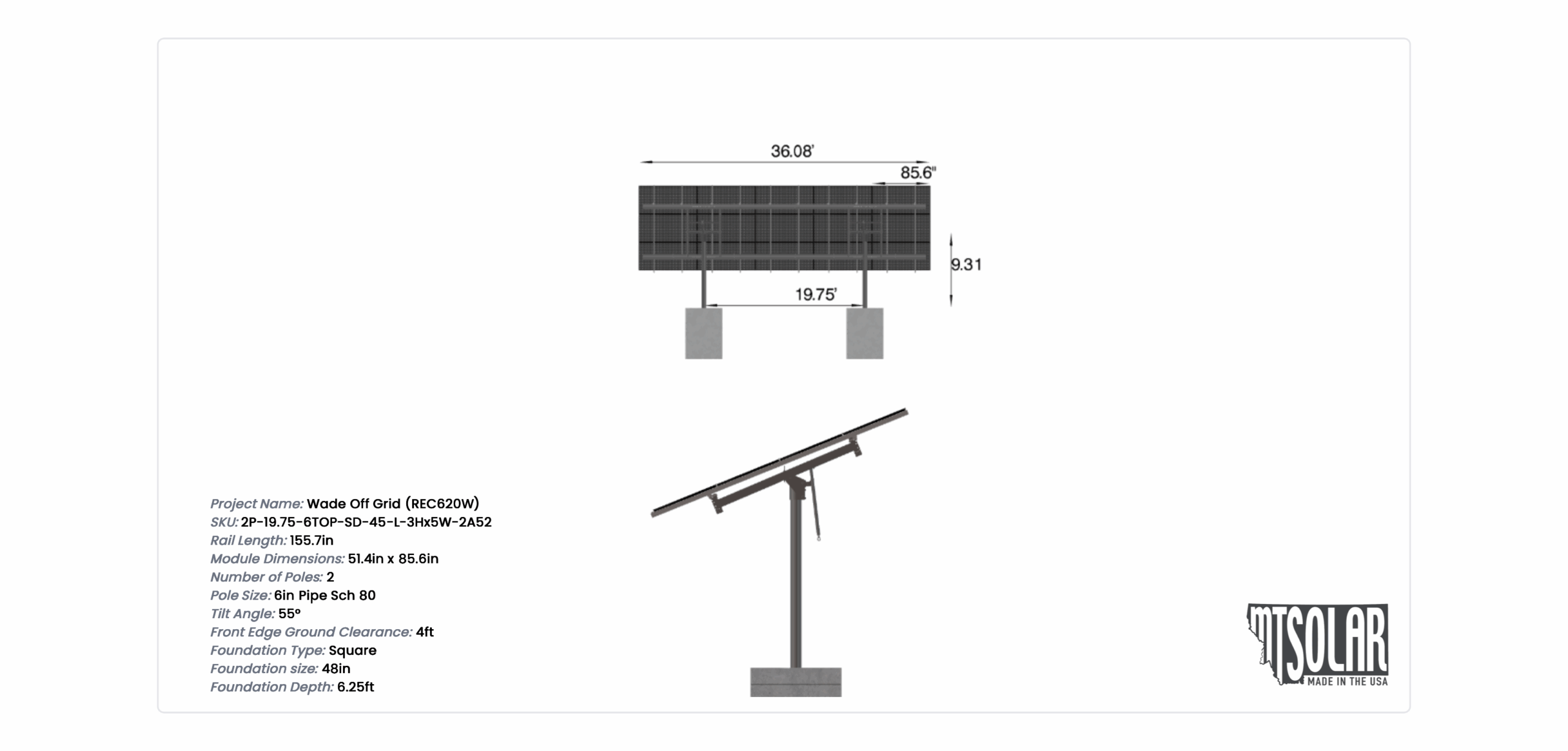

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Wade Off Grid (REC620W)
$7,925.87
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1363.1 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-SD-45-L-3HX5W-2A52 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 468.18 |
| ARRAY WIDTH | 36.08 |
| ARRAY HEIGHT | 12.97 |
| RAIL LENGTH | 155.70 |
| MODULE LENGTH | 85.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 14.63 |
| PROJECTED PANEL HEIGHT | 10.63 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WADE, OFF, GRID, (REC620W) |
| SITE ADDRESS | 2130, OLD, RAILROAD, GRADE, RD, LIBBY, MT, 59923, USA |
| MODULE INFO | |
| MODULE WIDTH | 51.40 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 75.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7925.87 |
| TOTAL WEIGHT | 1363.10 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b21b5587-381e-4f90-aff7-f5e2d5a9f03f.pdf |
|
| ID | 13073.00 |
| 3D Solar link |
