This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

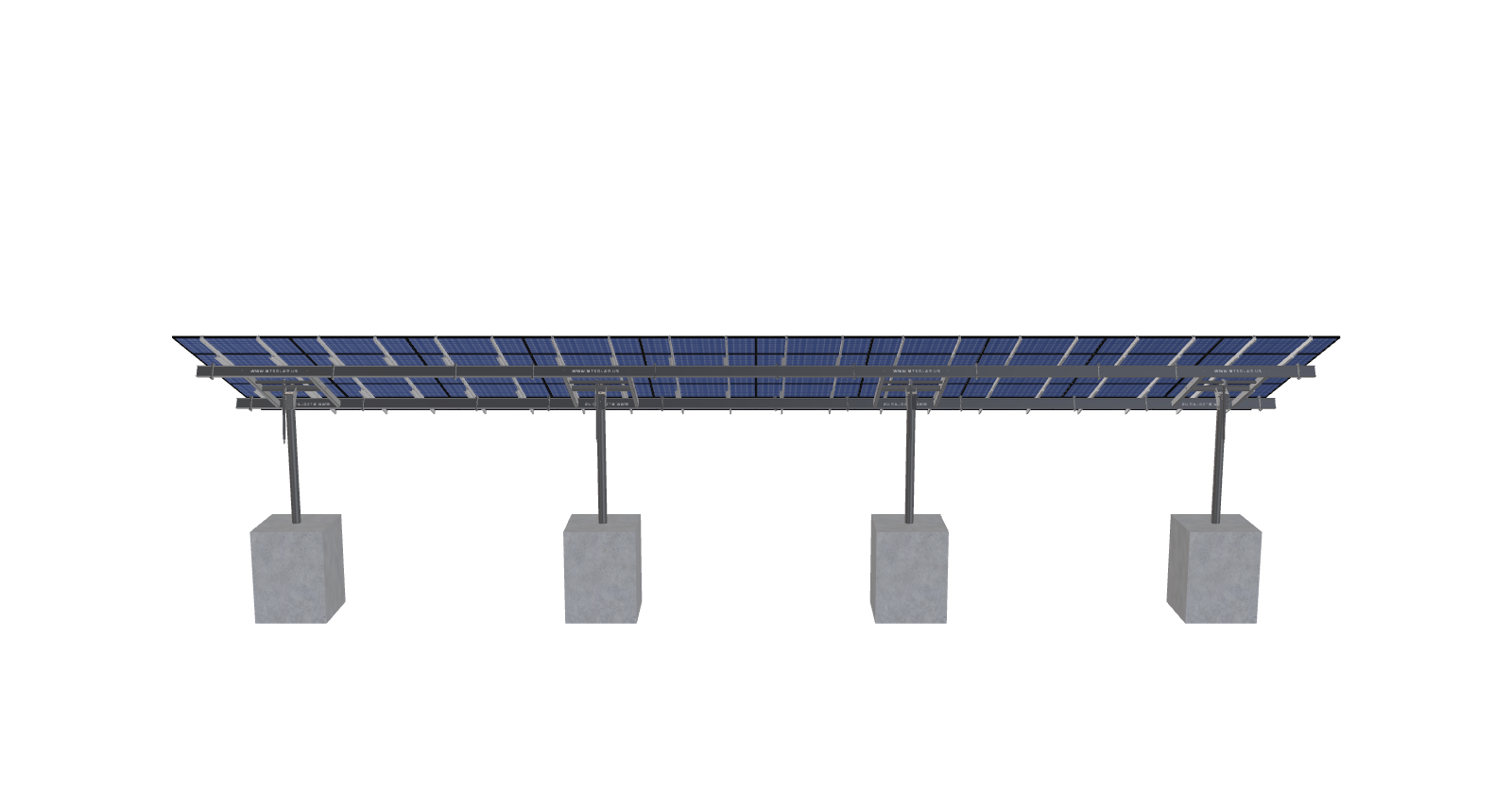

Walker Lake Large-CU
$21,035.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4006.6200000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-12-L-5HX10W-6697 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.70 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1212.31 |
| ARRAY WIDTH | 69.27 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 82.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 12.35 |
| PROJECTED PANEL HEIGHT | 7.31 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | WALKER, LAKE, LARGE-CU |
| SITE ADDRESS | M986+RQ, SCHURZ, NV, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20033.74 |
| TOTAL WEIGHT | 4006.62 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/aee882c3-34ea-4019-9327-4c2e94bb920d.pdf |
|
| ID | 5740.00 |
| 3D Solar link |
