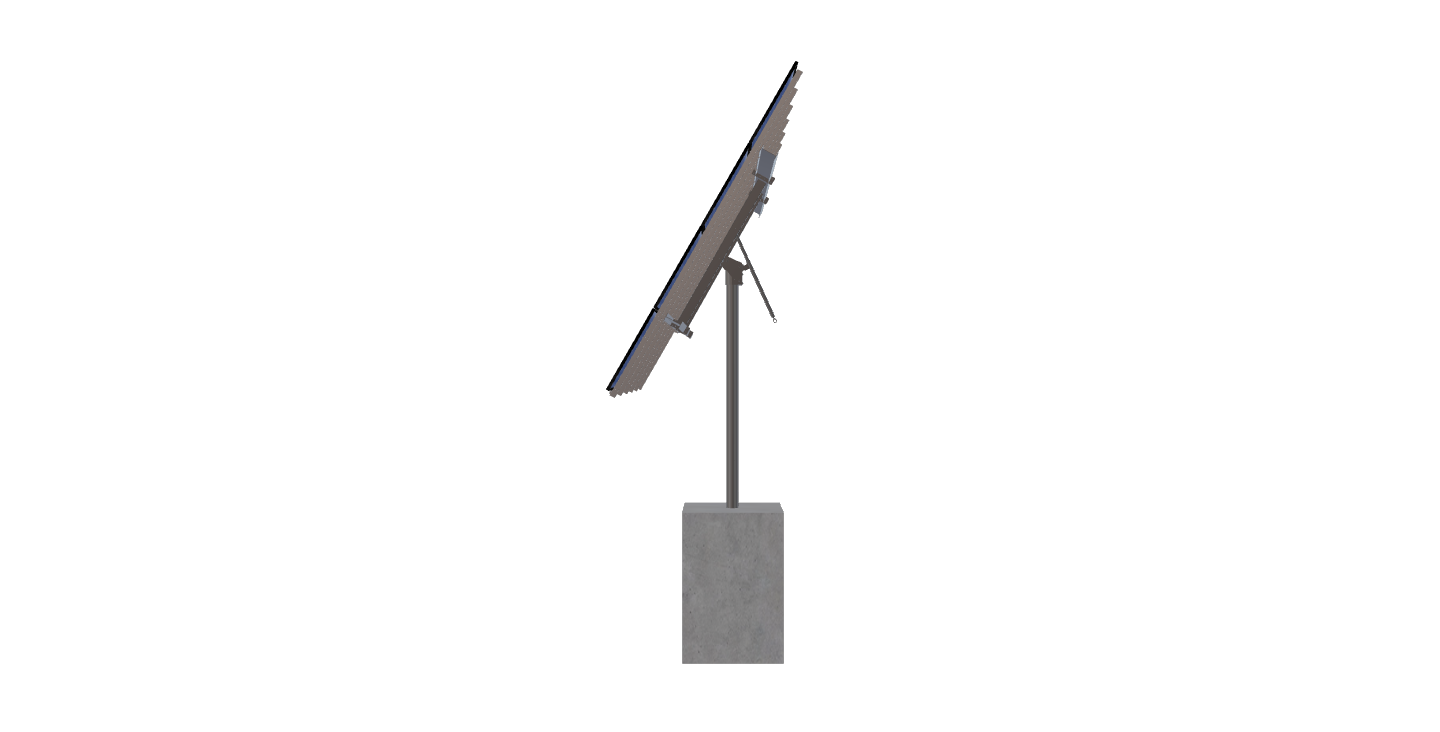

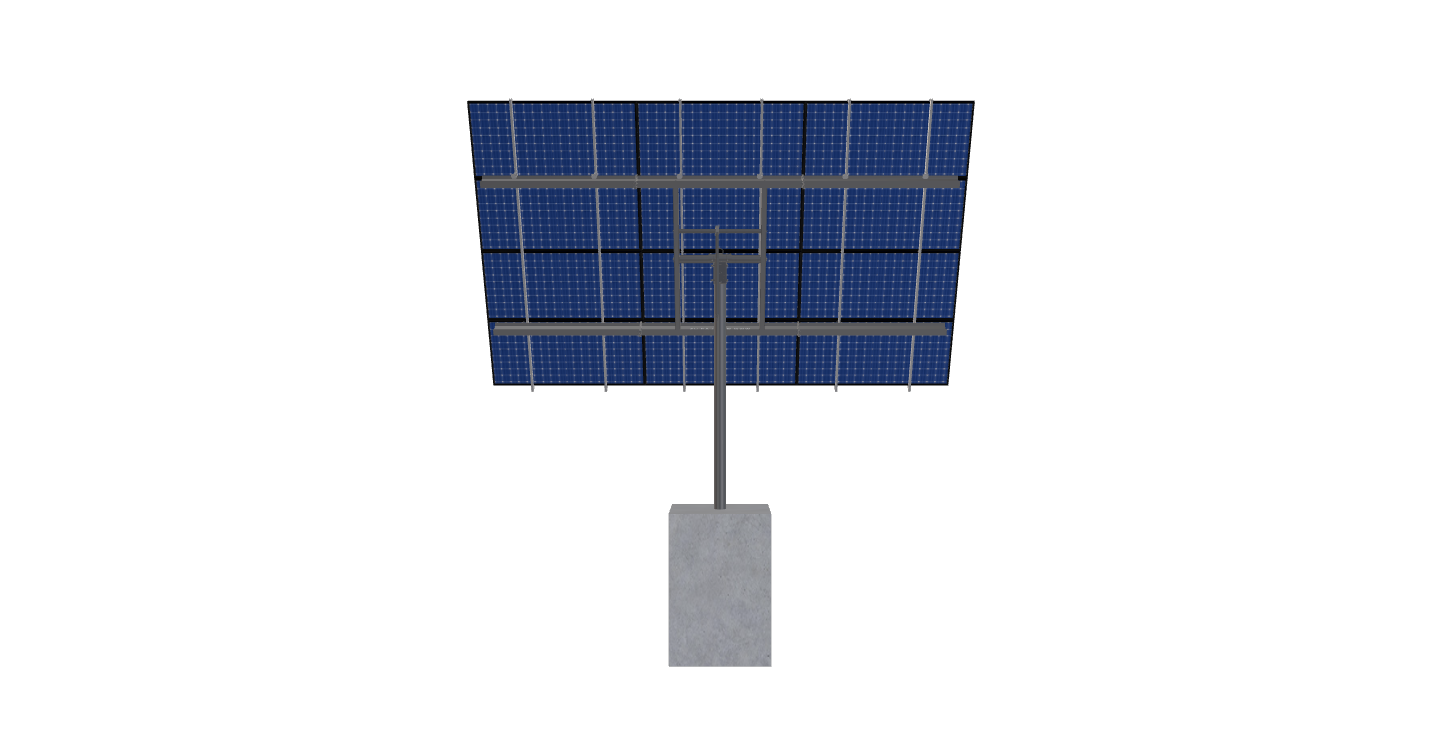

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 44.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
WalnutHillSolar-JB-RevA
$4,410.70
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 44.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 799.16 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-84-L-4HX3W-KK4H |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.51 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 340.13 |
| ARRAY WIDTH | 22.63 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 89.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 17.95 |
| PROJECTED PANEL HEIGHT | 12.87 |
| PROJECT ID | WALNUTHILLSOLAR-JB-REVA |
| SITE ADDRESS | WALNUT, HILL, RD, SHAPLEIGH, ME, 04076, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4410.70 |
| TOTAL WEIGHT | 799.16 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/8b8b9fea-ffb7-4b01-b98d-54115de072e2.pdf |
|
| ID | 1935.00 |
| CAD URL | |
| 3D Solar link |
