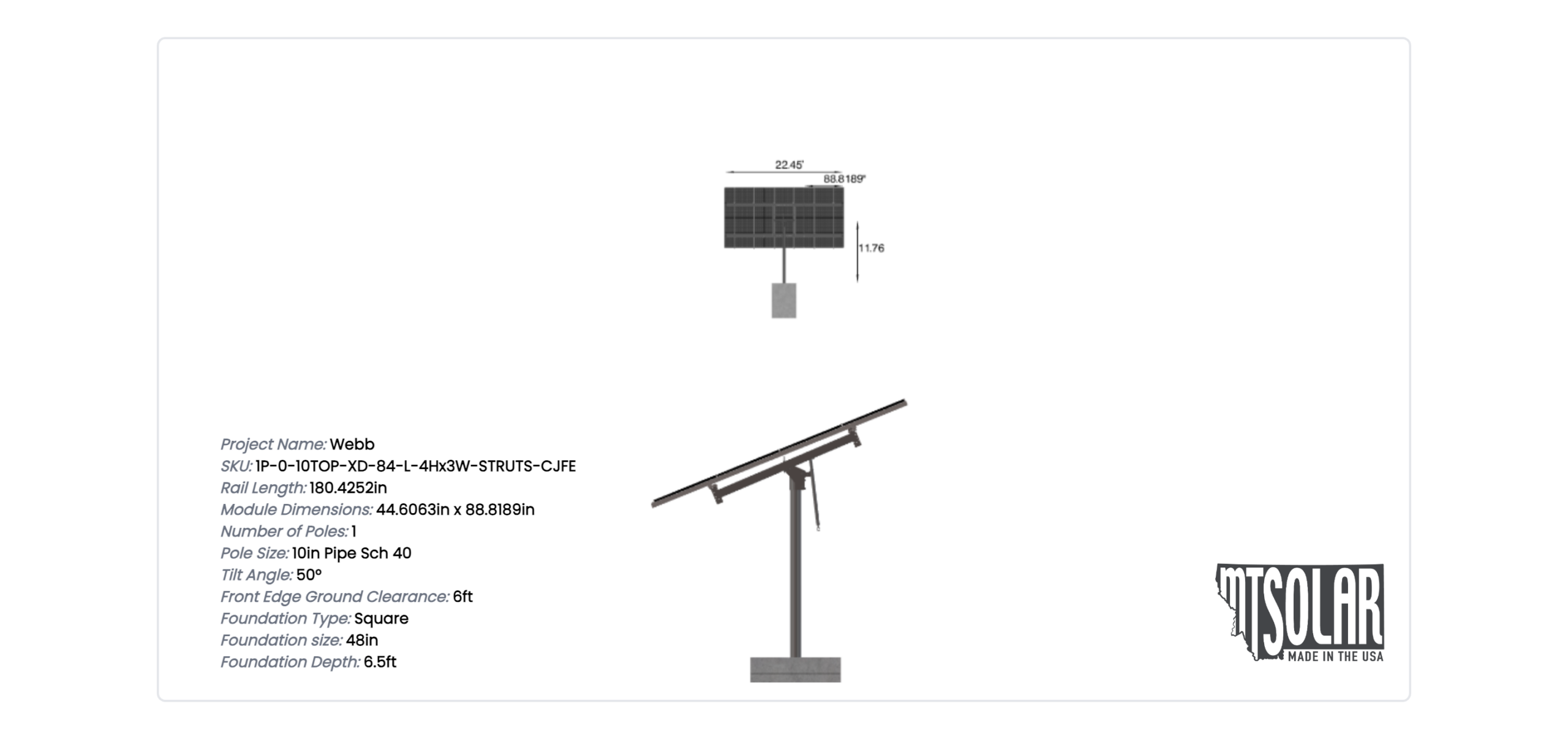

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8189 inches by 44.6063 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

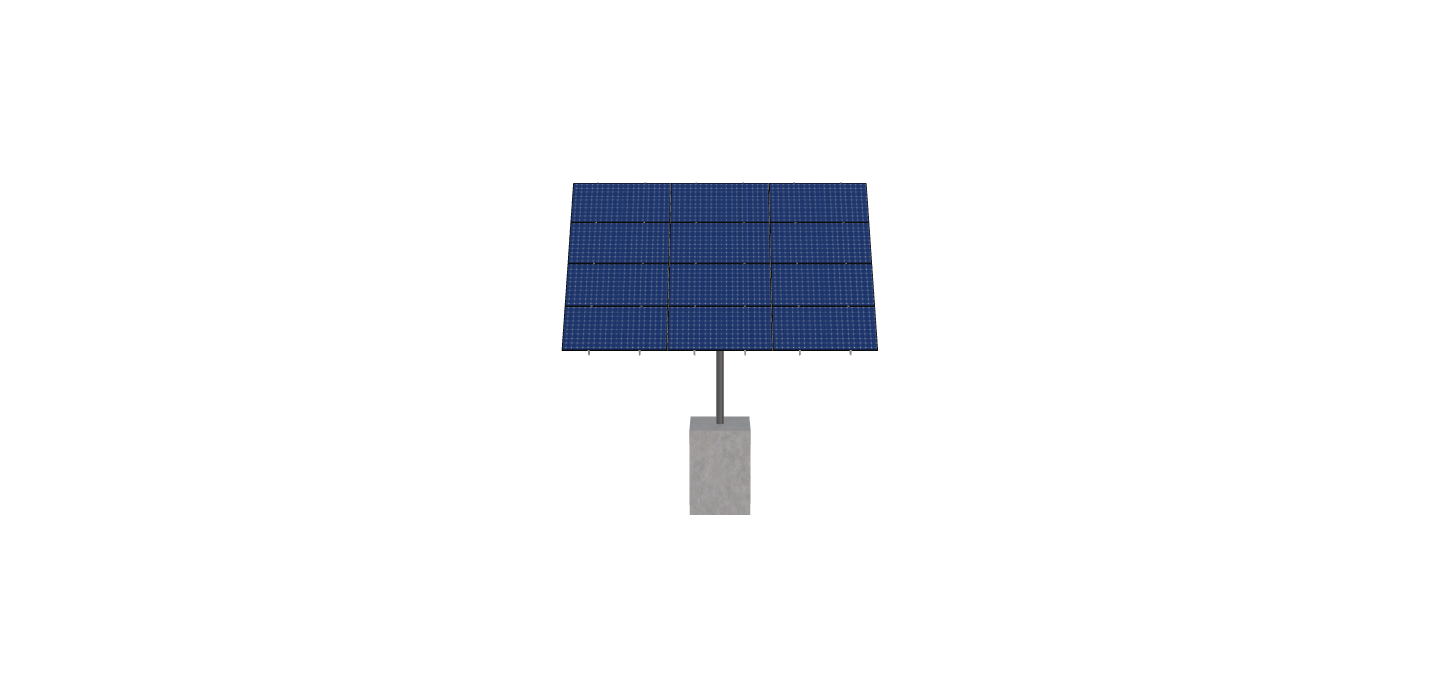

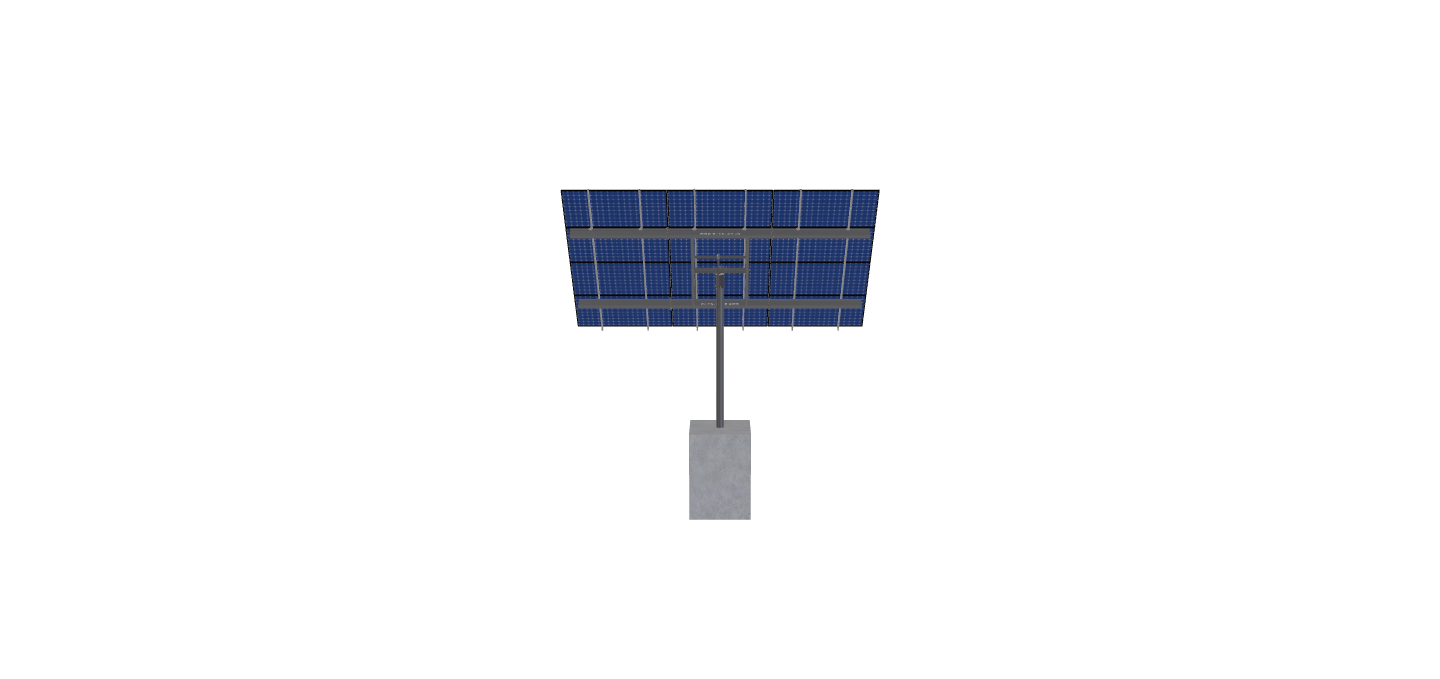

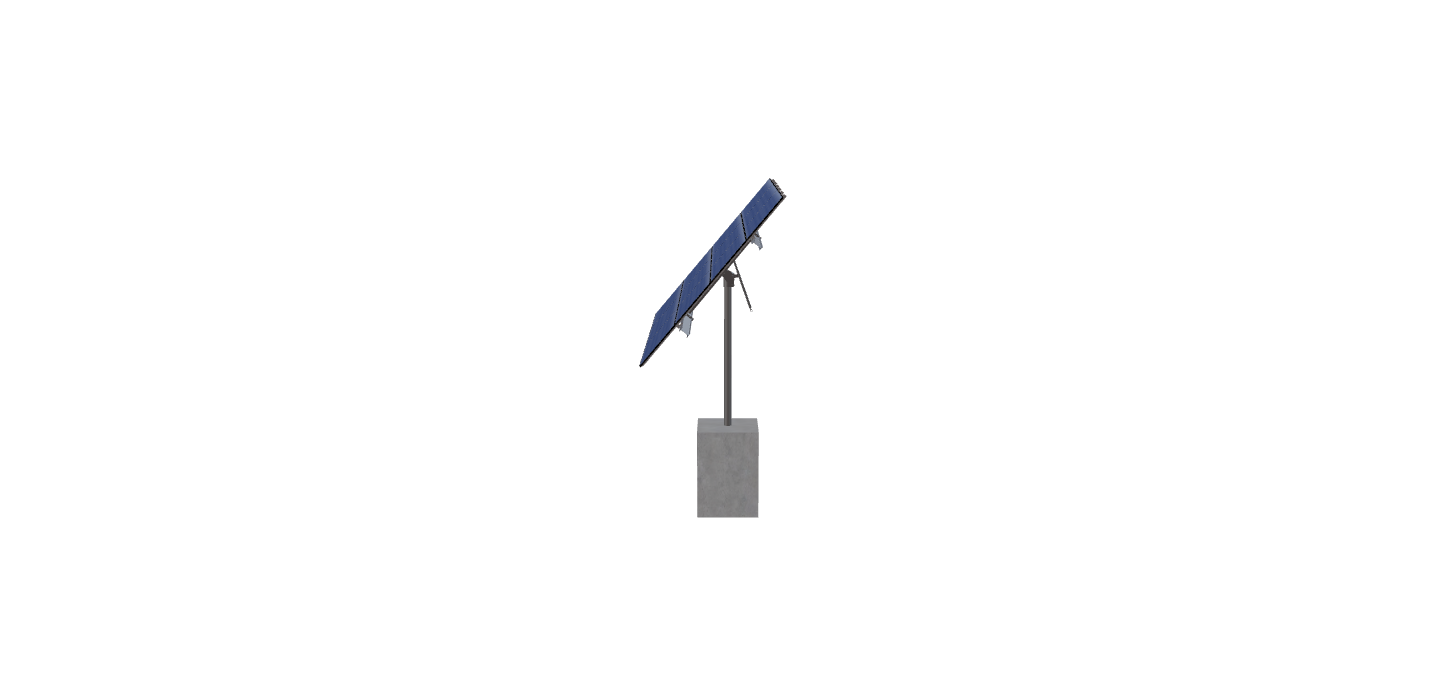

See 3D Model Here
Webb
$5,923.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8189 inches by 44.6063 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1069.1100000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-84-L-4HX3W-STRUTS-CJFE |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.76 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 337.62 |
| ARRAY WIDTH | 22.45 |
| ARRAY HEIGHT | 15.04 |
| RAIL LENGTH | 180.43 |
| MODULE LENGTH | 88.82 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 17.52 |
| PROJECTED PANEL HEIGHT | 11.52 |
| DESIGNER NAME | ALLEN, RILING |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 970-759-7655 |
| PROJECT ID | WEBB |
| SITE ADDRESS | 14000, CO, RD, 240, DURANGO, CO, 81301, USA |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 147.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5641.49 |
| TOTAL WEIGHT | 1069.11 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/9197c2d6-9741-4d33-a098-bcb47f32e8b0.pdf |
|
| ID | 10096.00 |
| 3D Solar link |
