This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.5 inches by 40.5 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

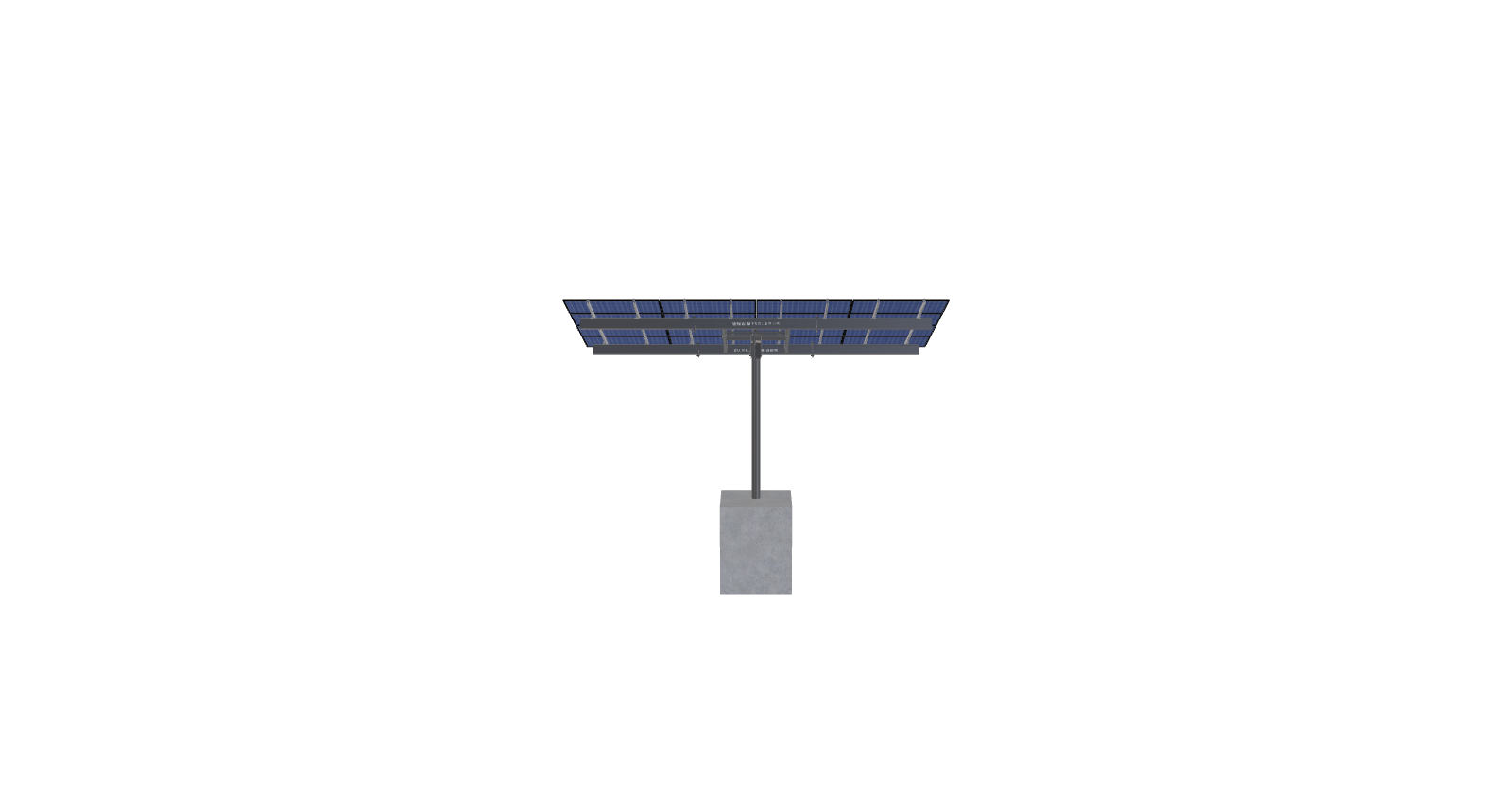

See 3D Model Here
Williamson-v2
$4,647.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.5 inches by 40.5 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 821.38 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-84-L-4HX4W-G5D4 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 10.34 |
WING SPAN | 84.00 |
MAX FOUNDATION DEPTH | 5.75 |
TILT ANGLE | 20.00 |
CANTILEVER | 258.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 1.00 |
MODULE AREA | 316.61 |
ARRAY WIDTH | 23.17 |
ARRAY HEIGHT | 13.67 |
RAIL LENGTH | 164.00 |
MODULE LENGTH | 68.50 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 21.50 |
GROUND TO TOP | 12.65 |
PROJECTED PANEL HEIGHT | 4.62 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | WILLIAMSON-V2 |
SITE ADDRESS | 761, MADDUX, DR, MACON, GA, 31217, USA |
MODULE WIDTH | 40.50 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 4647.41 |
TOTAL WEIGHT | 821.38 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/4aa41f35-4c9f-434b-b862-64c00861ebb7.pdf |
|
ID | 6126.00 |
3D Solar link |
