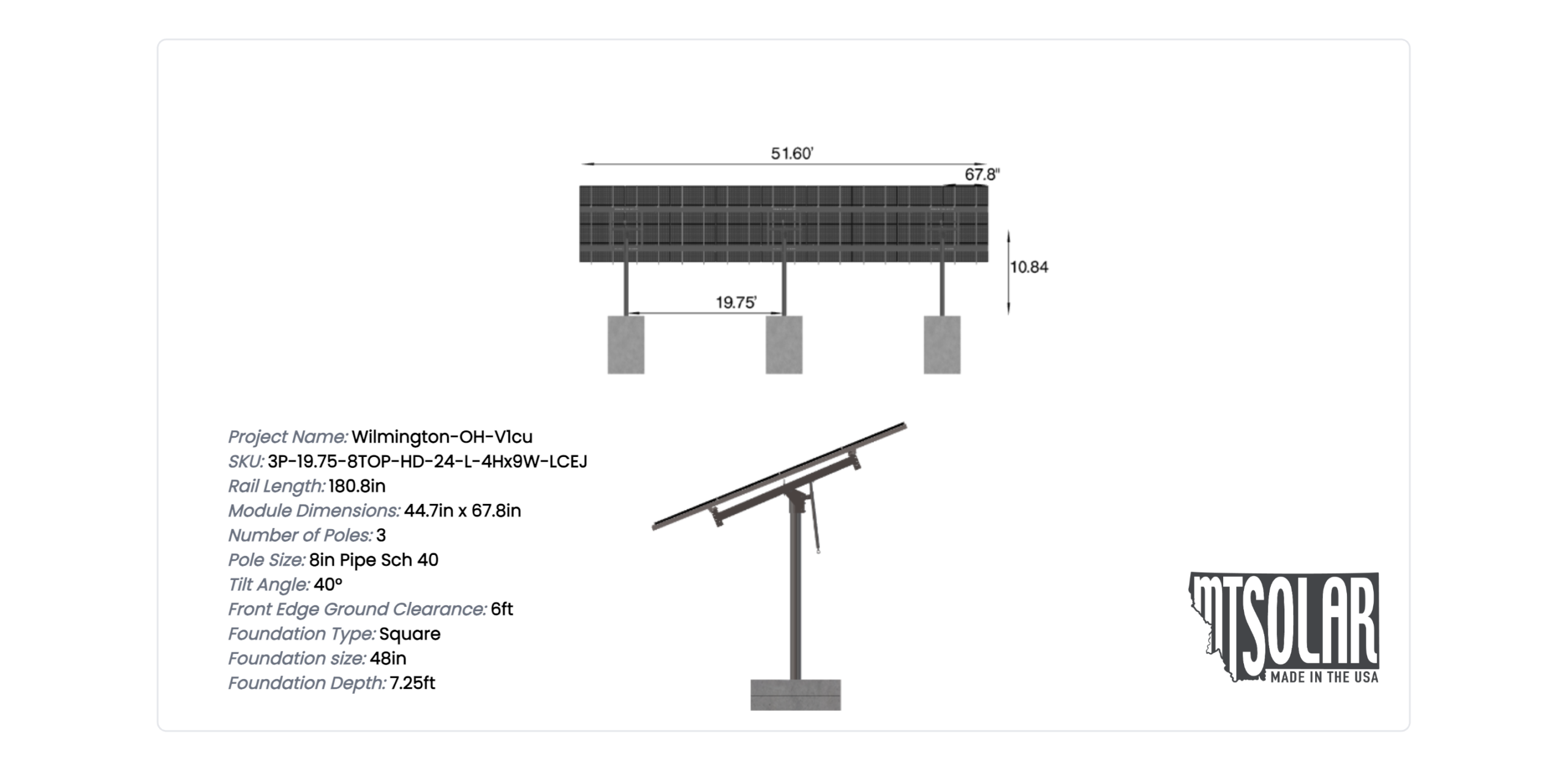

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.7 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Wilmington-OH-V1cu
$14,737.98
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.7 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2560.71 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-24-L-4HX9W-LCEJ |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.84 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 777.44 |
| ARRAY WIDTH | 51.60 |
| ARRAY HEIGHT | 15.07 |
| RAIL LENGTH | 180.80 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 15.68 |
| PROJECTED PANEL HEIGHT | 9.68 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WILMINGTON-OH-V1CU |
| SITE ADDRESS | 5080, CUBA, RD, WILMINGTON, OH, 45177, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 14036.17 |
| TOTAL WEIGHT | 2560.71 |
| TOTAL PALLETS | 3.00 |
