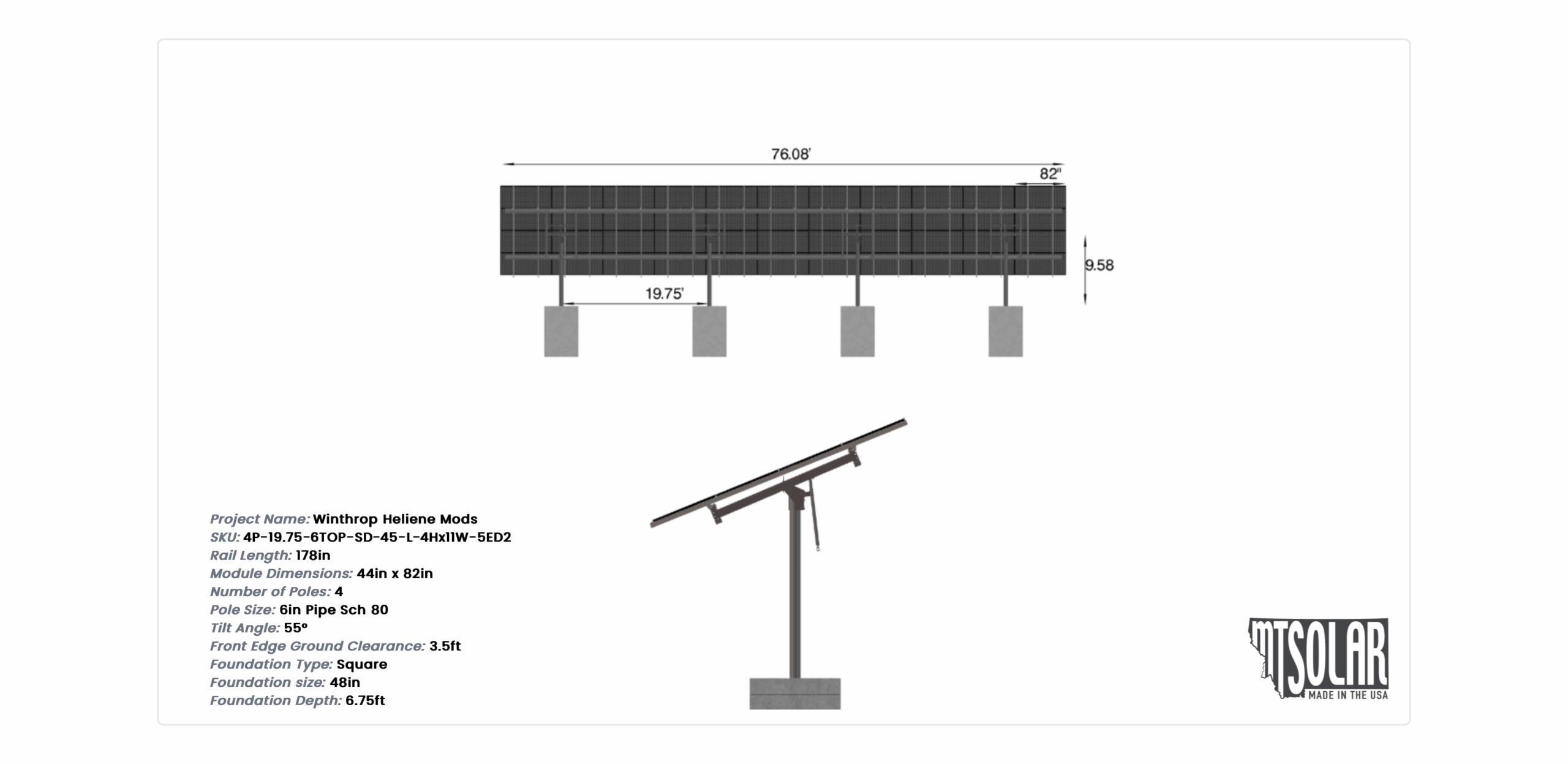

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 44 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

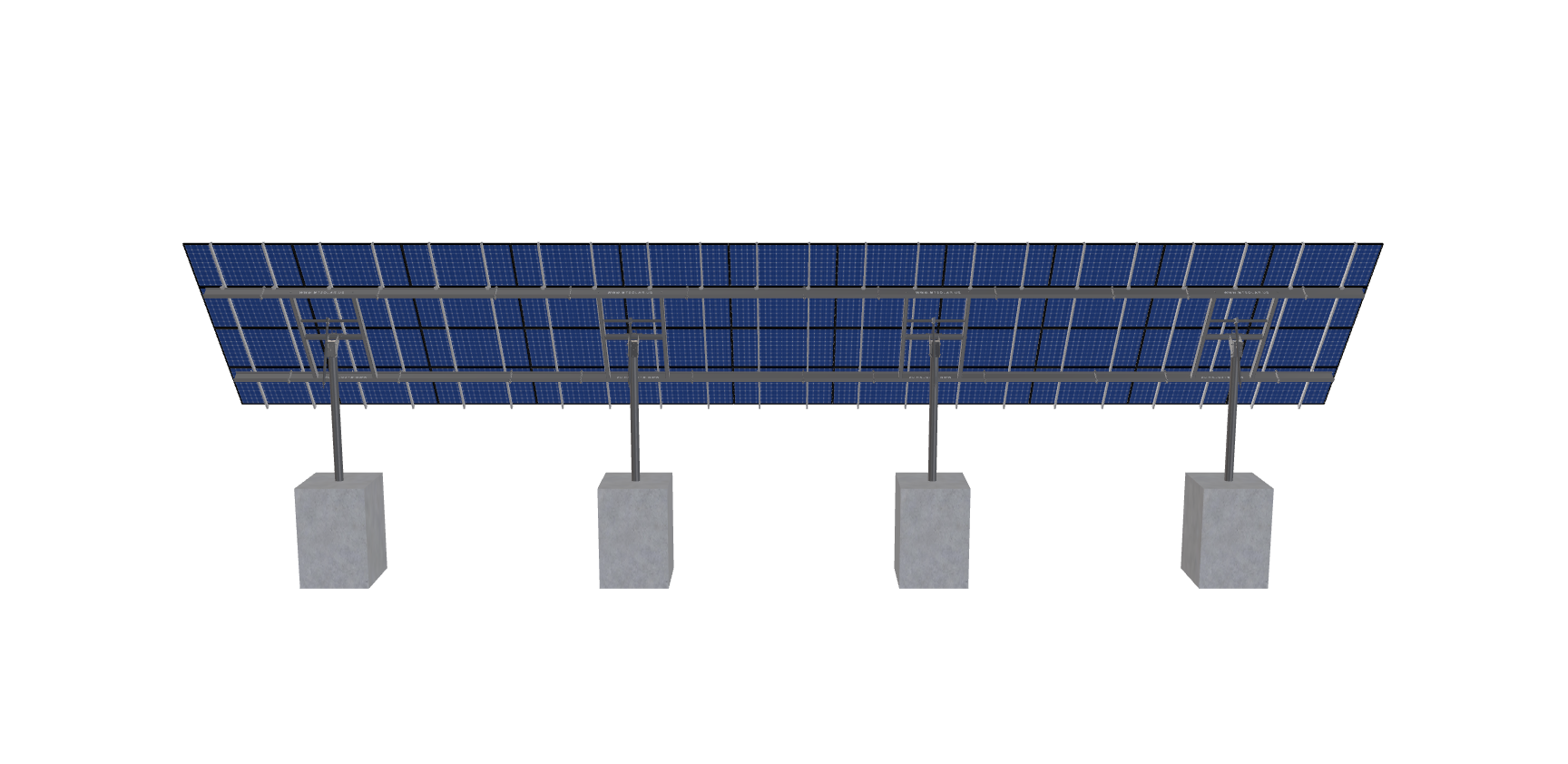

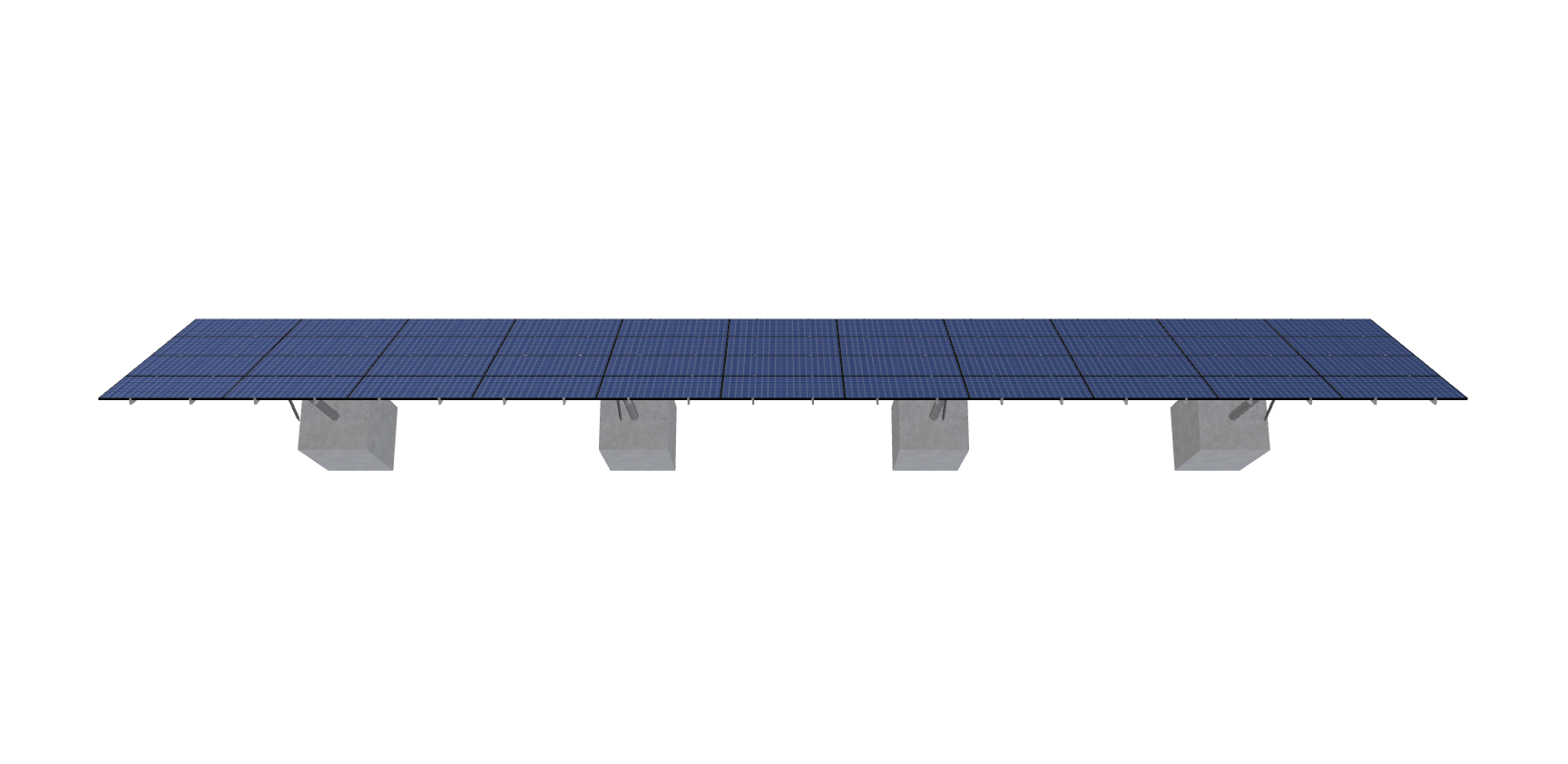

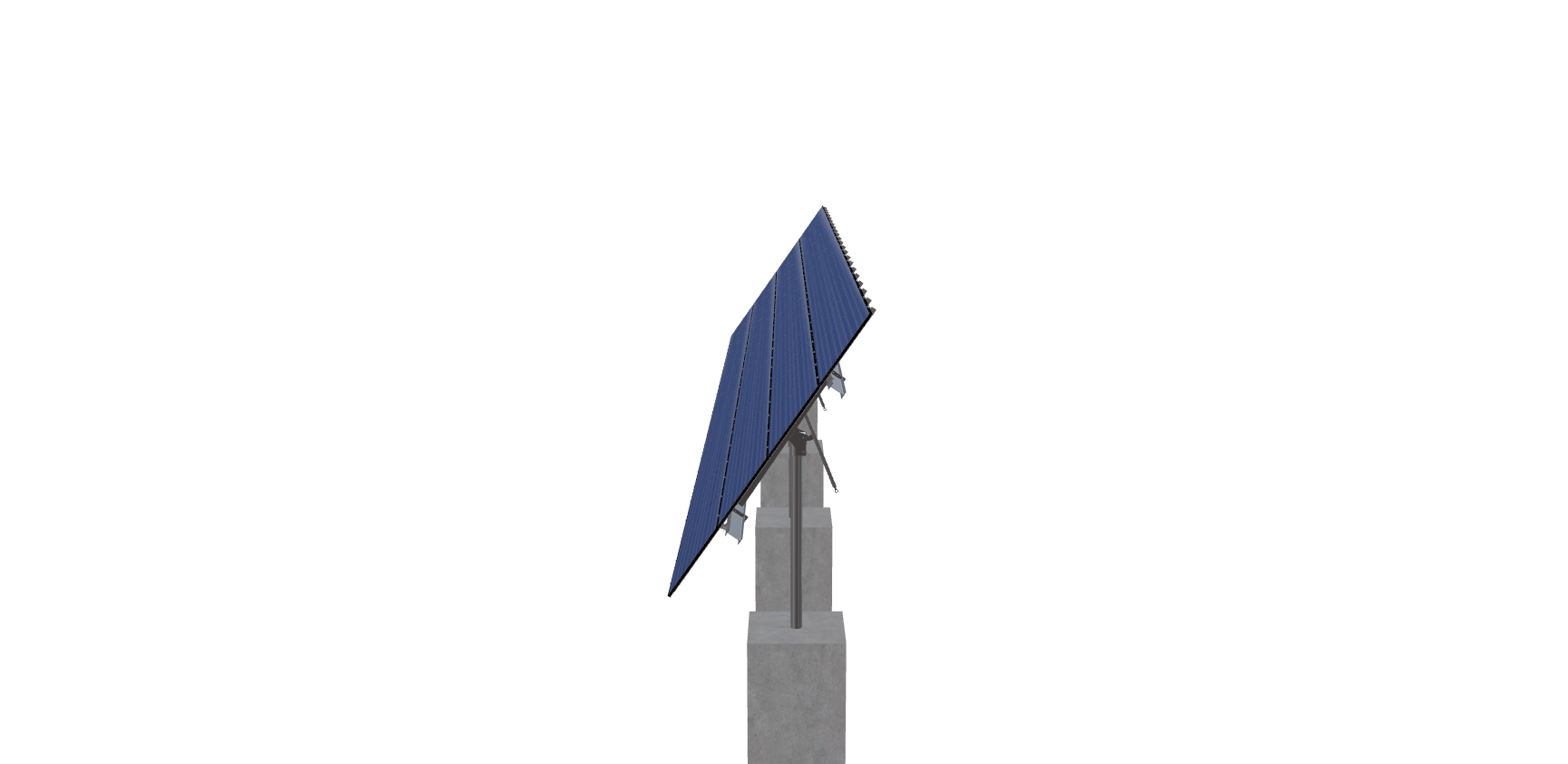

See 3D Model Here
Winthrop Heliene Mods
$17,166.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 44 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3013.68 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-45-L-4HX11W-5ED2 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.58 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 3.50 |
| NO POLES | 4.00 |
| MODULE AREA | 1128.57 |
| ARRAY WIDTH | 76.08 |
| ARRAY HEIGHT | 14.83 |
| RAIL LENGTH | 178.00 |
| MODULE LENGTH | 82.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 15.65 |
| PROJECTED PANEL HEIGHT | 12.15 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WINTHROP, HELIENE, MODS |
| SITE ADDRESS | 7831, FARM, TO, MARKET, RD, WHITEFISH, MT, 59937, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 17166.90 |
| TOTAL WEIGHT | 3013.68 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/abff9c9d-8fd8-45ce-b8f9-621015eb8a64.pdf |
|
| ID | 11210.00 |
| 3D Solar link |
