Wolfe Hyperion v3 cu

$4,721.22

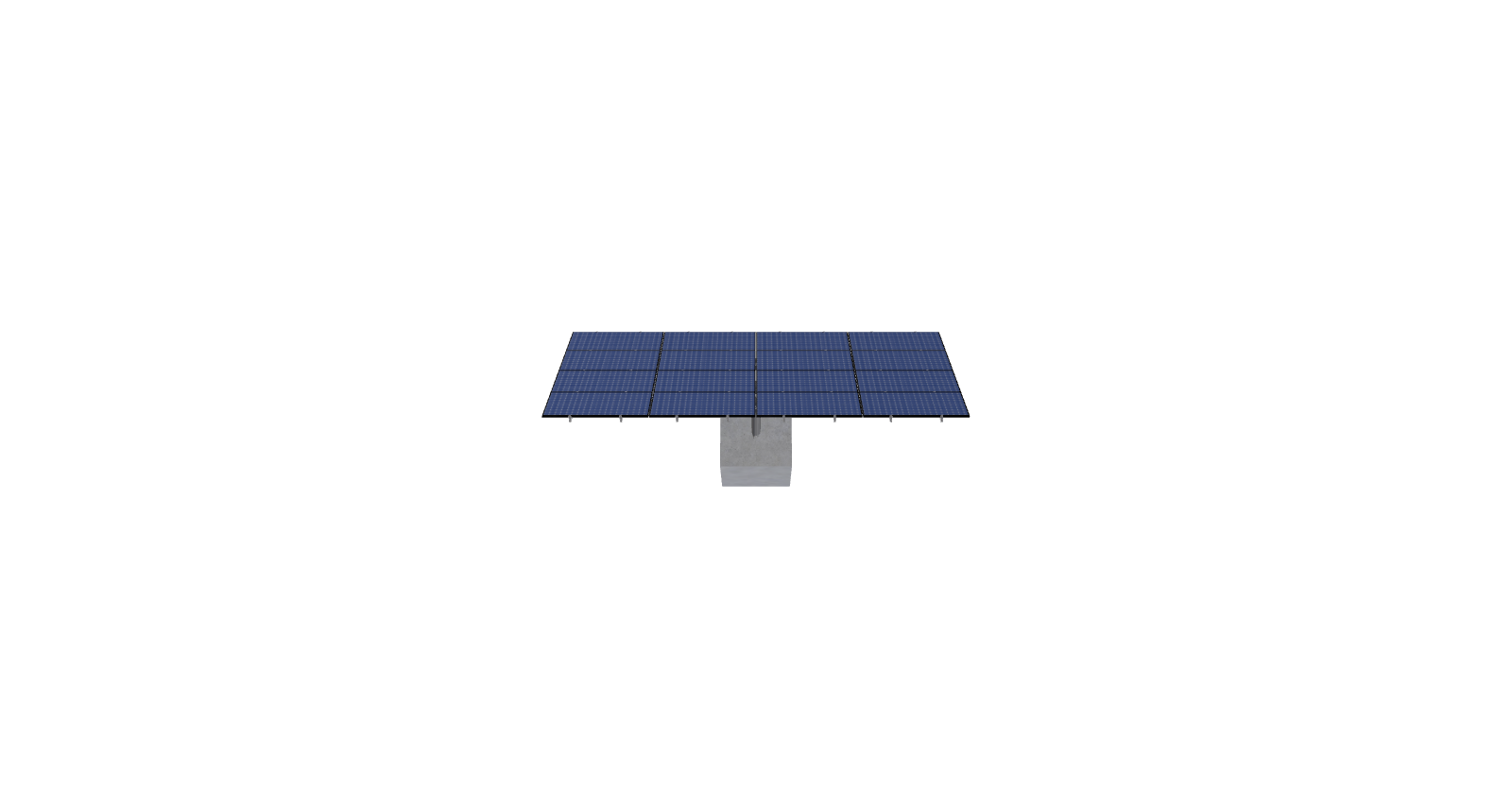

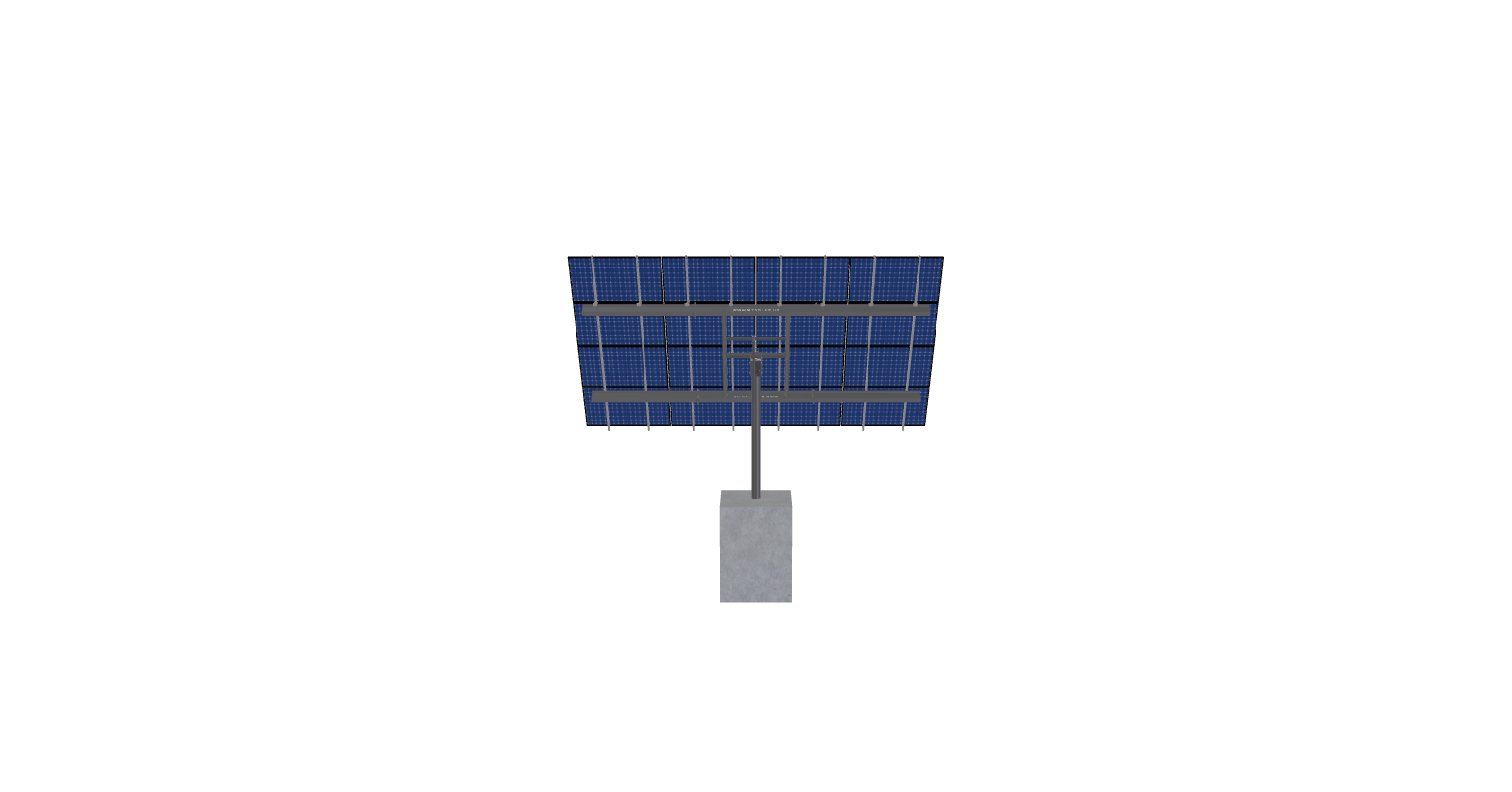

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.7 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $4,721.22
Total options:
Order total:
SKU: 1P-0-8TOP-SD-84-L-4Hx4W-4802 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.7 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 836.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-84-L-4HX4W-4802

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.17

WING SPAN

84.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

55.00

CANTILEVER

258.00

GROUND CLEARANCE

3.00

NO POLES

1.00

MODULE AREA

346.53

ARRAY WIDTH

23.00

ARRAY HEIGHT

15.07

RAIL LENGTH

180.80

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

15.27

PROJECTED PANEL HEIGHT

12.21

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

52.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

WOLFE, HYPERION, V3, CU

SITE ADDRESS

1339, WOLFE, RD, GUFFEY, CO, 80820, USA

MODULE WIDTH

44.70

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4721.22

TOTAL WEIGHT

836.38

TOTAL PALLETS

1.00
