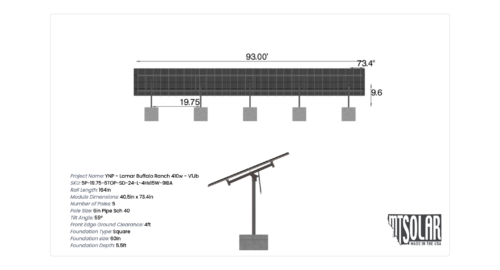

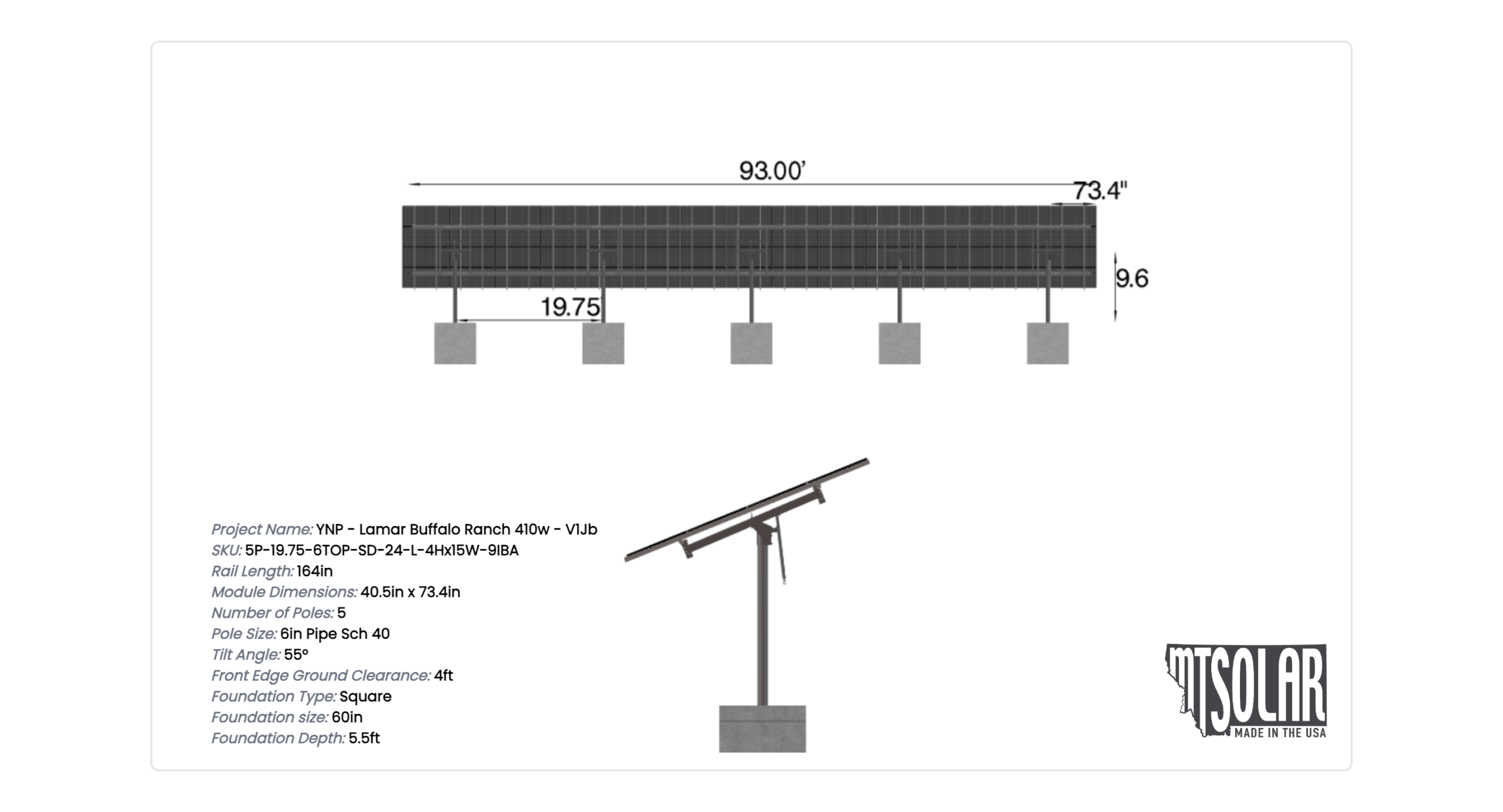

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.5 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

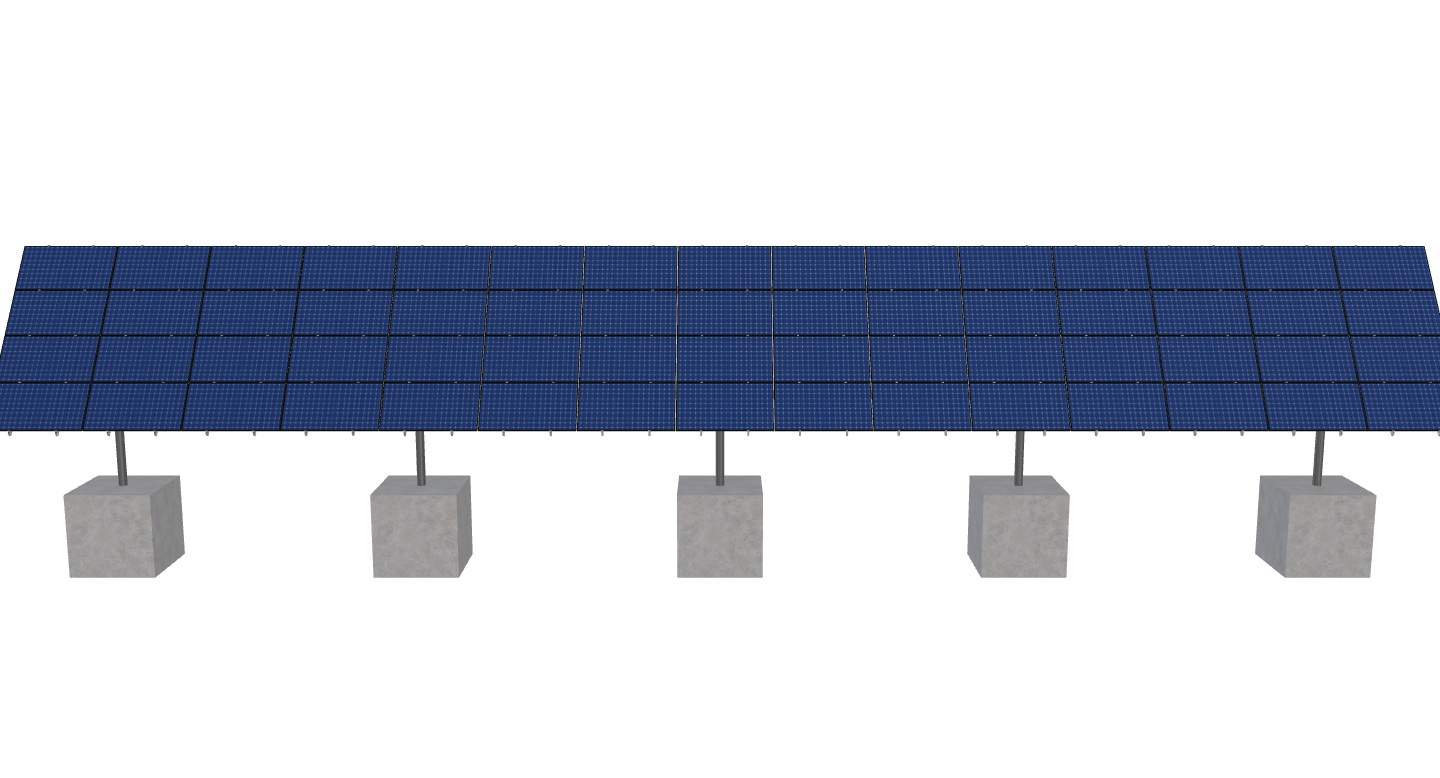

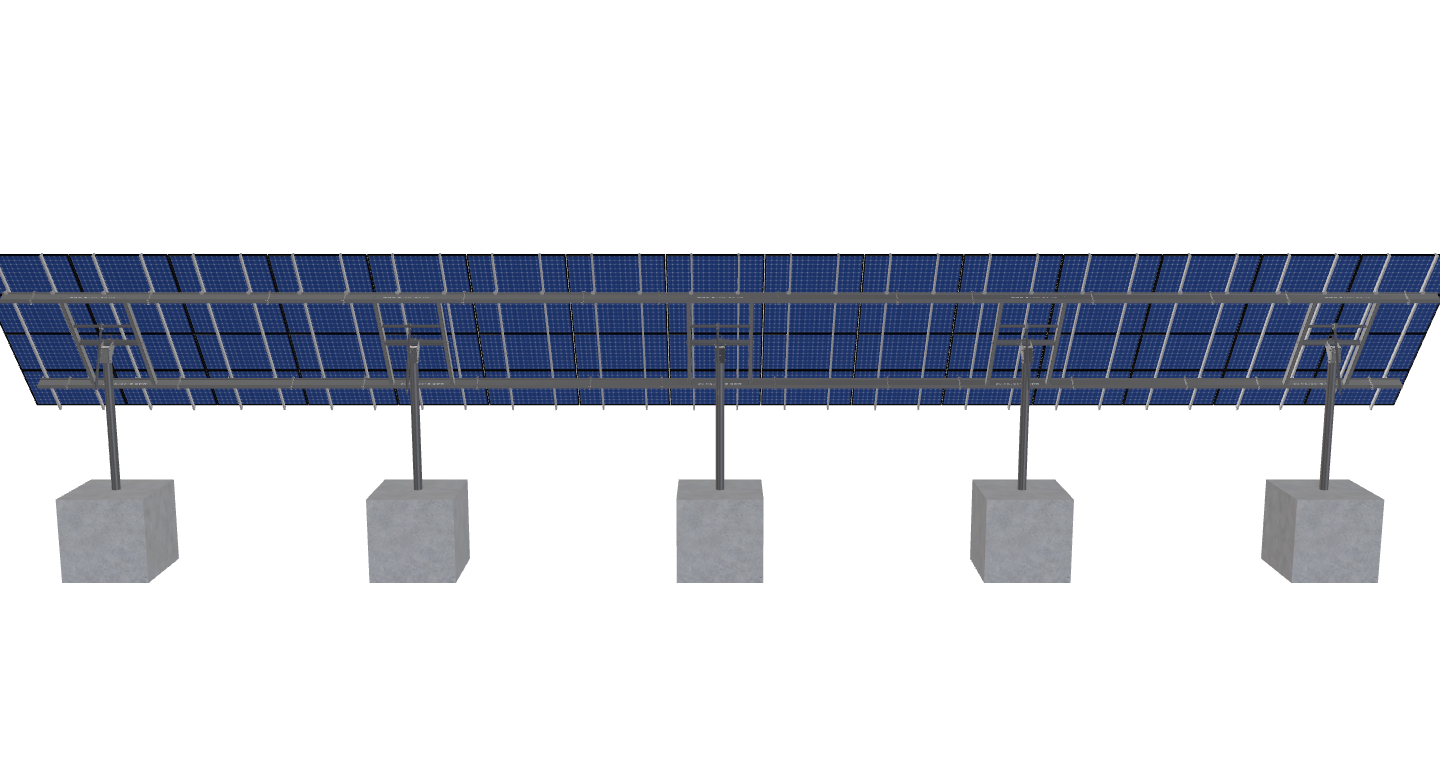

See 3D Model Here
YNP – Lamar Buffalo Ranch 410w – V1Jb
$21,863.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.5 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3693.3 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-SD-24-L-4HX15W-9IBA |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.60 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1271.00 |
| ARRAY WIDTH | 93.00 |
| ARRAY HEIGHT | 13.67 |
| RAIL LENGTH | 164.00 |
| MODULE LENGTH | 73.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 15.20 |
| PROJECTED PANEL HEIGHT | 11.20 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | YNP, -, LAMAR, BUFFALO, RANCH, 410W, -, V1JB |
| SITE ADDRESS | VQW7+6QG, FOSSIL, FOREST, WY, 82190, USA |
| MODULE WIDTH | 40.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 60.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 140.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 20822.45 |
| TOTAL WEIGHT | 3693.30 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/f9ce93e7-3b4f-45f2-a1a4-23dfca2529cf.pdf |
|
| ID | 10124.00 |
| 3D Solar link |
