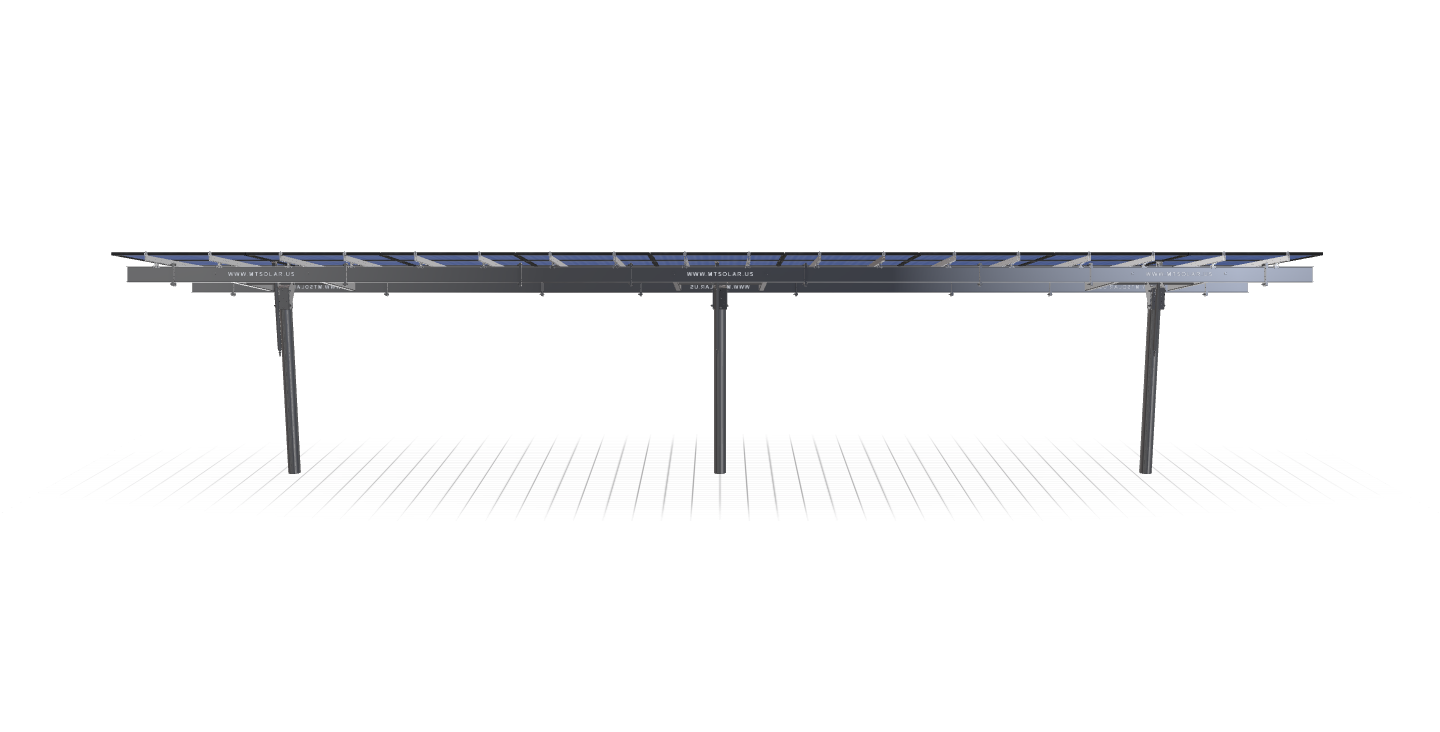

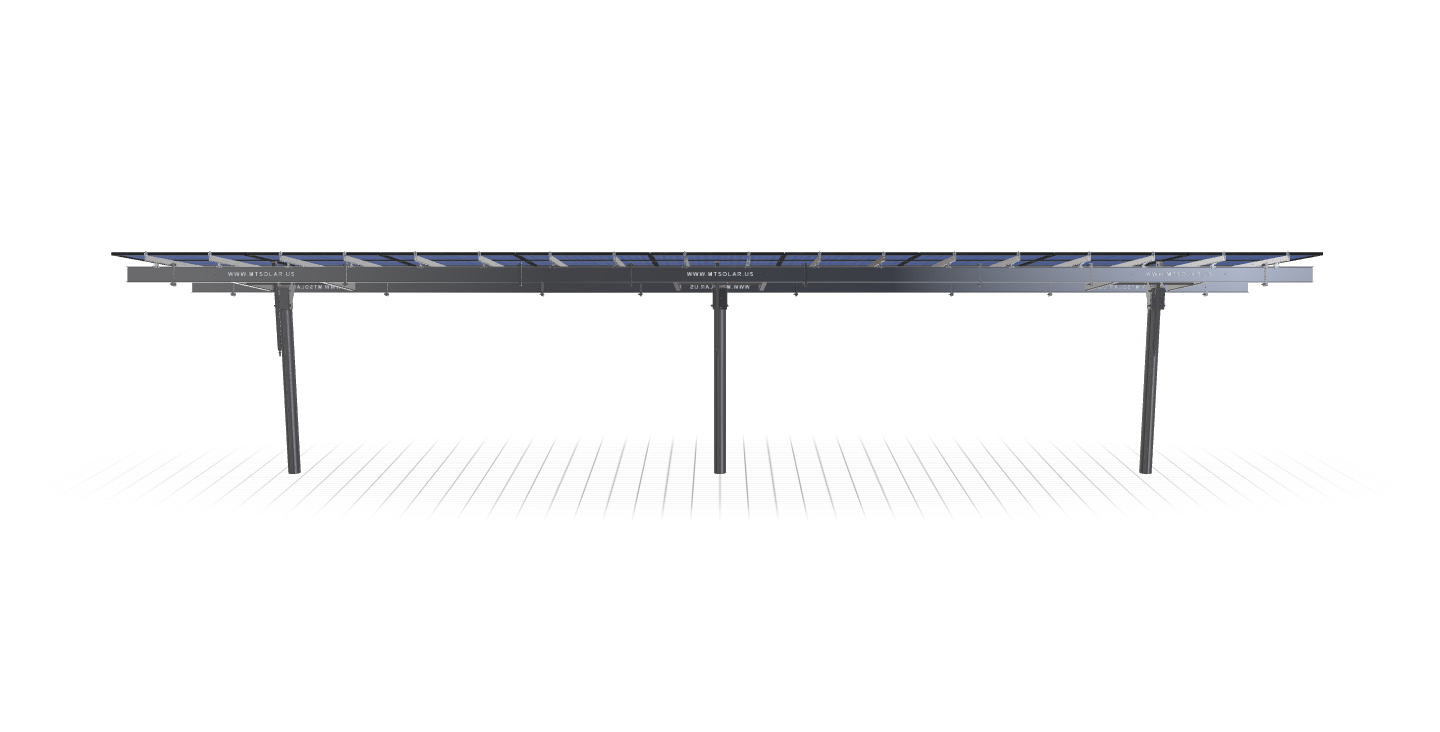

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.598 inches by 41.142 inches and an array layout of 9 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
First Presbyterian Church, Anaconda-RevA
$14,003.94
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.598 inches by 41.142 inches and an array layout of 9 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2450.01 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-HD-24-L-3HX9W-FGA7 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.90 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 535.60 |
| ARRAY WIDTH | 51.45 |
| ARRAY HEIGHT | 10.41 |
| RAIL LENGTH | 124.93 |
| MODULE LENGTH | 67.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 9.80 |
| PROJECTED PANEL HEIGHT | 1.79 |
| PROJECT ID | FIRST, PRESBYTERIAN, CHURCH, ANACONDA-REVA |
| SITE ADDRESS | 501-511, E, 4TH, ST, ANACONDA, MT, 59711, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 46.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 13337.09 |
| TOTAL WEIGHT | 2450.01 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/0809ca8a-51e6-4eb5-b0b0-006ffe62e0f3.pdf |
|
| ID | 969.00 |
| 3D Solar link |
